PH9-1800-240
Preheat Start- Output Power
- 240W
- Rated Power
- 240W
- Output Power Range
- 150-250W
- Number of Lamps
- 1 pc
- Output Features
- Constant Current / EOL protection
- Compatible Lamp Models
- GPHA1554T6LNNI200/107XLTUV240WXPTGIA240GPHA1000T6L

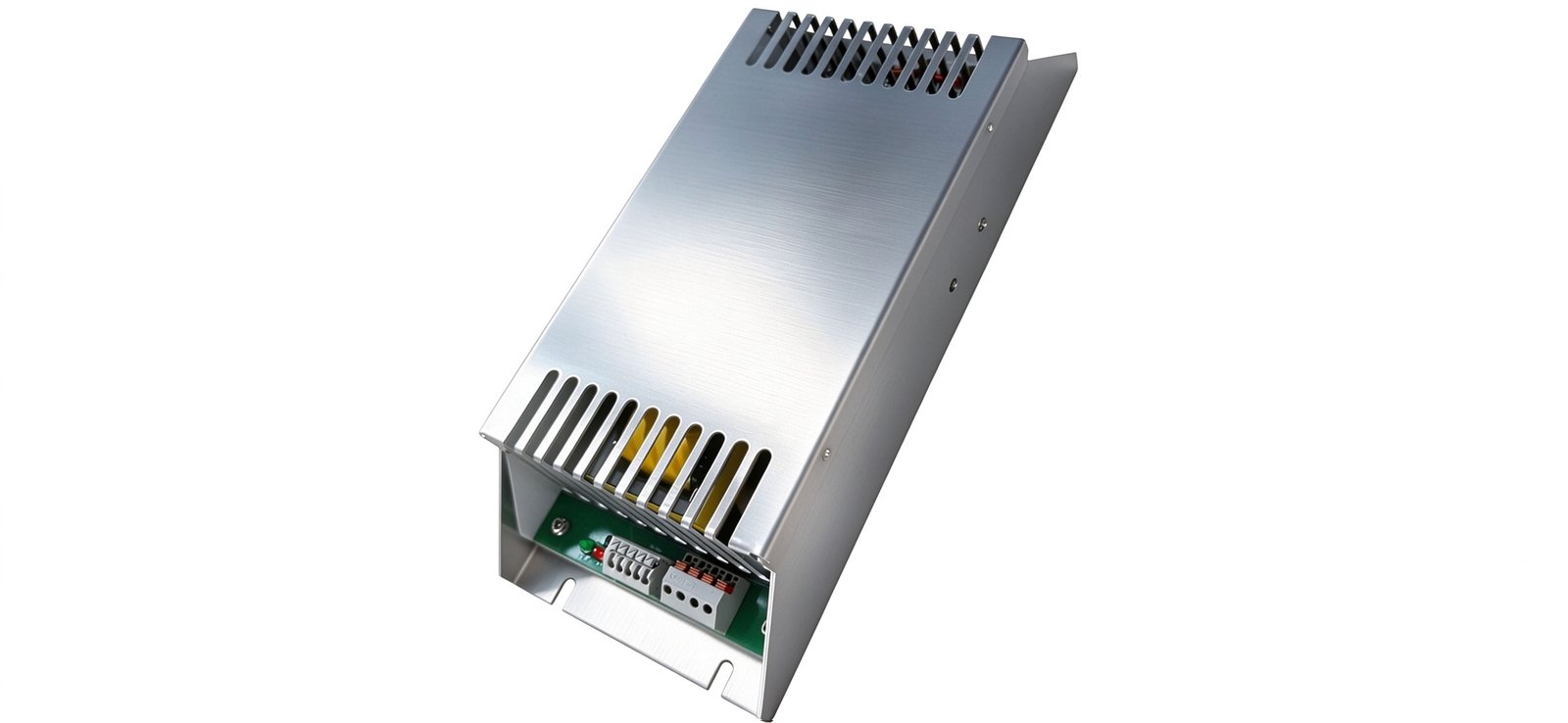

No.9 (60-400W)
UV Electronic Ballast ·11 Models
Series Overview
No.9 (60-400W) Series UV Electronic Ballasts are designed for UV germicidal lamps. They deliver high-frequency, constant-power output across a wide input-voltage range and feature built-in intelligent protection. The specifications below apply to the entire series; see the table below for model-specific details.
Output Power Range
60-400W
Dimensions
250 × 108 × 56 mm
Detailed Specifications by Product Series

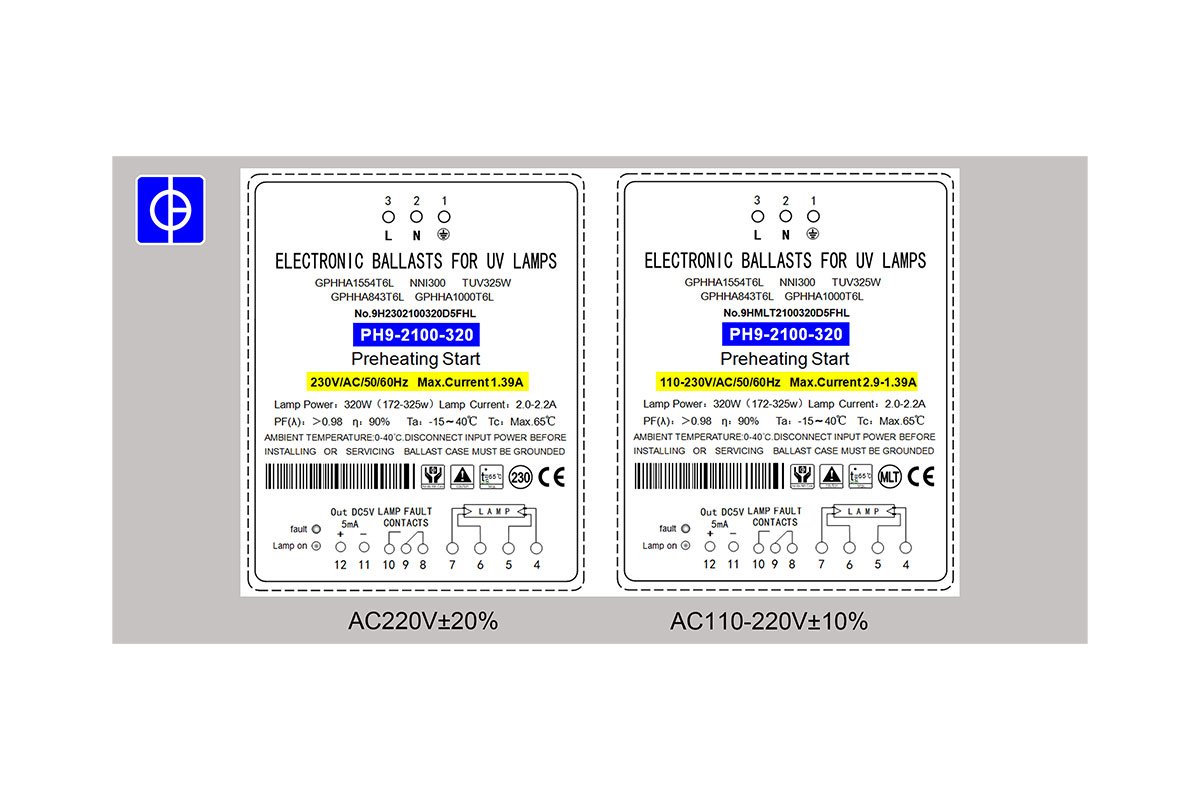

PH9-2100-320
Preheat Start- Output Power
- 320W
- Rated Power
- 320W
- Output Power Range
- 172-325W
- Number of Lamps
- 1 pc
- Output Features
- Constant Current / EOL protection
- Compatible Lamp Models
- GPHHA1554T6L，NNI300TUV325W，GPHHA843T6L，GPHHA1000T6L
PH9-3000-330
Preheat Start- Output Power
- 330W
- Rated Power
- 330W
- Output Power Range
- 220-350W
- Number of Lamps
- 1 pc
- Output Features
- Constant Current / EOL protection
- Compatible Lamp Models
- GPHHA1200T8L，TUV250WXPT
PH9-3800-400
Preheat Start- Output Power
- 400W
- Rated Power
- 400W
- Output Power Range
- 270-400W
- Number of Lamps
- 1 pc
- Output Features
- Constant Current / EOL protection
- Compatible Lamp Models
- GPHHA1515T9L，GPHHA1515T10L，GXA1500T10L，GPHHA1500T10L，NNI400/147XL，TUV330WXPT
PH9-1500-220
Preheat Start- Output Power
- 220W
- Rated Power
- 220W
- Output Power Range
- 80-220W
- Number of Lamps
- 1 pcs
- Output Features
- Constant Current / EOL protection
- Compatible Lamp Models
- NIQ120/80NIQ120/8NIQ75/34NNI120/79NNI120/80NNI120/84NNI80/36UTUV115/80W/T5
PH9-800-2-150
Preheat Start- Output Power
- 150W
- Rated Power
- 150W
- Output Power Range
- 2*72-155W
- Number of Lamps
- 2 pcs
- Output Features
- Constant Current / EOL protection
- Compatible Lamp Models
- GPH793T5L/HOGPH846T5L,HOGPH893T5L,HOGPH1000T5L,HOGPH1148T5L,HOGPH1554T5L,HOTUV75T5,HOGHO36T5L,GHO64T5L,TUV95WHOPL-LTL100W

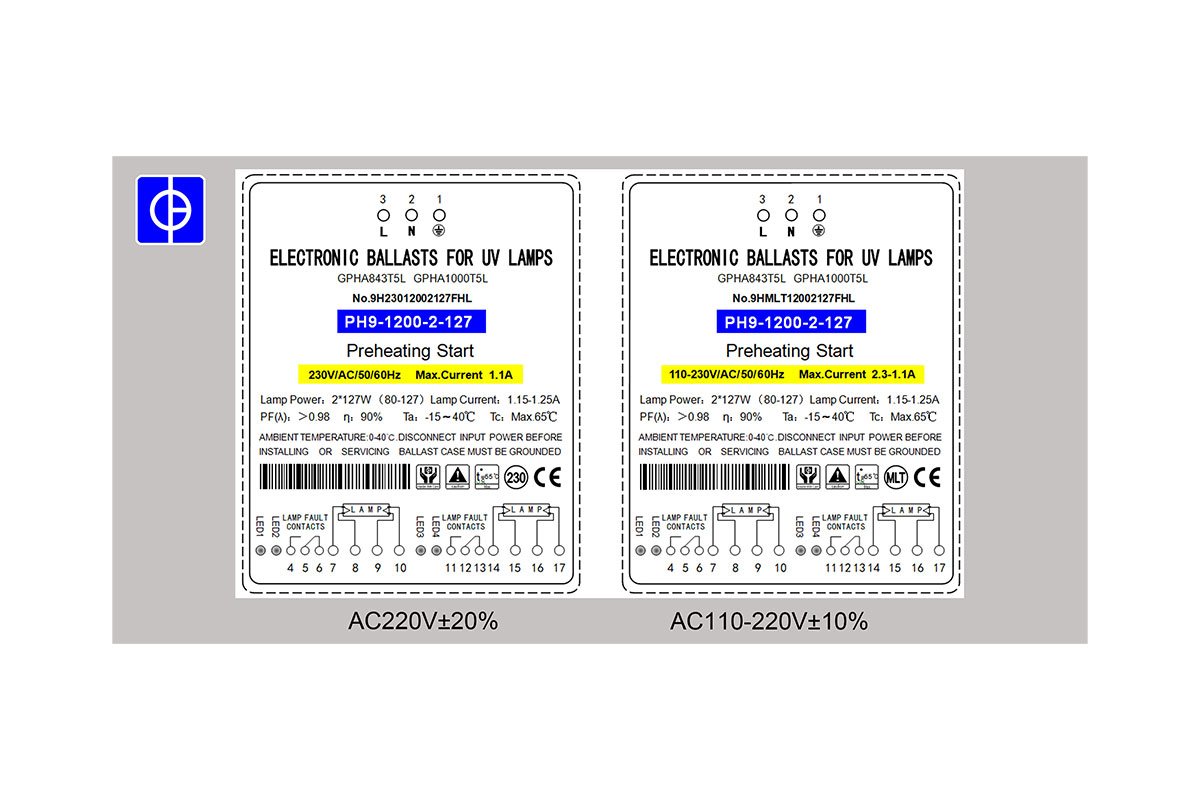

PH9-1200-2-127
Preheat Start- Output Power
- 127W
- Rated Power
- 127W
- Output Power Range
- 2*80-127W
- Number of Lamps
- 2 pcs
- Output Features
- Constant Current / EOL protection
- Compatible Lamp Models
- GPHA843T5L,GPHA1000T5L

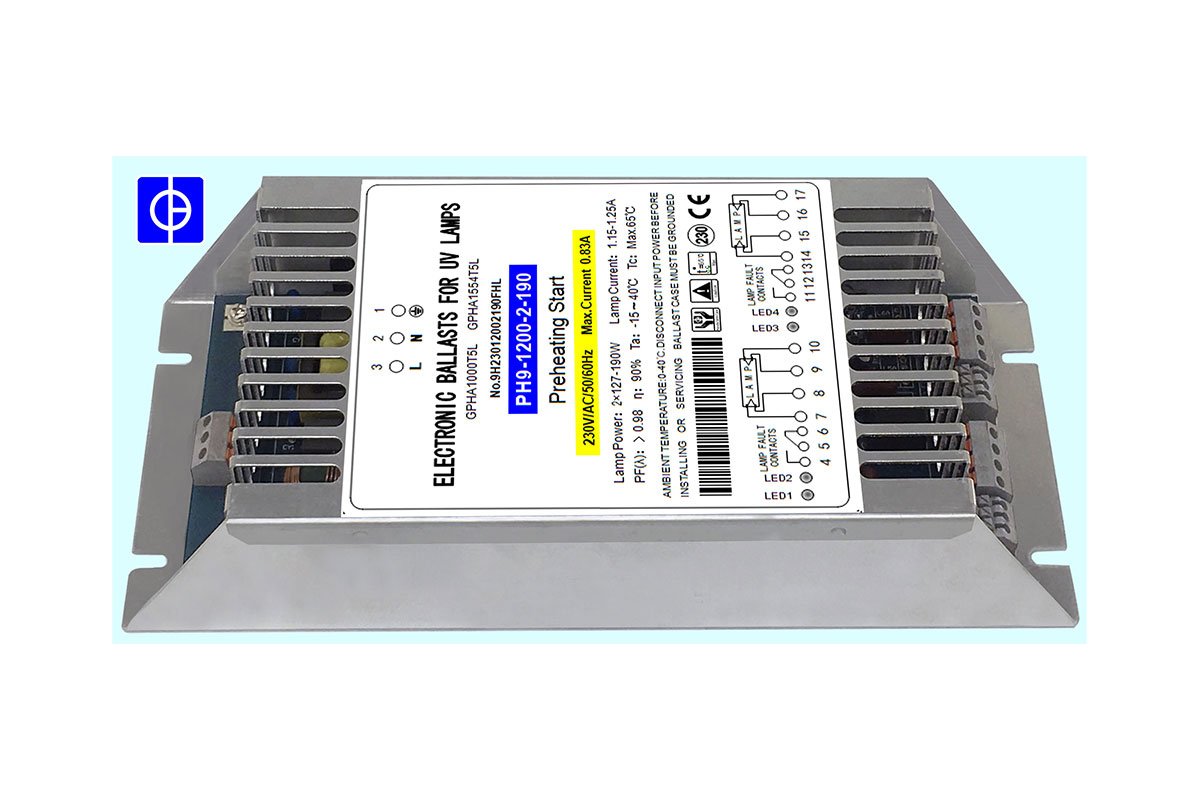

PH9-1200-2-190
Preheat Start- Output Power
- 190W
- Rated Power
- 190W
- Output Power Range
- 2*127-190W
- Number of Lamps
- 2 pcs
- Output Features
- Constant Current / EOL protection
- Compatible Lamp Models
- GPHA1000T5LGPHA1554T5L

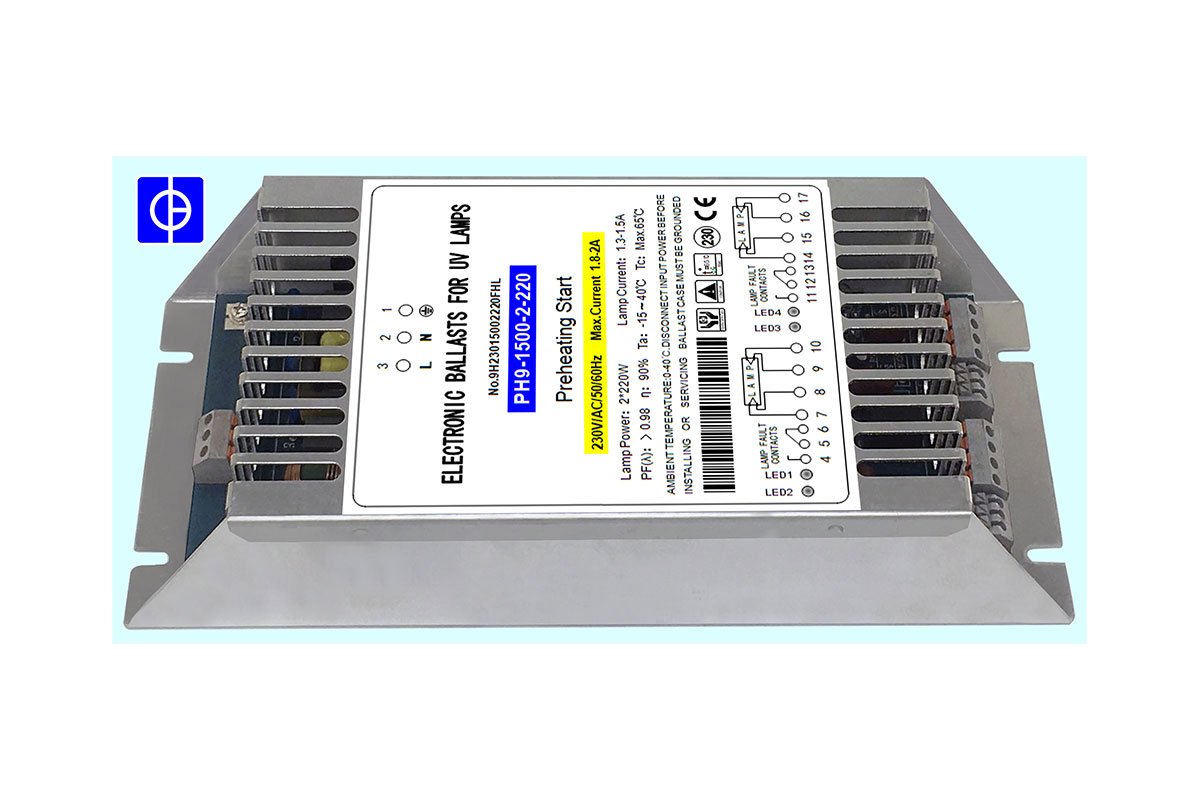

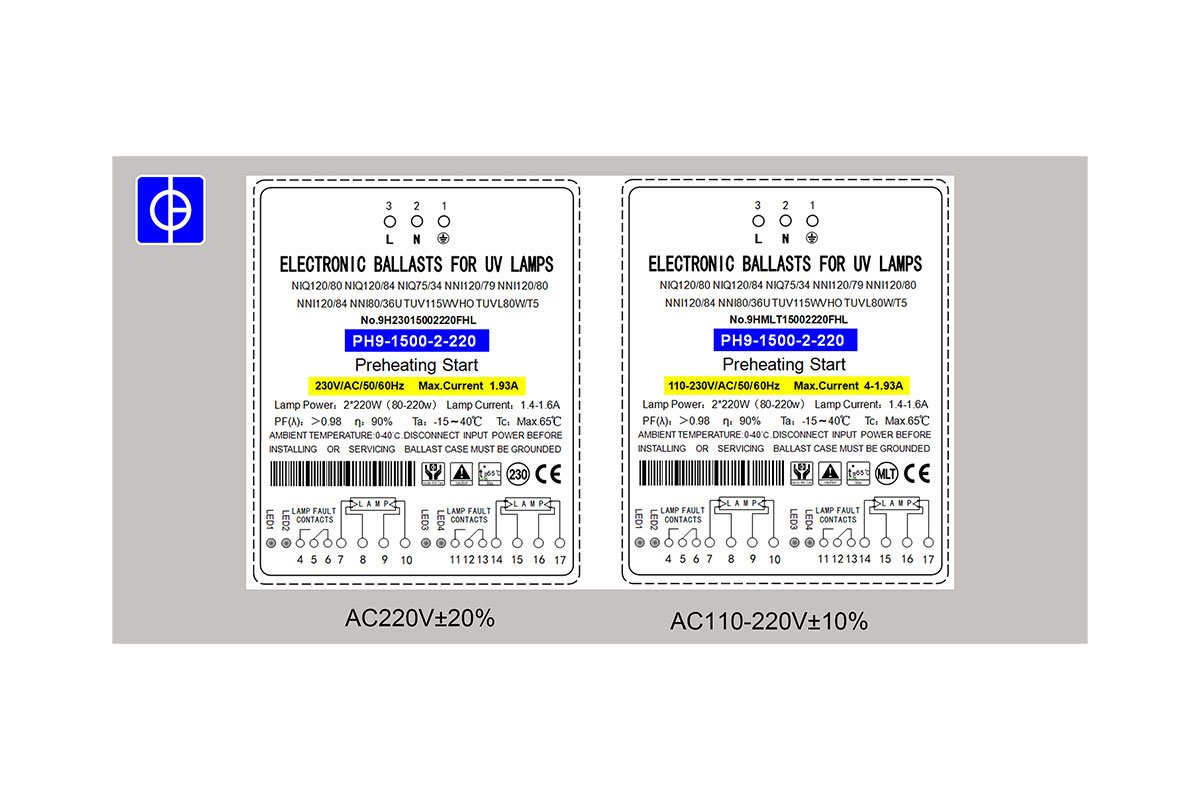

PH9-1500-2-220
Preheat Start- Output Power
- 220W
- Rated Power
- 220W
- Output Power Range
- 2*80-220W
- Number of Lamps
- 2 pcs
- Output Features
- Constant Current / EOL protection
- Compatible Lamp Models
- NIQ120/80NIQ120/8NIQ75/34NNI120/79NNI120/80NNI120/84NNI80/36UTUV115/80W/T5

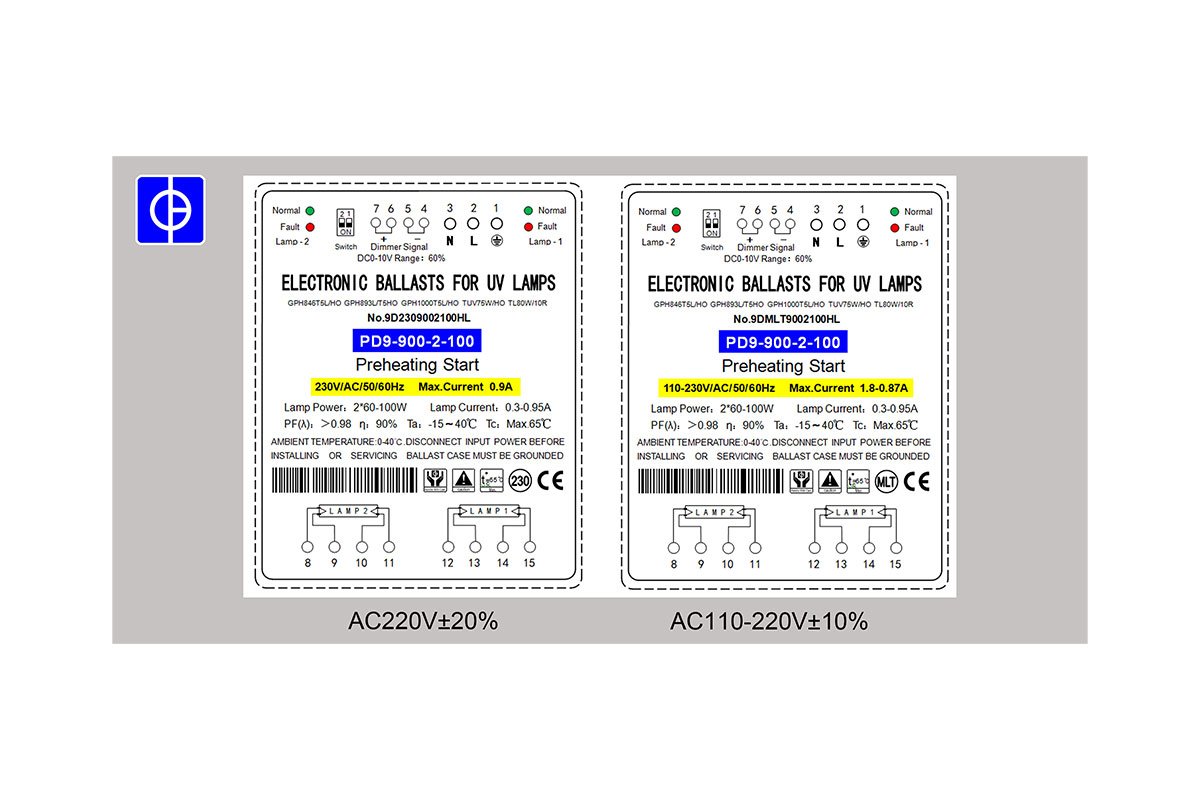

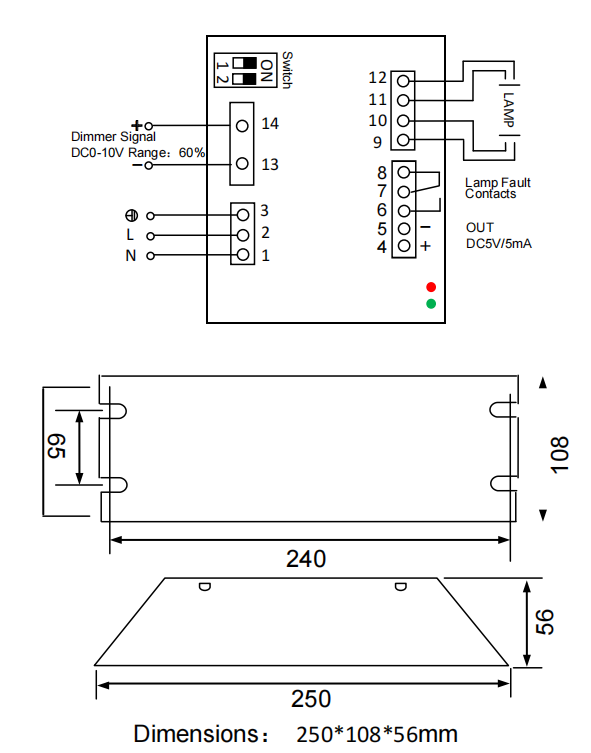

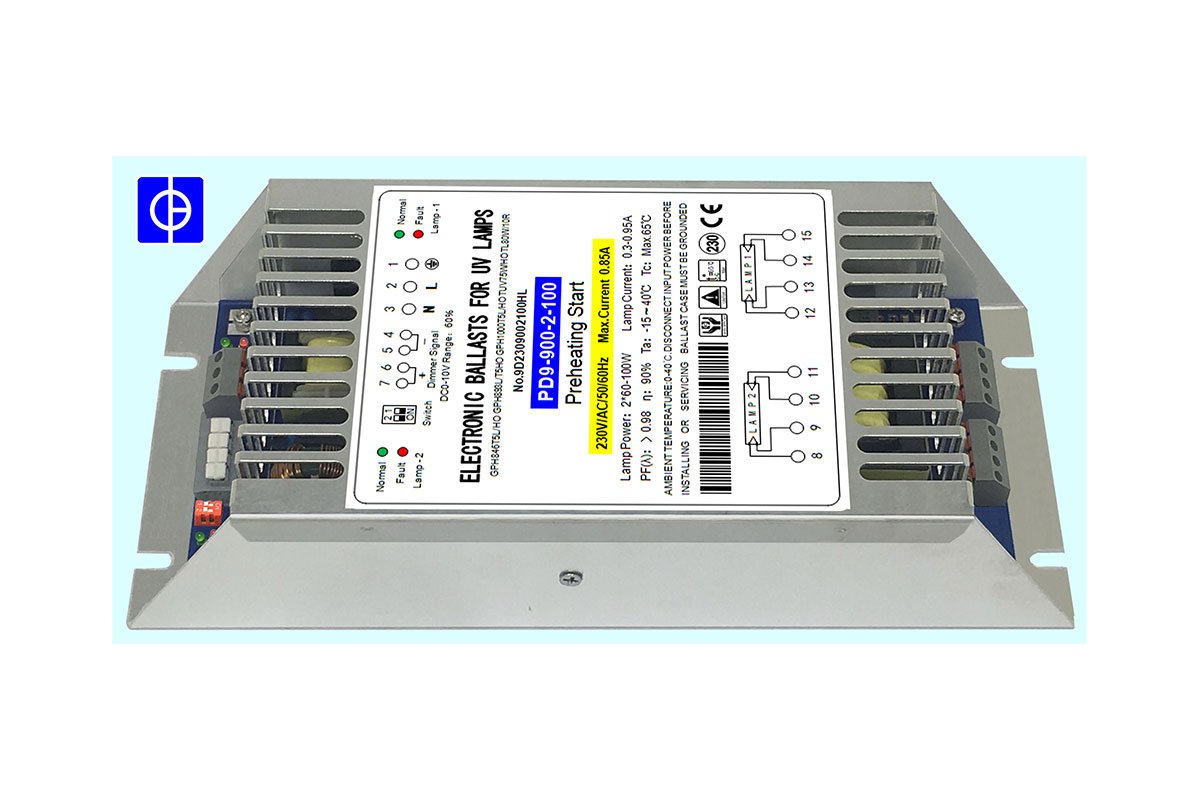

PD9-900-2-100
Preheat Start- Output Power
- 100W
- Rated Power
- 100W
- Output Power Range
- 2*60-100W
- Number of Lamps
- 2 pcs
- Output Features
- Active PFC / Dimmable / EOL protection
- Compatible Lamp Models
- GPH846T5L/HO, GPH893T5L/HO, GPH1000T5L/HO, TUV75W/HO, TL80W/10R

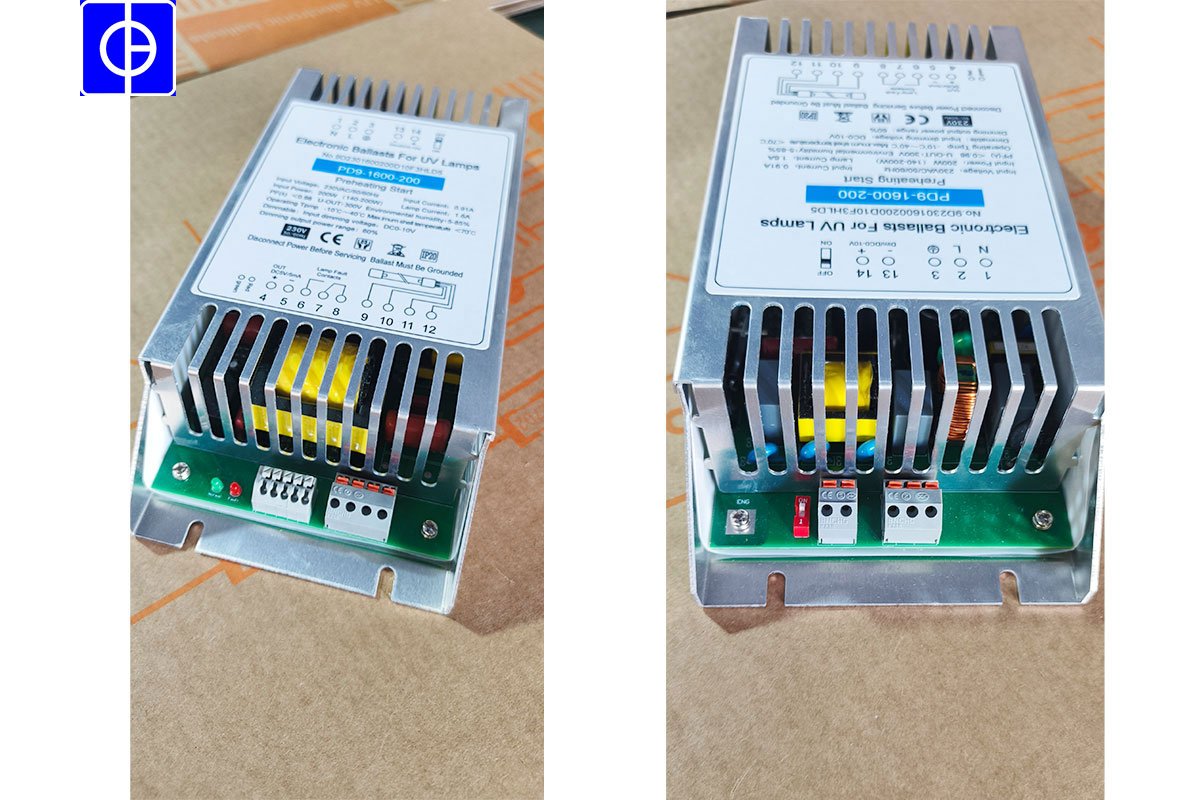

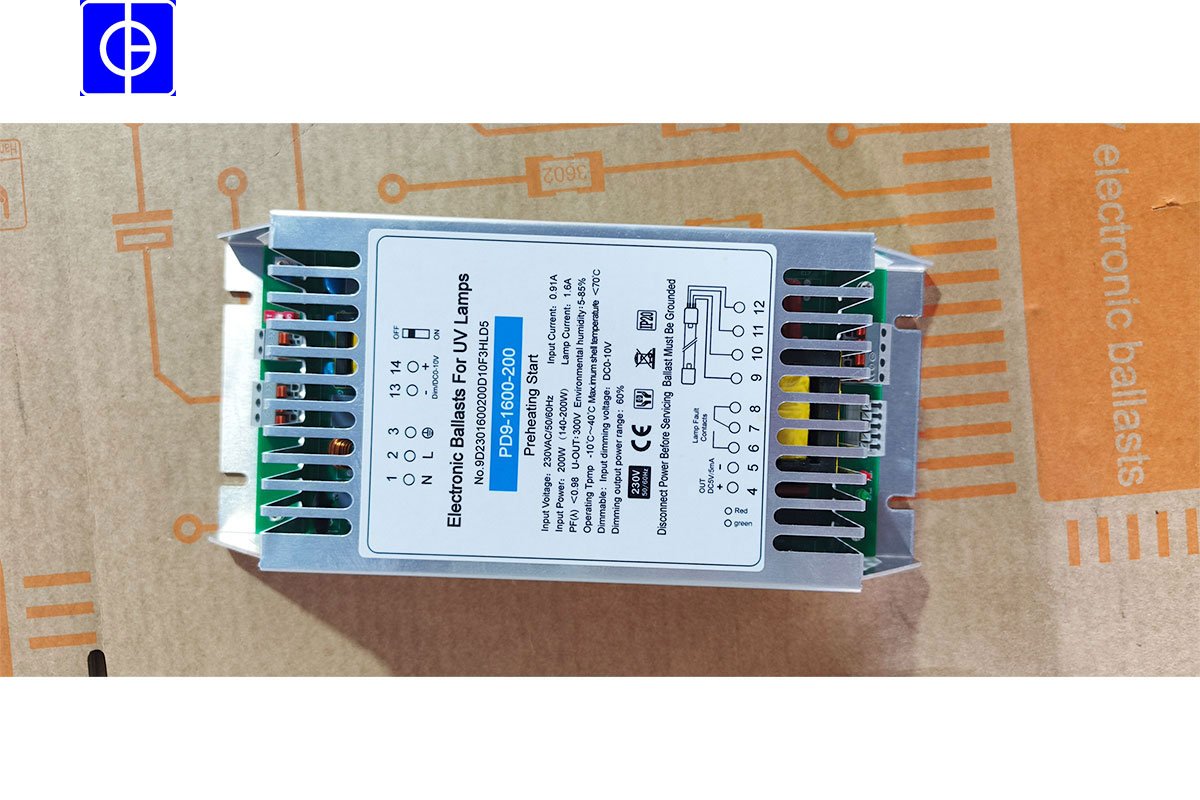

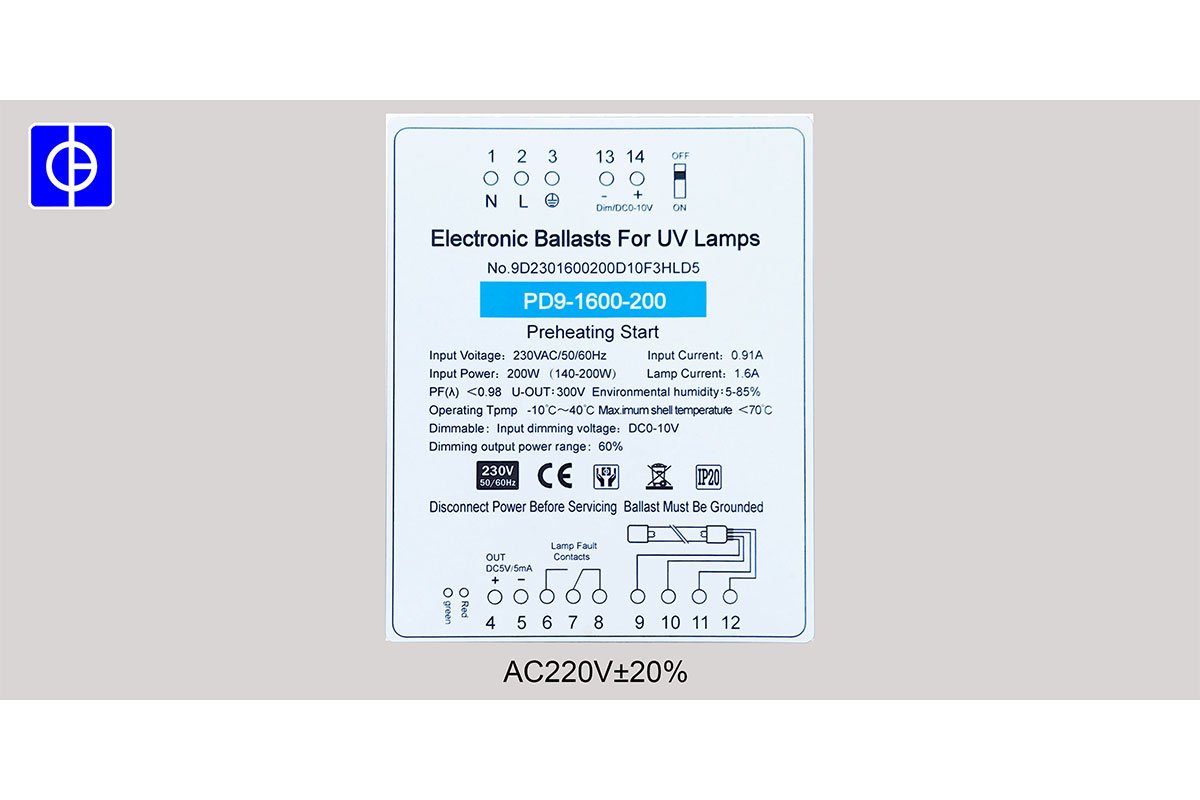

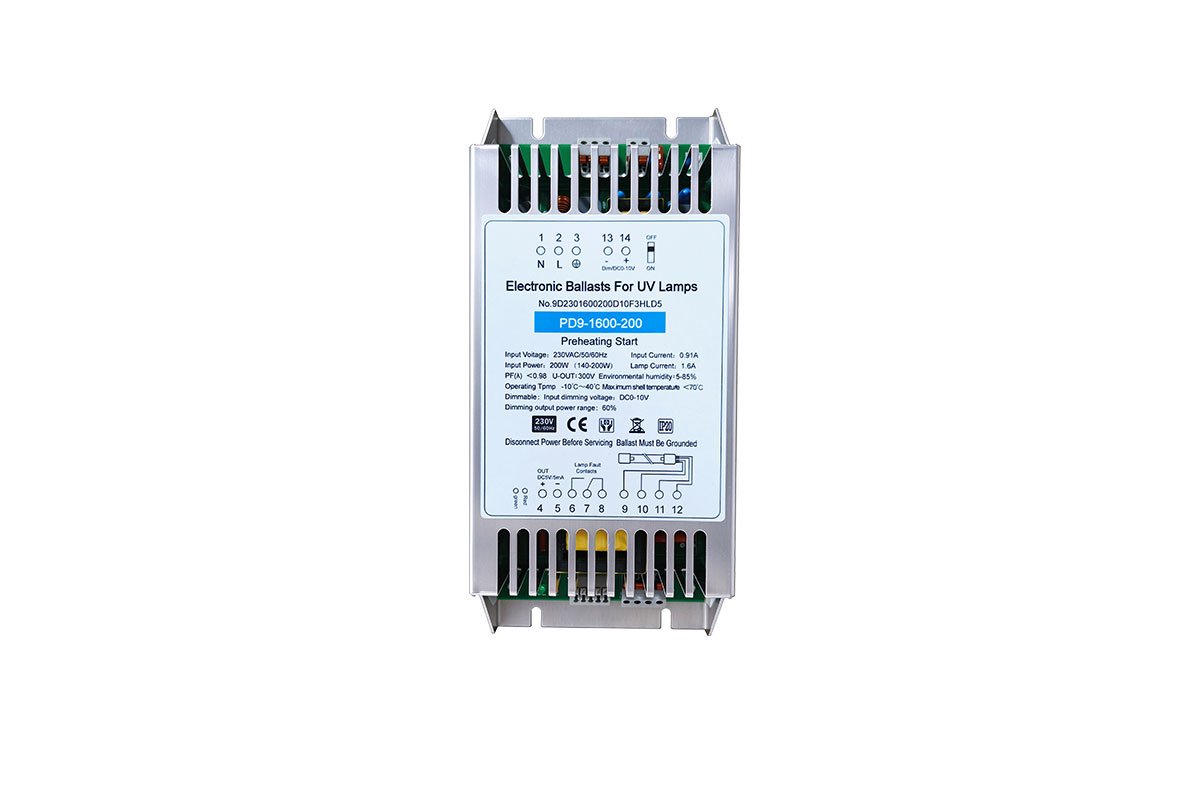

PD9-1600-200
Preheat Start- Output Power
- 200W
- Rated Power
- 200W
- Output Power Range
- 120-200W
- Number of Lamps
- 1 pc
- Output Features
- Active PFC / Dimmable / EOL protection
- Compatible Lamp Models
- GPH846T5L/HO, GPH893T5L/HO, GPH1000T5L/HO, TUV75W/HO, TL80W/10R
* Click "View Details" to scroll to the full specification sheet for that model. Detailed parameters and PDFs are replaceable placeholder content and can be updated with official datasheets later.
Full Model Specifications

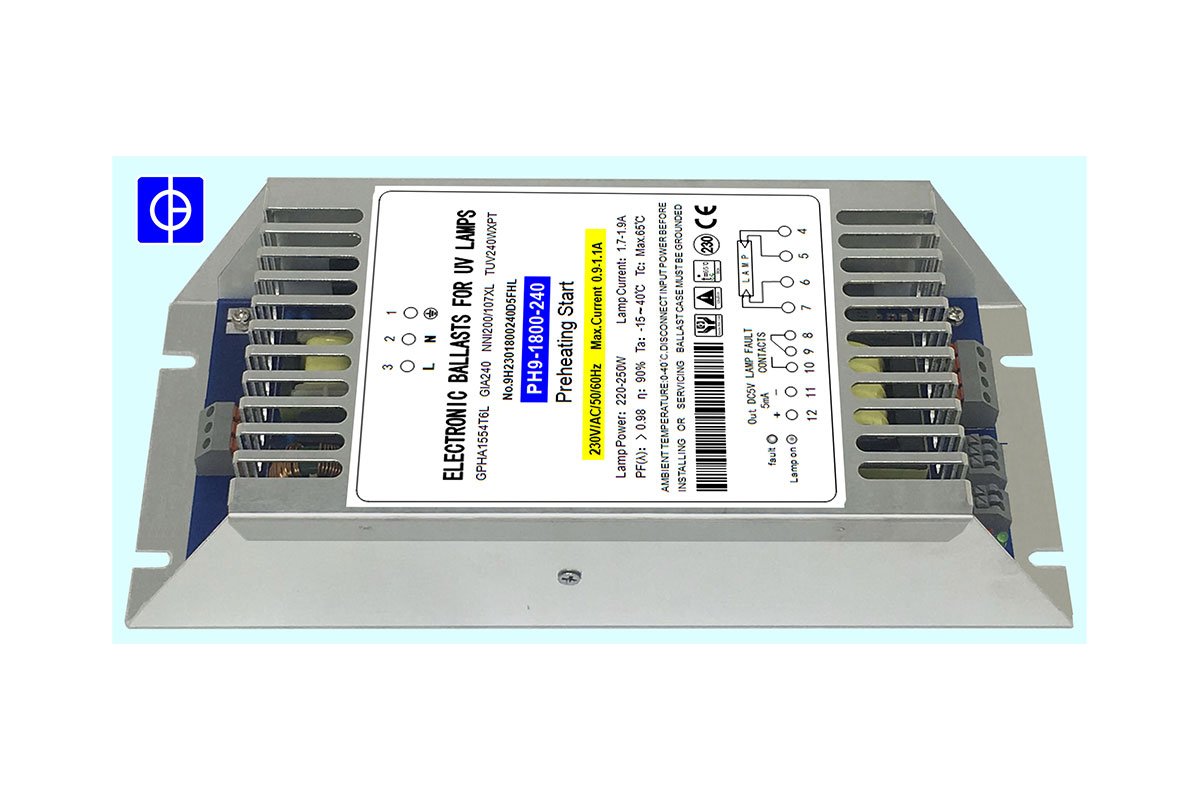

Product Model
PH9-1800-240
- Input Current:
- 1.05A@230V2.18A@110V
- Dimming Control:
- N/A (non-dimmable)
- Auxiliary Output:
- Green/red LED status indication (green: normal operation; red: fault); 5 VDC/5 mA output for LED indication; dry-contact relay output for remote status feedback and control.
- Output Features:
- Constant Current, overvoltage protection; overcurrent protection; lamp leakage detection; filament open-circuit protection; cross-wiring protection; end-of-life (EOL) Protection
- Standards Compliance:
- IP64; CE certified
- Humidity:
- 5-85%
- Housing Construction:
- Aluminum housing
- Connection Method:
- European-Style Terminal Block; Ballast-to-Lamp Distance: < 5 m
- Tare Weight (T.W.):
- 0.6kg
- Compatible Lamp Models:
- GPHA1554T6LNNI200/107XLTUV240WXPTGIA240GPHA1000T6L
- Applications:
- Wastewater treatment, water purification, exhaust-gas treatment, air purification, printing, pharmaceuticals, medical care, food processing, aquaculture, etc. International Sales & Export: Wenzhou Chaoneng Water Treatment Equipment Co., Ltd. — Yueqing Science & Technology Incubation and Entrepreneurship Center (National-Level Technology Business Incubator), No. 261, Wei 17th Road, Yueqing Economic Development Zone, Yueqing, Wenzhou, Zhejiang, China. Tel.: 0577-6266 6115. Mobile/WeChat/WhatsApp: +86 186 1227 8922. Email: chen@chaonenguv.com. Manufacturer: Beijing Haoben Electronic Technology Co., Ltd. — Building 3, No. 30 Shixing Street, Shijingshan Park, Zhongguancun Science Park, Beijing, China. Tel.: 010 6883 7150.

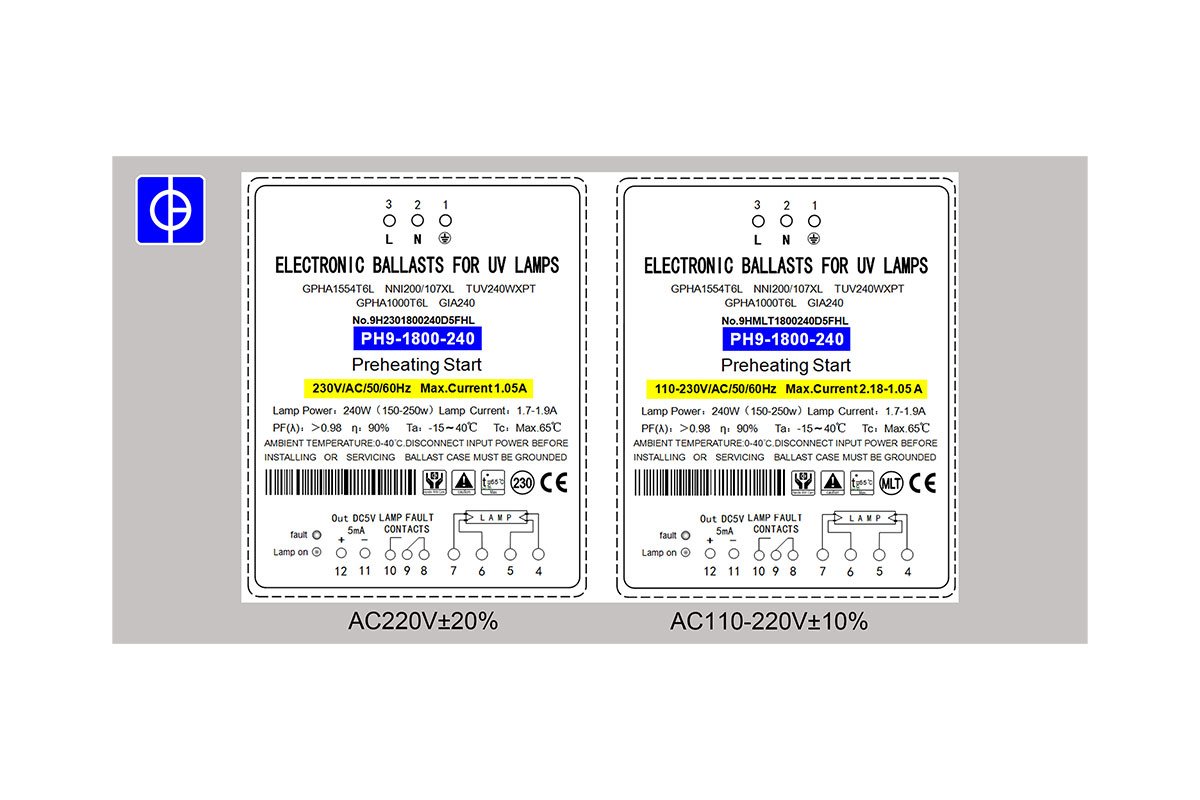

Product Model:PH9-1800-240（230）
Input Voltage:AC220V±20%
Ordering Code:9H2301800240D5FHL
Product Model:PH9-1800-240（MLT）
Input Voltage:AC110-220±10%
Ordering Code:9HMLT1800240D5FHL
Starting Mode:Preheat Start, Starting Time 8-10S
Power Frequency:50/60Hz
Input Features:Lightning protection; PF≥0.98; Efficiency (η): 90%THD＜10; CCF＜1.7
Output Power:240W
Dimming Range:150-250W
Number of Lamps:1 pc
Output Current:1800mA
Output Current Range:1750-1850mA
Ambient Temperature:-10°C~40°C
Maximum Enclosure Temperature (TC):＜70°C

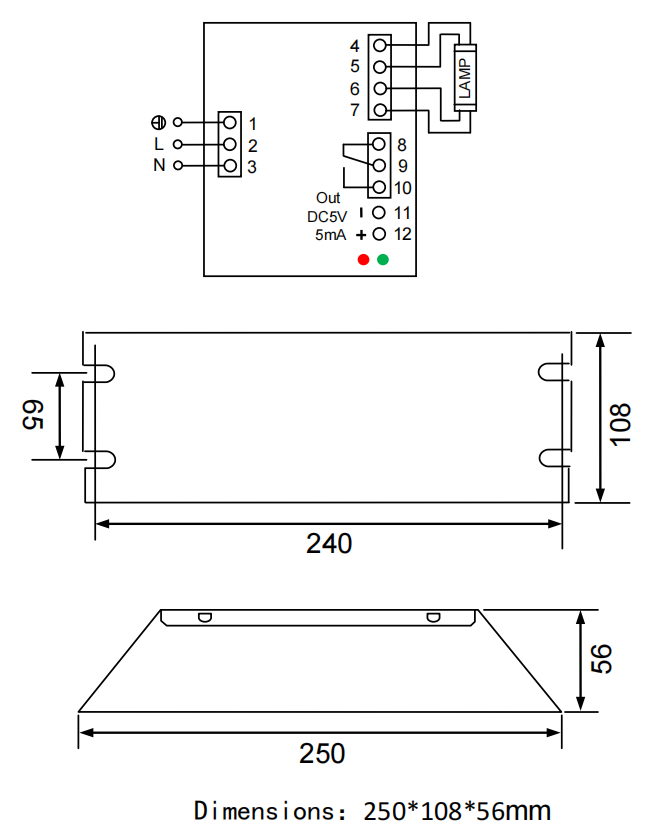

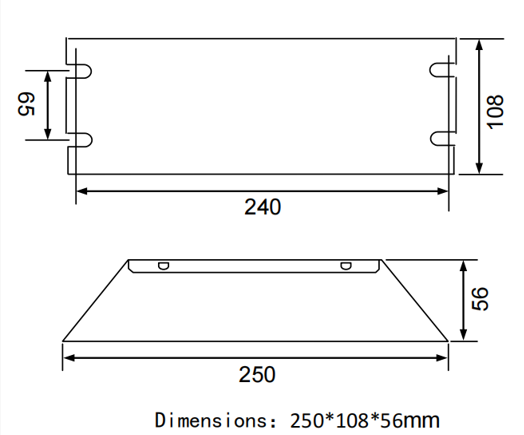

Housing Dimensions:250*108*56mm
Mounting Hole Spacing:240/65mm
Outer Carton Size:605*270*145mm
Net Weight per Unit:0.95KG
Quantity per Carton:10pcs
Gross Weight per Carton:10KG

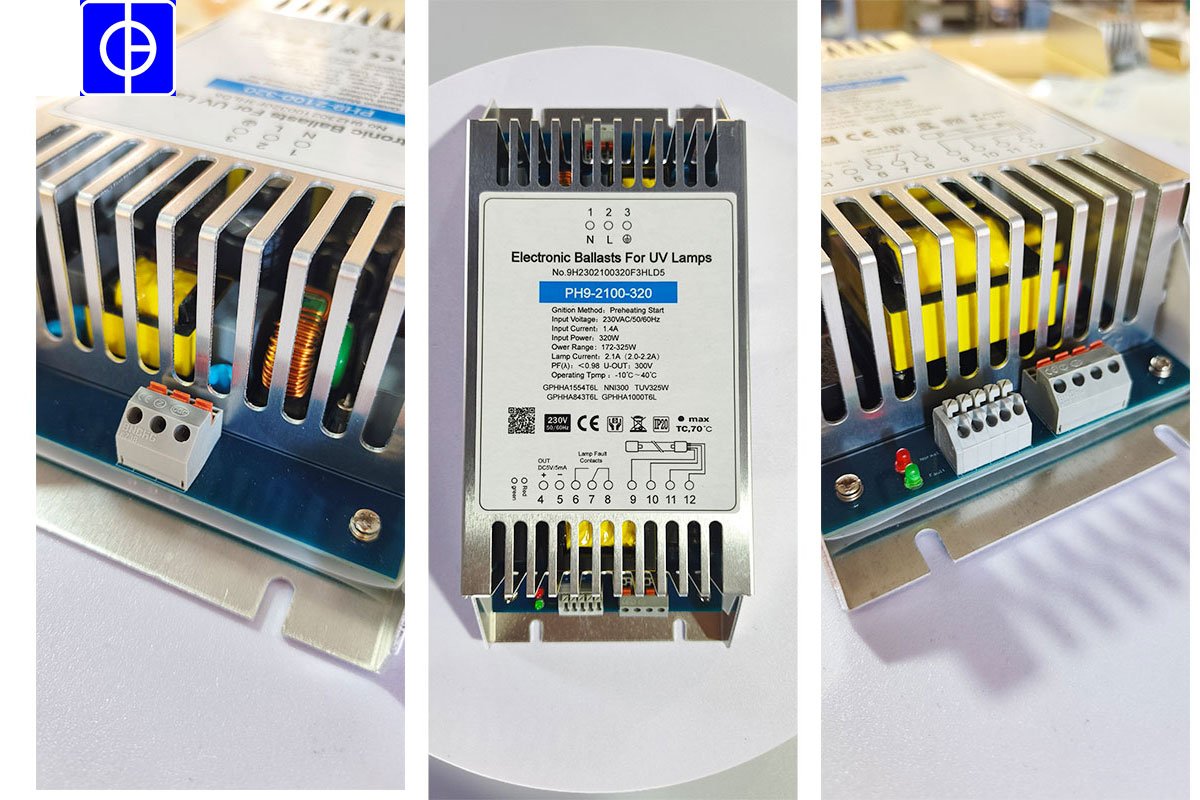

Product Model
PH9-2100-320
- Input Current:
- 1.39A@230V；2.9A@110V
- Dimming Control:
- N/A (non-dimmable)
- Auxiliary Output:
- Green/red LED status indication (green: normal operation; red: fault); 5 VDC/5 mA output for LED indication; dry-contact relay output for remote status feedback and control.
- Output Features:
- Constant Current, overvoltage protection; overcurrent protection; lamp leakage detection; filament open-circuit protection; cross-wiring protection; end-of-life (EOL) Protection
- Standards Compliance:
- IP64; CE certified
- Humidity:
- 5-85%
- Housing Construction:
- Aluminum housing
- Connection Method:
- European-Style Terminal Block; Ballast-to-Lamp Distance: < 5 m
- Tare Weight (T.W.):
- 0.5kg
- Compatible Lamp Models:
- GPHHA1554T6L，NNI300TUV325W，GPHHA843T6L，GPHHA1000T6L
- Applications:
- Wastewater treatment, water purification, exhaust-gas treatment, air purification, printing, pharmaceuticals, medical care, food processing, aquaculture, etc. International Sales & Export: Wenzhou Chaoneng Water Treatment Equipment Co., Ltd. — Yueqing Science & Technology Incubation and Entrepreneurship Center (National-Level Technology Business Incubator), No. 261, Wei 17th Road, Yueqing Economic Development Zone, Yueqing, Wenzhou, Zhejiang, China. Tel.: 0577-6266 6115. Mobile/WeChat/WhatsApp: +86 186 1227 8922. Email: chen@chaonenguv.com. Manufacturer: Beijing Haoben Electronic Technology Co., Ltd. — Building 3, No. 30 Shixing Street, Shijingshan Park, Zhongguancun Science Park, Beijing, China. Tel.: 010 6883 7150.
Product Model:PH9-2100-320（230）
Input Voltage:AC220V±20%
Ordering Code:9H2302100320D5FHL
Product Model:PH9-2100-320（MLT）
Input Voltage:AC110-220±10%
Ordering Code:9HMLT2100320D5FHL
Starting Mode:Preheat Start, Starting Time 6-8S
Power Frequency:50/60Hz
Input Features:Lightning protection；PF≥0.98；Efficiency (η): 90%；THD＜10；CCF＜1.7
Output Power:320W
Dimming Range:172-325W
Number of Lamps:1 pc
Output Current:2100mA
Output Current Range:2000-2200mA
Ambient Temperature:10°C~40°C
Maximum Enclosure Temperature (TC):＜70°C
Housing Dimensions:250*108*56mm
Mounting Hole Spacing:240/65mm
Outer Carton Size:605*270*145mm
Net Weight per Unit:0.95KG
Quantity per Carton:10 pcs
Gross Weight per Carton:10KG

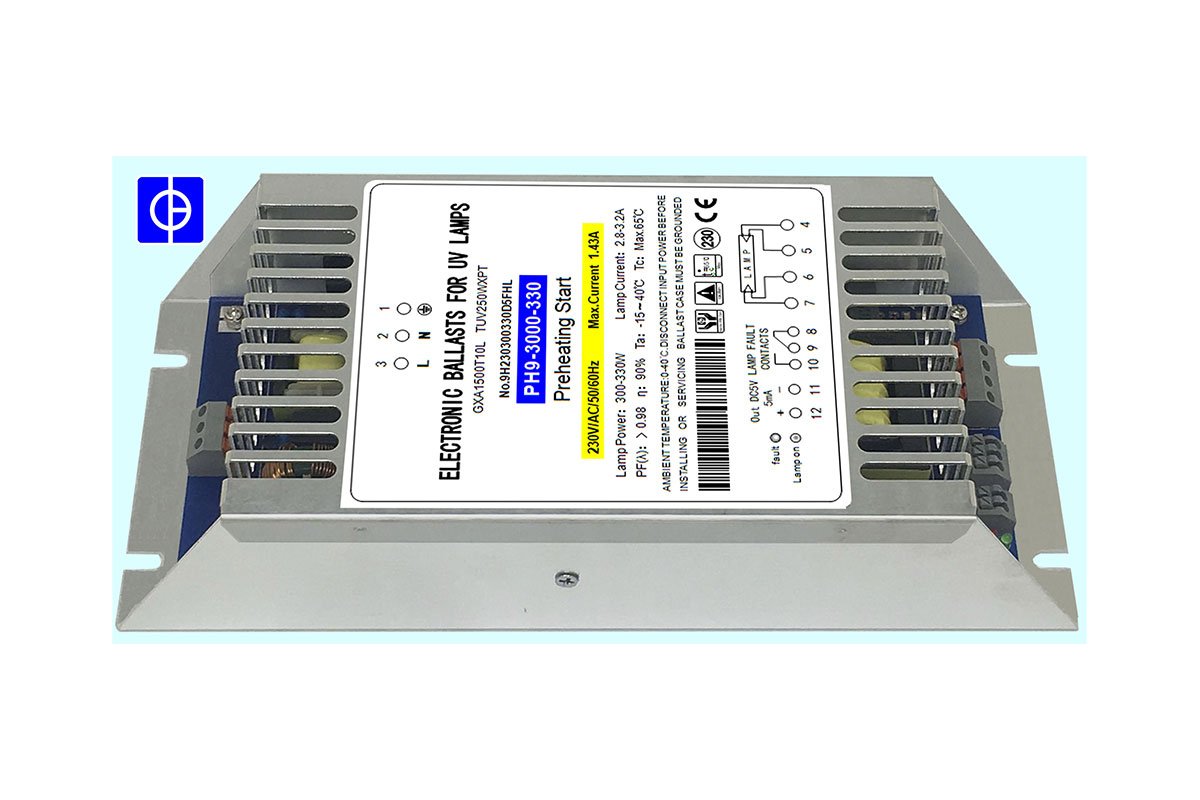

Product Model
PH9-3000-330
- Input Current:
- 1.43A@230V
- Dimming Control:
- N/A (non-dimmable)
- Auxiliary Output:
- Green/red LED status indication (green: normal operation; red: fault); 5 VDC/5 mA output for LED indication; dry-contact relay output for remote status feedback and control.
- Output Features:
- Constant Current, overvoltage protection; overcurrent protection; lamp leakage detection; filament open-circuit protection; cross-wiring protection; end-of-life (EOL) Protection
- Standards Compliance:
- IP64; CE certified
- Humidity:
- 5%–85%
- Housing Construction:
- Aluminum housing
- Connection Method:
- European-Style Terminal Block; Ballast-to-Lamp Distance: < 5 m
- Tare Weight (T.W.):
- 0.5kg
- Compatible Lamp Models:
- GPHHA1200T8L，TUV250WXPT
- Applications:
- Wastewater treatment, water purification, exhaust-gas treatment, air purification, printing, pharmaceuticals, medical care, food processing, aquaculture, etc. International Sales & Export: Wenzhou Chaoneng Water Treatment Equipment Co., Ltd. — Yueqing Science & Technology Incubation and Entrepreneurship Center (National-Level Technology Business Incubator), No. 261, Wei 17th Road, Yueqing Economic Development Zone, Yueqing, Wenzhou, Zhejiang, China. Tel.: 0577-6266 6115. Mobile/WeChat/WhatsApp: +86 186 1227 8922. Email: chen@chaonenguv.com. Manufacturer: Beijing Haoben Electronic Technology Co., Ltd. — Building 3, No. 30 Shixing Street, Shijingshan Park, Zhongguancun Science Park, Beijing, China. Tel.: 010 6883 7150.
Product Model:PH9-3000-330（230）
Input Voltage:AC220V±20%
Ordering Code:9H2303000330D5FHL
Product Model:PH9-3000-330(MLT)
Input Voltage:AC100-264V
Ordering Code:7DMLTPH93000330
Starting Mode:Preheat Start, Starting Time 8-10S
Power Frequency:50/60Hz
Input Features:Lightning protection；PF≥0.98；Efficiency (η): 90%；THD＜10；CCF＜1.7
Output Power:330W
Dimming Range:220-350W
Number of Lamps:1 pc
Output Current:3300mA
Output Current Range:3200-3400mA
Ambient Temperature:10°C~40°C
Maximum Enclosure Temperature (TC):＜70°C
Housing Dimensions:250*108*56mm
Mounting Hole Spacing:240/65mm
Outer Carton Size:605*270*145mm
Net Weight per Unit:0.95KG
Quantity per Carton:10pcs
Gross Weight per Carton:10KG

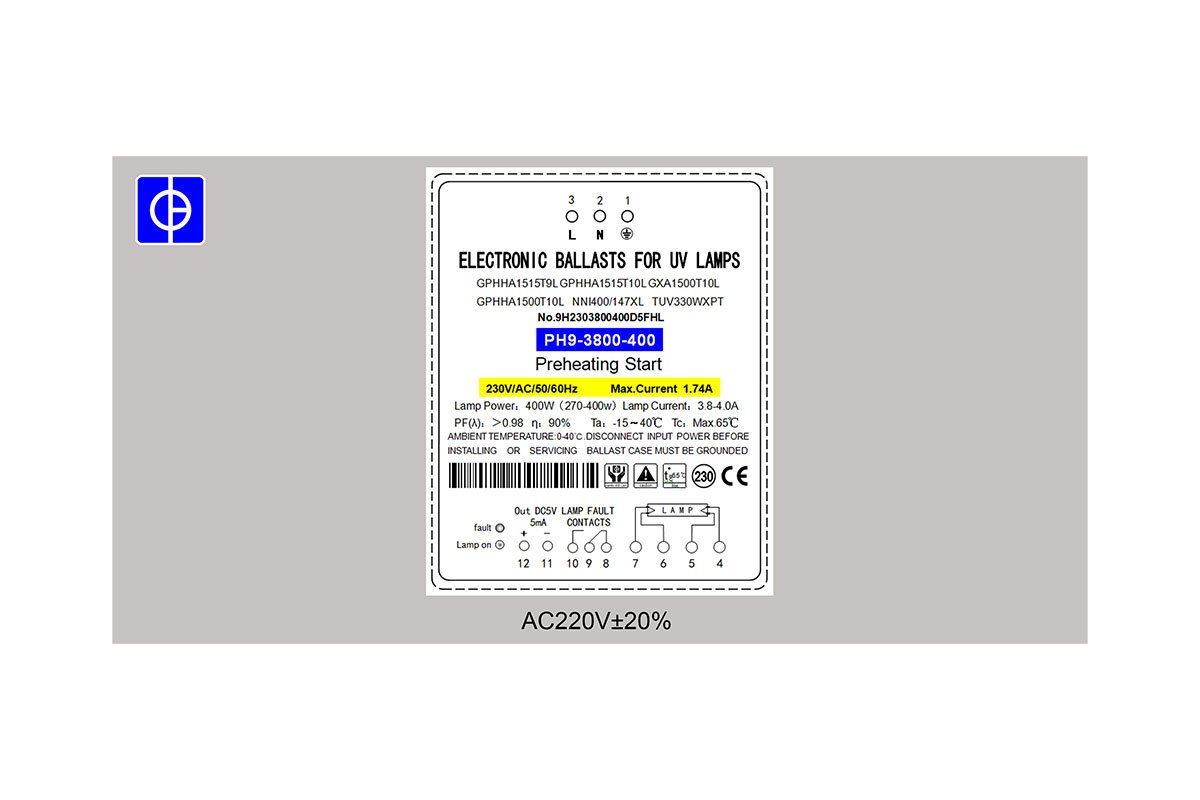

Product Model
PH9-3800-400
- Input Current:
- 1.74A@230V
- Dimming Control:
- N/A (non-dimmable)
- Auxiliary Output:
- Green/red LED status indication (green: normal operation; red: fault); 5 VDC/5 mA output for LED indication; dry-contact relay output for remote status feedback and control.
- Output Features:
- Constant Current, overvoltage protection; overcurrent protection; lamp leakage detection; filament open-circuit protection; cross-wiring protection; end-of-life (EOL) Protection
- Standards Compliance:
- IP64; CE certified
- Humidity:
- 5%–85%
- Housing Construction:
- Aluminum housing
- Connection Method:
- European-Style Terminal Block; Ballast-to-Lamp Distance: < 5 m
- Tare Weight (T.W.):
- 0.5kg
- Compatible Lamp Models:
- GPHHA1515T9L，GPHHA1515T10L，GXA1500T10L，GPHHA1500T10L，NNI400/147XL，TUV330WXPT
- Applications:
- Wastewater treatment, water purification, exhaust-gas treatment, air purification, printing, pharmaceuticals, medical care, food processing, aquaculture, etc. International Sales & Export: Wenzhou Chaoneng Water Treatment Equipment Co., Ltd. — Yueqing Science & Technology Incubation and Entrepreneurship Center (National-Level Technology Business Incubator), No. 261, Wei 17th Road, Yueqing Economic Development Zone, Yueqing, Wenzhou, Zhejiang, China. Tel.: 0577-6266 6115. Mobile/WeChat/WhatsApp: +86 186 1227 8922. Email: chen@chaonenguv.com. Manufacturer: Beijing Haoben Electronic Technology Co., Ltd. — Building 3, No. 30 Shixing Street, Shijingshan Park, Zhongguancun Science Park, Beijing, China. Tel.: 010 6883 7150.
Product Model:PH9-3800-400（230）
Input Voltage:AC220V±20%
Ordering Code:9H2303800400D5FHL
Product Model:PH9-3800-400(MLT)
Input Voltage:AC100-264V
Ordering Code:7DMLTPH93800400
Starting Mode:Preheat Start, Starting Time 8-10S
Power Frequency:50/60Hz
Input Features:Lightning protection；PF≥0.98；Efficiency (η): 90%；THD＜10；CCF＜1.7
Output Power:400W
Dimming Range:270-400W
Number of Lamps:1 pc
Output Current:3800mA
Output Current Range:3700-3900mA
Ambient Temperature:10°C~40°C
Maximum Enclosure Temperature (TC):＜70°C
Housing Dimensions:250*108*56mm
Mounting Hole Spacing:240/65mm
Outer Carton Size:605*270*145mm
Net Weight per Unit:0.95KG
Quantity per Carton:10 pcs
Gross Weight per Carton:10KG

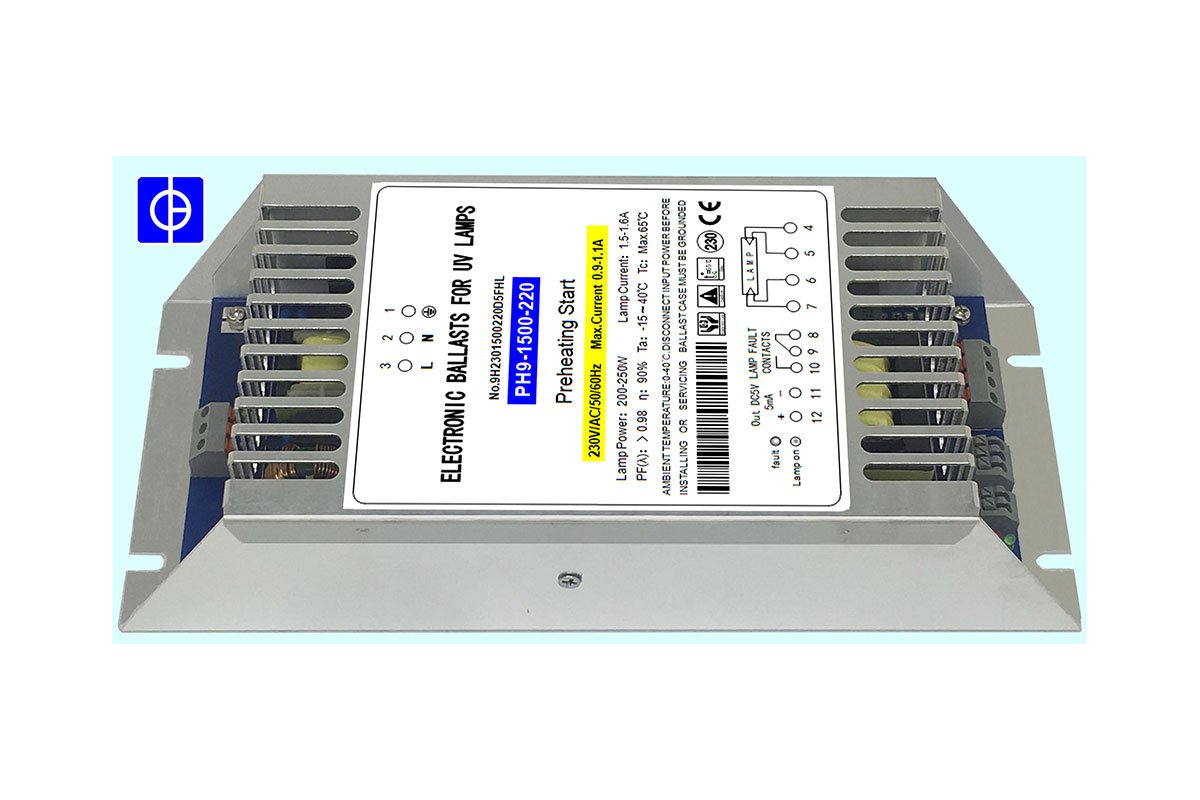

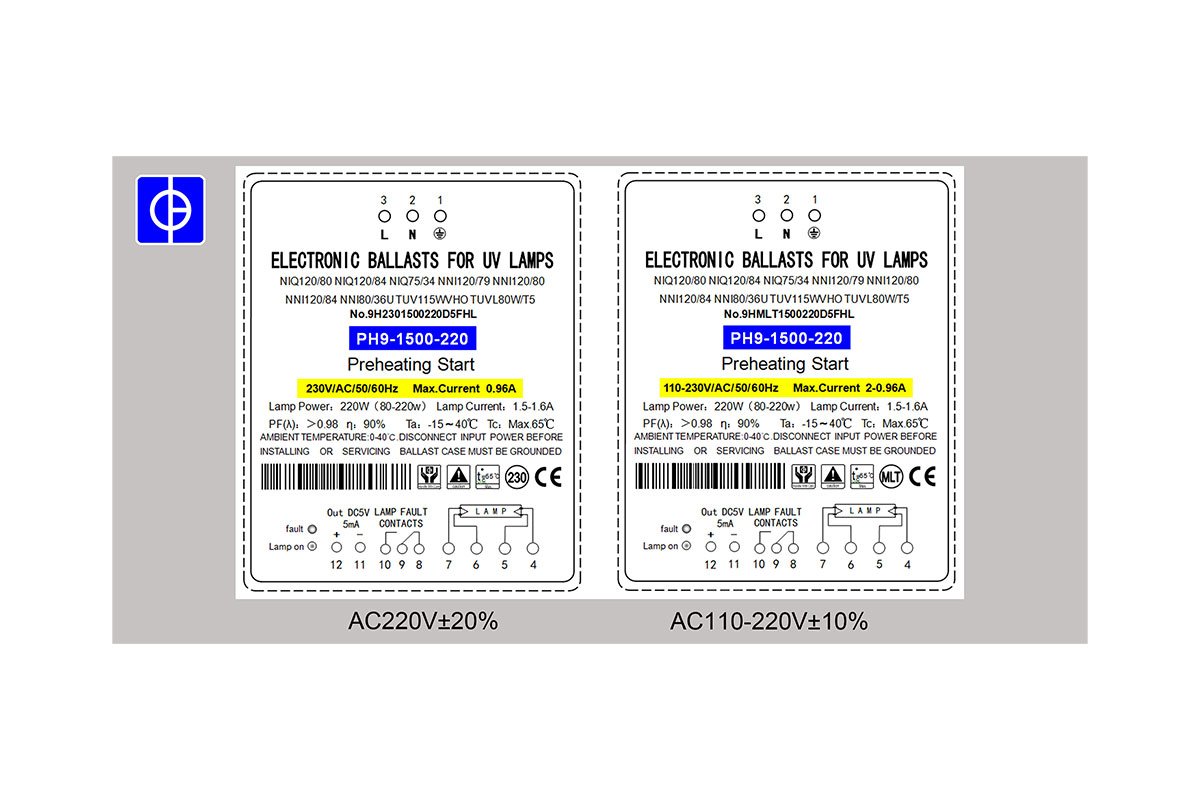

Product Model
PH9-1500-220
- Input Current:
- 0.96A@230V；2A@110V
- Dimming Control:
- N/A (non-dimmable)
- Auxiliary Output:
- Green/red LED status indication (green: normal operation; red: fault); 5 VDC/5 mA output for LED indication; dry-contact relay output for remote status feedback and control.
- Output Features:
- Constant Current, overvoltage protection; overcurrent protection; lamp leakage detection; filament open-circuit protection; cross-wiring protection; end-of-life (EOL) Protection
- Standards Compliance:
- IP64; CE certified
- Humidity:
- 5-85%
- Housing Construction:
- Aluminum housing
- Connection Method:
- European-Style Terminal Block; Ballast-to-Lamp Distance: < 5 m
- Tare Weight (T.W.):
- 0.5kg
- Compatible Lamp Models:
- NIQ120/80NIQ120/8NIQ75/34NNI120/79NNI120/80NNI120/84NNI80/36UTUV115/80W/T5
- Applications:
- Wastewater treatment, water purification, exhaust-gas treatment, air purification, printing, pharmaceuticals, medical care, food processing, aquaculture, etc. International Sales & Export: Wenzhou Chaoneng Water Treatment Equipment Co., Ltd. — Yueqing Science & Technology Incubation and Entrepreneurship Center (National-Level Technology Business Incubator), No. 261, Wei 17th Road, Yueqing Economic Development Zone, Yueqing, Wenzhou, Zhejiang, China. Tel.: 0577-6266 6115. Mobile/WeChat/WhatsApp: +86 186 1227 8922. Email: chen@chaonenguv.com. Manufacturer: Beijing Haoben Electronic Technology Co., Ltd. — Building 3, No. 30 Shixing Street, Shijingshan Park, Zhongguancun Science Park, Beijing, China. Tel.: 010 6883 7150.
Product Model:PH9-1500-220（230）
Input Voltage:AC220V±20%
Ordering Code:9H2301500220D5FHL
Product Model:PH9-1500-220（MLT）
Input Voltage:AC110-220±10%
Ordering Code:9HMLT1500220D5FHL
Starting Mode:Preheat Start, Starting Time 6-8S
Power Frequency:50/60Hz
Input Features:Lightning protection；PF≥0.98；Efficiency (η): 90%；THD＜10；CCF＜1.7
Output Power:220W
Dimming Range:80-220W
Number of Lamps:1 pcs
Output Current:1500mA
Output Current Range:1400-1600mA
Ambient Temperature:-10°C~40°C
Maximum Enclosure Temperature (TC):＜70°C
Housing Dimensions:250*108*56mm
Mounting Hole Spacing:240/65mm
Outer Carton Size:605*270*145mm
Net Weight per Unit:0.95KG
Quantity per Carton:10pcs
Gross Weight per Carton:10KG

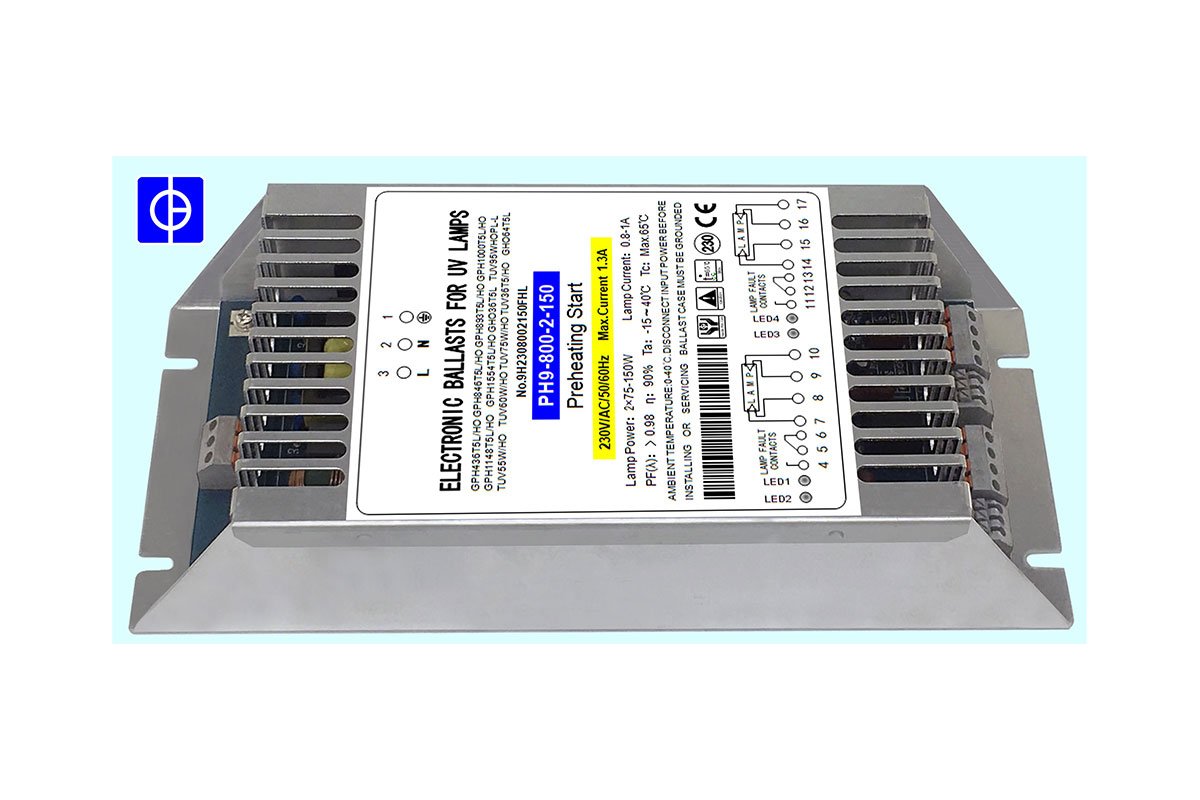

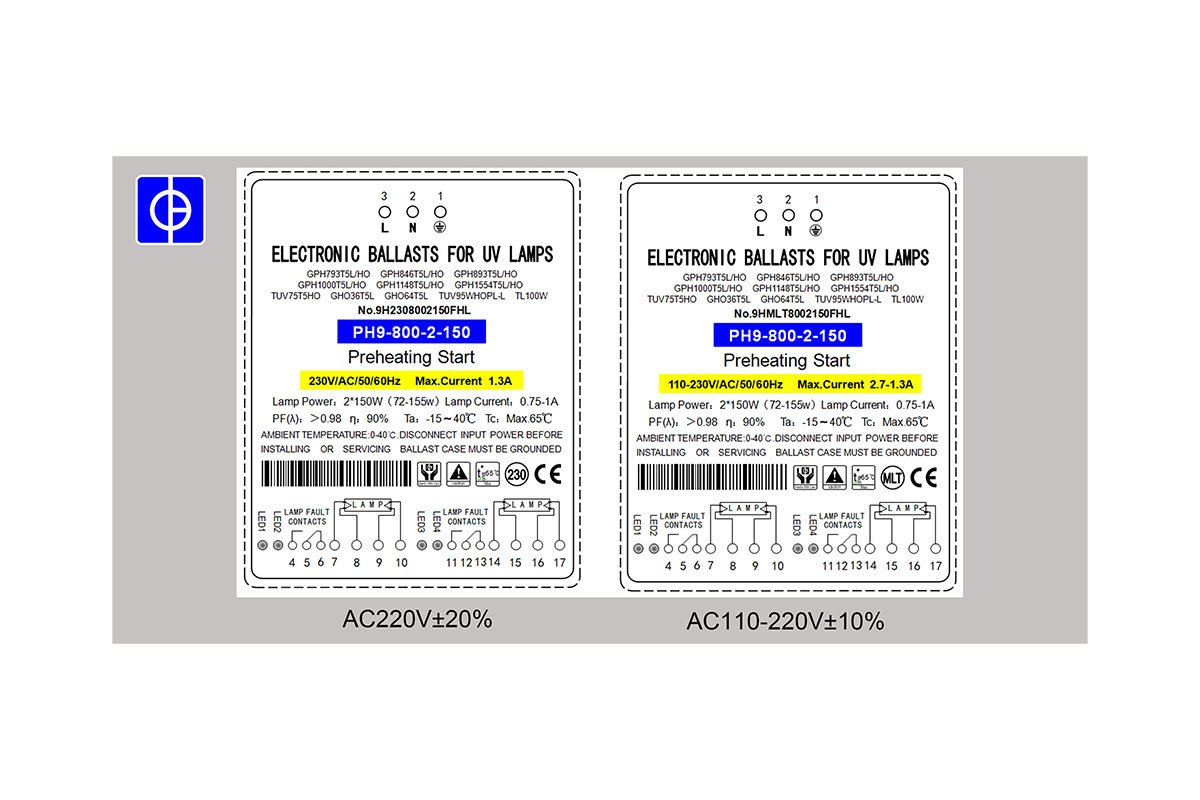

Product Model
PH9-800-2-150
- Input Current:
- 1.3A@230V;2.7@110V
- Dimming Control:
- N/A (non-dimmable)
- Auxiliary Output:
- Green/red LED status indication (green: normal operation; red: fault); 5 VDC/5 mA output for LED indication; dry-contact relay output for remote status feedback and control.
- Output Features:
- Constant Current, overvoltage protection; overcurrent protection; lamp leakage detection; filament open-circuit protection; cross-wiring protection; end-of-life (EOL) Protection
- Standards Compliance:
- IP64; CE certified
- Humidity:
- 5-85%
- Housing Construction:
- Aluminum housing
- Connection Method:
- European-Style Terminal Block; Ballast-to-Lamp Distance: < 5 m
- Tare Weight (T.W.):
- 0.5kg
- Compatible Lamp Models:
- GPH793T5L/HOGPH846T5L,HOGPH893T5L,HOGPH1000T5L,HOGPH1148T5L,HOGPH1554T5L,HOTUV75T5,HOGHO36T5L,GHO64T5L,TUV95WHOPL-LTL100W
- Applications:
- Wastewater treatment, water purification, exhaust-gas treatment, air purification, printing, pharmaceuticals, medical care, food processing, aquaculture, etc. International Sales & Export: Wenzhou Chaoneng Water Treatment Equipment Co., Ltd. — Yueqing Science & Technology Incubation and Entrepreneurship Center (National-Level Technology Business Incubator), No. 261, Wei 17th Road, Yueqing Economic Development Zone, Yueqing, Wenzhou, Zhejiang, China. Tel.: 0577-6266 6115. Mobile/WeChat/WhatsApp: +86 186 1227 8922. Email: chen@chaonenguv.com. Manufacturer: Beijing Haoben Electronic Technology Co., Ltd. — Building 3, No. 30 Shixing Street, Shijingshan Park, Zhongguancun Science Park, Beijing, China. Tel.: 010 6883 7150.
Product Model:PH9-800-2-150（230）
Input Voltage:AC220V±20%
Ordering Code:9H2308002150D5FHL
Product Model:PH9-800-2-150（MLT）
Input Voltage:AC110-220±10%
Ordering Code:9HMLT8002150D5FHL
Starting Mode:Preheat Start, Starting Time 6-8S
Power Frequency:50/60Hz
Input Features:Lightning protection, PF≥0.98, Efficiency (η): 90%, THD＜10, CCF＜1.7
Output Power:2*150W
Dimming Range:2*72-155W
Number of Lamps:2 pcs
Output Current:800mA
Output Current Range:750-850mA
Ambient Temperature:-10°C~40°C
Maximum Enclosure Temperature (TC):＜70°C

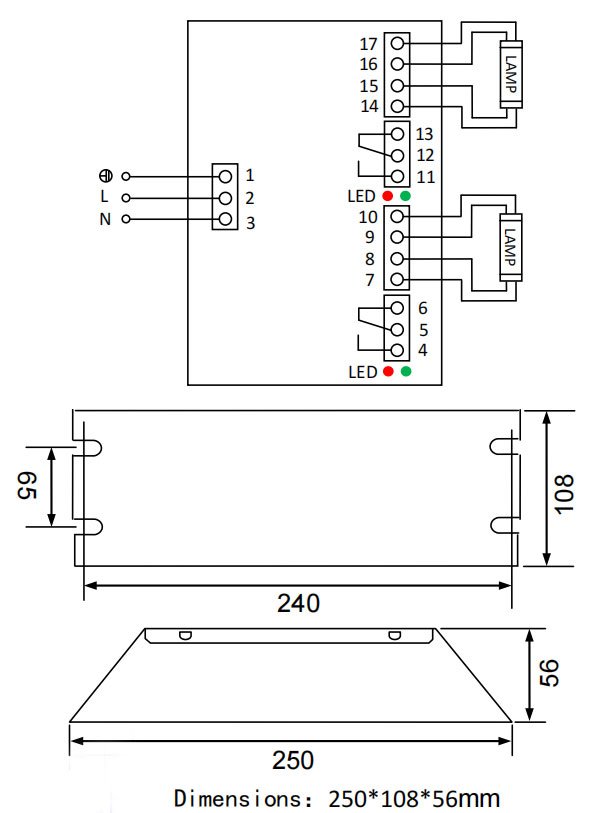

Housing Dimensions:L250*W108*H56mm
Mounting Hole Spacing:240/65mm
Outer Carton Size:605*270*145mm
Net Weight per Unit:1.05KG
Quantity per Carton:10pcs
Gross Weight per Carton:11KG
Product Model
PH9-1200-2-127
- Input Current:
- 1.1A@230V,2.3A@110V
- Dimming Control:
- N/A (non-dimmable)
- Auxiliary Output:
- Green/red LED status indication (green: normal operation; red: fault); 5 VDC/5 mA output for LED indication; dry-contact relay output for remote status feedback and control.
- Output Features:
- Constant Current, overvoltage protection; overcurrent protection; lamp leakage detection; filament open-circuit protection; cross-wiring protection; end-of-life (EOL) Protection
- Standards Compliance:
- IP64; CE certified
- Humidity:
- 5-85%
- Housing Construction:
- Aluminum housing
- Connection Method:
- European-Style Terminal Block; Ballast-to-Lamp Distance: < 5 m
- Tare Weight (T.W.):
- 0.5kg
- Compatible Lamp Models:
- GPHA843T5L,GPHA1000T5L
- Applications:
- Wastewater treatment, water purification, exhaust-gas treatment, air purification, printing, pharmaceuticals, medical care, food processing, aquaculture, etc. International Sales & Export: Wenzhou Chaoneng Water Treatment Equipment Co., Ltd. — Yueqing Science & Technology Incubation and Entrepreneurship Center (National-Level Technology Business Incubator), No. 261, Wei 17th Road, Yueqing Economic Development Zone, Yueqing, Wenzhou, Zhejiang, China. Tel.: 0577-6266 6115. Mobile/WeChat/WhatsApp: +86 186 1227 8922. Email: chen@chaonenguv.com. Manufacturer: Beijing Haoben Electronic Technology Co., Ltd. — Building 3, No. 30 Shixing Street, Shijingshan Park, Zhongguancun Science Park, Beijing, China. Tel.: 010 6883 7150.
Product Model:PH9-1200-2-127（230）
Input Voltage:AC220V±20%
Ordering Code:9H23012002127D5FHL
Product Model:PH9-1200-2-127（MLT）
Input Voltage:AC110-220±10%
Ordering Code:9HMLT12002127D5FHL
Starting Mode:Preheat Start, Starting Time 6-8S
Power Frequency:50/60Hz
Input Features:Lightning protection; PF≥0.98, Efficiency (η): 90%, THD＜10, CCF＜1.7
Output Power:2*127W
Dimming Range:2*80-127W
Number of Lamps:2 pcs
Output Current:1200mA
Output Current Range:1150-1250mA
Ambient Temperature:-10°C~40°C
Maximum Enclosure Temperature (TC):＜70°C
Housing Dimensions:250*108*56mm
Mounting Hole Spacing:240/65mm
Outer Carton Size:605*270*145mm
Net Weight per Unit:1KG
Quantity per Carton:10pcs
Gross Weight per Carton:10.5KG
Product Model
PH9-1200-2-190
- Input Current:
- 1.65A@230V，3.45A@110V
- Dimming Control:
- N/A (non-dimmable)
- Auxiliary Output:
- Green/red LED status indication (green: normal operation; red: fault); 5 VDC/5 mA output for LED indication; dry-contact relay output for remote status feedback and control.
- Output Features:
- Constant Current, overvoltage protection; overcurrent protection; lamp leakage detection; filament open-circuit protection; cross-wiring protection; end-of-life (EOL) Protection
- Standards Compliance:
- IP64; CE certified
- Humidity:
- 5-85%
- Housing Construction:
- Aluminum housing
- Connection Method:
- European-Style Terminal Block; Ballast-to-Lamp Distance: < 5 m
- Tare Weight (T.W.):
- 0.5kg
- Compatible Lamp Models:
- GPHA1000T5LGPHA1554T5L
- Applications:
- Wastewater treatment, water purification, exhaust-gas treatment, air purification, printing, pharmaceuticals, medical care, food processing, aquaculture, etc. International Sales & Export: Wenzhou Chaoneng Water Treatment Equipment Co., Ltd. — Yueqing Science & Technology Incubation and Entrepreneurship Center (National-Level Technology Business Incubator), No. 261, Wei 17th Road, Yueqing Economic Development Zone, Yueqing, Wenzhou, Zhejiang, China. Tel.: 0577-6266 6115. Mobile/WeChat/WhatsApp: +86 186 1227 8922. Email: chen@chaonenguv.com. Manufacturer: Beijing Haoben Electronic Technology Co., Ltd. — Building 3, No. 30 Shixing Street, Shijingshan Park, Zhongguancun Science Park, Beijing, China. Tel.: 010 6883 7150.
Product Model:PH9-1200-2-190（230）
Input Voltage:AC220V±20%
Ordering Code:9H23012002190D5FHL
Product Model:PH9-1200-2-190（MLT）
Input Voltage:AC110-220±10%
Ordering Code:9HMLT12002190D5FHL
Starting Mode:Preheat Start, Starting Time 6-8S
Power Frequency:50/60Hz
Input Features:Lightning protection；PF≥0.98；Efficiency (η): 90%；THD＜10；CCF＜1.7
Output Power:2*190W
Dimming Range:2*127-190W
Number of Lamps:2 pcs
Output Current:1200mA
Output Current Range:1150-1250mA
Ambient Temperature:-10°C~40°C
Maximum Enclosure Temperature (TC):＜70°C
Housing Dimensions:250*108*56mm
Mounting Hole Spacing:240/65mm
Outer Carton Size:605*270*145mm
Net Weight per Unit:1KG
Quantity per Carton:10pcs
Gross Weight per Carton:10.5KG
Product Model
PH9-1500-2-220
- Input Current:
- 1.92A@230V，4A@110V
- Dimming Control:
- N/A (non-dimmable)
- Auxiliary Output:
- Green/red LED status indication (green: normal operation; red: fault); 5 VDC/5 mA output for LED indication; dry-contact relay output for remote status feedback and control.
- Output Features:
- Constant Current, overvoltage protection; overcurrent protection; lamp leakage detection; filament open-circuit protection; cross-wiring protection; end-of-life (EOL) Protection
- Standards Compliance:
- IP64; CE certified
- Humidity:
- 5-85%
- Housing Construction:
- Aluminum housing
- Connection Method:
- European-Style Terminal Block; Ballast-to-Lamp Distance: < 5 m
- Tare Weight (T.W.):
- 0.5kg
- Compatible Lamp Models:
- NIQ120/80NIQ120/8NIQ75/34NNI120/79NNI120/80NNI120/84NNI80/36UTUV115/80W/T5
- Applications:
- Wastewater treatment, water purification, exhaust-gas treatment, air purification, printing, pharmaceuticals, medical care, food processing, aquaculture, etc. International Sales & Export: Wenzhou Chaoneng Water Treatment Equipment Co., Ltd. — Yueqing Science & Technology Incubation and Entrepreneurship Center (National-Level Technology Business Incubator), No. 261, Wei 17th Road, Yueqing Economic Development Zone, Yueqing, Wenzhou, Zhejiang, China. Tel.: 0577-6266 6115. Mobile/WeChat/WhatsApp: +86 186 1227 8922. Email: chen@chaonenguv.com. Manufacturer: Beijing Haoben Electronic Technology Co., Ltd. — Building 3, No. 30 Shixing Street, Shijingshan Park, Zhongguancun Science Park, Beijing, China. Tel.: 010 6883 7150.
Product Model:PH9-1500-2-220（230）
Input Voltage:AC220V±20%
Ordering Code:9H23015002220D5FHL
Product Model:PH9-1500-2-220（MLT）
Input Voltage:AC110-220±10%
Ordering Code:9HMLT15002220D5FHL
Starting Mode:Preheat Start, Starting Time 6-8S
Power Frequency:50/60Hz
Input Features:Lightning protection；PF≥0.98；Efficiency (η): 90%；THD＜10；CCF＜1.7
Output Power:2*220W
Dimming Range:2*80-220W
Number of Lamps:2 pcs
Output Current:1500mA
Output Current Range:1400-1600mA
Ambient Temperature:-10°C~40°C
Maximum Enclosure Temperature (TC):＜70°C
Housing Dimensions:250*108*56mm
Mounting Hole Spacing:240/65mm
Outer Carton Size:605*270*145mm
Net Weight per Unit:1.05KG
Quantity per Carton:10pcs
Gross Weight per Carton:11KG
Product Model
PD9-900-2-100
- Input Current:
- 0.87A@230V 1.8A@110V
- Dimming Control:

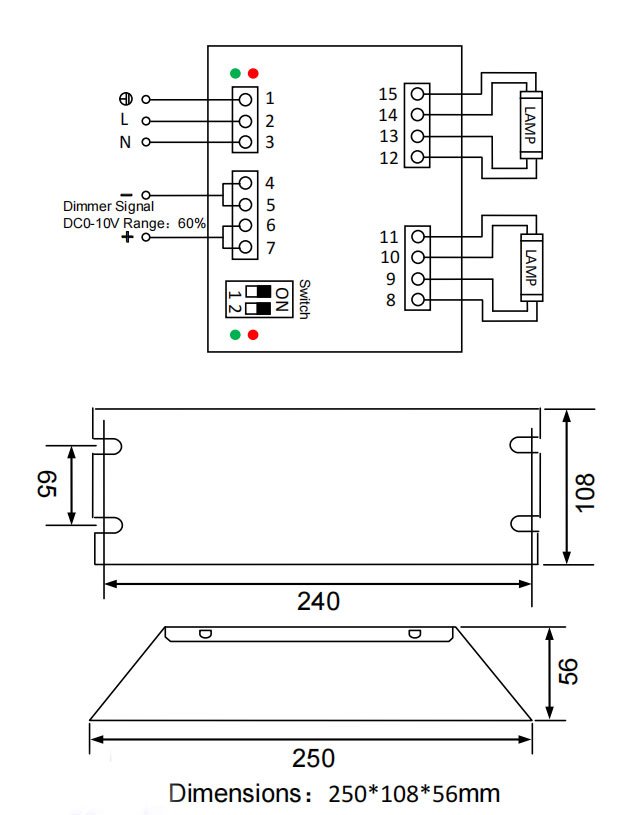

- Input: DC0-10V, enabled or disabled via DIP switch
- Auxiliary Output:
- Green/red LED status indication (green: normal operation; red: fault), 5 VDC/5 mA output for LED indication, and dry-contact relay output for remote status feedback and control.
- Output Features:
- Active PFC; PF ≥ 0.98; overvoltage protection; overcurrent protection; lamp leakage detection; filament open-circuit protection; cross-wiring protection; end-of-life (EOL) protection.
- Standards Compliance:
- IP64; CE certified
- Humidity:
- 5%–85%
- Housing Construction:
- Aluminum housing with U.S.-style potting compound
- Connection Method:
- Euro-style Terminal Block; distance between ballast and lamp < 5 m
- Tare Weight (T.W.):
- 0.6kg
- Compatible Lamp Models:
- GPH846T5L/HO, GPH893T5L/HO, GPH1000T5L/HO, TUV75W/HO, TL80W/10R
- Applications:
- Wastewater treatment, water purification, exhaust-gas treatment, air purification, printing, pharmaceuticals, medical care, food processing, aquaculture, etc. International Sales & Export: Wenzhou Chaoneng Water Treatment Equipment Co., Ltd. — Yueqing Science & Technology Incubation and Entrepreneurship Center (National-Level Technology Business Incubator), No. 261, Wei 17th Road, Yueqing Economic Development Zone, Yueqing, Wenzhou, Zhejiang, China. Tel.: 0577-6266 6115. Mobile/WeChat/WhatsApp: +86 186 1227 8922. Email: chen@chaonenguv.com. Manufacturer: Beijing Haoben Electronic Technology Co., Ltd. — Building 3, No. 30 Shixing Street, Shijingshan Park, Zhongguancun Science Park, Beijing, China. Tel.: 010 6883 7150.
Product Model:PD9-900-2-100（230）
Input Voltage:AC220V±20%
Ordering Code:9H2302100320D5FHL
Product Model:PD9-900-2-100（MLT）
Input Voltage:AC110-220±10%
Ordering Code:9HMLT2100320D5FH
Starting Mode:preheat start, starting time 6-8S
Power Frequency:50/60Hz
Input Features:Lightning protection; PF≥0.98; Efficiency (η): 90%; THD < 10; CCF < 1.7
Output Power:2*100W
Dimming Range:60%
Number of Lamps:2 pcs
Output Current:900mA
Output Current Range:300-900mA
Ambient Temperature:10 to 40°C
Maximum Enclosure Temperature (TC):<70°C
Housing Dimensions:250*108*56mm
Mounting Hole Spacing:240/65mm
Outer Carton Size:605*270*145mm
Net Weight per Unit:1KG
Quantity per Carton:10pcs
Gross Weight per Carton:10.5KG
Product Model
PD9-1600-200
- Input Current:
- 0.91A@230V
- Dimming Control:
- Input: DC0-10V, enabled or disabled via DIP switch
- Auxiliary Output:
- Green/red LED status indication (green: normal operation; red: fault), 5 VDC/5 mA output for LED indication, and dry-contact relay output for remote status feedback and control.
- Output Features:
- Active PFC; PF ≥ 0.98; overvoltage protection; overcurrent protection; lamp leakage detection; filament open-circuit protection; cross-wiring protection; end-of-life (EOL) protection.
- Standards Compliance:
- IP64; CE certified
- Humidity:
- 5%–85%
- Housing Construction:
- Aluminum housing with U.S.-style potting compound
- Connection Method:
- Euro-style Terminal Block; distance between ballast and lamp < 5 m
- Tare Weight (T.W.):
- 0.5kg
- Compatible Lamp Models:
- GPH846T5L/HO, GPH893T5L/HO, GPH1000T5L/HO, TUV75W/HO, TL80W/10R
- Applications:
- Wastewater treatment, water purification, exhaust-gas treatment, air purification, printing, pharmaceuticals, medical care, food processing, aquaculture, etc. International Sales & Export: Wenzhou Chaoneng Water Treatment Equipment Co., Ltd. — Yueqing Science & Technology Incubation and Entrepreneurship Center (National-Level Technology Business Incubator), No. 261, Wei 17th Road, Yueqing Economic Development Zone, Yueqing, Wenzhou, Zhejiang, China. Tel.: 0577-6266 6115. Mobile/WeChat/WhatsApp: +86 186 1227 8922. Email: chen@chaonenguv.com. Manufacturer: Beijing Haoben Electronic Technology Co., Ltd. — Building 3, No. 30 Shixing Street, Shijingshan Park, Zhongguancun Science Park, Beijing, China. Tel.: 010 6883 7150.
Product Model:PD9-1600-200（230）
Input Voltage:AC220V±20%
Ordering Code:7DPD91600200
Product Model:PD9-1600-200（MLT）
Input Voltage:AC110-220±10%
Ordering Code:7DMLTPD91600200
Starting Mode:preheat start, starting time 6-8S
Power Frequency:50/60Hz
Input Features:Lightning protection; PF≤0.98; Efficiency (η): 90%; THD < 10; CCF < 1.7
Output Power:200W
Dimming Range:60%
Number of Lamps:1 pc
Output Current:1600mA
Output Current Range:600-1600mA
Ambient Temperature:-10°C ~ 40°C
Maximum Enclosure Temperature (TC):<70°C
Housing Dimensions:250*108*56mm
Mounting Hole Spacing:240/65mm
Outer Carton Size:605*270*145mm
Net Weight per Unit:1KG
Quantity per Carton:10pcs
Gross Weight per Carton:10.5KG
Interested in our No. 9 Series (60–400 W)? Contact us for help choosing the right model or requesting a custom quote.
WhatsApp
