ChaoNeng logoChaoNeng UV Ballast

No.13 (10-55W)

UV Electronic Ballast ·19 Models

No.13 (10-55W)No.14 (38-120W)No.15 (72-155W)No.7 (40-120W)No.9 (60-400W)
No.13 (10-55W) 1

Series Overview

No.13 (10-55W) Series UV Electronic Ballasts are designed for UV germicidal lamps. They deliver high-frequency, constant-power output across a wide input-voltage range and feature built-in intelligent protection. The specifications below apply to the entire series; see the table below for model-specific details.

Output Power Range

10-55W

Dimensions

165 × 38 × 26 mm

WhatsApp Back to All Series

Detailed Specifications by Product Series

PY13-180-10

Quick Start
Output Power
10W
Rated Power
10W
Output Power Range
4-11W
Number of Lamps
1 pc
Output Features
Quick Start / Non-constant-current / Fault protection
Compatible Lamp Models
TUV4W, TUV6W, TUV8W, TUV10W, G4T5, G6T5, G8T5, LTC5, LTC7, LTC9, LTC11

PY13-425-12

Quick Start
Output Power
12W
Rated Power
12W
Output Power Range
6-12W
Number of Lamps
1 pc
Output Features
Quick Start / Non-constant-current / Fault protection
Compatible Lamp Models
GPH118T5L, GPH150T5L, GPH212T5L, TUV11

PY13-425-20

Quick Start
Output Power
20W
Rated Power
20W
Output Power Range
14-21W
Number of Lamps
1 pc
Output Features
Quick Start / Non-constant-current / Fault protection
Compatible Lamp Models
GPH287T5, GPH303T5, GPH436T5, TUV15T5, TUV16T5

PY13-425-30

Quick Start
Output Power
30W
Rated Power
30W
Output Power Range
21-30W
Number of Lamps
1 pc
Output Features
Quick Start / Non-constant-current / Fault protection
Compatible Lamp Models
GPH436T5, GPH550T5, TUV25T5, TUV30T5

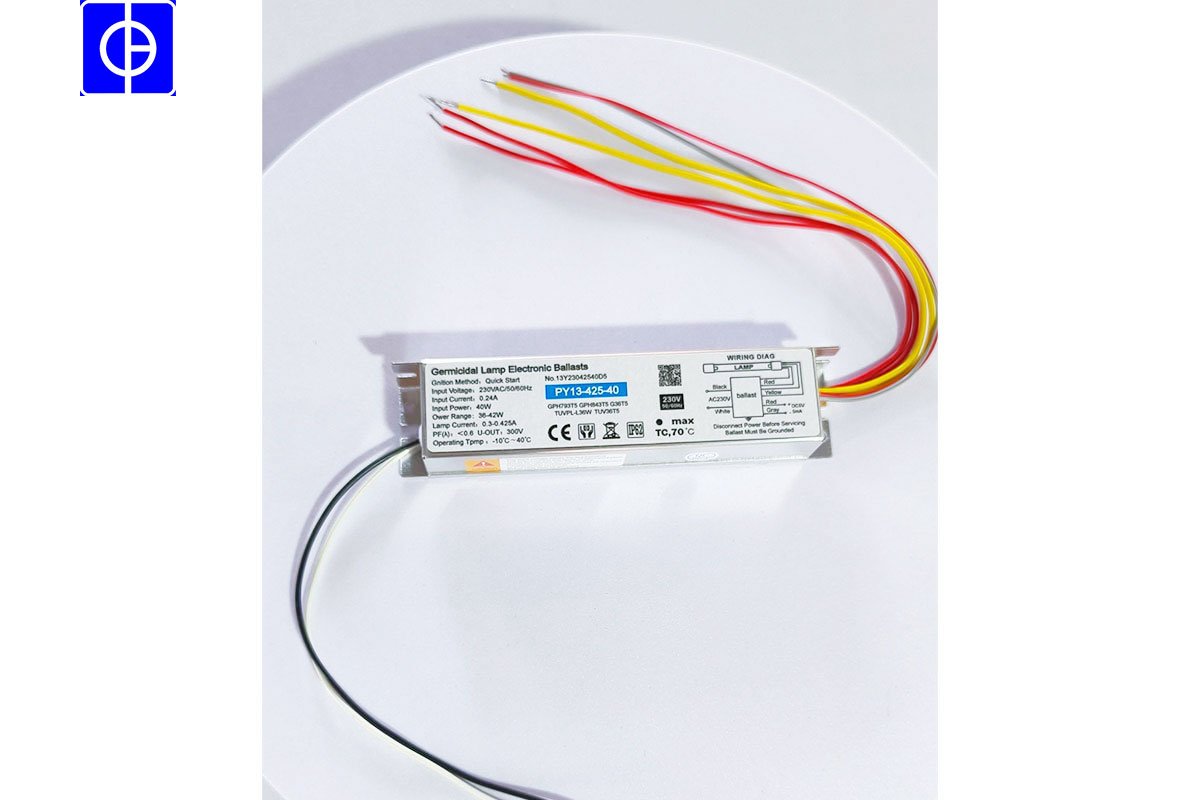

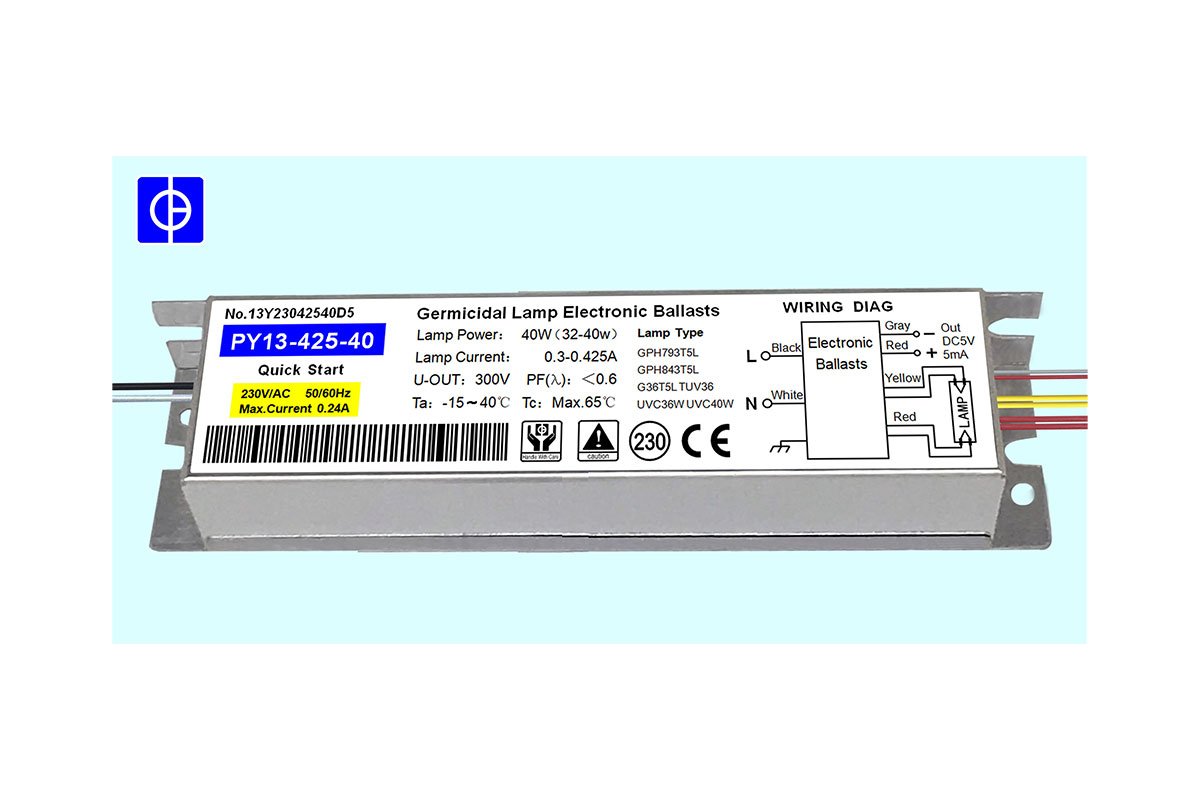

PY13-425-40

Quick Start
Output Power
40W
Rated Power
40W
Output Power Range
36-42W
Number of Lamps
1 pc
Output Features
Quick Start / Non-constant-current / Fault protection
Compatible Lamp Models
GPH793T5, GPH843T5, TUV36T5, TUVPL-L36WG36T5

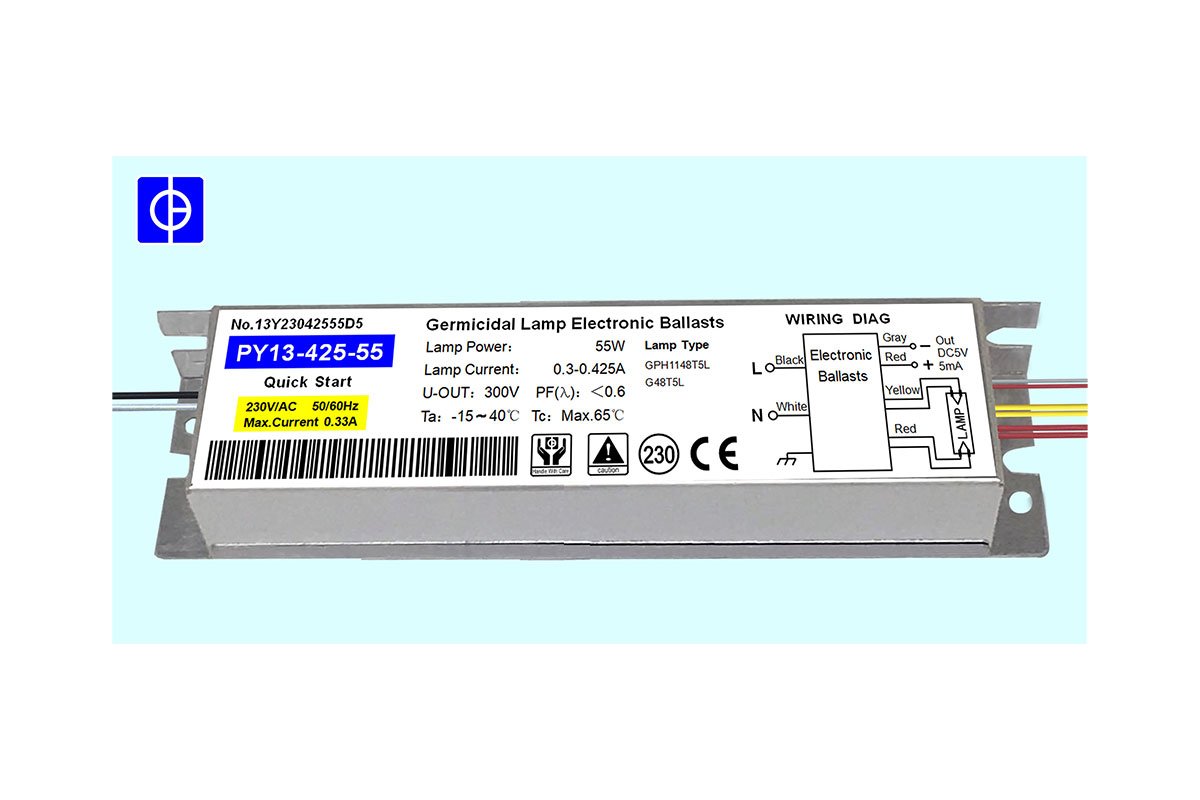

PY13-425-55

Quick Start
Output Power
55W
Rated Power
55W
Output Power Range
38-55W
Number of Lamps
1 pc
Output Features
Quick Start / Non-constant-current / Fault protection
Compatible Lamp Models
GPH793T5, GPH843T5, GPH1148T5

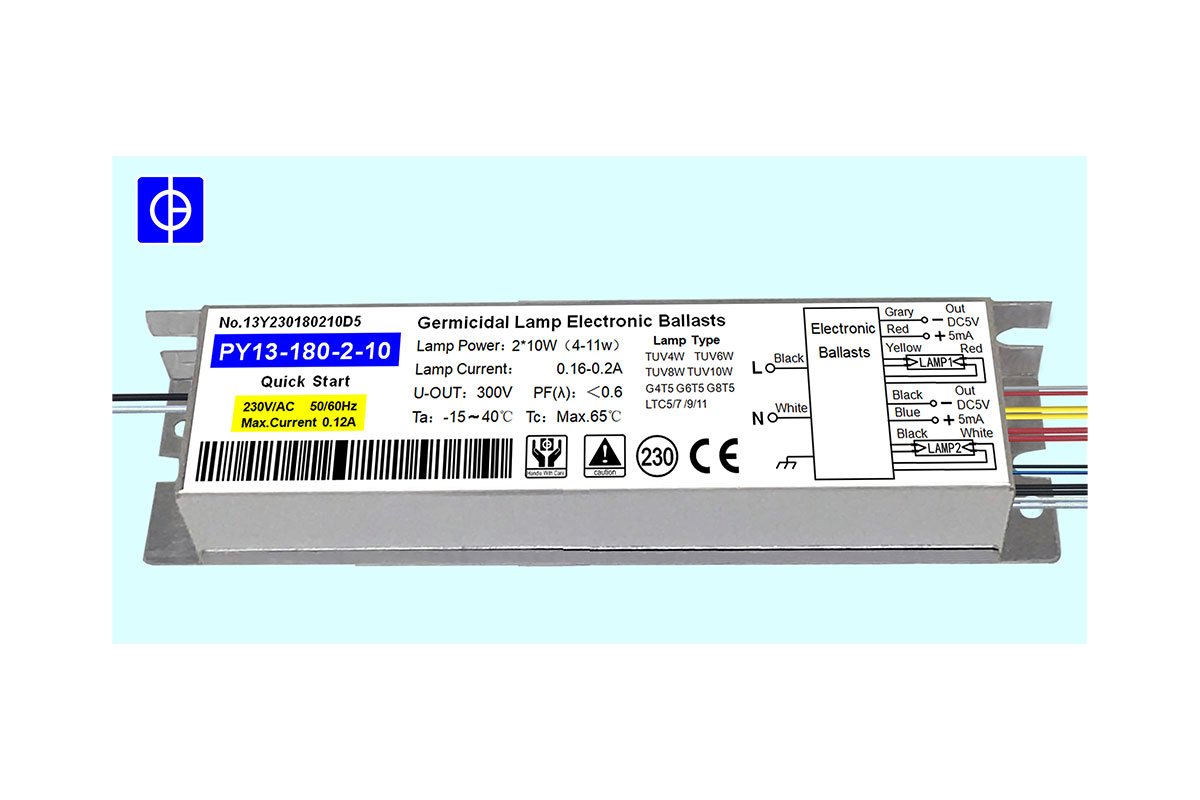

PY13-180-2-10

Quick Start
Output Power
10W
Rated Power
10W
Output Power Range
2×4-11W
Number of Lamps
2 pcs
Output Features
Quick Start / Non-constant-current / Fault protection
Compatible Lamp Models
TUV4W, TUV6W, TUV8W, TUV10W, G4T5L, G6T5L, G8T5L, TC5L, TC7L, TC9L, TC11L

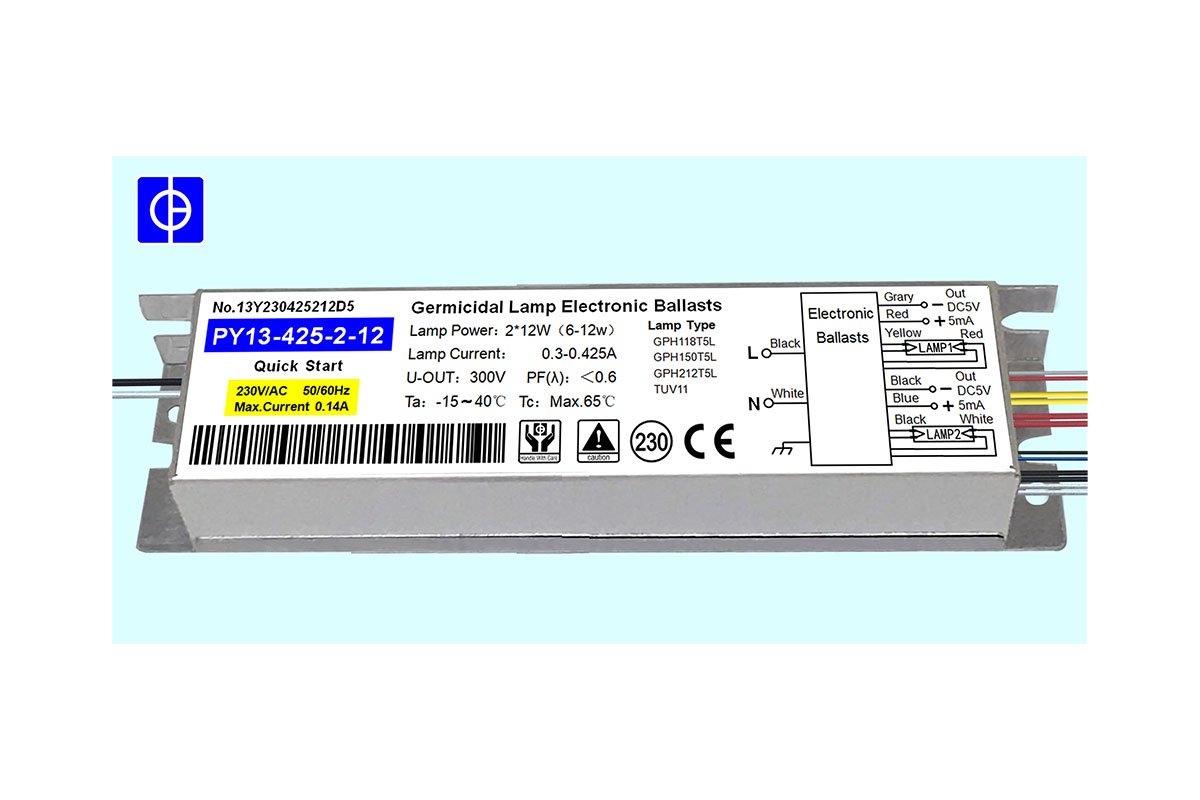

PY13-425-2-12

Quick Start
Output Power
12W
Rated Power
12W
Output Power Range
2×6-12W
Number of Lamps
2 pc
Output Features
Quick Start / Non-constant-current / Fault protection
Compatible Lamp Models
GPH118T5L, GPH150T5L, GPH212T5L, TUV11

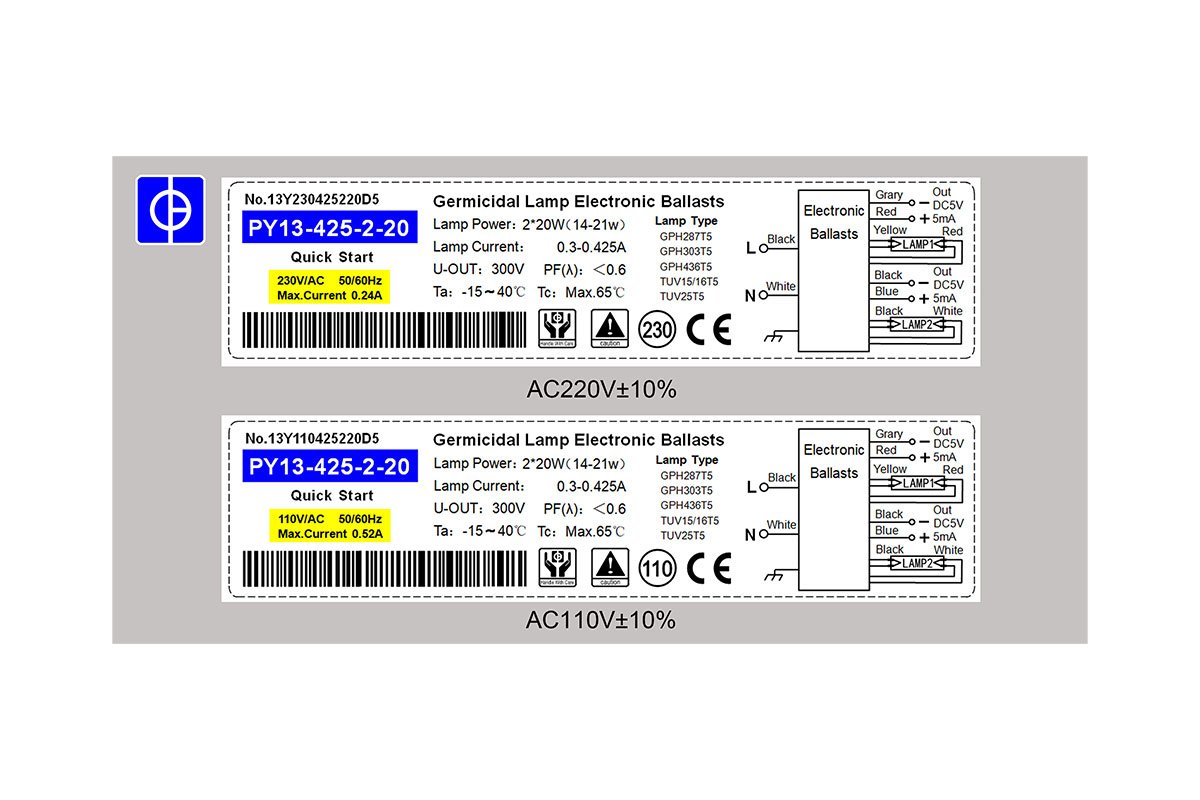

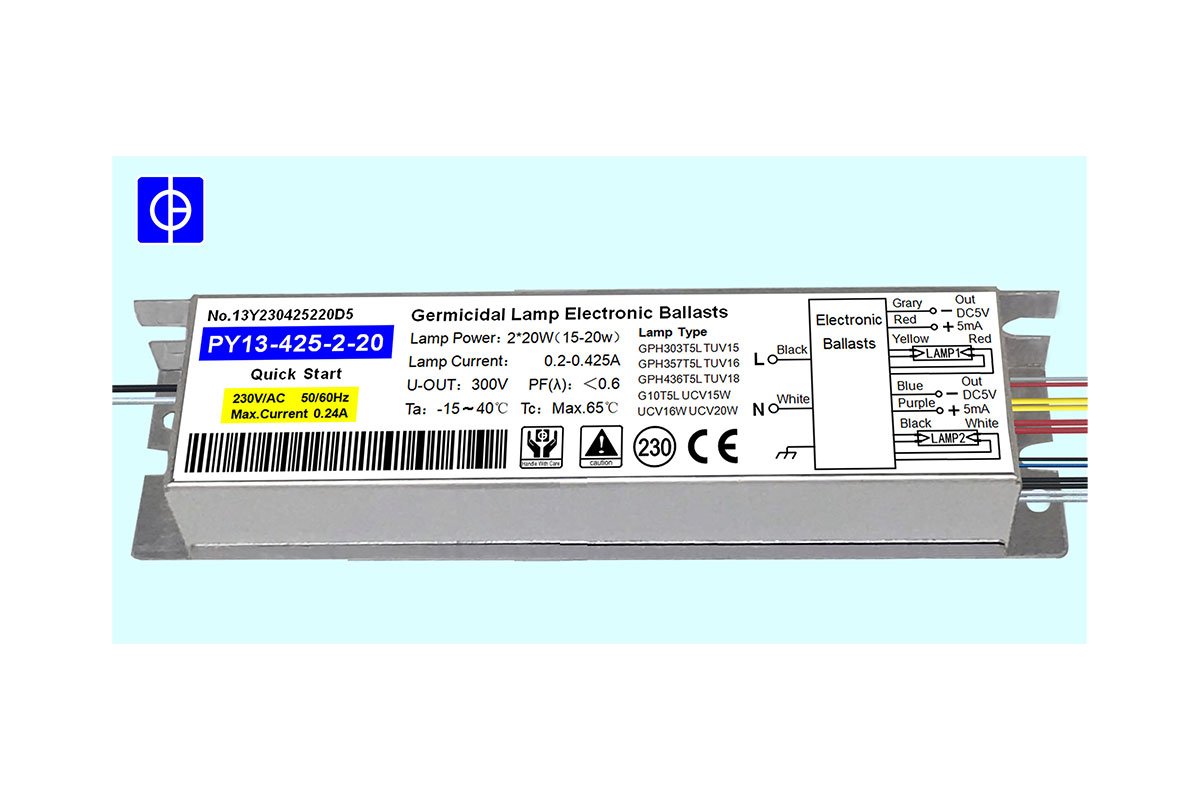

PY13-425-2-20

Quick Start
Output Power
20W
Rated Power
20W
Output Power Range
2×14-21W
Number of Lamps
2 pc
Output Features
Quick Start / Non-constant-current / Fault protection
Compatible Lamp Models
GPH287T5, GPH303T5, GPH436T5, TUV15T5, TUV16T5

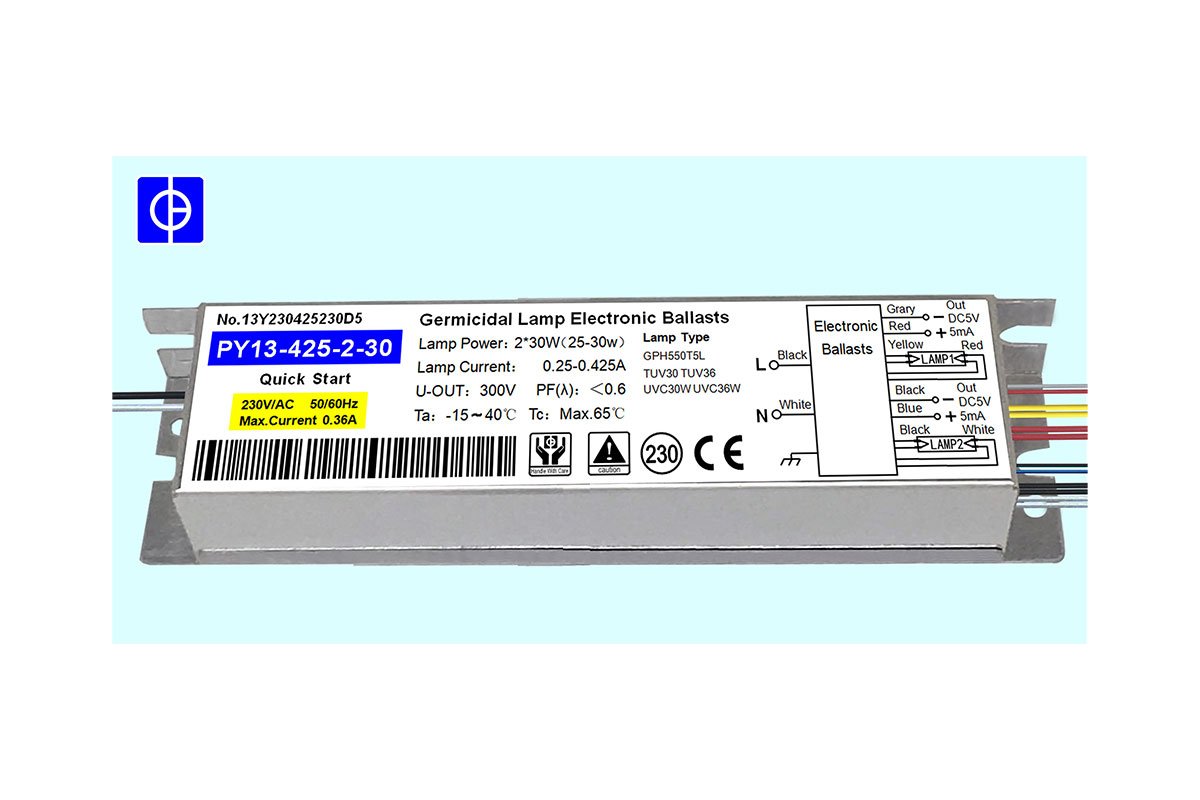

PY13-425-2-30

Quick Start
Output Power
30W
Rated Power
30W
Output Power Range
2×21-30W
Number of Lamps
2 pc
Output Features
Quick Start / Non-constant-current / Fault protection
Compatible Lamp Models
GPH436T5, GPH550T5, TUV25T5, TUV30T5

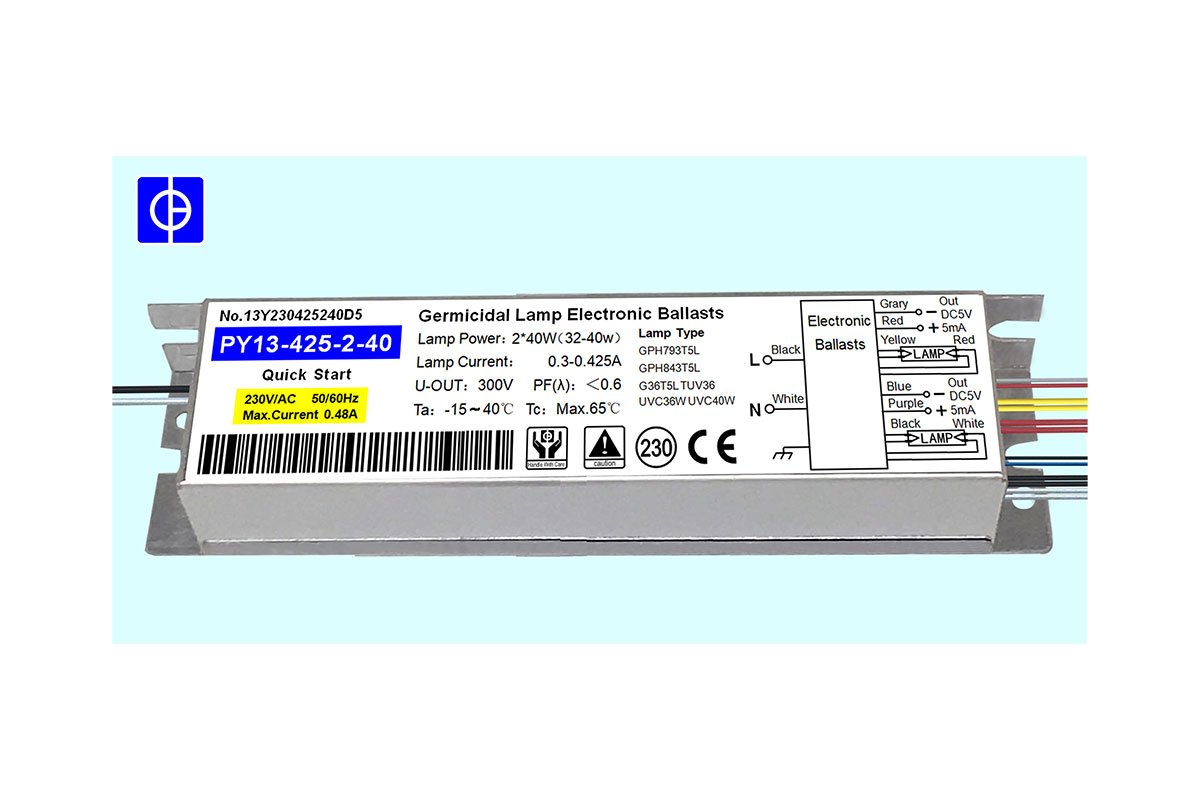

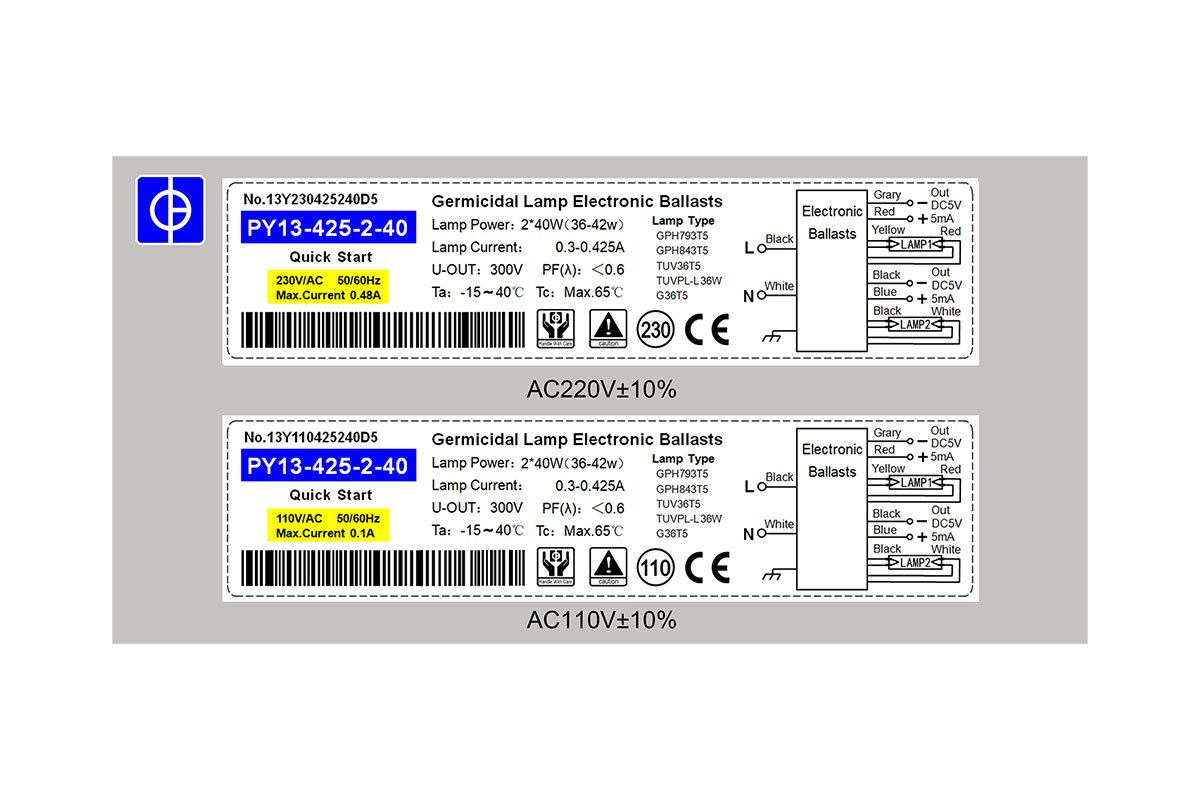

PY13-425-2-40

Quick Start
Output Power
40W
Rated Power
40W
Output Power Range
2×36-42W
Number of Lamps
2 pc
Output Features
Quick Start / Non-constant-current / Fault protection
Compatible Lamp Models
GPH793T5, GPH843T5, TUV36T5, TUVPL-L36WG36T5

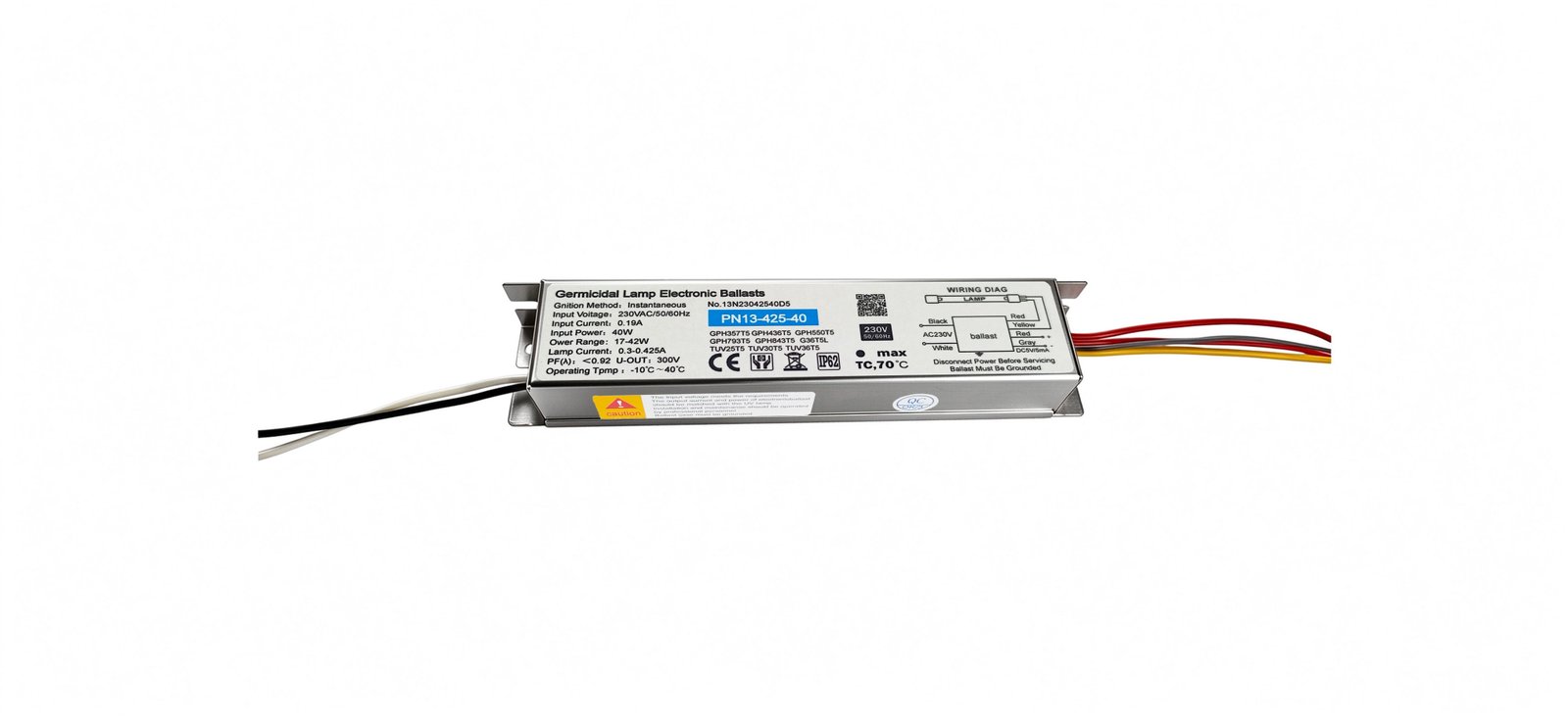

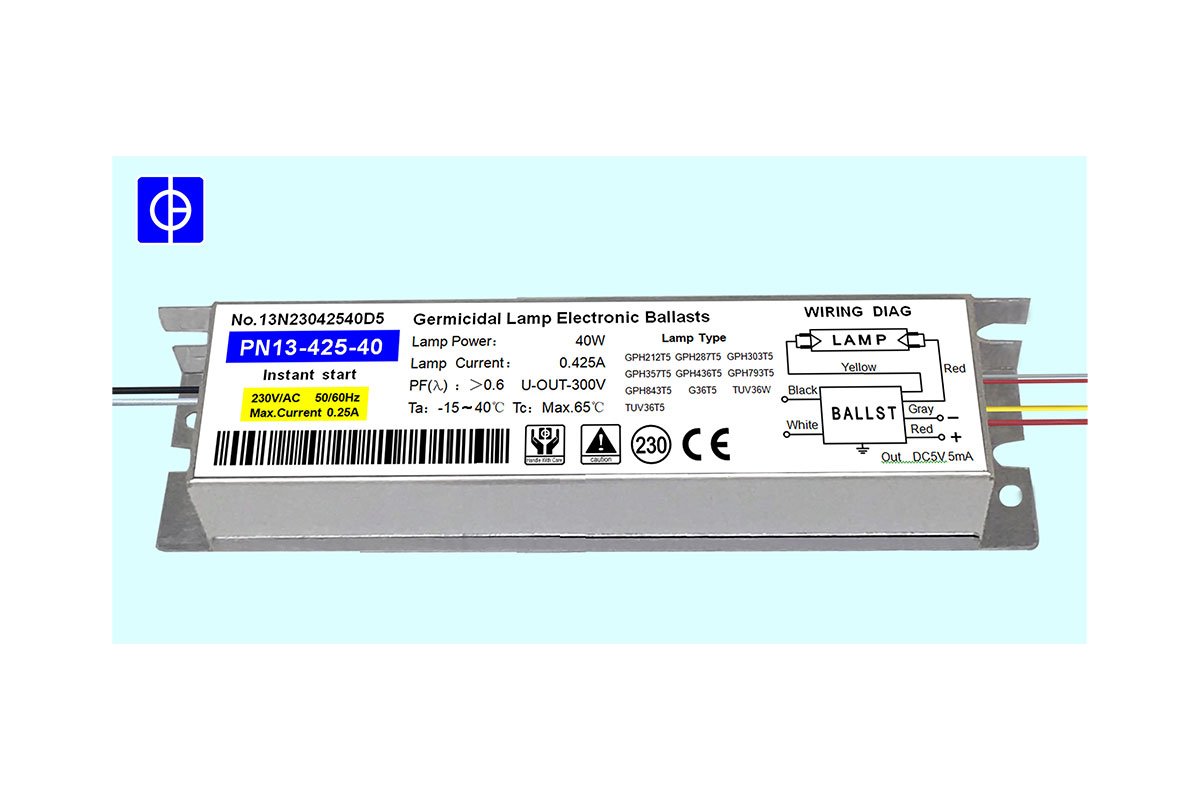

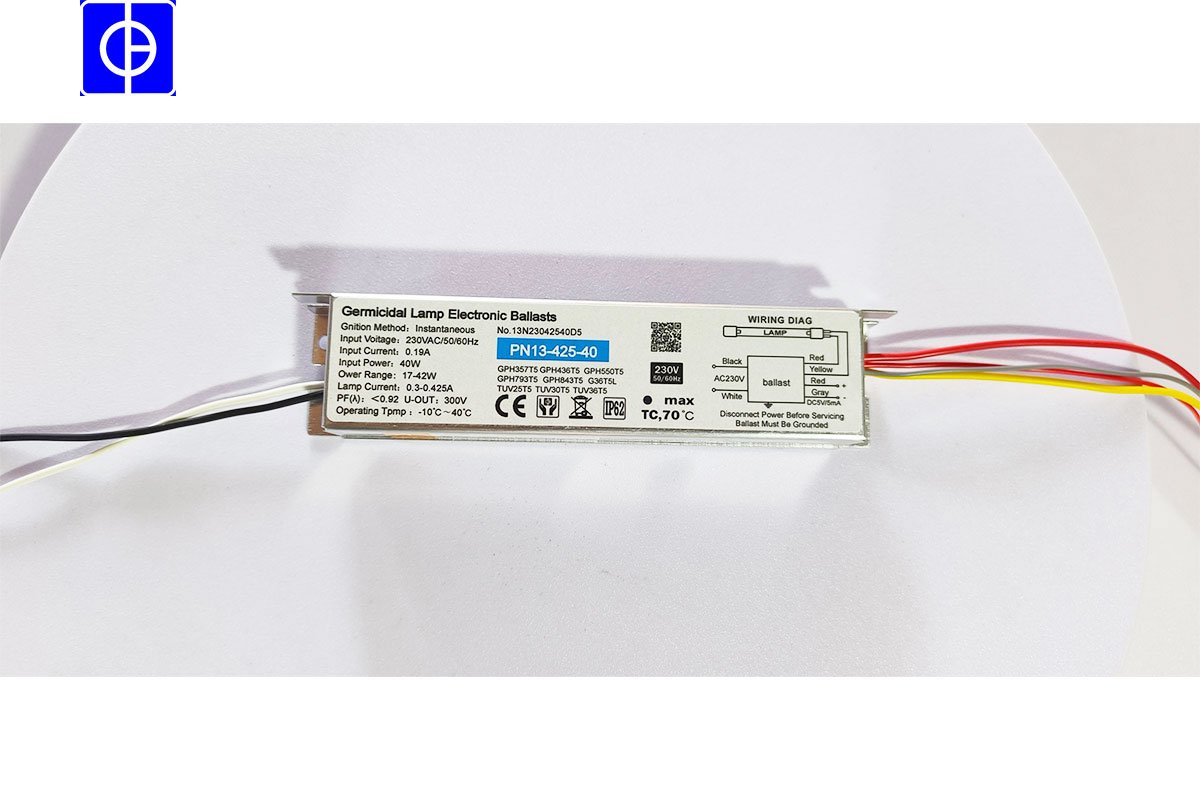

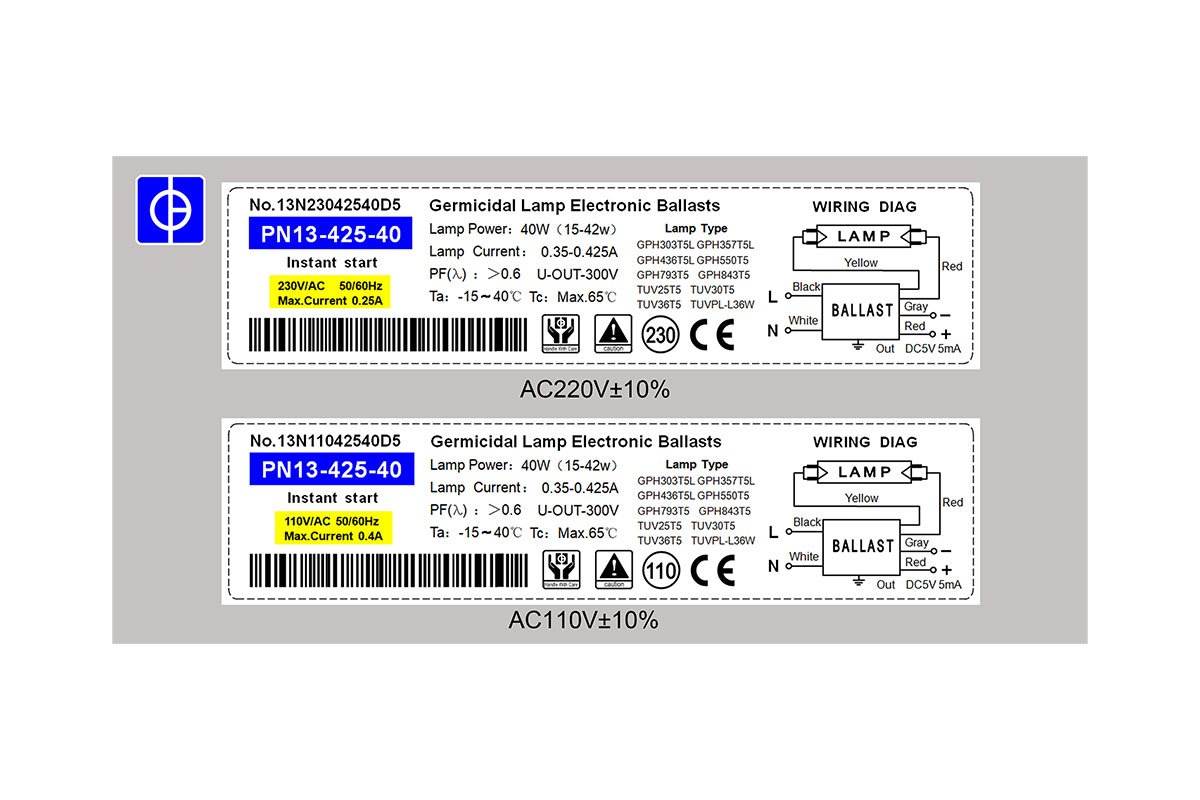

PN13-425-40

Instant Start
Output Power
40W
Rated Power
40W
Output Power Range
17-42W
Number of Lamps
1 pc
Output Features
Instant Start / Non-constant-current / Fault protection
Compatible Lamp Models
GPH357T5, GPH436T5, GPH550T5, GPH793T5, GPH843T5, G36T5L, TUV25T5, TUV30T5, TUV36T5

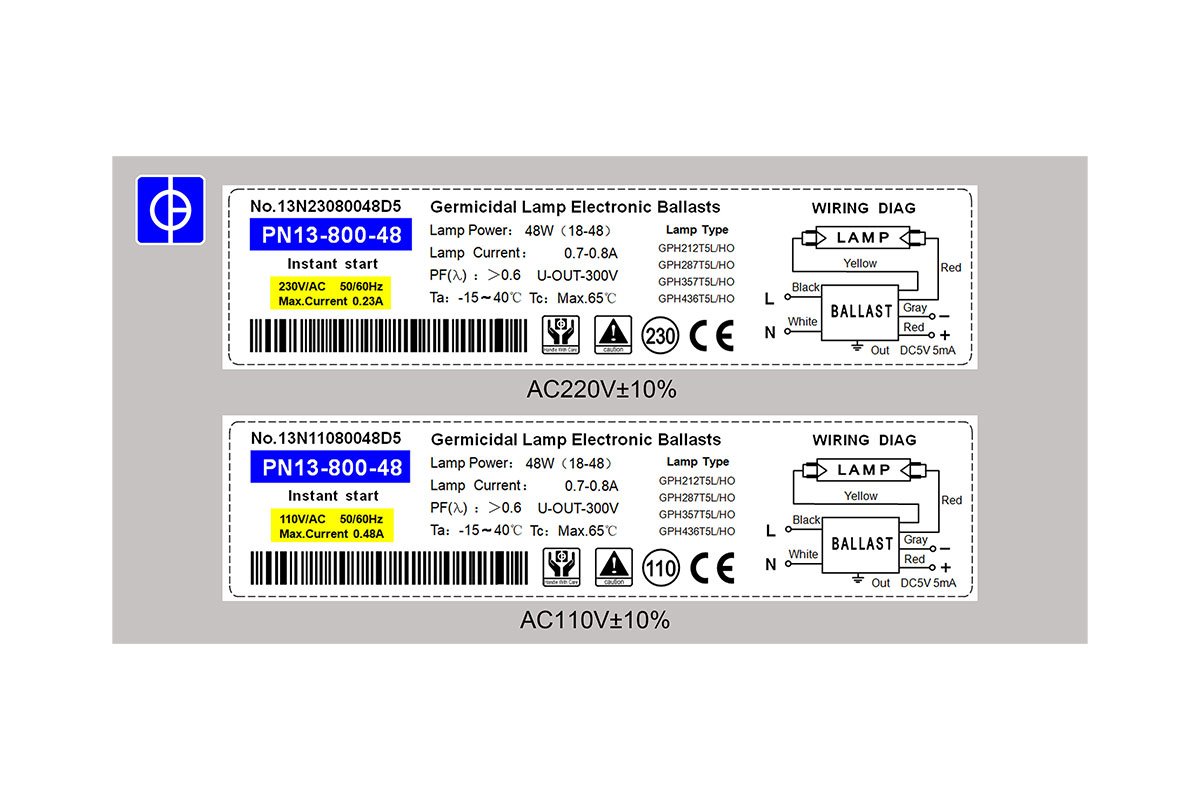

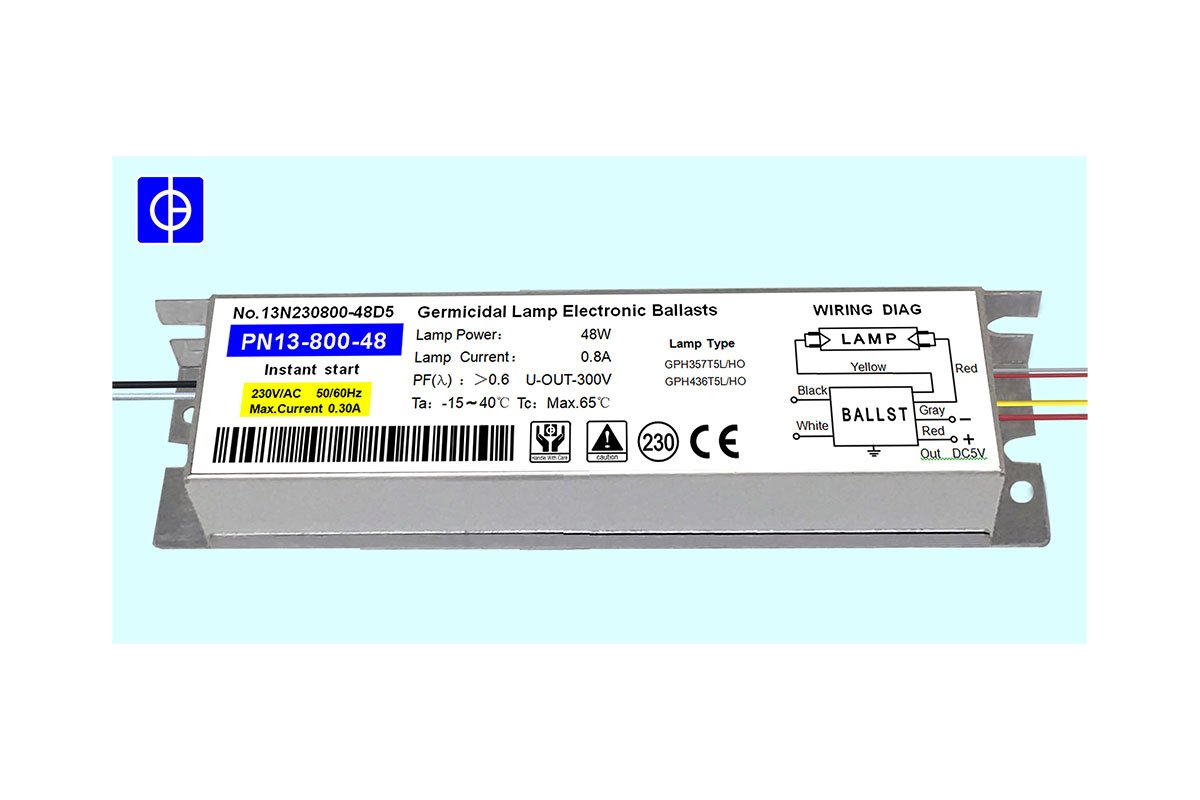

PN13-800-48

Instant Start
Output Power
48W
Rated Power
48W
Output Power Range
18-48W
Number of Lamps
1 pc
Output Features
Instant Start / Non-constant-current / Fault protection
Compatible Lamp Models
GPH212T5L, HOGPH287T5L, HOGPH357T5L, HOGPH436T5L/HO

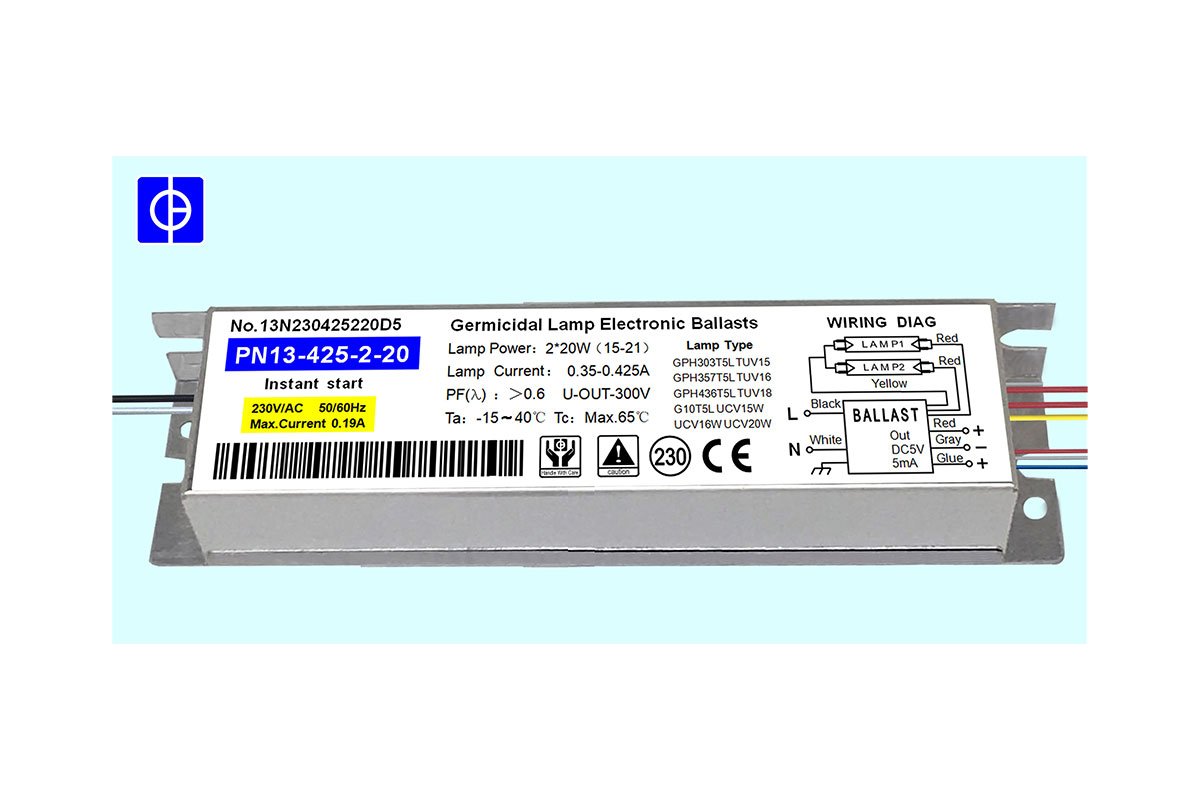

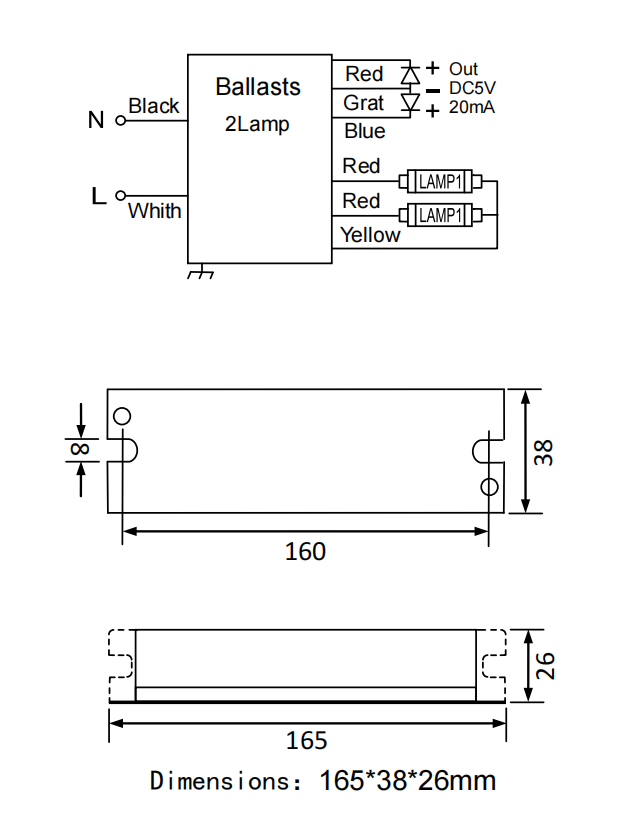

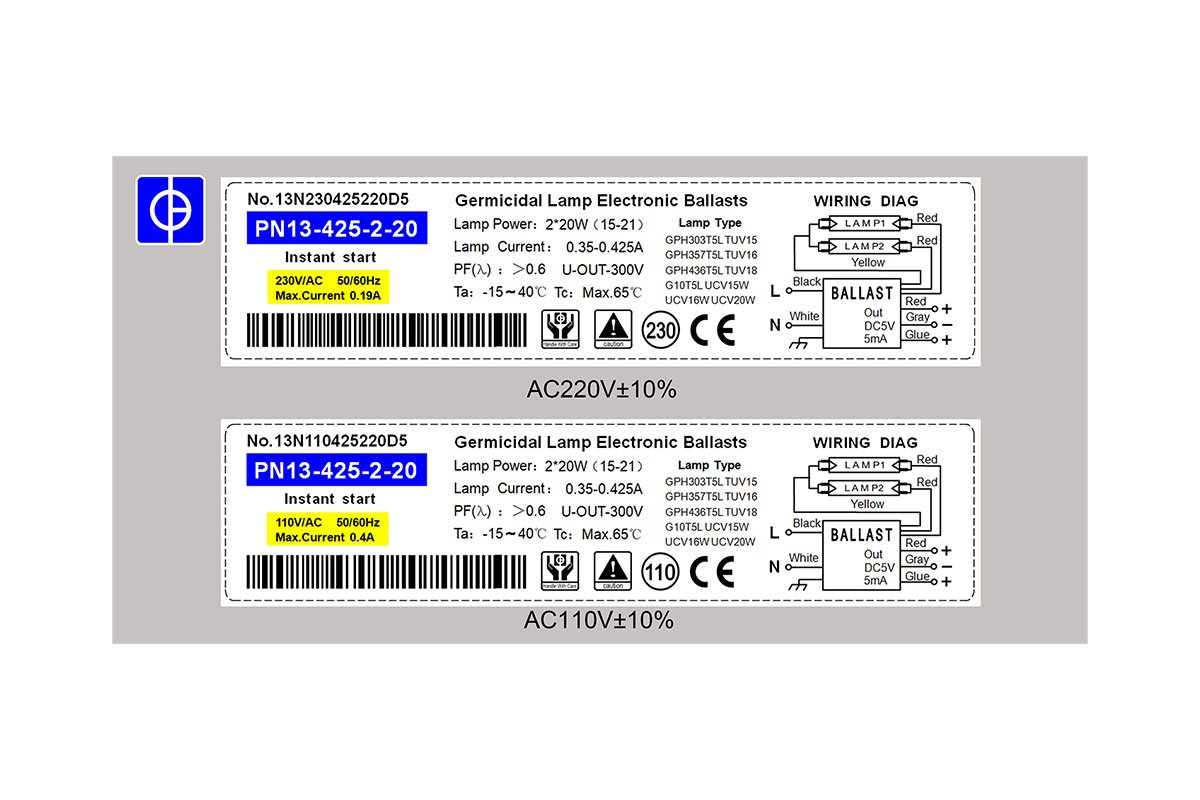

PN13-425-2-20

Instant Start
Output Power
20W
Rated Power
20W
Output Power Range
10-21W
Number of Lamps
2 pcs
Output Features
Instant Start / Non-constant-current / Fault protection
Compatible Lamp Models
GPH212T5, GPH287T5, GPH303T5, GPH436T5, TUV10T5, TUV11T5, TUV15T5, TUV16T5

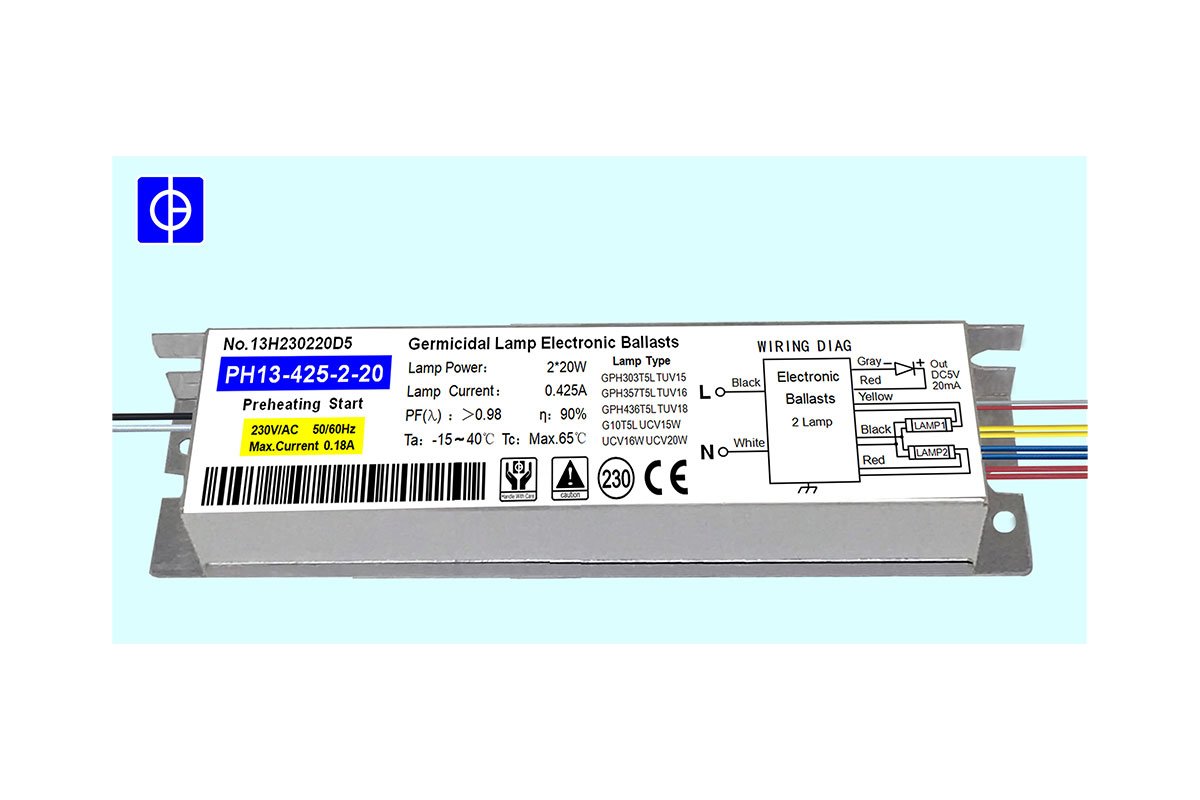

PH13-425-2-20

Preheat Start
Output Power
20W
Rated Power
20W
Output Power Range
2×10-21W
Number of Lamps
2 pcs
Output Features
Preheat Start / Constant current / Fault protection
Compatible Lamp Models
2×GPH212/287/303/436T5, TUV10T5, TUV11T5, TUV15T5, TUV16T5；1×GPH436/550/793/H843/1148T5, TUV25T5, TUV30T5, TUV36T5, TUVPL-L36WG36T5

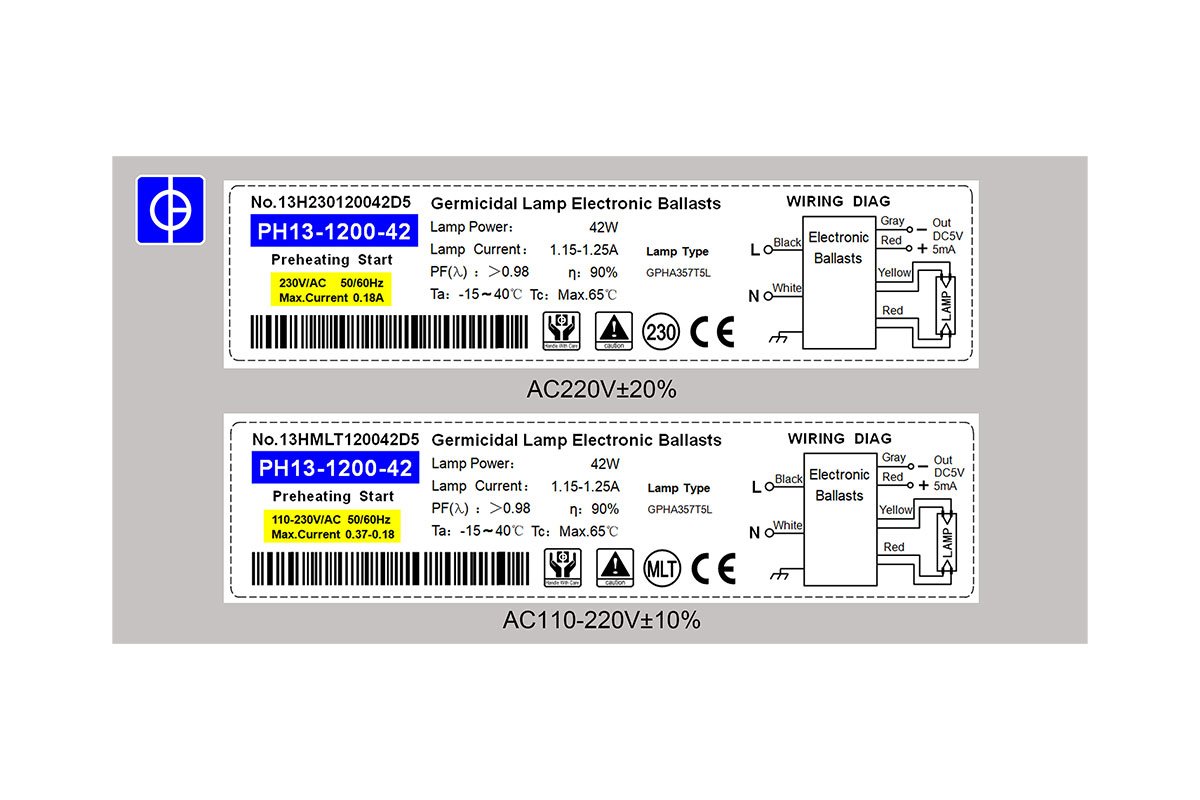

PH13-1200-42

Preheat Start
Output Power
42W
Rated Power
42W
Output Power Range
42W
Number of Lamps
1 pc
Output Features
Preheat Start / Constant current / Fault protection
Compatible Lamp Models
GPHVA357T5L

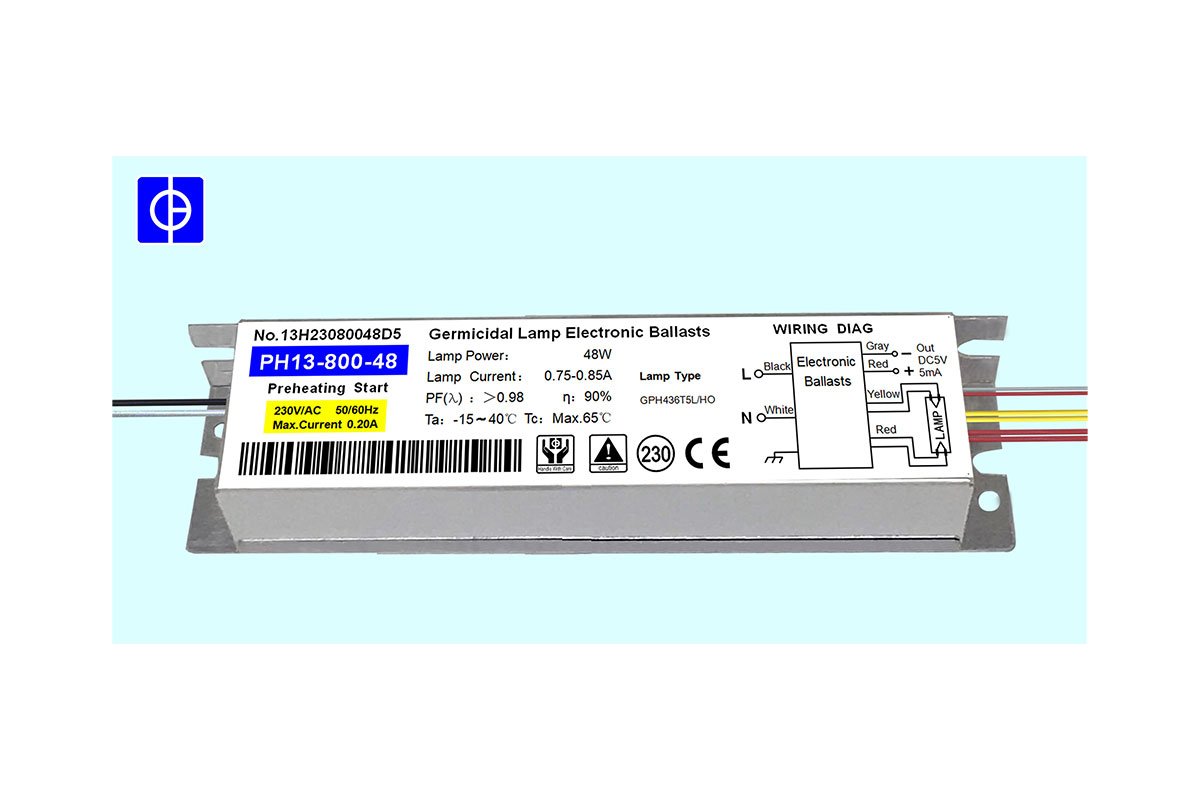

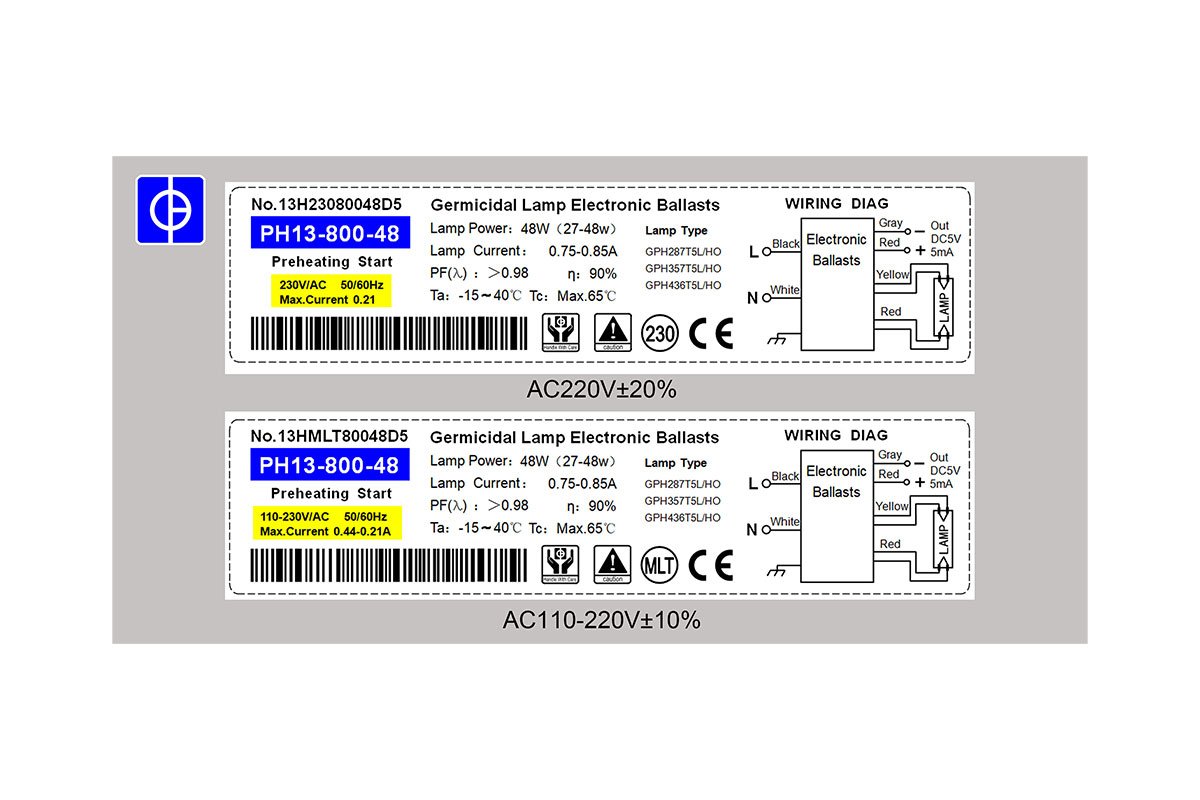

PH13-800-48

Preheat Start
Output Power
48W
Rated Power
48W
Output Power Range
27-48W
Number of Lamps
1 pc
Output Features
Preheat Start / Constant current / Fault protection
Compatible Lamp Models
GPH287T5L, HOGPH357T5L, HOGPH436T5L/HO

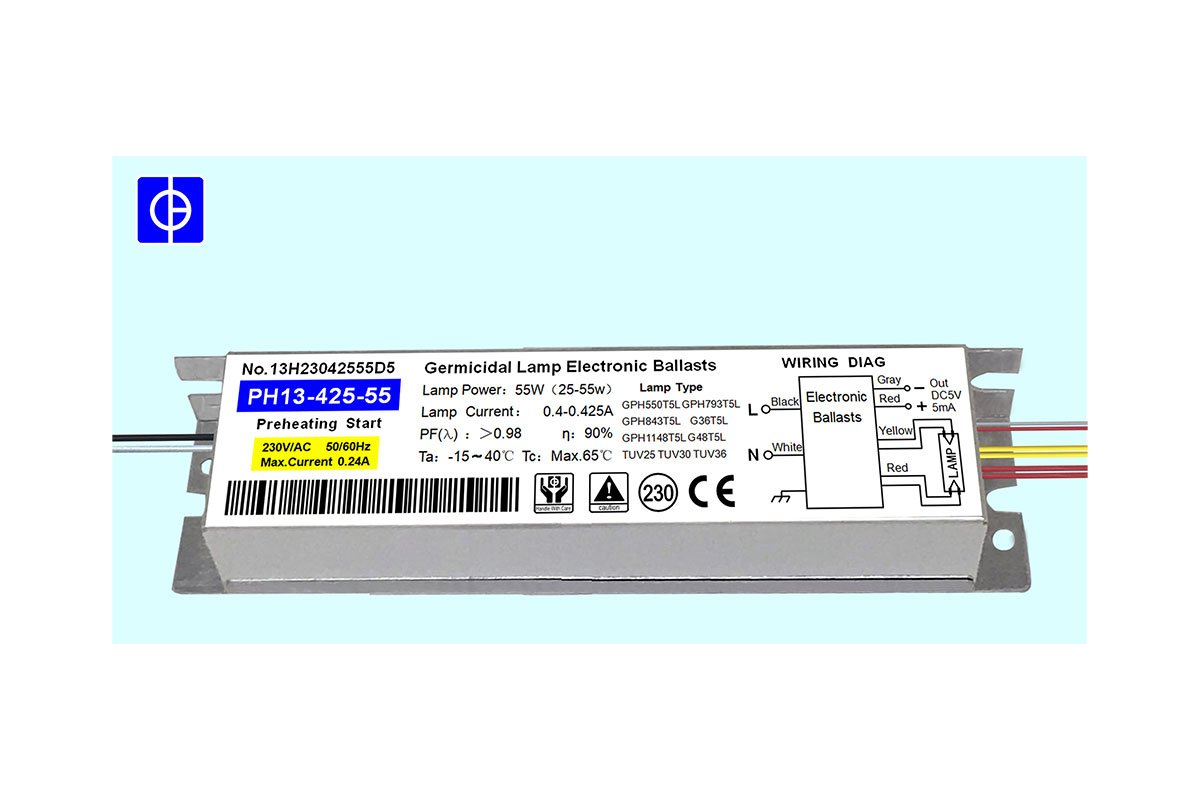

PH13-425-55

Preheat Start
Output Power
55W
Rated Power
55W
Output Power Range
20-55W
Number of Lamps
1 pc
Output Features
Preheat Start / Constant current / Fault protection
Compatible Lamp Models
GPH436T5, GPH550T5, GPH793T5, GPH843T5, GPH1148T5, TUV25T5, TUV30T5, TUV36T5, TUVPL-L36WG36T5L

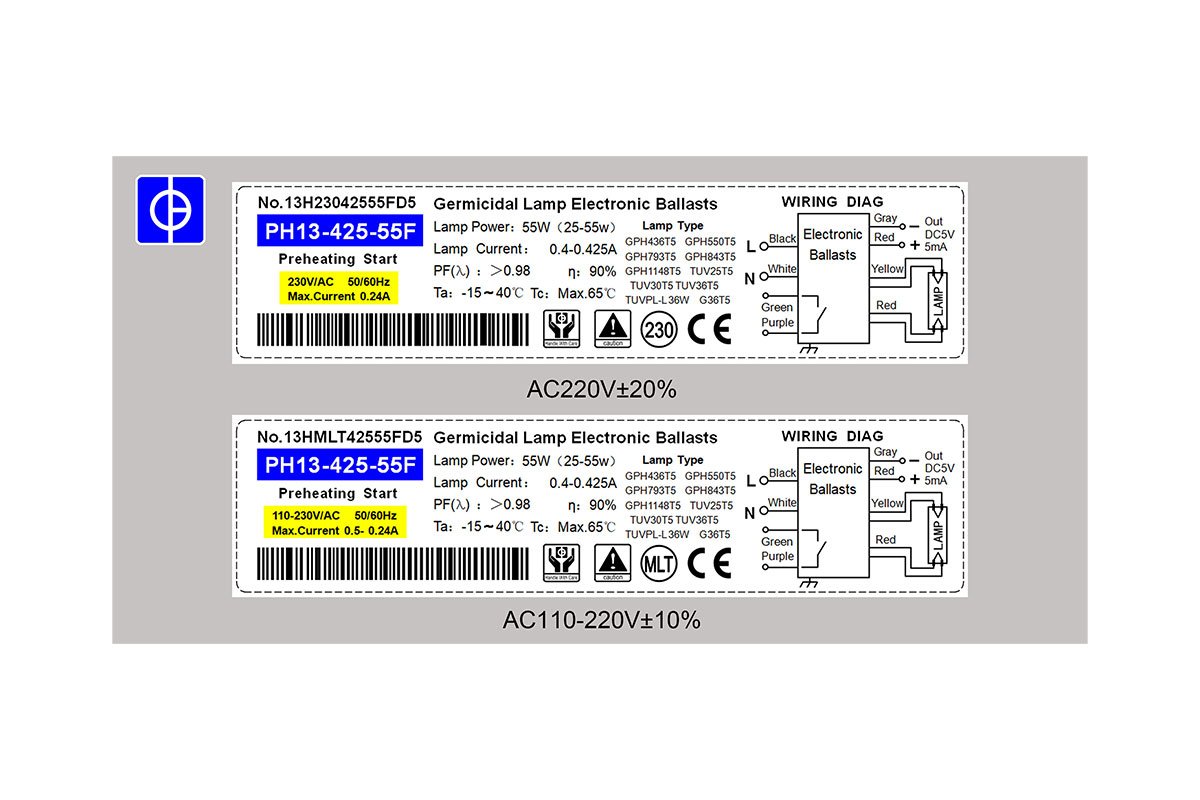

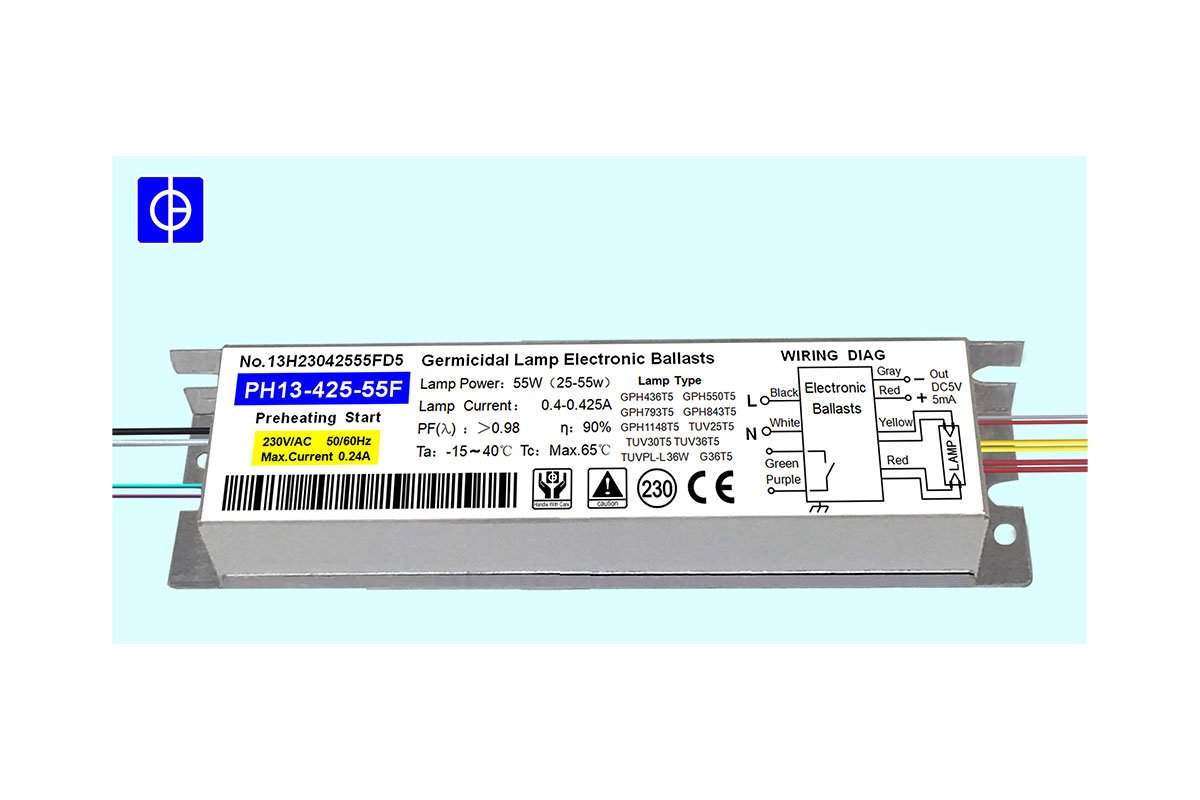

PH13-425-55F

Preheat Start
Output Power
55W
Rated Power
55W
Output Power Range
20-55W
Number of Lamps
1 pc
Output Features
Preheat Start / Constant current / Fault protection
Compatible Lamp Models
GPH436T5, GPH550T5, GPH793T5, GPH843T5, GPH1148T5, TUV25T5, TUV30T5, TUV36T5, TUVPL-L36WG36T5L

* Click "View Details" to scroll to the full specification sheet for that model. Detailed parameters and PDFs are replaceable placeholder content and can be updated with official datasheets later.

Full Model Specifications

Product Model

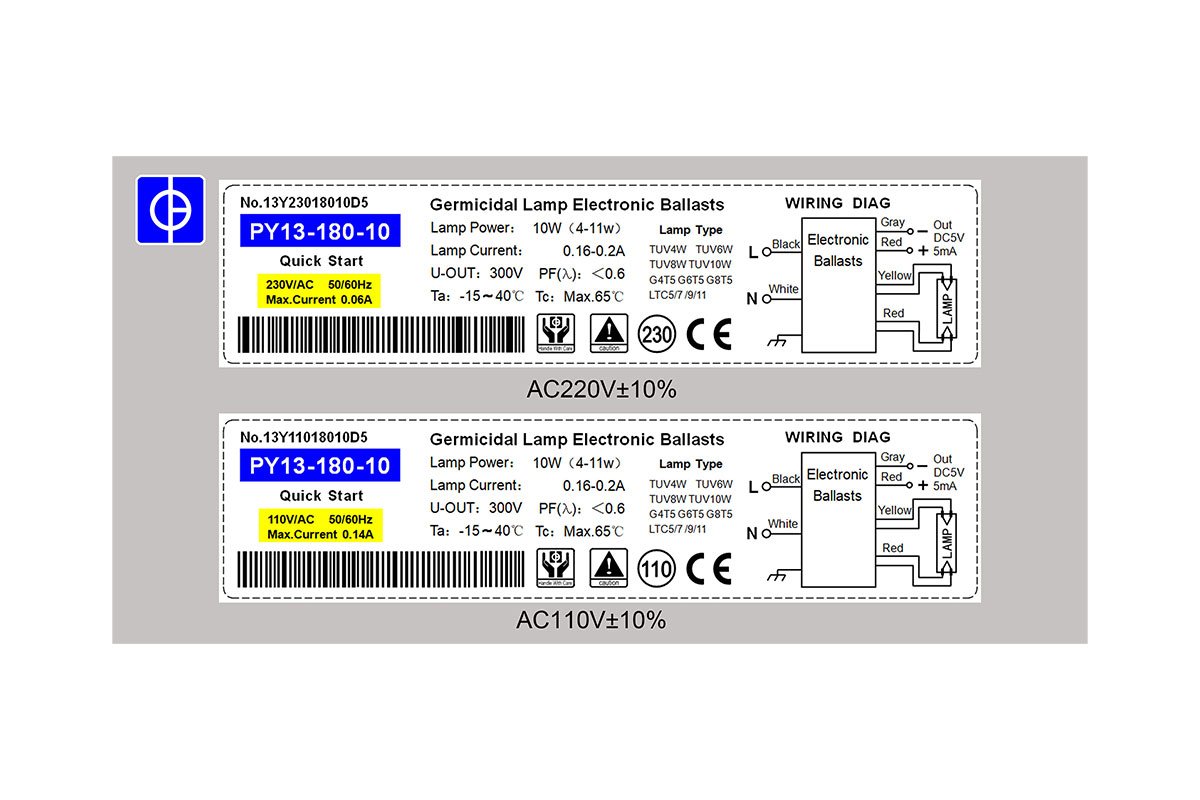

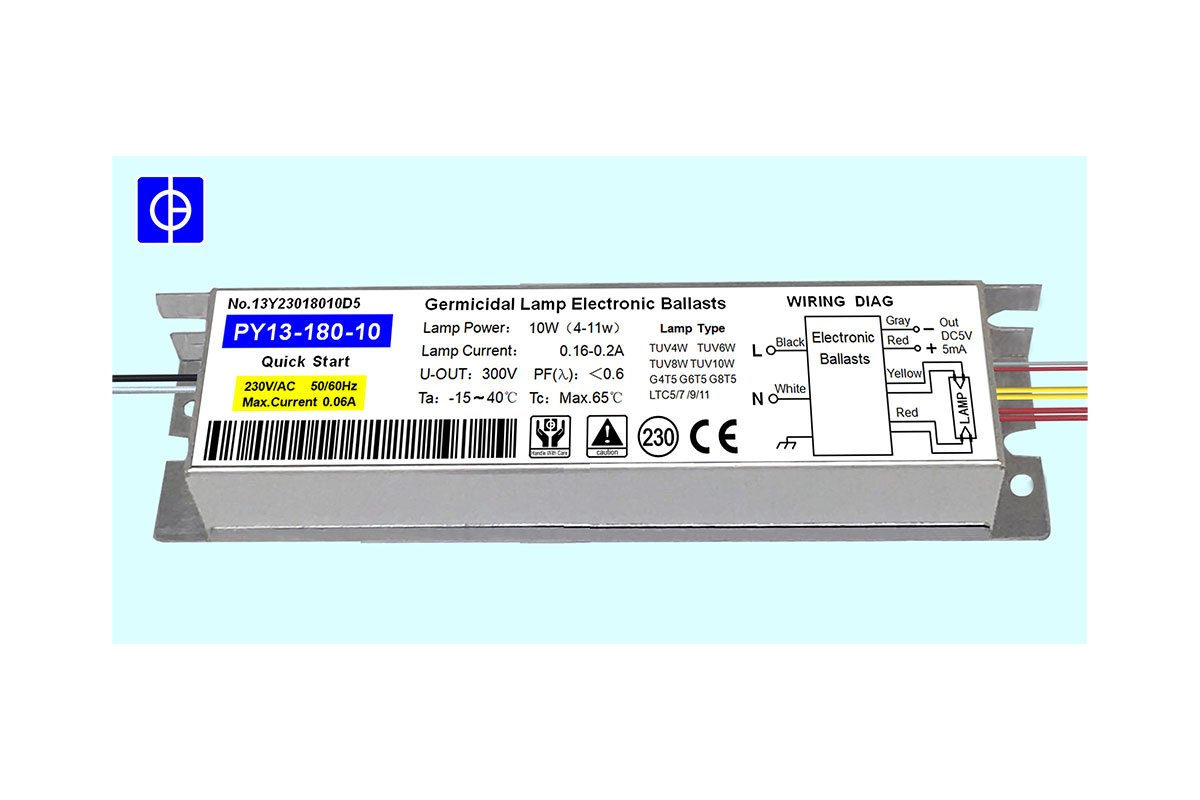

PY13-180-10

download PDF
PY13-180-10 1
PY13-180-10 6
Product Model:PY13-180-10（230）
Input Voltage:AC220V±10%
Ordering Code:13Y23018010D5
Product Model:PY13-180-10（110）
Input Voltage:AC110V±10%
Ordering Code:13Y11018010D5
Starting Mode:Quick Start, Starting Time < 1 s
Power Frequency:50/60Hz
Input Current:
0.06A@230V 0.14A@110V
Dimming Control:
N/A (non-dimmable)
Input Features:Lightning protection; PF 0.98; Efficiency (η): 90%
Output Power:10W
Dimming Range:4-11W
Number of Lamps:1 pc
Output Current:180mA
Output Current Range:160-200mA
Auxiliary Output:
Lamp ON Output: DC 5V / 5mA (for External LED Indicator)
Output Features:
Non-constant-current operation; fault protection, etc.
Standards Compliance:
IP64; CE certified
Ambient Temperature:-10°C ~ 40°C
Maximum Enclosure Temperature (TC):<70°C
Humidity:
5%–85%

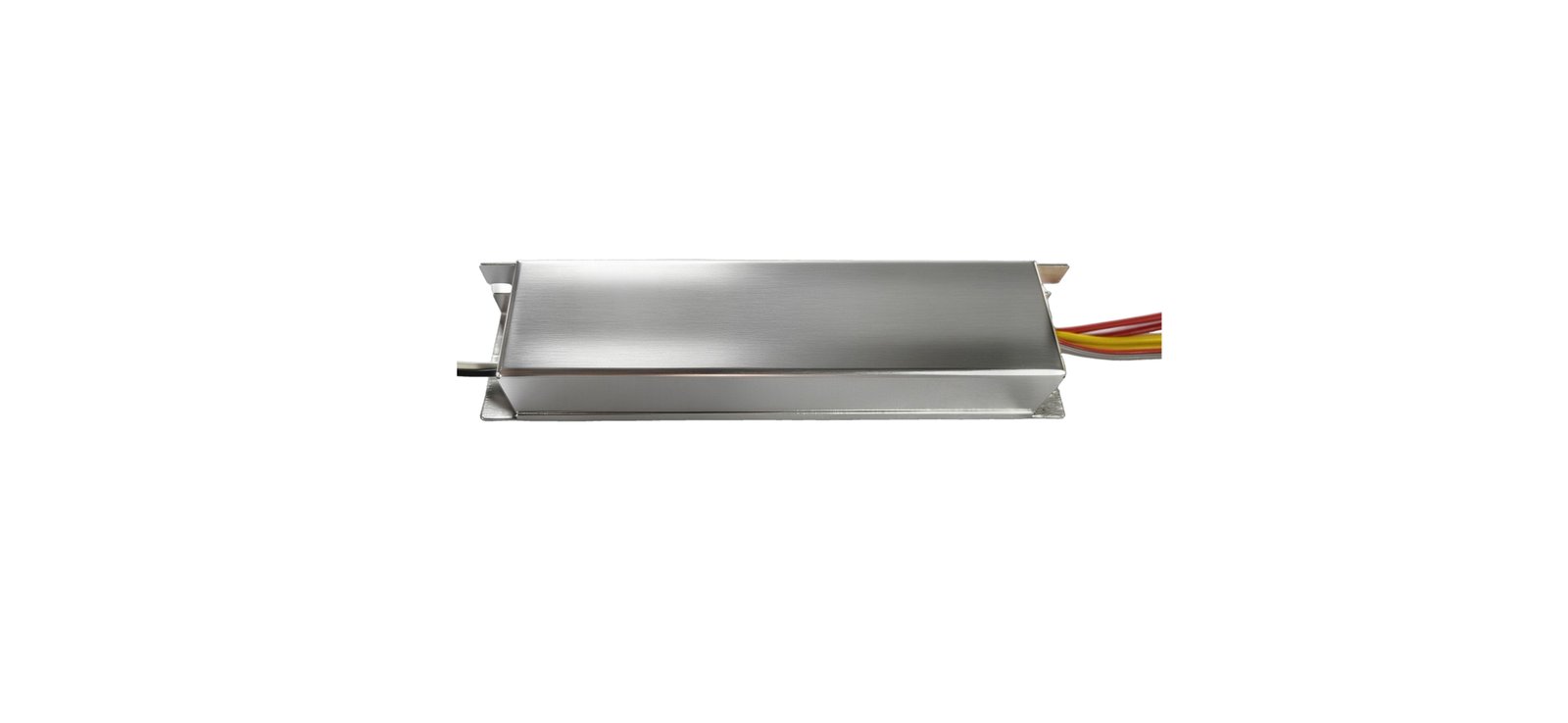

Housing Construction:
Aluminum housing with U.S.-style potting compound

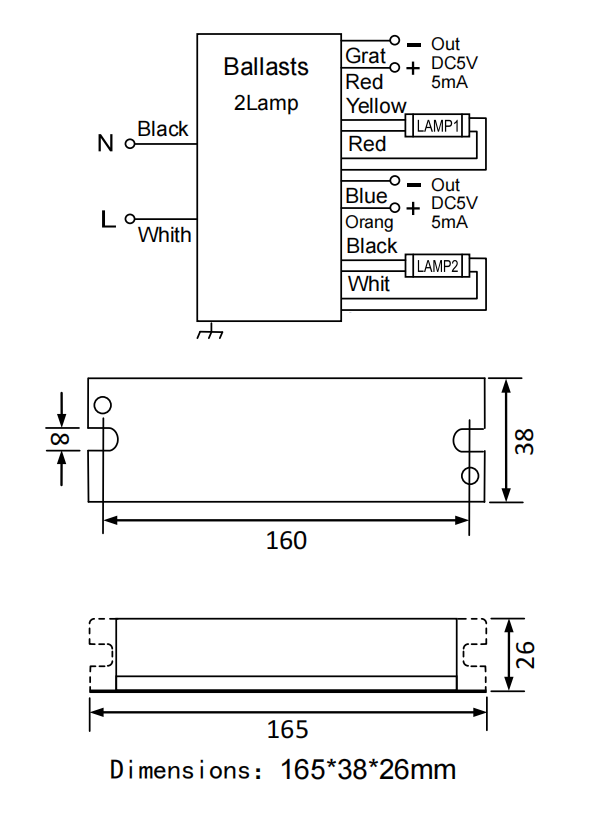

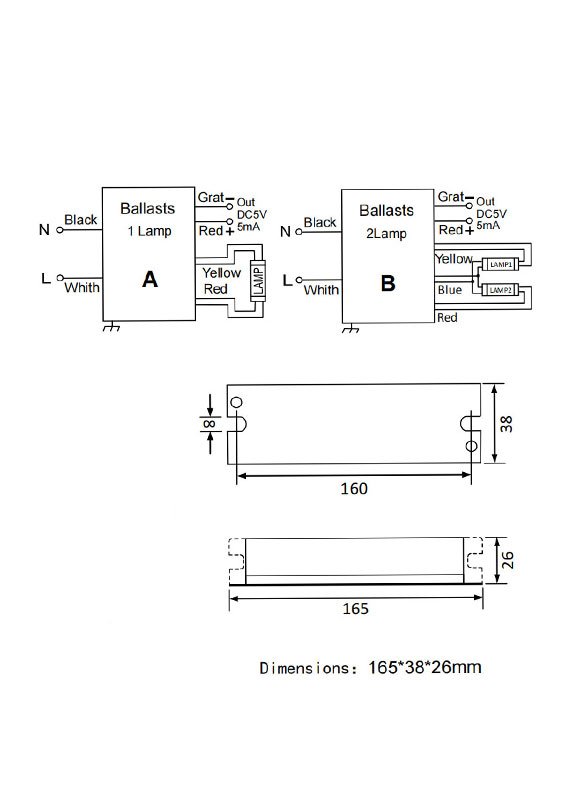

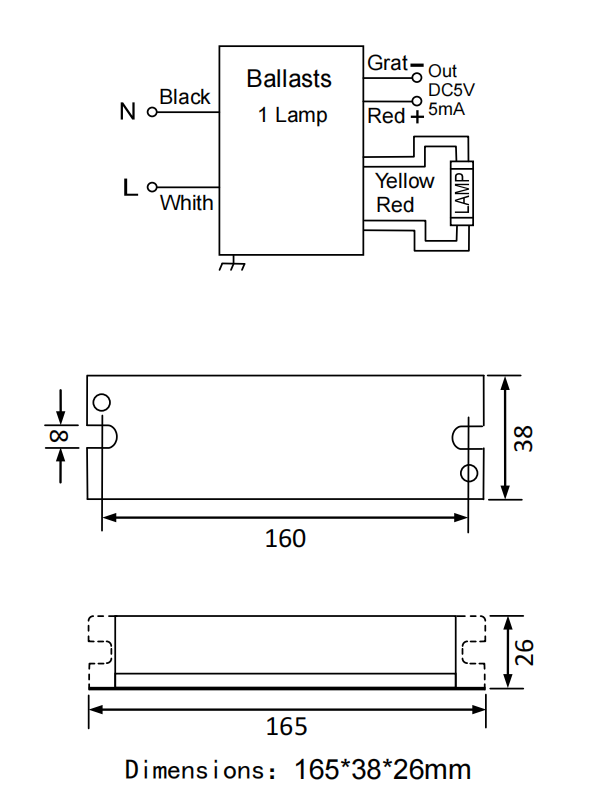

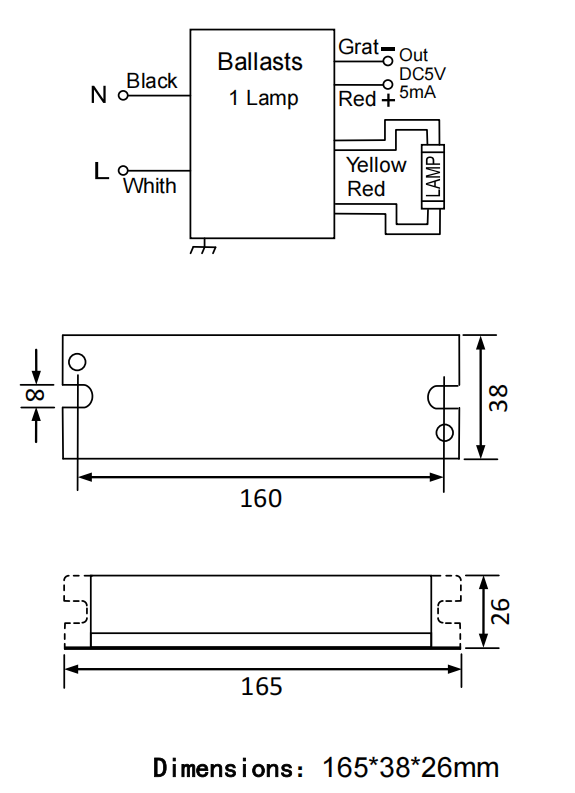

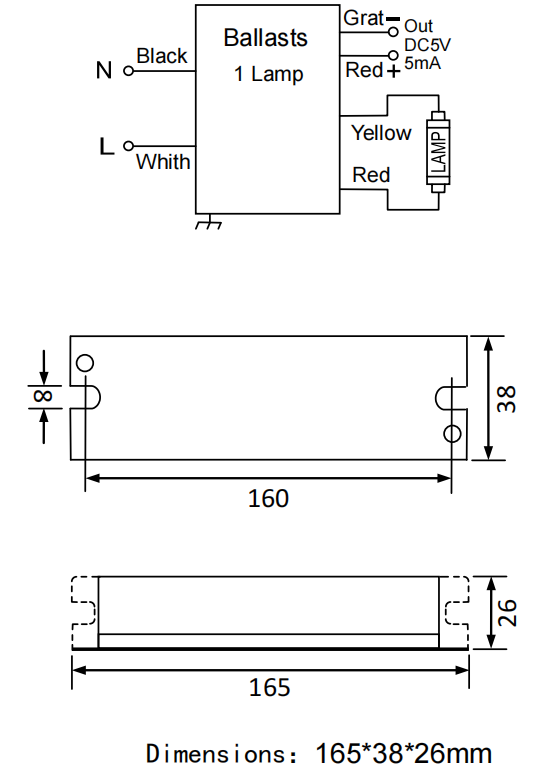

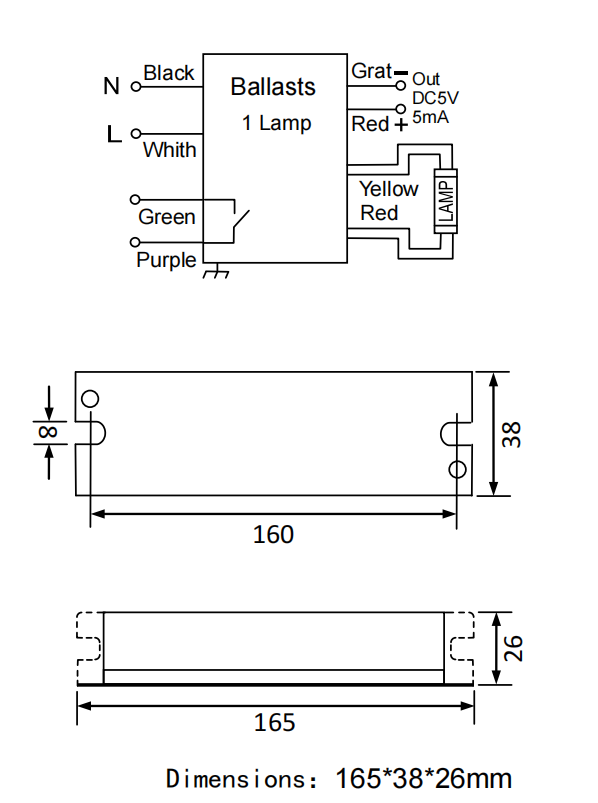

Housing Dimensions:165 × 38 × 26mm
Mounting Hole Spacing:160mm

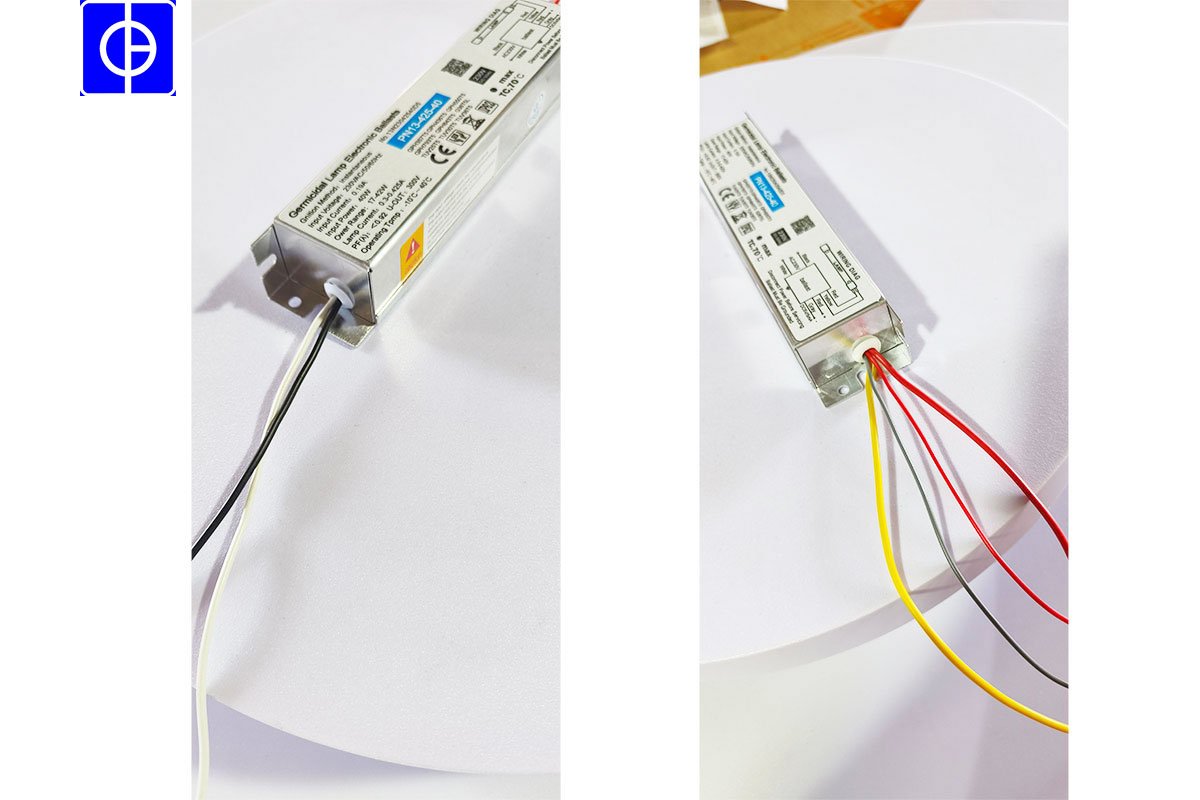

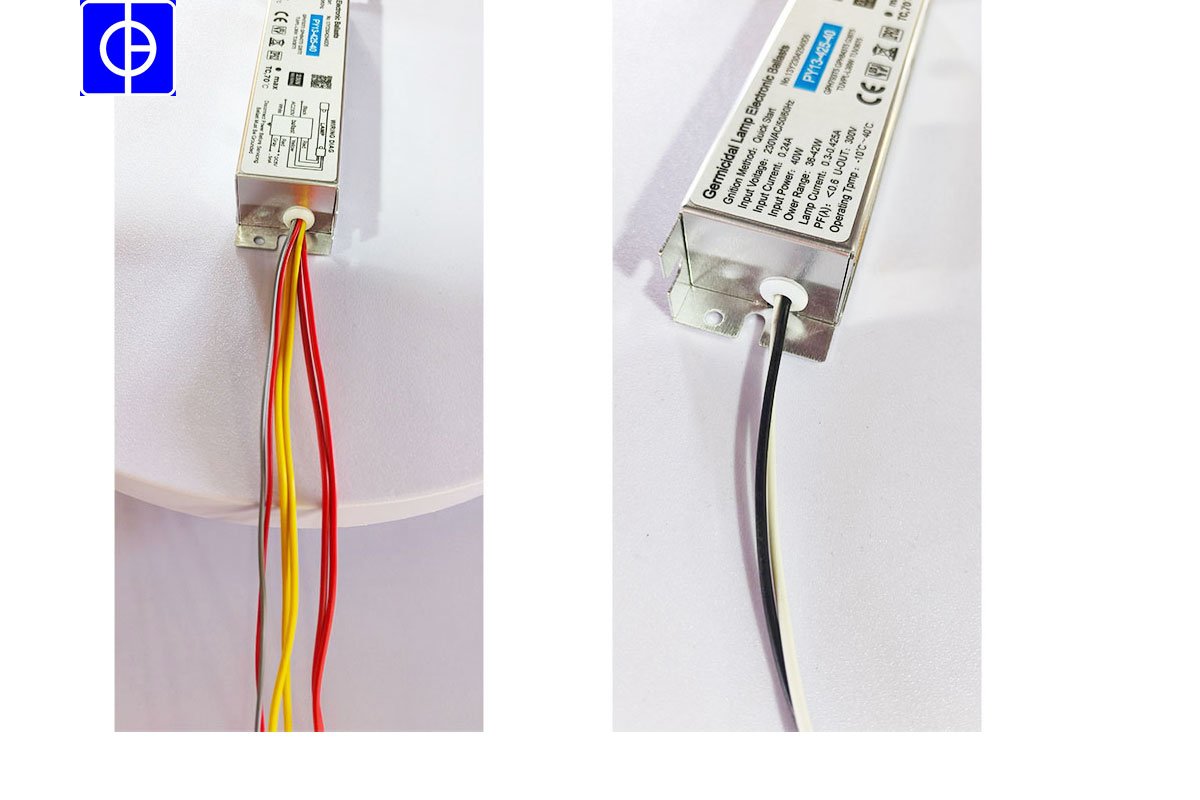

Connection Method:
0.5mm² multi-strand wire, length 330mm; distance between ballast and lamp < 1m
Outer Carton Size:425 × 235 × 205mm
Net Weight per Unit:0.2kg/pcs
Quantity per Carton:50pcs
Gross Weight per Carton:11kg
Tare Weight (T.W.):
0.5kg
Compatible Lamp Models:
TUV4W, TUV6W, TUV8W, TUV10W, G4T5, G6T5, G8T5, LTC5, LTC7, LTC9, LTC11
Applications:
Wastewater treatment, water purification, exhaust-gas treatment, air purification, printing, pharmaceuticals, medical care, food processing, aquaculture, etc.

Product Model

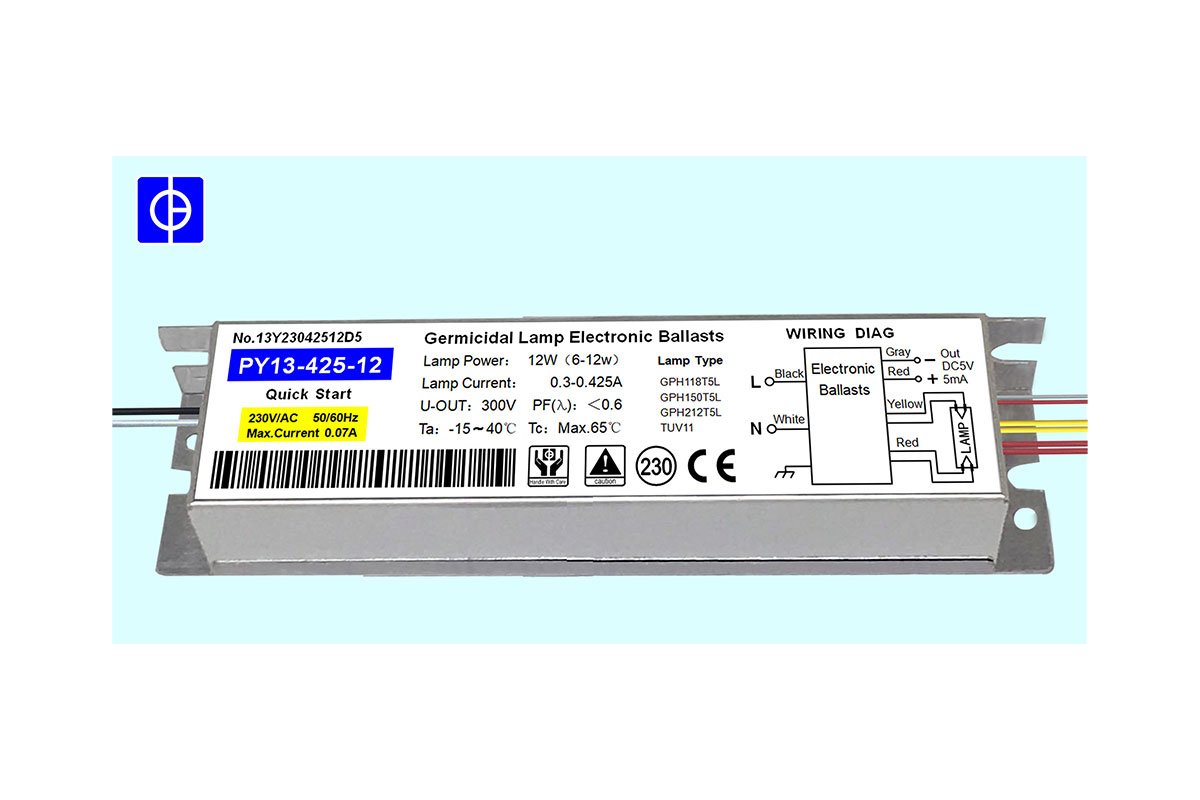

PY13-425-12

download PDF
PY13-425-12 1
PY13-425-12 6
Product Model:PY13-425-12（230）
Input Voltage:AC220V±10%
Ordering Code:13Y23042512D5
Product Model:PY13-425-12（110）
Input Voltage:AC110V±10%
Ordering Code:13Y11042512D5
Starting Mode:Quick Start, Starting Time < 1 s
Power Frequency:50/60Hz
Input Current:
0.07A@230V 0.16A@110V
Dimming Control:
N/A (non-dimmable)
Input Features:Lightning protection; PF 0.98; Efficiency (η): 90%
Output Power:12W
Dimming Range:6-12W
Number of Lamps:1 pc
Output Current:425mA
Output Current Range:300-425mA
Auxiliary Output:
Lamp ON Output: DC 5V / 5mA (for External LED Indicator)
Output Features:
Non-constant-current operation; fault protection, etc.
Standards Compliance:
IP64; CE certified
Ambient Temperature:-10°C ~ 40°C
Maximum Enclosure Temperature (TC):<70°C
Humidity:
5%–85%
Housing Construction:
Aluminum housing with U.S.-style potting compound
Housing Dimensions:165 × 38 × 26mm
Mounting Hole Spacing:160mm
Connection Method:
0.5mm² multi-strand wire, length 330mm; distance between ballast and lamp < 1m
Outer Carton Size:425 × 235 × 205mm
Net Weight per Unit:0.18kg/pcs
Quantity per Carton:50pcs
Gross Weight per Carton:9.5kg
Tare Weight (T.W.):
0.5kg
Compatible Lamp Models:
GPH118T5L, GPH150T5L, GPH212T5L, TUV11
Applications:
Wastewater treatment, water purification, exhaust-gas treatment, air purification, printing, pharmaceuticals, medical care, food processing, aquaculture, etc.

Product Model

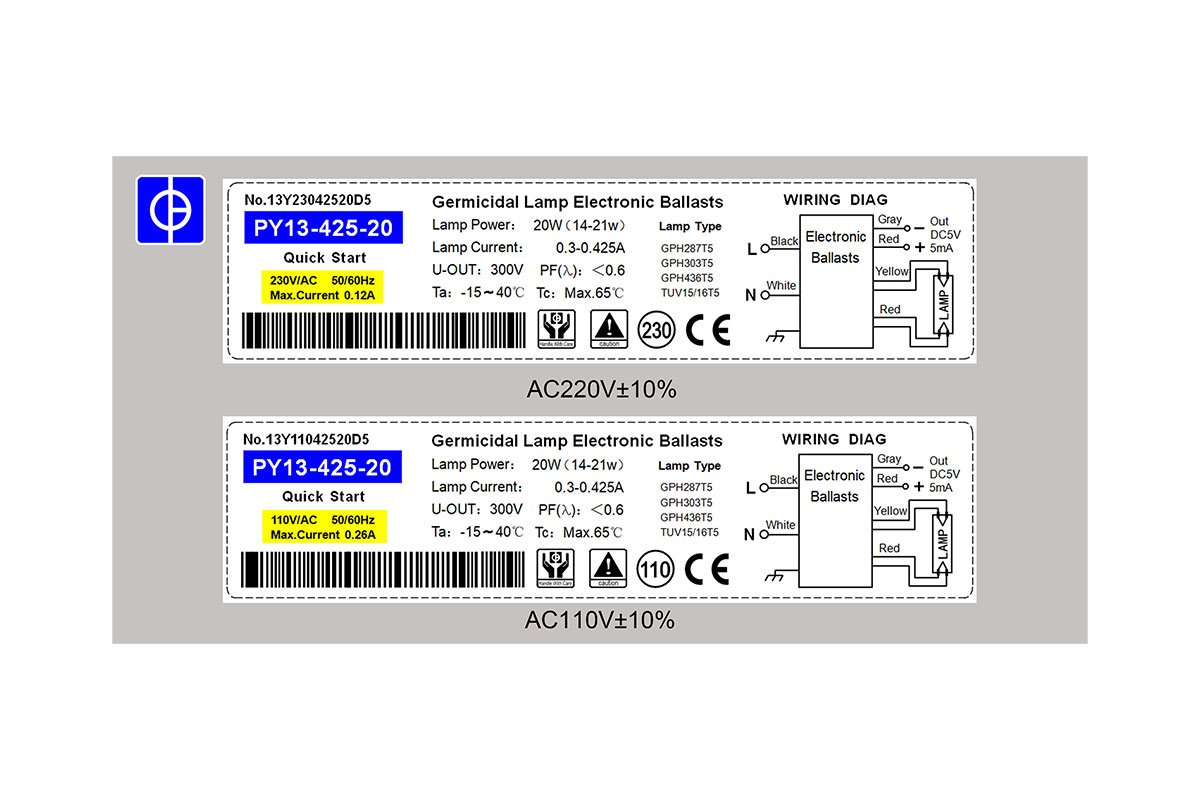

PY13-425-20

download PDF
PY13-425-20 1
PY13-425-20 6
Product Model:PY13-425-20（230）
Input Voltage:AC220V±10%
Ordering Code:13Y23042520D5
Product Model:PY13-425-20（110）
Input Voltage:AC110V±10%
Ordering Code:13Y11042520D5
Starting Mode:Quick Start, Starting Time < 1 s
Power Frequency:50/60Hz
Input Current:
0.12A@230V 0.26A@110V
Dimming Control:
N/A (non-dimmable)
Input Features:Lightning protection; PF 0.98; Efficiency (η): 90%
Output Power:20W
Dimming Range:14-21W
Number of Lamps:1 pc
Output Current:425mA
Output Current Range:300-425mA
Auxiliary Output:
Lamp ON Output: DC 5V / 5mA (for External LED Indicator)
Output Features:
Non-constant-current operation; fault protection, etc.
Standards Compliance:
IP64; CE certified
Ambient Temperature:-10°C ~ 40°C
Maximum Enclosure Temperature (TC):<70°C
Humidity:
5%–85%
Housing Construction:
Aluminum housing with U.S.-style potting compound
Housing Dimensions:165 × 38 × 26mm
Mounting Hole Spacing:160mm
Connection Method:
0.5mm² multi-strand wire, length 330mm; distance between ballast and lamp < 1m
Outer Carton Size:425 × 235 × 205mm
Net Weight per Unit:0.18kg/pcs
Quantity per Carton:50pcs
Gross Weight per Carton:9.5kg
Tare Weight (T.W.):
0.5kg
Compatible Lamp Models:
GPH287T5, GPH303T5, GPH436T5, TUV15T5, TUV16T5
Applications:
Wastewater treatment, water purification, exhaust-gas treatment, air purification, printing, pharmaceuticals, medical care, food processing, aquaculture, etc.

Product Model

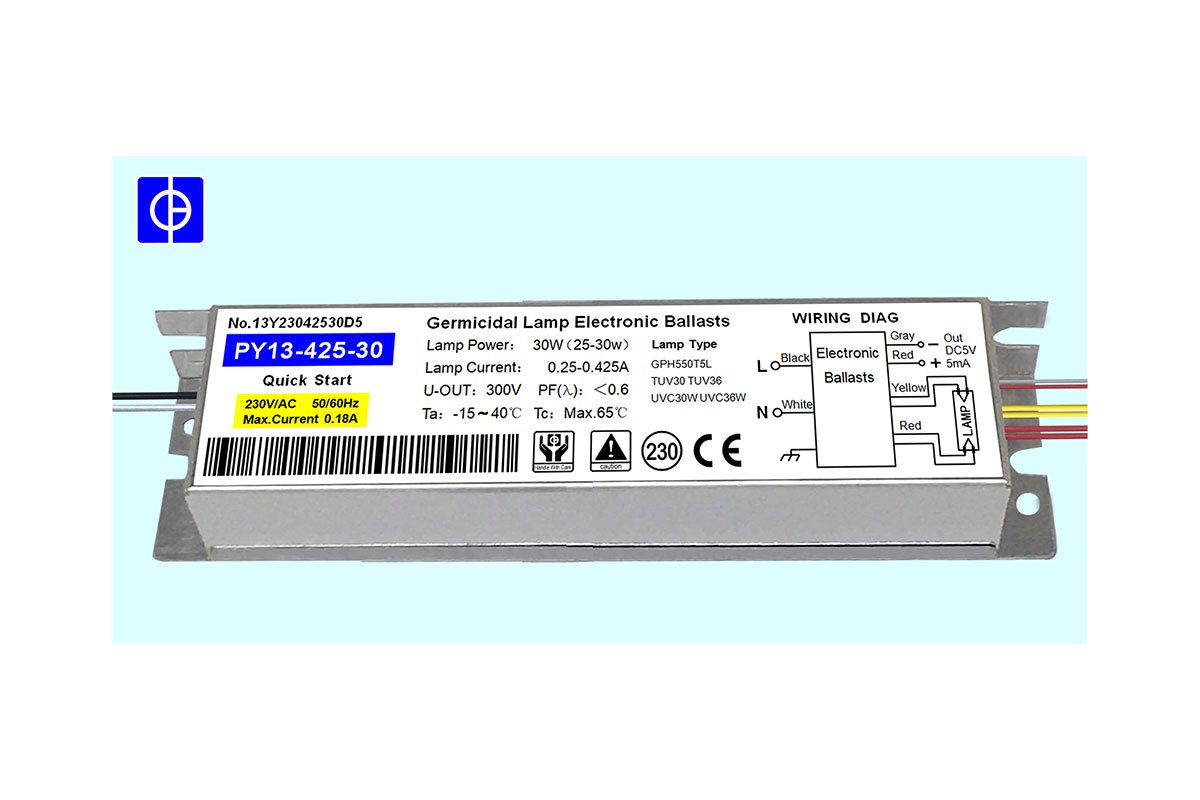

PY13-425-30

download PDF
PY13-425-30 1
PY13-425-30 6
Product Model:PY13-425-30（230）
Input Voltage:AC220V±10%
Ordering Code:13Y23042530D5
Product Model:PY13-425-30（110）
Input Voltage:AC110V±10%
Ordering Code:13Y11042530D5
Starting Mode:Quick Start, Starting Time < 1 s
Power Frequency:50/60Hz
Input Current:
0.18A@230V 0.38A@110V
Dimming Control:
N/A (non-dimmable)
Input Features:Lightning protection; PF 0.98; Efficiency (η): 90%
Output Power:30W
Dimming Range:21-30W
Number of Lamps:1 pc
Output Current:425mA
Output Current Range:300-425mA
Auxiliary Output:
Lamp ON Output: DC 5V / 5mA (for External LED Indicator)
Output Features:
Non-constant-current operation; fault protection, etc.
Standards Compliance:
IP64; CE certified
Ambient Temperature:-10°C ~ 40°C
Maximum Enclosure Temperature (TC):<70°C
Humidity:
5%–85%
Housing Construction:
Aluminum housing with U.S.-style potting compound
Housing Dimensions:165 × 38 × 26mm
Mounting Hole Spacing:160mm
Connection Method:
0.5mm² multi-strand wire, length 330mm; distance between ballast and lamp < 1m
Outer Carton Size:425 × 235 × 205mm
Net Weight per Unit:0.18kg/pcs
Quantity per Carton:50pcs
Gross Weight per Carton:9.5kg
Tare Weight (T.W.):
0.5kg
Compatible Lamp Models:
GPH436T5, GPH550T5, TUV25T5, TUV30T5
Applications:
Wastewater treatment, water purification, exhaust-gas treatment, air purification, printing, pharmaceuticals, medical care, food processing, aquaculture, etc.

Product Model

PY13-425-40

download PDF
PY13-425-40 1
PY13-425-40 6
Product Model:PY13-425-40（230）
Input Voltage:AC220V±10%
Ordering Code:13Y23042540D5
Product Model:PY13-425-40（110）
Input Voltage:AC110V±10%
Ordering Code:13Y11042540D5
Starting Mode:Quick Start, Starting Time < 1 s
Power Frequency:50/60Hz
Input Current:
0.24A@230V 0.51A@110V
Dimming Control:
N/A (non-dimmable)
Input Features:Lightning protection; PF 0.98; Efficiency (η): 90%
Output Power:40W
Dimming Range:36-42W
Number of Lamps:1 pc
Output Current:425mA
Output Current Range:300-425mA
Auxiliary Output:
Lamp ON Output: DC 5V / 5mA (for External LED Indicator)
Output Features:
Non-constant-current operation; fault protection, etc.
Standards Compliance:
IP64; CE certified
Ambient Temperature:-10°C ~ 40°C
Maximum Enclosure Temperature (TC):<70°C
Humidity:
5%–85%
Housing Construction:
Aluminum housing with U.S.-style potting compound
Housing Dimensions:165 × 38 × 26mm
Mounting Hole Spacing:160mm
Connection Method:
0.5mm² multi-strand wire, length 330mm; distance between ballast and lamp < 1m
Outer Carton Size:425 × 235 × 205mm
Net Weight per Unit:0.18kg/pcs
Quantity per Carton:50pcs
Gross Weight per Carton:9.5kg
Tare Weight (T.W.):
0.5kg
Compatible Lamp Models:
GPH793T5, GPH843T5, TUV36T5, TUVPL-L36WG36T5
Applications:
Wastewater treatment, water purification, exhaust-gas treatment, air purification, printing, pharmaceuticals, medical care, food processing, aquaculture, etc.

Product Model

PY13-425-55

download PDF
PY13-425-55 1
PY13-425-55 6
Product Model:PY13-425-55（230）
Input Voltage:AC220V±10%
Ordering Code:13Y23042555D5
Product Model:PY13-425-55（110）
Input Voltage:AC110V±10%
Ordering Code:13Y11042555D5
Starting Mode:Quick Start, Starting Time < 1 s
Power Frequency:50/60Hz
Input Current:
0.33A@230V 0.7A@110V
Dimming Control:
N/A (non-dimmable)
Input Features:Lightning protection; PF 0.98; Efficiency (η): 90%
Output Power:55W
Dimming Range:38-55W
Number of Lamps:1 pc
Output Current:425mA
Output Current Range:300-425mA
Auxiliary Output:
Lamp ON Output: DC 5V / 5mA (for External LED Indicator)
Output Features:
Non-constant-current operation; fault protection, etc.
Standards Compliance:
IP64; CE certified
Ambient Temperature:-10°C ~ 40°C
Maximum Enclosure Temperature (TC):<70°C
Humidity:
5%–85%
Housing Construction:
Aluminum housing with U.S.-style potting compound
Housing Dimensions:165 × 38 × 26mm
Mounting Hole Spacing:160mm
Connection Method:
0.5mm² multi-strand wire, length 330mm; distance between ballast and lamp < 1m
Outer Carton Size:425 × 235 × 205mm
Net Weight per Unit:0.18kg/pcs
Quantity per Carton:50pcs
Gross Weight per Carton:9.5kg
Tare Weight (T.W.):
0.5kg
Compatible Lamp Models:
GPH793T5, GPH843T5, GPH1148T5
Applications:
Wastewater treatment, water purification, exhaust-gas treatment, air purification, printing, pharmaceuticals, medical care, food processing, aquaculture, etc.

Product Model

PY13-180-2-10

download PDF
PY13-180-2-10 1
PY13-180-2-10 6
Product Model:PY13-180-2-10（230）
Input Voltage:AC220V±10%
Ordering Code:13Y230180210D5
Product Model:PY13-180-2-10（110）
Input Voltage:AC110V±10%
Ordering Code:13Y110180210D5
Starting Mode:Quick Start, Starting Time < 1 s
Power Frequency:50/60Hz
Input Current:
0.12A@230V 0.28A@110V
Dimming Control:
N/A (non-dimmable)
Input Features:Lightning protection; PF 0.98; Efficiency (η): 90%
Output Power:2×10W
Dimming Range:2×4-11W
Number of Lamps:2 pcs
Output Current:180mA
Output Current Range:160-200mA
Auxiliary Output:
Lamp ON Output: DC 5V / 5mA (for External LED Indicator)
Output Features:
Non-constant-current operation; fault protection, etc.
Standards Compliance:
IP64; CE certified
Ambient Temperature:-10°C ~ 40°C
Maximum Enclosure Temperature (TC):<70°C
Humidity:
5%–85%
Housing Construction:
Aluminum housing with U.S.-style potting compound
Housing Dimensions:165 × 38 × 26mm
Mounting Hole Spacing:160mm
Connection Method:
0.5mm² multi-strand wire, length 330mm; distance between ballast and lamp < 1m
Outer Carton Size:425 × 235 × 205mm
Net Weight per Unit:0.2kg/pcs
Quantity per Carton:50pcs
Gross Weight per Carton:11kg
Tare Weight (T.W.):
0.5kg
Compatible Lamp Models:
TUV4W, TUV6W, TUV8W, TUV10W, G4T5L, G6T5L, G8T5L, TC5L, TC7L, TC9L, TC11L
Applications:
Wastewater treatment, water purification, exhaust-gas treatment, air purification, printing, pharmaceuticals, medical care, food processing, aquaculture, etc.

Product Model

PY13-425-2-12

download PDF
PY13-425-2-12 1
PY13-425-2-12 6
Product Model:PY13-425-2-12（230）
Input Voltage:AC220V±10%
Ordering Code:13Y230425212D5
Product Model:PY13-425-2-12（110）
Input Voltage:AC110V±10%
Ordering Code:13Y110425212D5
Starting Mode:Quick Start, Starting Time < 1 s
Power Frequency:50/60Hz
Input Current:
0.14A@230V 0.32A@110V
Dimming Control:
N/A (non-dimmable)
Input Features:Lightning protection; PF 0.98; Efficiency (η): 90%
Output Power:2×12W
Dimming Range:2×6-12W
Number of Lamps:1 pc
Output Current:425mA
Output Current Range:300-425mA
Auxiliary Output:
Lamp ON Output: DC 5V / 5mA (for External LED Indicator)
Output Features:
Non-constant-current operation; fault protection, etc.
Standards Compliance:
IP64; CE certified
Ambient Temperature:-10°C ~ 40°C
Maximum Enclosure Temperature (TC):<70°C
Humidity:
5%–85%
Housing Construction:
Aluminum housing with U.S.-style potting compound
Housing Dimensions:165 × 38 × 26mm
Mounting Hole Spacing:160mm
Connection Method:
0.5mm² multi-strand wire, length 330mm; distance between ballast and lamp < 1m
Outer Carton Size:425 × 235 × 205mm
Net Weight per Unit:0.18kg/pcs
Quantity per Carton:50pcs
Gross Weight per Carton:9.5kg
Tare Weight (T.W.):
0.5kg
Compatible Lamp Models:
GPH118T5L, GPH150T5L, GPH212T5L, TUV11
Applications:
Wastewater treatment, water purification, exhaust-gas treatment, air purification, printing, pharmaceuticals, medical care, food processing, aquaculture, etc.

Product Model

PY13-425-2-20

download PDF
PY13-425-2-20 1
PY13-425-2-20 6
Product Model:PY13-425-2-20（230）
Input Voltage:AC220V±10%
Ordering Code:13Y230425220D5
Product Model:PY13-425-2-20（110）
Input Voltage:AC110V±10%
Ordering Code:13Y110425220D5
Starting Mode:Quick Start, Starting Time < 1 s
Power Frequency:50/60Hz
Input Current:
0.24A@230V 0.52A@110V
Dimming Control:
N/A (non-dimmable)
Input Features:Lightning protection; PF 0.98; Efficiency (η): 90%
Output Power:2×20W
Dimming Range:2×14-21W
Number of Lamps:2 pcs
Output Current:425mA
Output Current Range:300-425mA
Auxiliary Output:
Lamp ON Output: DC 5V / 5mA (for External LED Indicator)
Output Features:
Non-constant-current operation; fault protection, etc.
Standards Compliance:
IP64; CE certified
Ambient Temperature:-10°C ~ 40°C
Maximum Enclosure Temperature (TC):<70°C
Humidity:
5%–85%
Housing Construction:
Aluminum housing with U.S.-style potting compound
Housing Dimensions:165 × 38 × 26mm
Mounting Hole Spacing:160mm
Connection Method:
0.5mm² multi-strand wire, length 330mm; distance between ballast and lamp < 1m
Outer Carton Size:425 × 235 × 205mm
Net Weight per Unit:0.21kg/pcs
Quantity per Carton:50pcs
Gross Weight per Carton:11kg
Tare Weight (T.W.):
0.5kg
Compatible Lamp Models:
GPH287T5, GPH303T5, GPH436T5, TUV15T5, TUV16T5
Applications:
Wastewater treatment, water purification, exhaust-gas treatment, air purification, printing, pharmaceuticals, medical care, food processing, aquaculture, etc.

Product Model

PY13-425-2-30

download PDF
PY13-425-2-30 1
PY13-425-2-30 6
Product Model:PY13-425-2-30（230）
Input Voltage:AC220V±10%
Ordering Code:13Y230425230D5
Product Model:PY13-425-2-30（110）
Input Voltage:AC110V±10%
Ordering Code:13Y110425230D5
Starting Mode:Quick Start, Starting Time < 1 s
Power Frequency:50/60Hz
Input Current:
0.36A@230V 0.76A@110V
Dimming Control:
N/A (non-dimmable)
Input Features:Lightning protection; PF 0.98; Efficiency (η): 90%
Output Power:2×30W
Dimming Range:2×21-30W
Number of Lamps:2 pcs
Output Current:425mA
Output Current Range:300-425mA
Auxiliary Output:
Lamp ON Output: DC 5V / 5mA (for External LED Indicator)
Output Features:
Non-constant-current operation; fault protection, etc.
Standards Compliance:
IP64; CE certified
Ambient Temperature:-10°C ~ 40°C
Maximum Enclosure Temperature (TC):<70°C
Humidity:
5%–85%
Housing Construction:
Aluminum housing with U.S.-style potting compound
Housing Dimensions:165 × 38 × 26mm
Mounting Hole Spacing:160mm
Connection Method:
0.5mm² multi-strand wire, length 330mm; distance between ballast and lamp < 1m
Outer Carton Size:425 × 235 × 205mm
Net Weight per Unit:0.21kg/pcs
Quantity per Carton:50pcs
Gross Weight per Carton:11kg
Tare Weight (T.W.):
0.5kg
Compatible Lamp Models:
GPH436T5, GPH550T5, TUV25T5, TUV30T5
Applications:
Wastewater treatment, water purification, exhaust-gas treatment, air purification, printing, pharmaceuticals, medical care, food processing, aquaculture, etc.

Product Model

PY13-425-2-40

download PDF
PY13-425-2-40 1
PY13-425-2-40 6
Product Model:PY13-425-2-40（230）
Input Voltage:AC220V±10%
Ordering Code:13Y230425240D5
Product Model:PY13-425-2-40（110）
Input Voltage:AC110V±10%
Ordering Code:13Y110425240D5
Starting Mode:Quick Start, Starting Time < 1 s
Power Frequency:50/60Hz
Input Current:
0.48A@230V 1A@110V
Dimming Control:
N/A (non-dimmable)
Input Features:Lightning protection; PF 0.98; Efficiency (η): 90%
Output Power:2×40W
Dimming Range:2×36-42W
Number of Lamps:2 pcs
Output Current:425mA
Output Current Range:300-425mA
Auxiliary Output:
Lamp ON Output: DC 5V / 5mA (for External LED Indicator)
Output Features:
Non-constant-current operation; fault protection, etc.
Standards Compliance:
IP64; CE certified
Ambient Temperature:-10°C ~ 40°C
Maximum Enclosure Temperature (TC):<70°C
Humidity:
5%–85%
Housing Construction:
Aluminum housing with U.S.-style potting compound
Housing Dimensions:165 × 38 × 26mm
Mounting Hole Spacing:160mm
Connection Method:
0.5mm² multi-strand wire, length 330mm; distance between ballast and lamp < 1m
Outer Carton Size:425 × 235 × 205mm
Net Weight per Unit:0.21kg/pcs
Quantity per Carton:50pcs
Gross Weight per Carton:11kg
Tare Weight (T.W.):
0.5kg
Compatible Lamp Models:
GPH793T5, GPH843T5, TUV36T5, TUVPL-L36WG36T5
Applications:
Wastewater treatment, water purification, exhaust-gas treatment, air purification, printing, pharmaceuticals, medical care, food processing, aquaculture, etc.

Product Model

PN13-425-40

download PDF
PN13-425-40 1
PN13-425-40 6
Product Model:PN13-425-40（230）
Input Voltage:AC220V±10%
Ordering Code:13N23042540D5
Product Model:PN13-425-40（110）
Input Voltage:AC110V±10%
Ordering Code:13N11042540D5
Starting Mode:Instant Start, Starting Time < 1 s
Power Frequency:50/60Hz
Input Current:
0.19A@230V 0.4A@110V
Dimming Control:
N/A (non-dimmable)
Input Features:Lightning protection; PF 0.98; Efficiency (η): 90%
Output Power:40W
Dimming Range:17-42W
Number of Lamps:1 pc
Output Current:425mA
Output Current Range:350-425mA
Auxiliary Output:
Lamp ON Output: DC 5V / 5mA (for External LED Indicator)
Output Features:
Non-constant-current operation
Standards Compliance:
IP64; CE certified
Ambient Temperature:-10°C ~ 40°C
Maximum Enclosure Temperature (TC):<70°C
Humidity:
5%–85%
Housing Construction:
Aluminum housing with U.S.-style potting compound
Housing Dimensions:165 × 38 × 26mm
Mounting Hole Spacing:160mm
Connection Method:
0.5mm² multi-strand wire, length 330mm; distance between ballast and lamp < 5m
Outer Carton Size:425 × 235 × 205mm
Net Weight per Unit:0.21kg/pcs
Quantity per Carton:50pcs
Gross Weight per Carton:11kg
Tare Weight (T.W.):
0.5kg
Compatible Lamp Models:
GPH357T5, GPH436T5, GPH550T5, GPH793T5, GPH843T5, G36T5L, TUV25T5, TUV30T5, TUV36T5
Applications:
Wastewater treatment, water purification, exhaust-gas treatment, air purification, printing, pharmaceuticals, medical care, food processing, aquaculture, etc.

Product Model

PN13-800-48

download PDF
PN13-800-48 1
PN13-800-48 6
Product Model:PN13-800-48（230）
Input Voltage:AC220V±10%
Ordering Code:13N23080048D5
Product Model:PN13-800-48（110）
Input Voltage:AC110V±10%
Ordering Code:13N11080048D5
Starting Mode:Instant Start, Starting Time < 1 s
Power Frequency:50/60Hz
Input Current:
0.23A@230V 0.48A@110V
Dimming Control:
N/A (non-dimmable)
Input Features:Lightning protection; PF 0.98; Efficiency (η): 90%
Output Power:48W
Dimming Range:18-48W
Number of Lamps:1 pc
Output Current:800mA
Output Current Range:700-800mA
Auxiliary Output:
Lamp ON Output: DC 5V / 5mA (for External LED Indicator)
Output Features:
Non-constant-current operation
Standards Compliance:
IP64; CE certified
Ambient Temperature:-10°C ~ 40°C
Maximum Enclosure Temperature (TC):<70°C
Humidity:
5%–85%
Housing Construction:
Aluminum housing with U.S.-style potting compound
Housing Dimensions:165 × 38 × 26mm
Mounting Hole Spacing:160mm
Connection Method:
0.5mm² multi-strand wire, length 330mm; distance between ballast and lamp < 1m
Outer Carton Size:425 × 235 × 205mm
Net Weight per Unit:0.21kg/pcs
Quantity per Carton:50pcs
Gross Weight per Carton:11kg
Tare Weight (T.W.):
0.5kg
Compatible Lamp Models:
GPH212T5L, HOGPH287T5L, HOGPH357T5L, HOGPH436T5L/HO
Applications:
Wastewater treatment, water purification, exhaust-gas treatment, air purification, printing, pharmaceuticals, medical care, food processing, aquaculture, etc.

Product Model

PN13-425-2-20

download PDF
PN13-425-2-20 1
PN13-425-2-20 6
Product Model:PN13-425-2-20（230）
Input Voltage:AC220V±10%
Ordering Code:13N230425220D5
Product Model:PN13-425-2-20（110）
Input Voltage:AC110V±10%
Ordering Code:13N110425220D5
Starting Mode:Instant Start, Starting Time < 1 s
Power Frequency:50/60Hz
Input Current:
0.19A@230V 0.4A@110V
Dimming Control:
N/A (non-dimmable)
Input Features:Lightning protection; PF 0.98; Efficiency (η): 90%
Output Power:2×20W
Dimming Range:10-21W
Number of Lamps:2 pcs
Output Current:425mA
Output Current Range:300-425mA
Auxiliary Output:
Lamp ON Output: DC 5V / 5mA (for External LED Indicator)
Output Features:
Non-constant-current operation
Standards Compliance:
IP64; CE certified
Ambient Temperature:-10°C ~ 40°C
Maximum Enclosure Temperature (TC):<70°C
Humidity:
5%–85%
Housing Construction:
Aluminum housing with U.S.-style potting compound
Housing Dimensions:165 × 38 × 26mm
Mounting Hole Spacing:160mm
Connection Method:
0.5mm² multi-strand wire, length 330mm; distance between ballast and lamp < 1m
Outer Carton Size:425 × 235 × 205mm
Net Weight per Unit:0.2kg/pcs
Quantity per Carton:50pcs
Gross Weight per Carton:11kg
Tare Weight (T.W.):
0.5kg
Compatible Lamp Models:
GPH212T5, GPH287T5, GPH303T5, GPH436T5, TUV10T5, TUV11T5, TUV15T5, TUV16T5
Applications:
Wastewater treatment, water purification, exhaust-gas treatment, air purification, printing, pharmaceuticals, medical care, food processing, aquaculture, etc.

Product Model

PH13-425-2-20

download PDF
PH13-425-2-20 1
PH13-425-2-20 6
Product Model:PH13-425-2-20（230）
Input Voltage:AC220V±20%
Ordering Code:13H230425220D5
Product Model:PH13-425-2-20（MLT）
Input Voltage:AC110-220V±10%
Ordering Code:13HMLT425220D5
Starting Mode:Preheat Start, Starting Time 3-5S
Power Frequency:50/60Hz
Input Current:
0.17A@230V 0.36A@110V
Dimming Control:
N/A (non-dimmable)
Input Features:Lightning protection; PF ≥ 0.98; Efficiency (η): 90%; THD < 10; CCF < 1.7
Output Power:2×20W / 1×55W
Dimming Range:2×10-21W / 1×20-55W
Number of Lamps:2 pcs / 1 pc
Output Current:425mA
Output Current Range:400-440mA
Auxiliary Output:
Green/red LED status indication (green: normal operation; red: fault); 5 VDC / 5mA output for LED indication; dry-contact relay output for remote status feedback and control.
Output Features:
Constant current; overvoltage protection; overcurrent protection; lamp leakage detection; filament open-circuit protection; cross-wiring protection; end-of-life (EOL) protection.
Standards Compliance:
IP64; CE certified
Ambient Temperature:10°C ~ 40°C
Maximum Enclosure Temperature (TC):<70°C
Humidity:
5%–85%
Housing Construction:
Aluminum housing with U.S.-style potting compound
Housing Dimensions:165 × 38 × 26mm
Mounting Hole Spacing:160mm
Connection Method:
0.5mm² multi-strand wire, length 330mm; distance between ballast and lamp < 5m
Outer Carton Size:425 × 235 × 205mm
Net Weight per Unit:0.21kg/pcs
Quantity per Carton:50pcs
Gross Weight per Carton:11kg
Tare Weight (T.W.):
0.5kg
Compatible Lamp Models:
2×GPH212/287/303/436T5, TUV10T5, TUV11T5, TUV15T5, TUV16T5；1×GPH436/550/793/H843/1148T5, TUV25T5, TUV30T5, TUV36T5, TUVPL-L36WG36T5
Applications:
Wastewater treatment, water purification, exhaust-gas treatment, air purification, printing, pharmaceuticals, medical care, food processing, aquaculture, etc.

Product Model

PH13-1200-42

download PDF
PH13-1200-42 1
PH13-1200-42 6
Product Model:PH13-1200-42（230）
Input Voltage:AC220V±20%
Ordering Code:13H2301200-42D5
Product Model:PH13-1200-42（MLT）
Input Voltage:AC110-220V±10%
Ordering Code:13HMLT120042D5
Starting Mode:Preheat Start, Starting Time 3-5S
Power Frequency:50/60Hz
Input Current:
0.18A@230V 0.37A@110V
Dimming Control:
N/A (non-dimmable)
Input Features:Lightning protection; PF ≥ 0.98; Efficiency (η): 90%; THD < 10; CCF < 1.7
Output Power:42W
Dimming Range:42W
Number of Lamps:1 pc
Output Current:1200mA
Output Current Range:1150-1250mA
Auxiliary Output:
Lamp ON Output: DC 5V / 5mA (for External LED Indicator)
Output Features:
Constant current; overvoltage protection; overcurrent protection; lamp leakage detection; filament open-circuit protection; cross-wiring protection; end-of-life (EOL) protection.
Standards Compliance:
IP64; CE certified
Ambient Temperature:10°C ~ 40°C
Maximum Enclosure Temperature (TC):<70°C
Humidity:
5%–85%
Housing Construction:
Aluminum housing with U.S.-style potting compound
Housing Dimensions:165 × 38 × 26mm
Mounting Hole Spacing:160mm
Connection Method:
0.5mm² multi-strand wire, length 330mm; distance between ballast and lamp < 5m
Outer Carton Size:425 × 235 × 205mm
Net Weight per Unit:0.21kg/pcs
Quantity per Carton:50pcs
Gross Weight per Carton:11kg
Tare Weight (T.W.):
0.5kg
Compatible Lamp Models:
GPHVA357T5L
Applications:
Wastewater treatment, water purification, exhaust-gas treatment, air purification, printing, pharmaceuticals, medical care, food processing, aquaculture, etc.

Product Model

PH13-800-48

download PDF
PH13-800-48 1
PH13-800-48 6
Product Model:PH13-800-48（230）
Input Voltage:AC220V±20%
Ordering Code:13H23080048D5
Product Model:PH13-800-48（MLT）
Input Voltage:AC110-220V±10%
Ordering Code:13HMLT80048D5
Starting Mode:Preheat Start, Starting Time 3-5S
Power Frequency:50/60Hz
Input Current:
0.21A@230V 0.44A@110V
Dimming Control:
N/A (non-dimmable)
Input Features:Lightning protection; PF ≥ 0.98; Efficiency (η): 90%; THD < 10; CCF < 1.7
Output Power:48W
Dimming Range:27-48W
Number of Lamps:1 pc
Output Current:800mA
Output Current Range:750-850mA
Auxiliary Output:
Lamp ON Output: DC 5V / 5mA (for External LED Indicator)
Output Features:
Constant current; overvoltage protection; overcurrent protection; lamp leakage detection; filament open-circuit protection; cross-wiring protection; end-of-life (EOL) protection.
Standards Compliance:
IP64; CE certified
Ambient Temperature:10°C ~ 40°C
Maximum Enclosure Temperature (TC):<70°C
Humidity:
5%–85%
Housing Construction:
Aluminum housing with U.S.-style potting compound
Housing Dimensions:165 × 38 × 26mm
Mounting Hole Spacing:160mm
Connection Method:
0.5mm² multi-strand wire, length 330mm; distance between ballast and lamp < 5m
Outer Carton Size:425 × 235 × 205mm
Net Weight per Unit:0.21kg/pcs
Quantity per Carton:50pcs
Gross Weight per Carton:11kg
Tare Weight (T.W.):
0.5kg
Compatible Lamp Models:
GPH287T5L, HOGPH357T5L, HOGPH436T5L/HO
Applications:
Wastewater treatment, water purification, exhaust-gas treatment, air purification, printing, pharmaceuticals, medical care, food processing, aquaculture, etc.

Product Model

PH13-425-55

download PDF
PH13-425-55 1
PH13-425-55 6
Product Model:PH13-425-55（230）
Input Voltage:AC220V±20%
Ordering Code:13H23042555D5
Product Model:PH13-425-55（MLT）
Input Voltage:AC110-220V±10%
Ordering Code:13HMLT42555D5
Starting Mode:Preheat Start, Starting Time 3-6S
Power Frequency:50/60Hz
Input Current:
0.24A@230V 0.5A@110V
Dimming Control:
N/A (non-dimmable)
Input Features:Lightning protection; PF ≥ 0.98; Efficiency (η): 90%; THD < 10; CCF < 1.7
Output Power:55W
Dimming Range:20-55W
Number of Lamps:1 pc
Output Current:425mA
Output Current Range:400-440mA
Auxiliary Output:
Lamp ON Output: DC 5V / 5mA (for External LED Indicator)
Output Features:
Constant current; overvoltage protection; overcurrent protection; lamp leakage detection; filament open-circuit protection; cross-wiring protection; end-of-life (EOL) protection.
Standards Compliance:
IP64; CE certified
Ambient Temperature:10°C ~ 40°C
Maximum Enclosure Temperature (TC):<70°C
Humidity:
5%–85%
Housing Construction:
Aluminum housing with U.S.-style potting compound
Housing Dimensions:165 × 38 × 26mm
Mounting Hole Spacing:160mm
Connection Method:
0.5mm² multi-strand wire, length 330mm; distance between ballast and lamp < 5m
Outer Carton Size:425 × 235 × 205mm
Net Weight per Unit:0.21kg/pcs
Quantity per Carton:50pcs
Gross Weight per Carton:11kg
Tare Weight (T.W.):
0.5kg
Compatible Lamp Models:
GPH436T5, GPH550T5, GPH793T5, GPH843T5, GPH1148T5, TUV25T5, TUV30T5, TUV36T5, TUVPL-L36WG36T5L
Applications:
Wastewater treatment, water purification, exhaust-gas treatment, air purification, printing, pharmaceuticals, medical care, food processing, aquaculture, etc.

Product Model

PH13-425-55F

download PDF
PH13-425-55F 1
PH13-425-55F 6
Product Model:PH13-425-55F（230）
Input Voltage:AC220V±20%
Ordering Code:13H23042555FD5
Product Model:PH13-425-55F（MLT）
Input Voltage:AC110-220V±10%
Ordering Code:13HMLT42555FD5
Starting Mode:Preheat Start, Starting Time 3-6S
Power Frequency:50/60Hz
Input Current:
0.24A@230V 0.5A@110V
Dimming Control:
N/A (non-dimmable)
Input Features:Lightning protection; PF ≥ 0.98; Efficiency (η): 90%; THD < 10; CCF < 1.7
Output Power:55W
Dimming Range:20-55W
Number of Lamps:1 pc
Output Current:425mA
Output Current Range:400-440mA
Auxiliary Output:
Lamp ON Output: DC 5V / 5mA (for External LED Indicator); dry-contact relay output for remote status feedback and control.
Output Features:
Constant current; overvoltage protection; overcurrent protection; lamp leakage detection; filament open-circuit protection; cross-wiring protection; end-of-life (EOL) protection.
Standards Compliance:
IP64; CE certified
Ambient Temperature:10°C ~ 40°C
Maximum Enclosure Temperature (TC):<70°C
Humidity:
5%–85%
Housing Construction:
Aluminum housing with U.S.-style potting compound
Housing Dimensions:165 × 38 × 26mm
Mounting Hole Spacing:160mm
Connection Method:
0.5mm² multi-strand wire, length 330mm; distance between ballast and lamp < 5m
Outer Carton Size:425 × 235 × 205mm
Net Weight per Unit:0.21kg/pcs
Quantity per Carton:50pcs
Gross Weight per Carton:11kg
Tare Weight (T.W.):
0.5kg
Compatible Lamp Models:
GPH436T5, GPH550T5, GPH793T5, GPH843T5, GPH1148T5, TUV25T5, TUV30T5, TUV36T5, TUVPL-L36WG36T5L
Applications:
Wastewater treatment, water purification, exhaust-gas treatment, air purification, printing, pharmaceuticals, medical care, food processing, aquaculture, etc.

Interested in our No. 13 Series (10–55 W)? Contact us for help choosing the right model or requesting a custom quote.

WhatsApp
ChaoNeng logoWenzhou Chaoneng Water Treatment Equipment Co., Ltd.

Specialist Manufacturer of UV Ballasts

WhatsApp

Contact Us

  • +8618612278922
  • chen@chaonenguv.com
  • Zhejiang·China

© 2026 chaoneng. All rights reserved.

Water Treatment Equipment · UV Disinfection · Electronic Ballasts
