ChaoNeng logoChaoNeng UV Ballast

No.14 (38-120W)

UV Electronic Ballast ·14 Models

No.13 (10-55W)No.14 (38-120W)No.15 (72-155W)No.7 (40-120W)No.9 (60-400W)

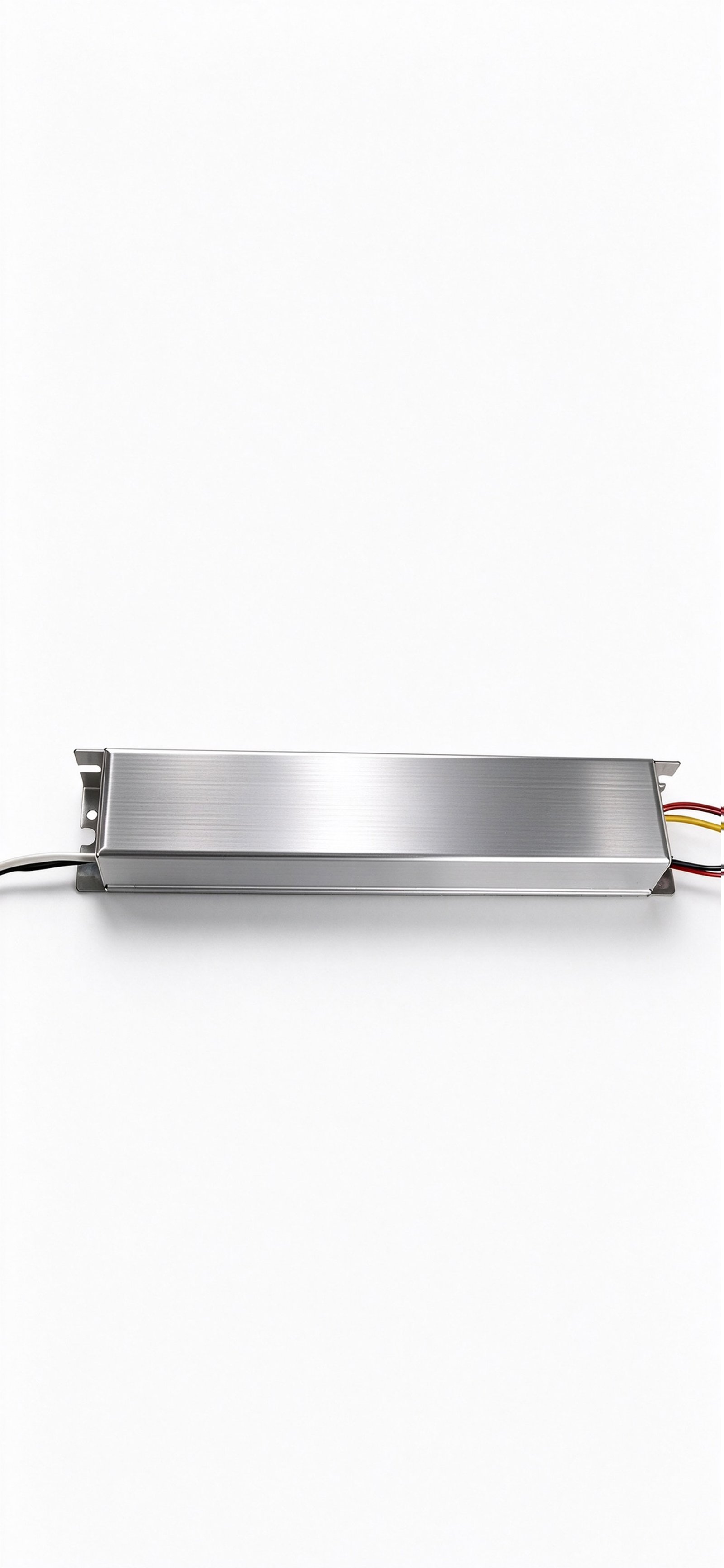

No.14 (38-120W) 1

Series Overview

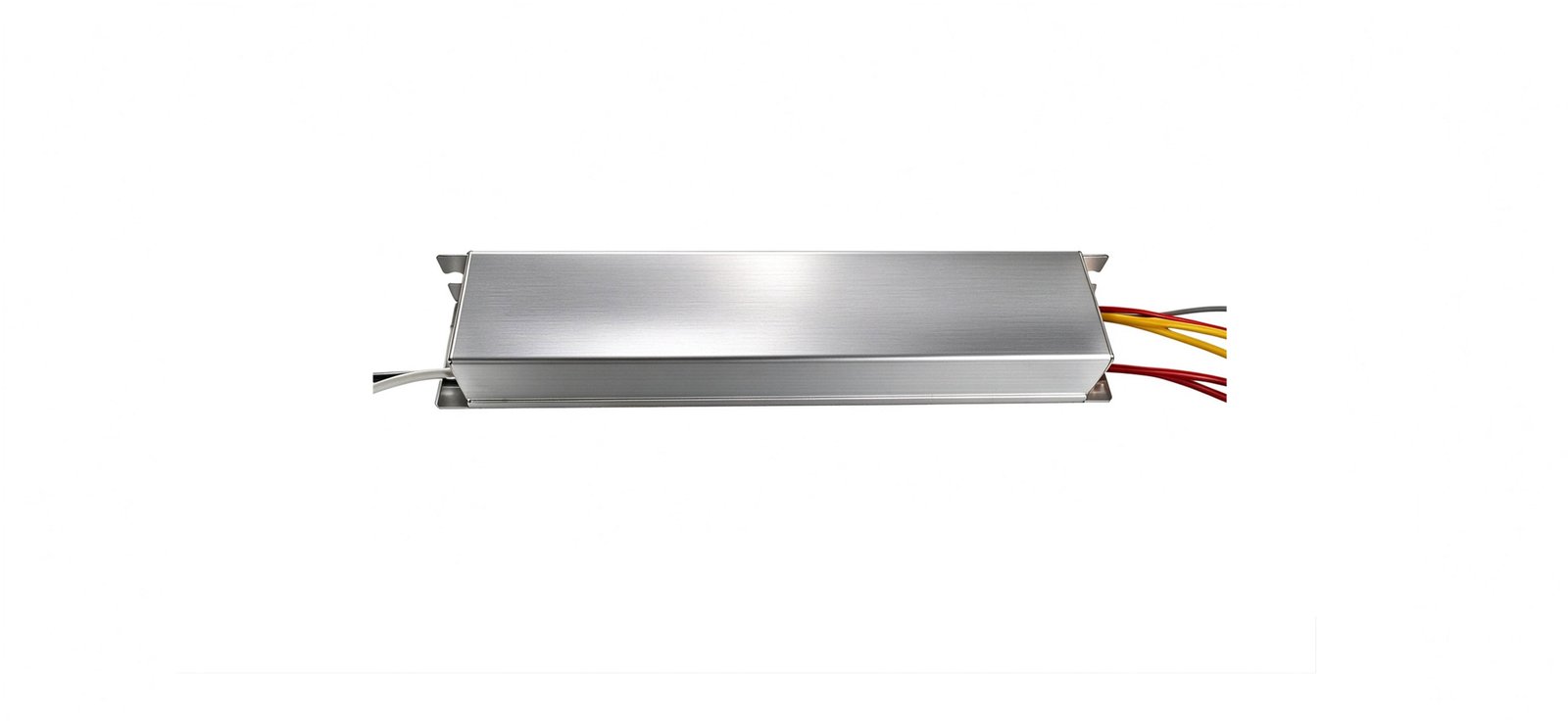

No.14 (38-120W) Series UV Electronic Ballasts are designed for UV germicidal lamps. They deliver high-frequency, constant-power output across a wide input-voltage range and feature built-in intelligent protection. The specifications below apply to the entire series; see the table below for model-specific details.

Output Power Range

38-120W

Dimensions

215 × 44 × 28 mm

WhatsApp Back to All Series

Detailed Specifications by Product Series

PY14-425-55

Quick Start
Output Power
55W
Rated Power
55W
Output Power Range
38-55W
Number of Lamps
1 pc
Output Features
Non-constant-current operation; fault protection, etc.
Compatible Lamp Models
GPH793T5, GPH843T5, GPH1148T5, TUV36T5, TUVPL-L 36W, G36T5

PY14-425-2-55

Quick Start
Output Power
55W
Rated Power
55W
Output Power Range
2×38-55W
Number of Lamps
2 pcs
Output Features
Non-constant-current operation; fault protection, etc.
Compatible Lamp Models
GPH793T5, GPH843T5, GPH1148T5, TUV36T5, TUVPLL36W, G36T5

PY14-425-80

Instant Start
Output Power
80W
Rated Power
80W
Output Power Range
55-80W
Number of Lamps
1 pc
Output Features
Non-constant-current operation; fault protection, etc.
Compatible Lamp Models
GPH1148T5L, GPH1554T5L, TUV75, G48T5L, G64T5

PY14-800-100

Quick Start
Output Power
100W
Rated Power
100W
Output Power Range
72-100W
Number of Lamps
1 pc
Output Features
Non-constant-current operation; fault protection, etc.
Compatible Lamp Models
GPH793T5L, HOGPH846T5L, HOGPH893T5L, HOGPH1000T5L, HOGHO36T5L, TUV75T5, HOTUV95, WHOPL-LTL100W

PY14-800-120

Quick Start
Output Power
120W
Rated Power
120W
Output Power Range
87-120W
Number of Lamps
1 pc
Output Features
Non-constant-current operation; fault protection, etc.
Compatible Lamp Models
GPH846T5L, HOGPH893T5L, HOGPH1000T5L, HOGPH1148T5L, HOGHO36T5L, TUV95WHOPL-LTL100W

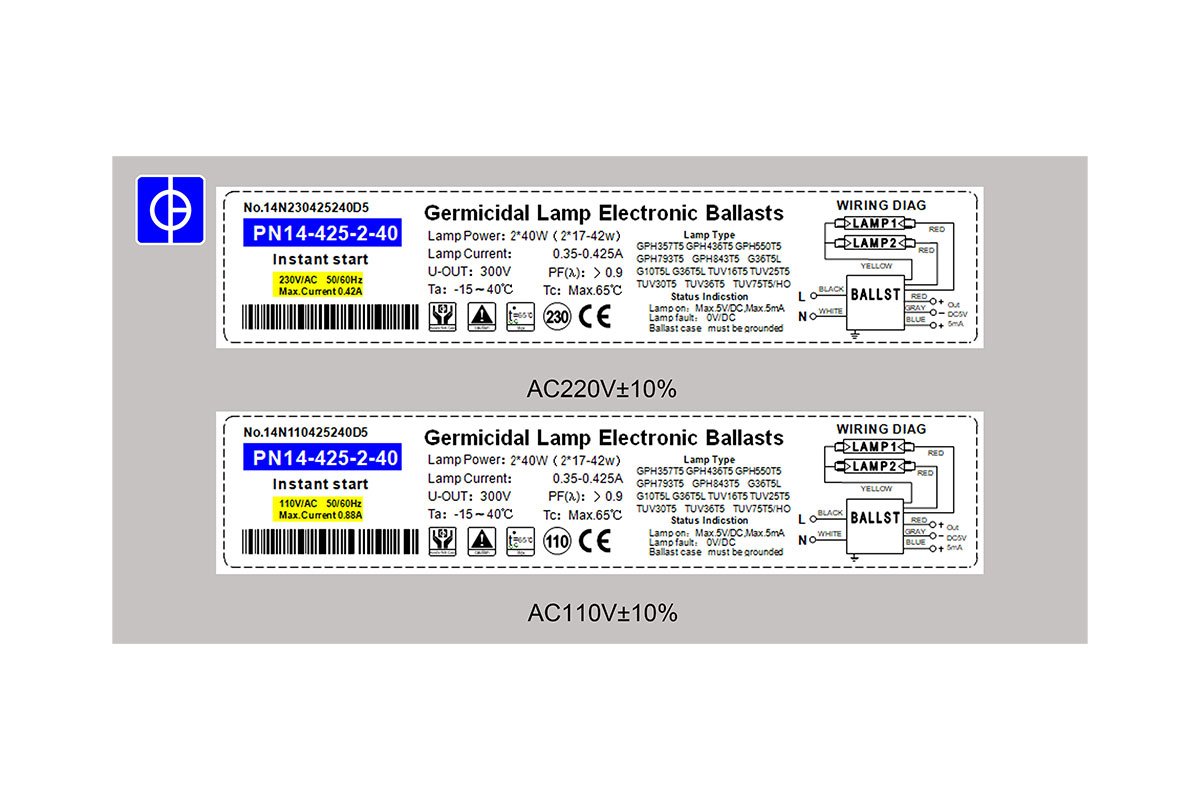

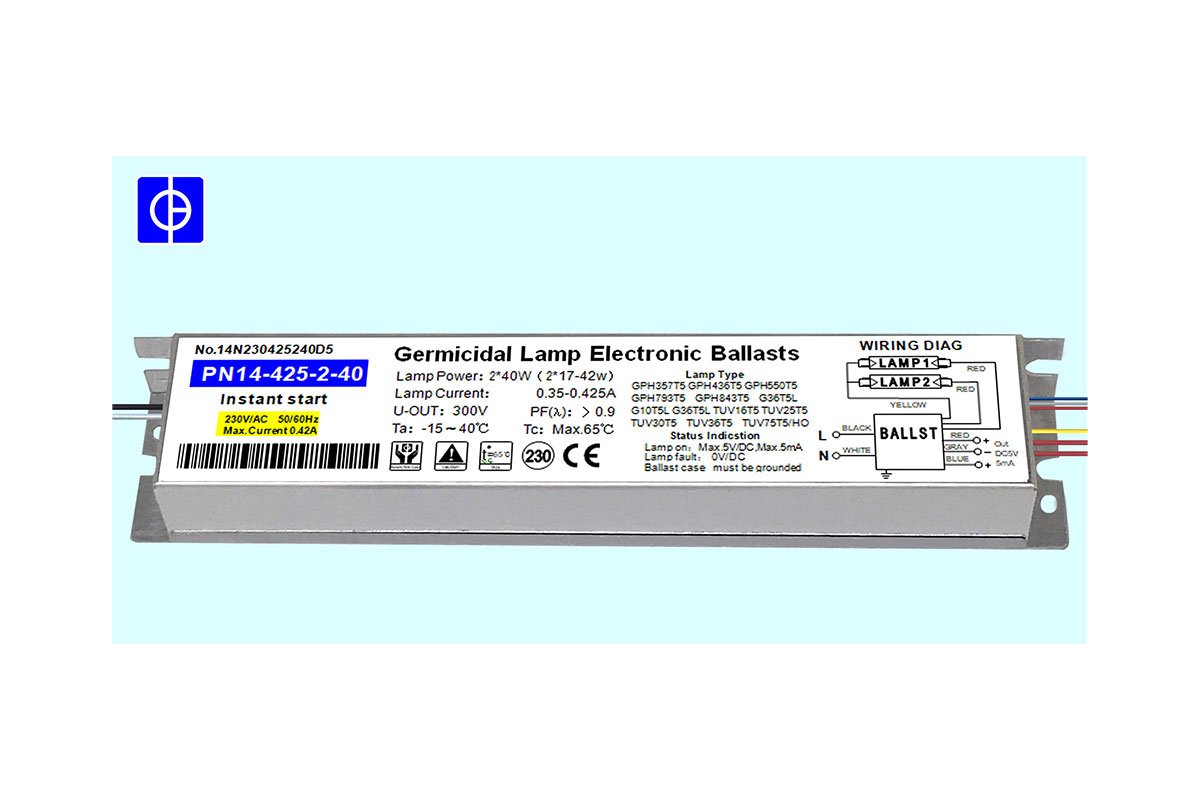

PN14-425-2-40

Instant Start
Output Power
40W
Rated Power
40W
Output Power Range
2×17-42W
Number of Lamps
2 pcs
Output Features
Non-constant-current operation
Compatible Lamp Models
GPH357T5, GPH436T5, GPH550T5, GPH793T5, GPH843T5, G36T5L, G10T5L, TUV16T5, TUV25T5, TUV30T5, TUV36T5

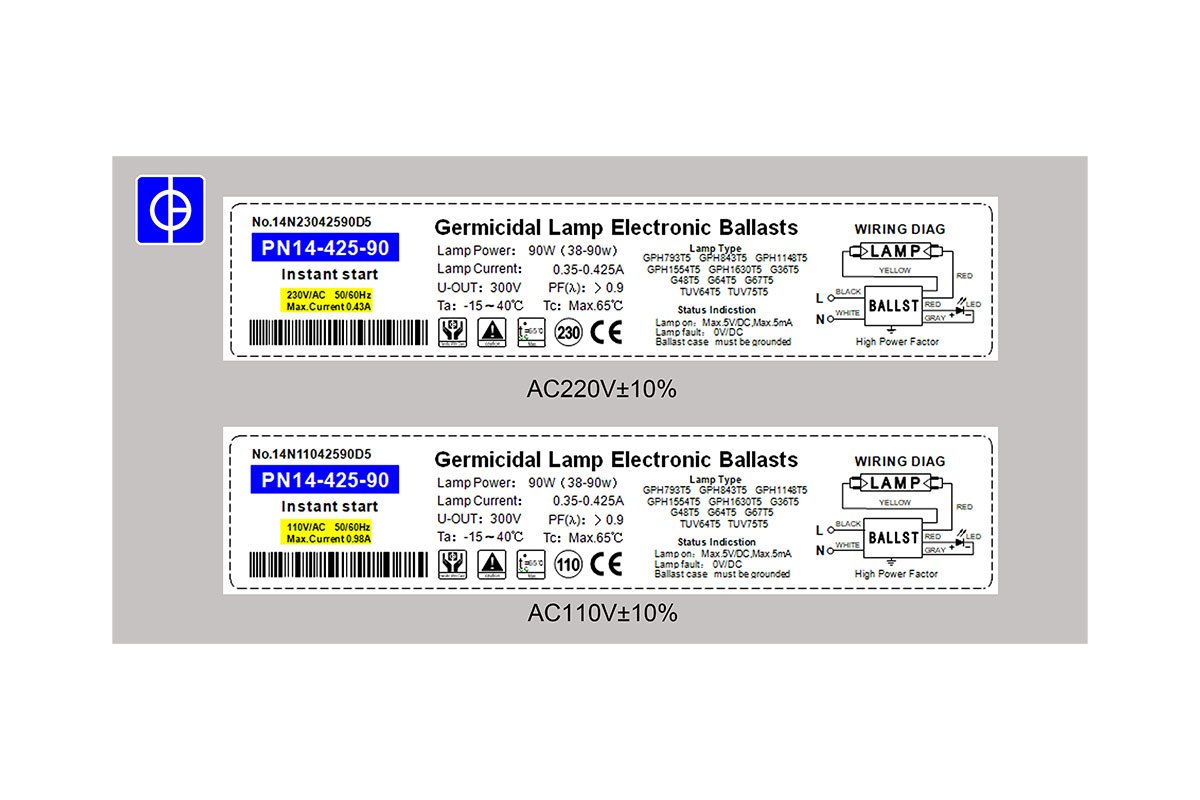

PN14-425-90

Instant Start
Output Power
90W
Rated Power
90W
Output Power Range
38-90W
Number of Lamps
1 pc
Output Features
Non-constant-current operation
Compatible Lamp Models
GPH357T5, GPH436T5, GPH550T5, GPH793T5, GPH843T5, G36T5L, G10T5L, TUV16T5, TUV25T5, TUV30T5, TUV36T5

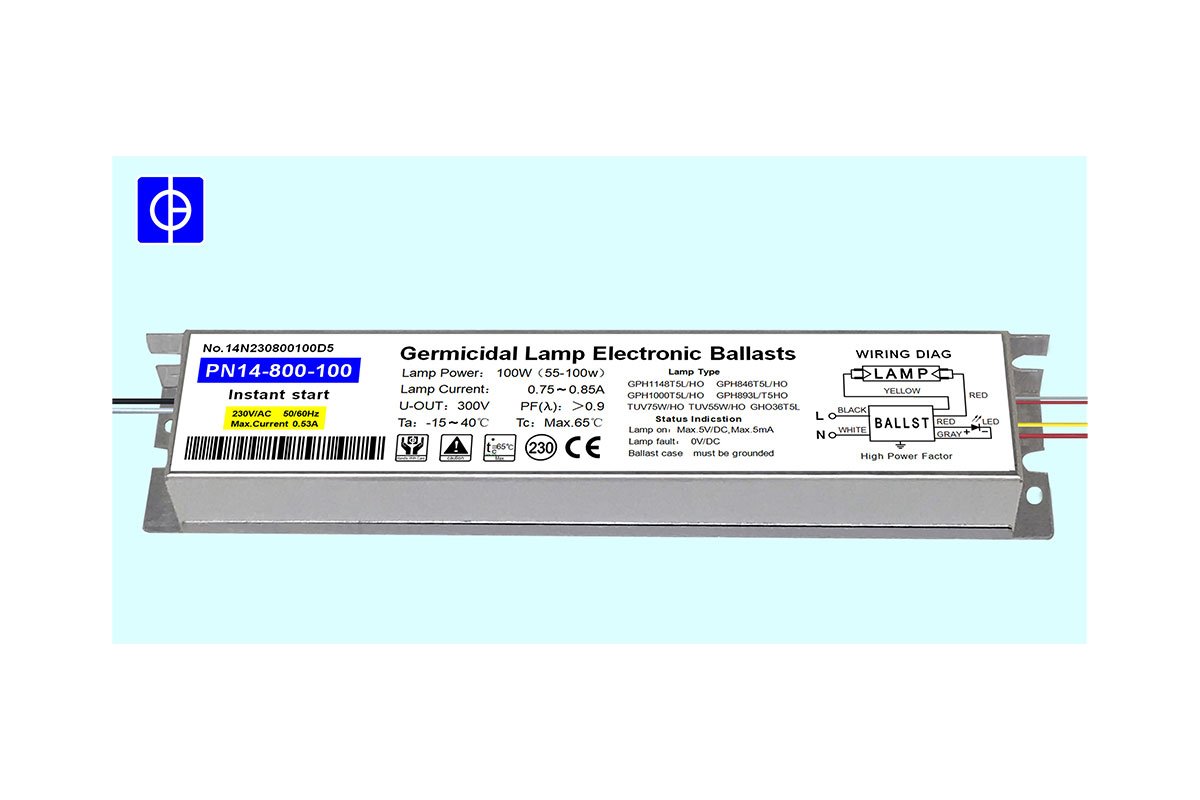

PN14-800-100

Instant Start
Output Power
100W
Rated Power
100W
Output Power Range
48-100W
Number of Lamps
1 pc
Output Features
Non-constant-current operation
Compatible Lamp Models
GPH436T5L, HOGPH793T5L, HOGPH846T5L, HOGPH893T5L, HOGPH1000T5L, HOGHO36T5L, TUV55W, HOTUV60W, HOTUV75W, HOTUV95W, HOPL-LTL100W

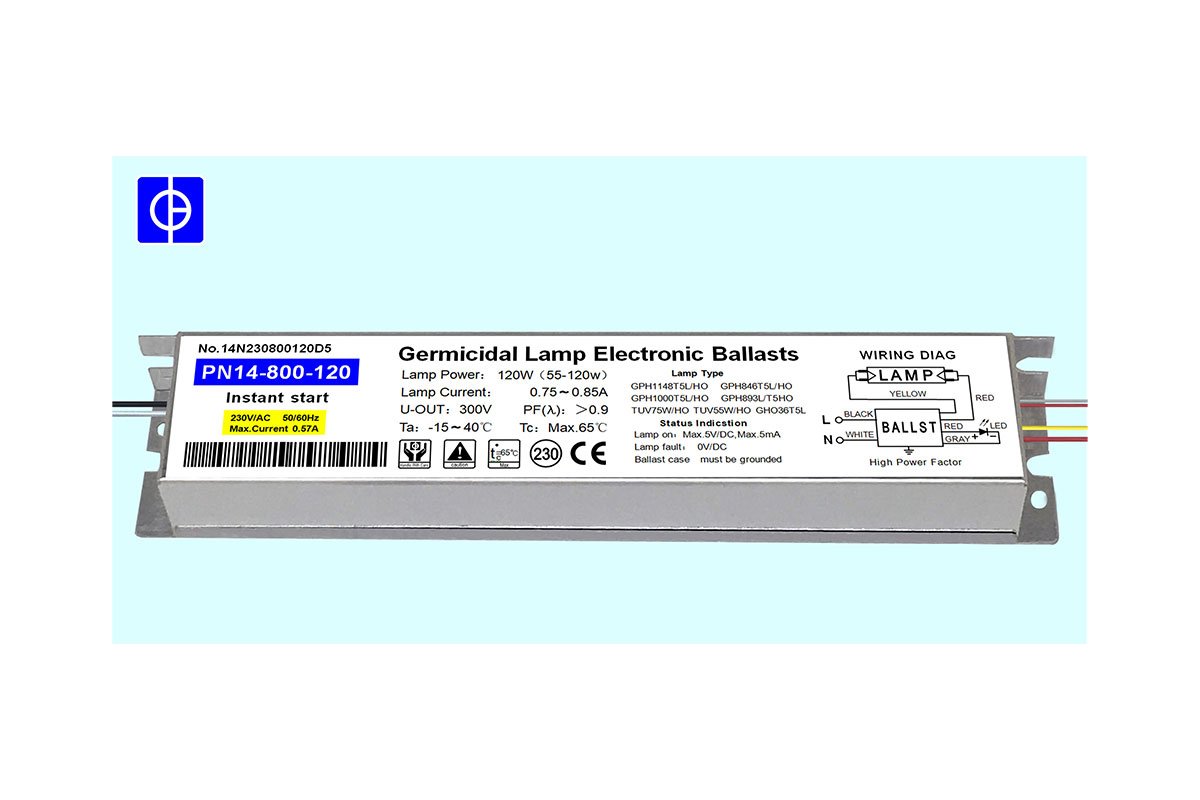

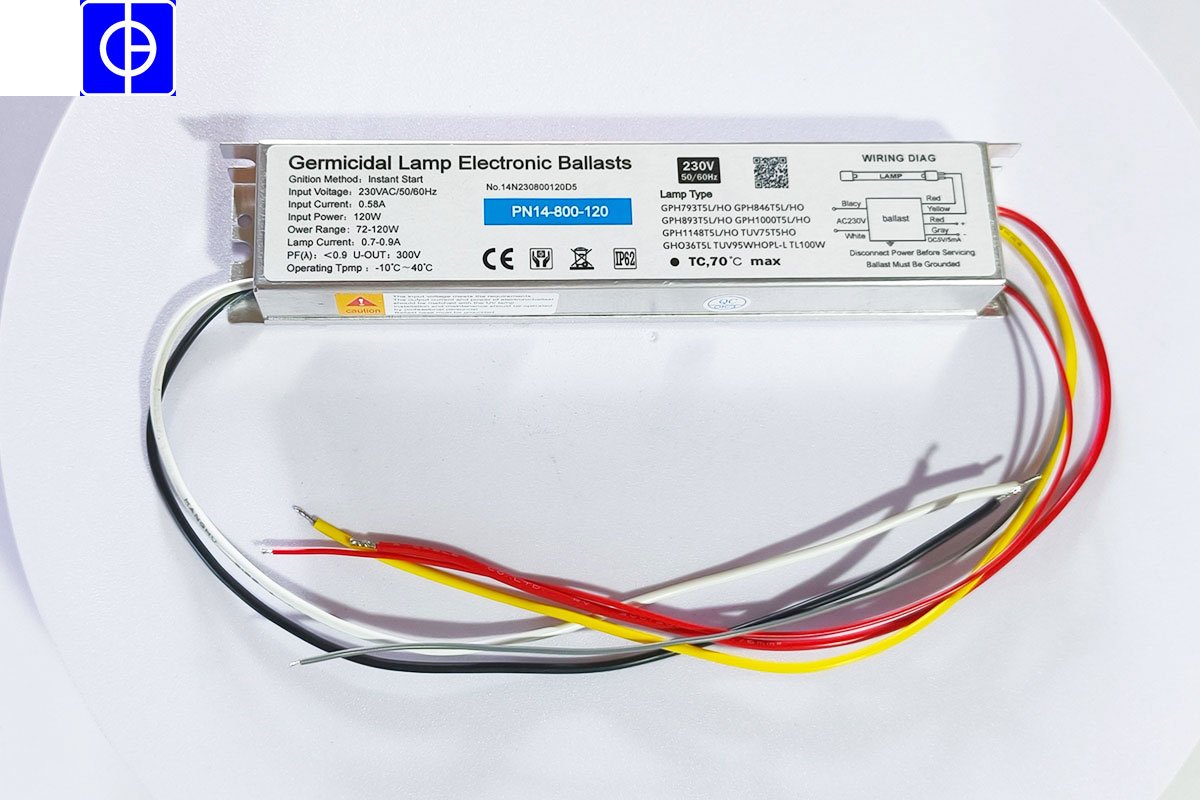

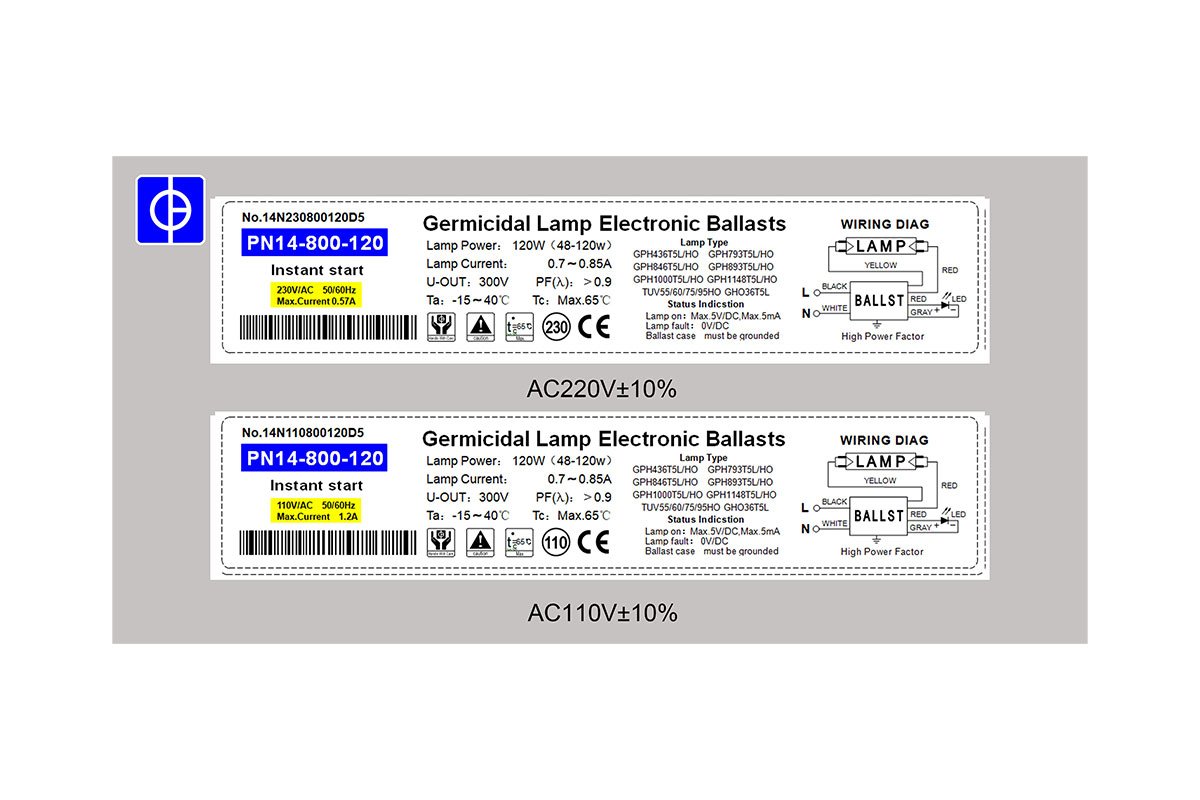

PN14-800-120

Instant Start
Output Power
120W
Rated Power
120W
Output Power Range
48-120W
Number of Lamps
1 pc
Output Features
Non-constant-current operation
Compatible Lamp Models
GPH436T5L, HOGPH793T5L, HOGPH846T5, HOGPH893T5L, HOGPH1000T5L, HOGPH1148T5L, HOGHO36T5L, TUV55W, HOTUV60W, HOTUV75W, HOTUV95WHOPL-LTL100W

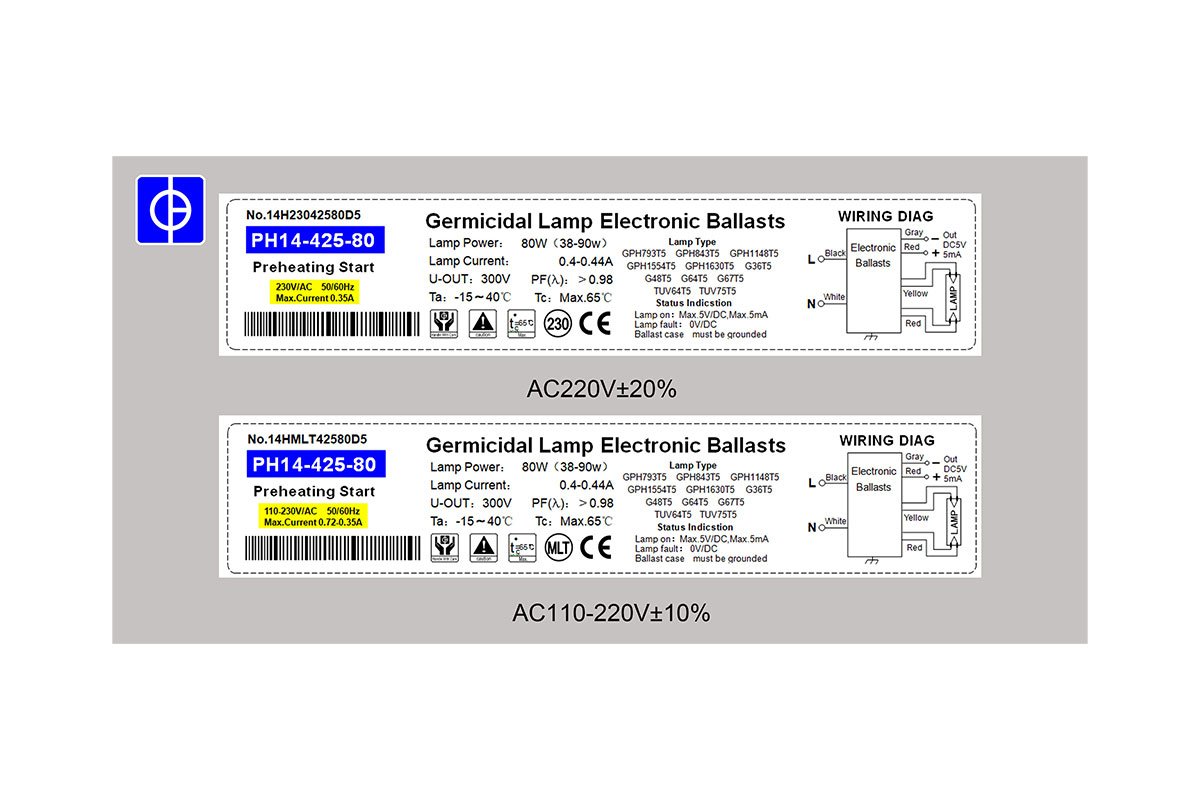

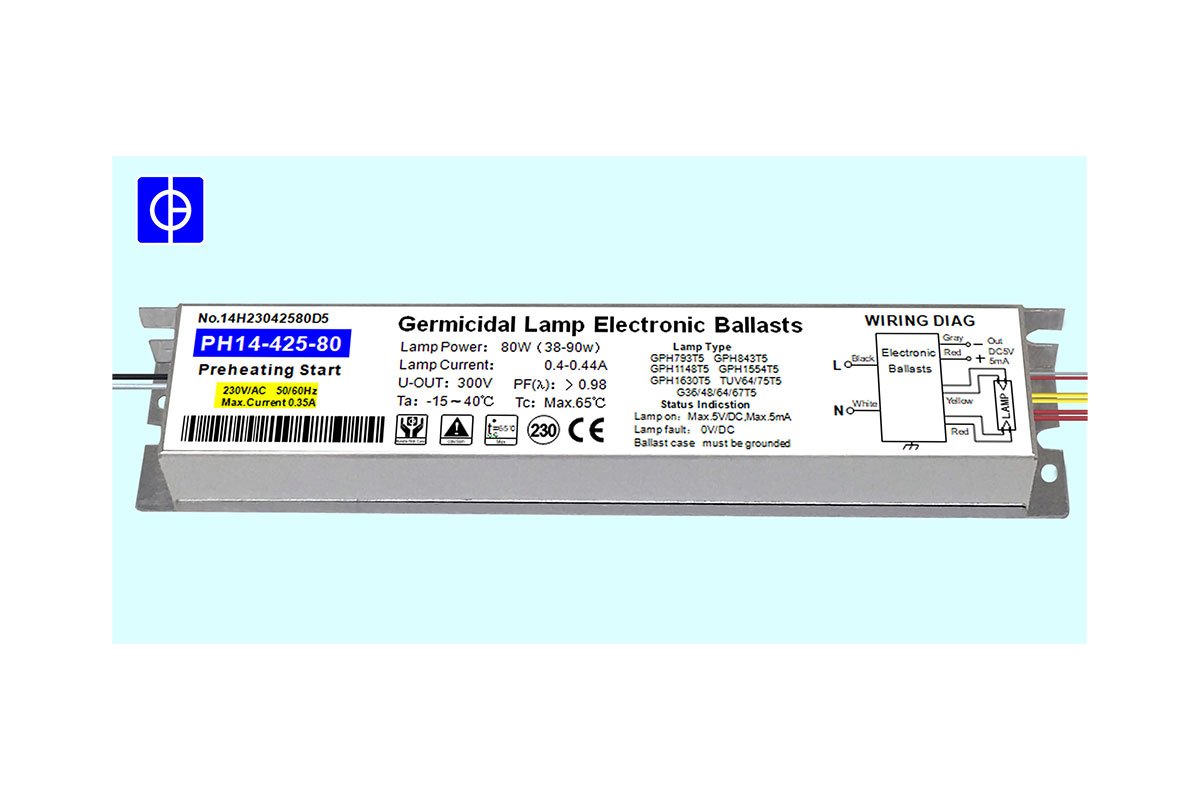

PH14-425-80

Preheat Start
Output Power
80W
Rated Power
80W
Output Power Range
38-90W
Number of Lamps
1 pc
Output Features
Constant Current / Intelligent protection
Compatible Lamp Models
GPH793T5, GPH843T5, GPH1148T5, GPH1554T5, GPH1630T5, G36T5, G48T5, G64T5, G67T5, TUV64T5, TUV75T5

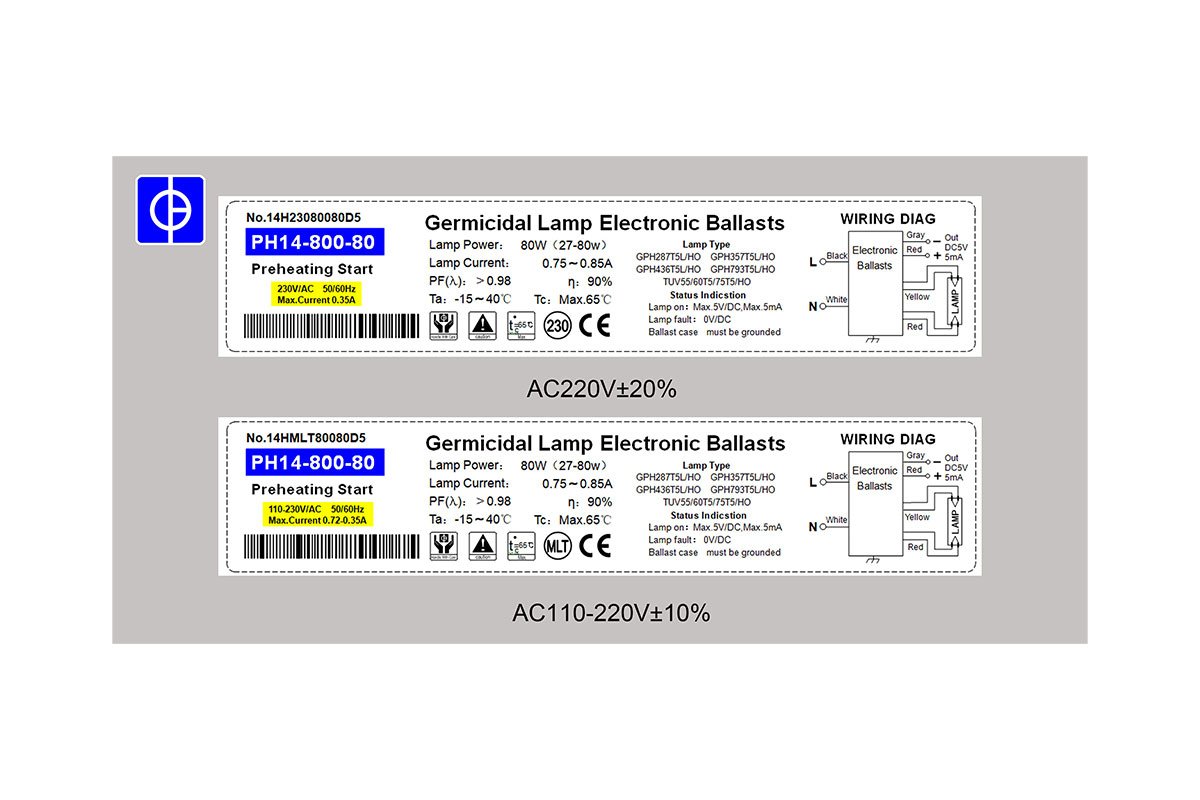

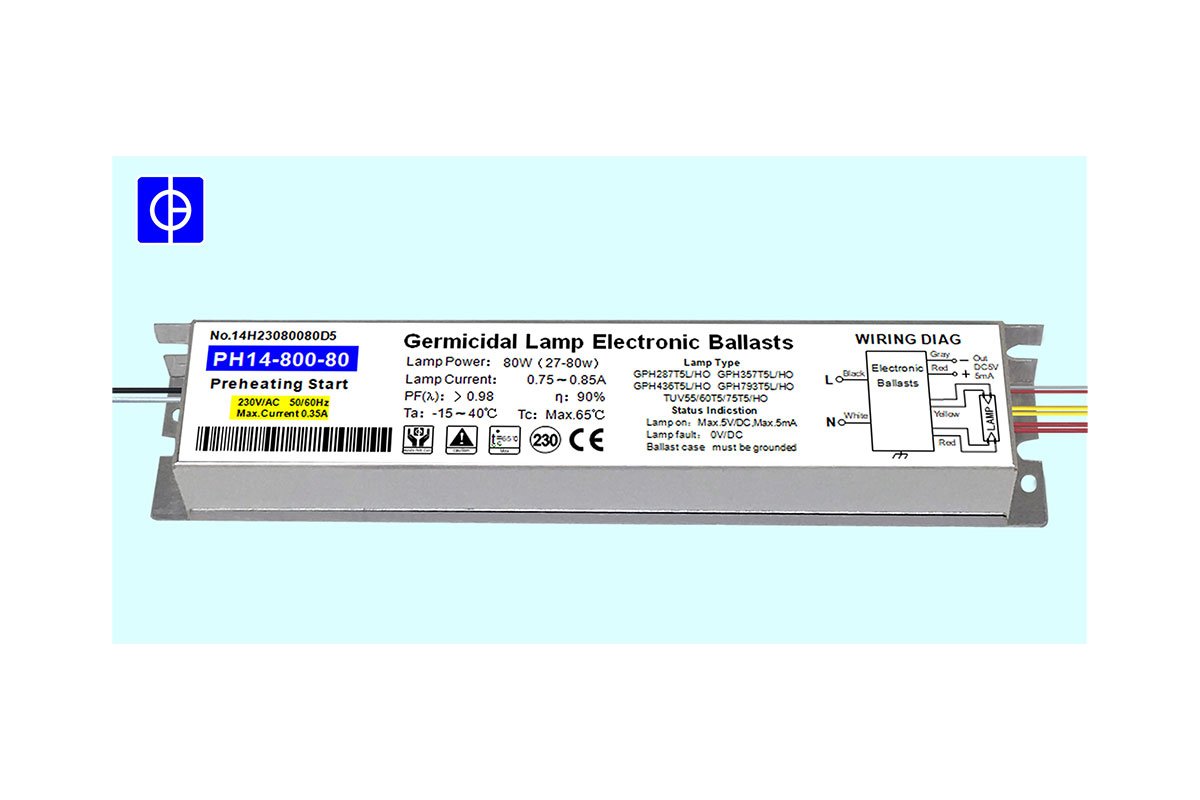

PH14-800-80

Preheat Start
Output Power
80W
Rated Power
80W
Output Power Range
27-80W
Number of Lamps
1 pc
Output Features
Constant Current / Intelligent protection
Compatible Lamp Models
GPH287T5L, HOGPH357T5L, HOGPH436T5L, HOGPH793T5L, HOTUV55T5, HOTUV60T5, HOTUV75T5

PH14-1200-105

Preheat Start
Output Power
105W
Rated Power
105W
Output Power Range
42-105W
Number of Lamps
1 pc
Output Features
Constant Current / Intelligent protection
Compatible Lamp Models
GPHA843T5L, GPHVA357T5L

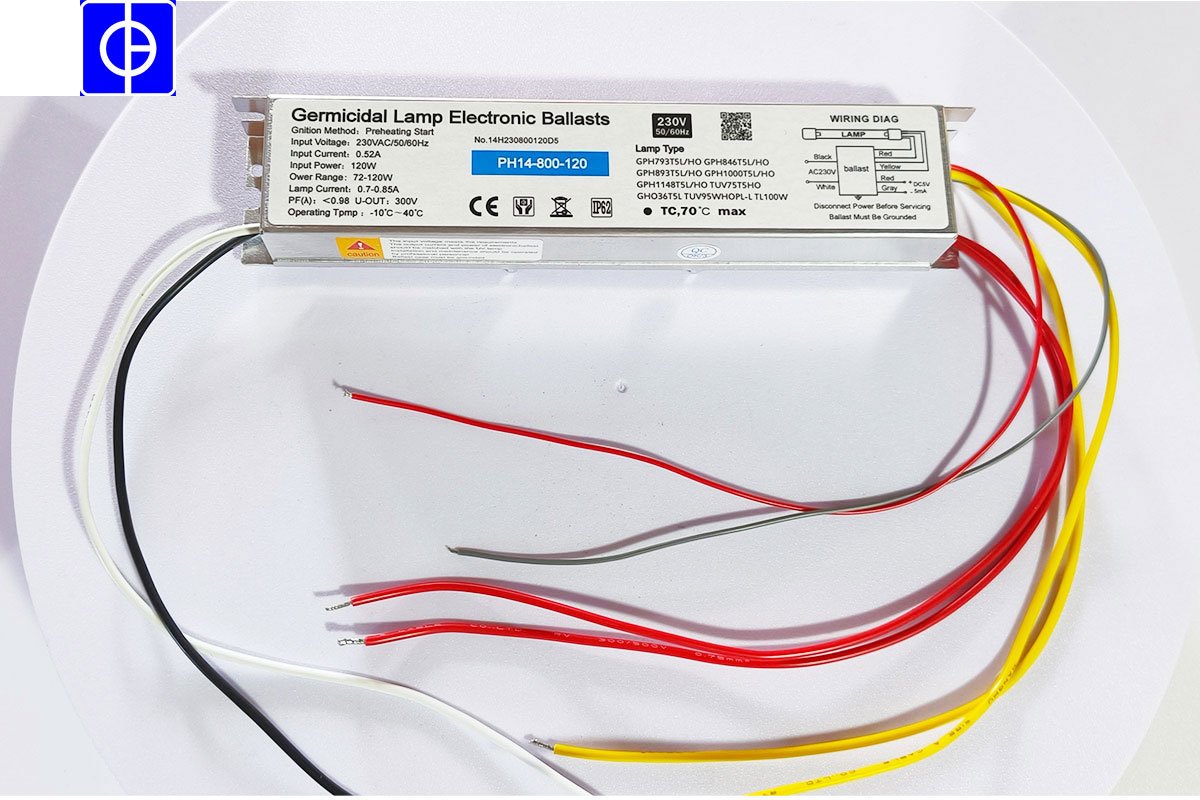

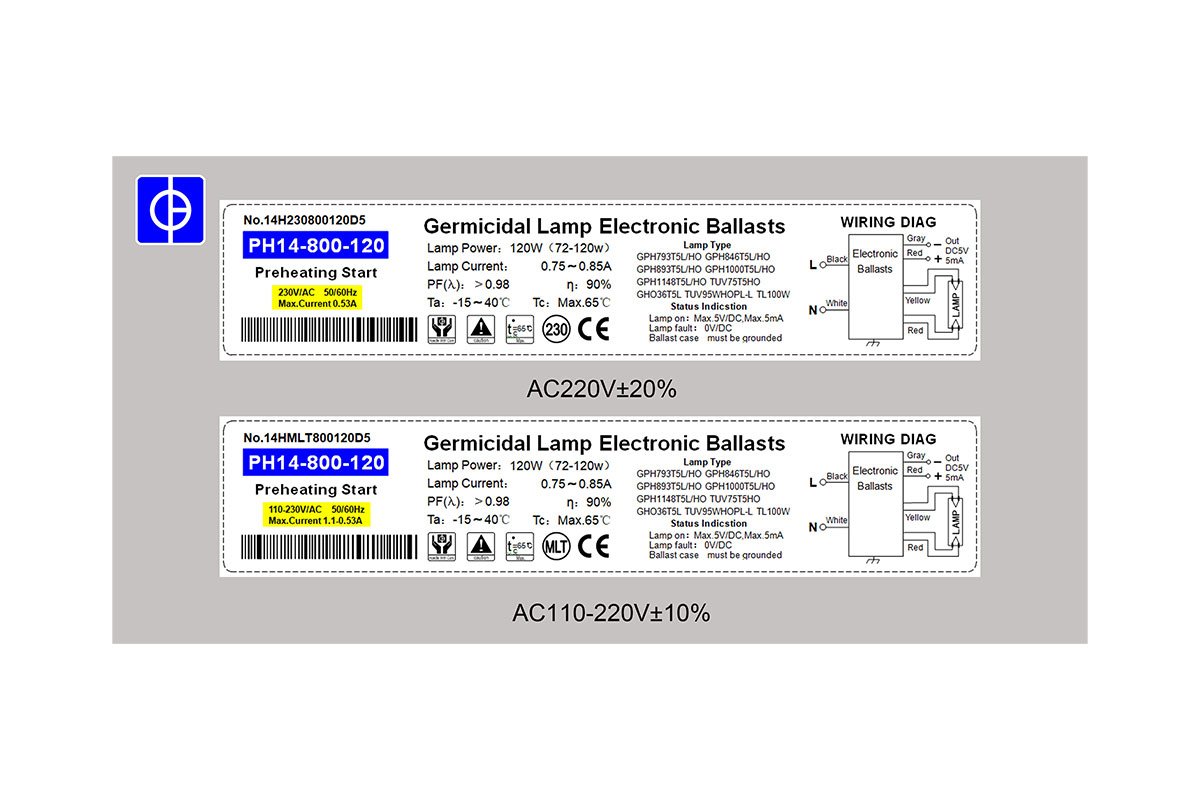

PH14-800-120

Preheat Start
Output Power
120W
Rated Power
120W
Output Power Range
72-120W
Number of Lamps
1 pc
Output Features
Constant Current / Intelligent protection
Compatible Lamp Models
GPH793T5L, HOGPH846T5L, HOGPH893T5L, HOGPH1000T5L, HOGPH1148T5, /HOTUV75T5, HOGHO36T5, LTUV95W, HOPL-LTL100W

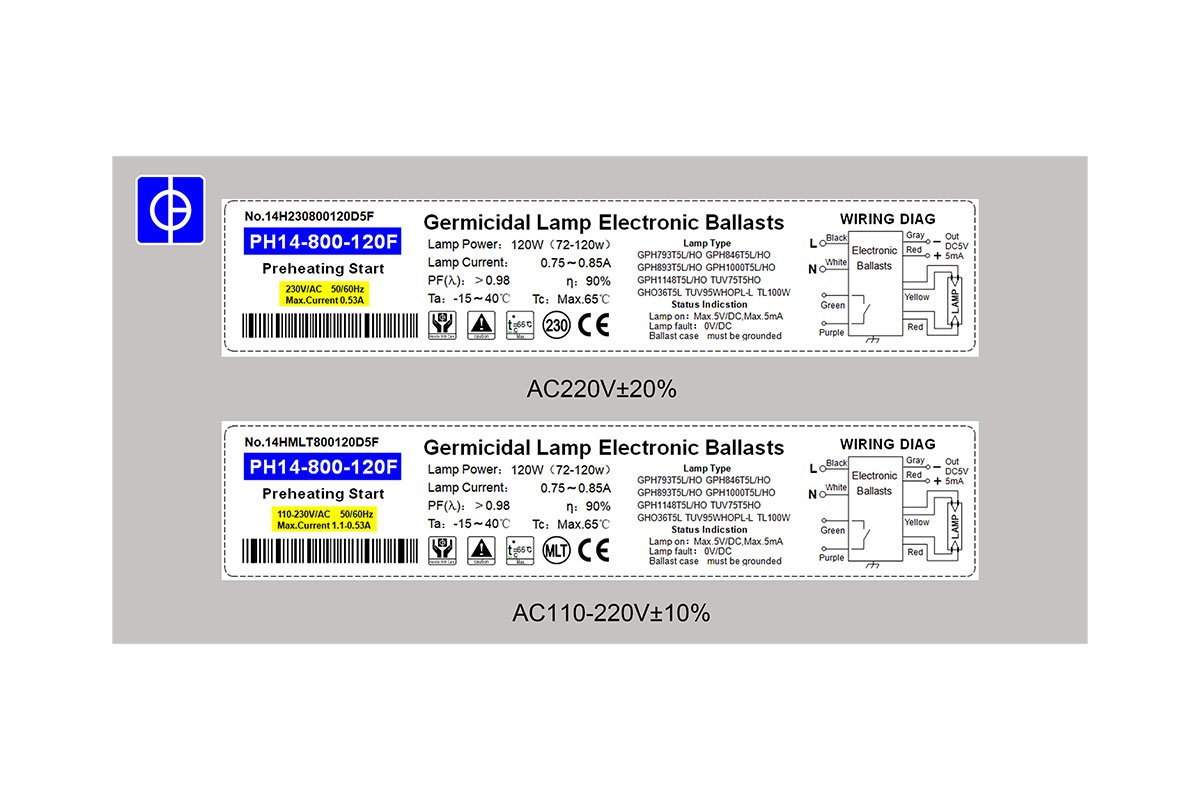

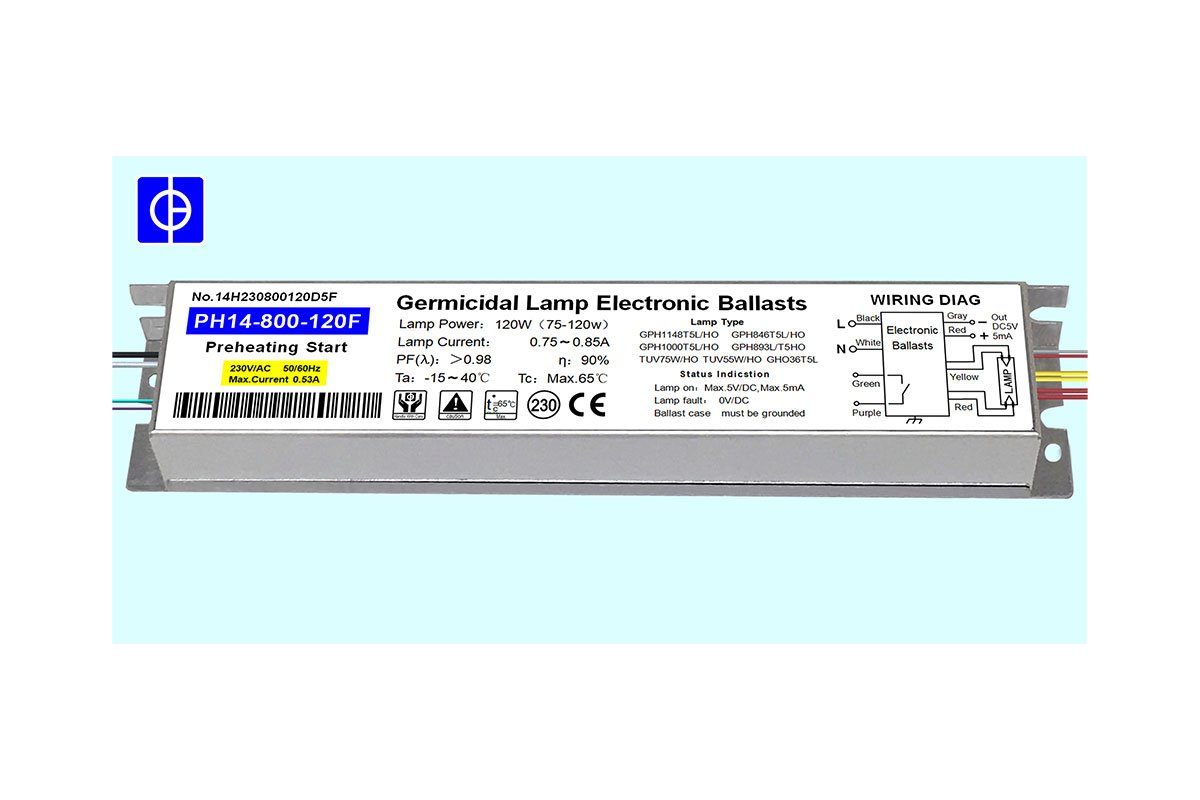

PH14-800-120F

Preheat Start
Output Power
120W
Rated Power
120W
Output Power Range
72-120W
Number of Lamps
1 pc
Output Features
Constant Current / Intelligent protection
Compatible Lamp Models
GPH793T5L, HOGPH846T5L, HOGPH893T5L, HOGPH1000T5L, HOGPH1148T5L, TUV75T5, HOGHO36T5L, TUV95W, HOPL-LTL100W

* Click "View Details" to scroll to the full specification sheet for that model. Detailed parameters and PDFs are replaceable placeholder content and can be updated with official datasheets later.

Full Model Specifications

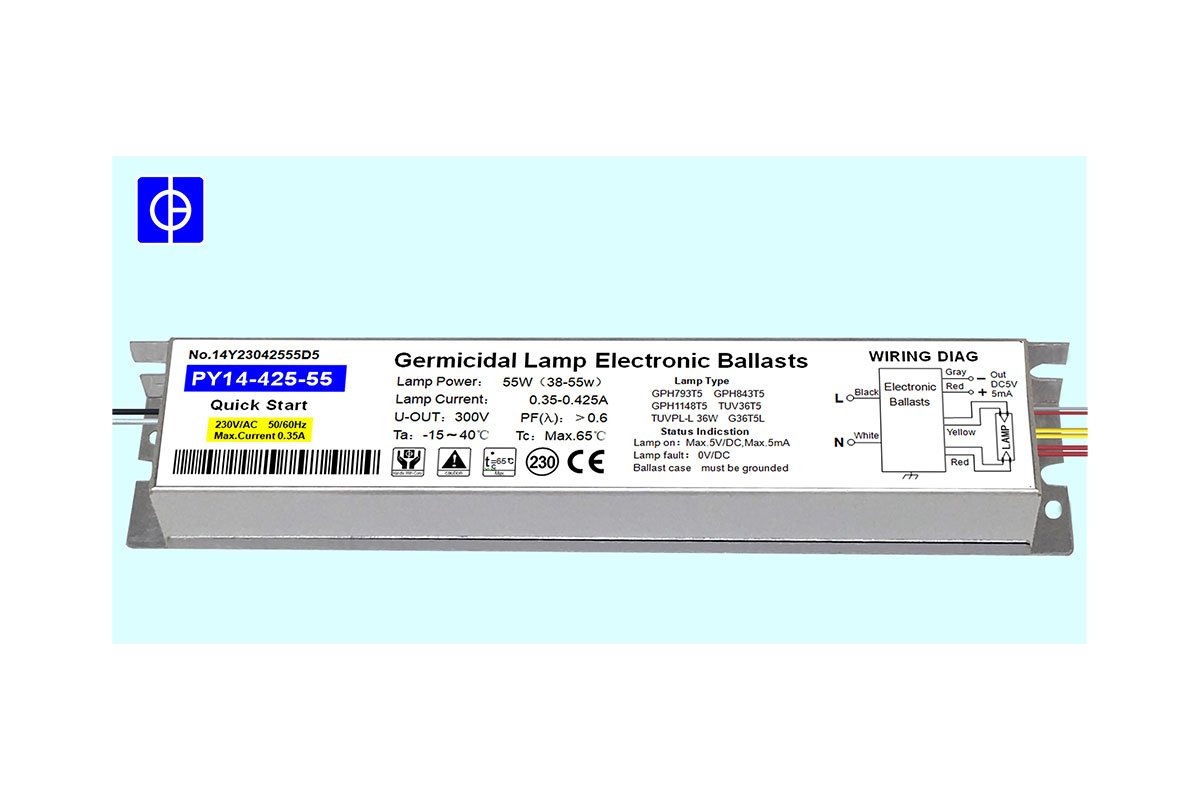

Product Model

PY14-425-55

download PDF
PY14-425-55 1
PY14-425-55 6
Product Model:PY14-425-55（230）
Input Voltage:AC220V±10%
Ordering Code:14Y23042555D5
Product Model:PY14-425-55（110）
Input Voltage:AC110V±10%
Ordering Code:14Y11042555D5
Starting Mode:Quick Start, Starting Time < 1 s
Power Frequency:50/60Hz
Input Current:
0.36A@230V 0.75A@110V
Dimming Control:
N/A (non-dimmable)
Input Features:Lightning protection; PF 0.98; Efficiency (η): 90%
Output Power:55W
Dimming Range:38-55W
Number of Lamps:1 pc
Output Current:425mA
Output Current Range:300-425mA
Auxiliary Output:
Lamp ON Output: DC 5V / 5mA (for External LED Indicator)
Output Features:
Non-constant-current operation; fault protection, etc.
Standards Compliance:
IP64; CE certified
Ambient Temperature:-10°C ~ 40°C
Maximum Enclosure Temperature (TC):<70°C
Humidity:
5%–85%

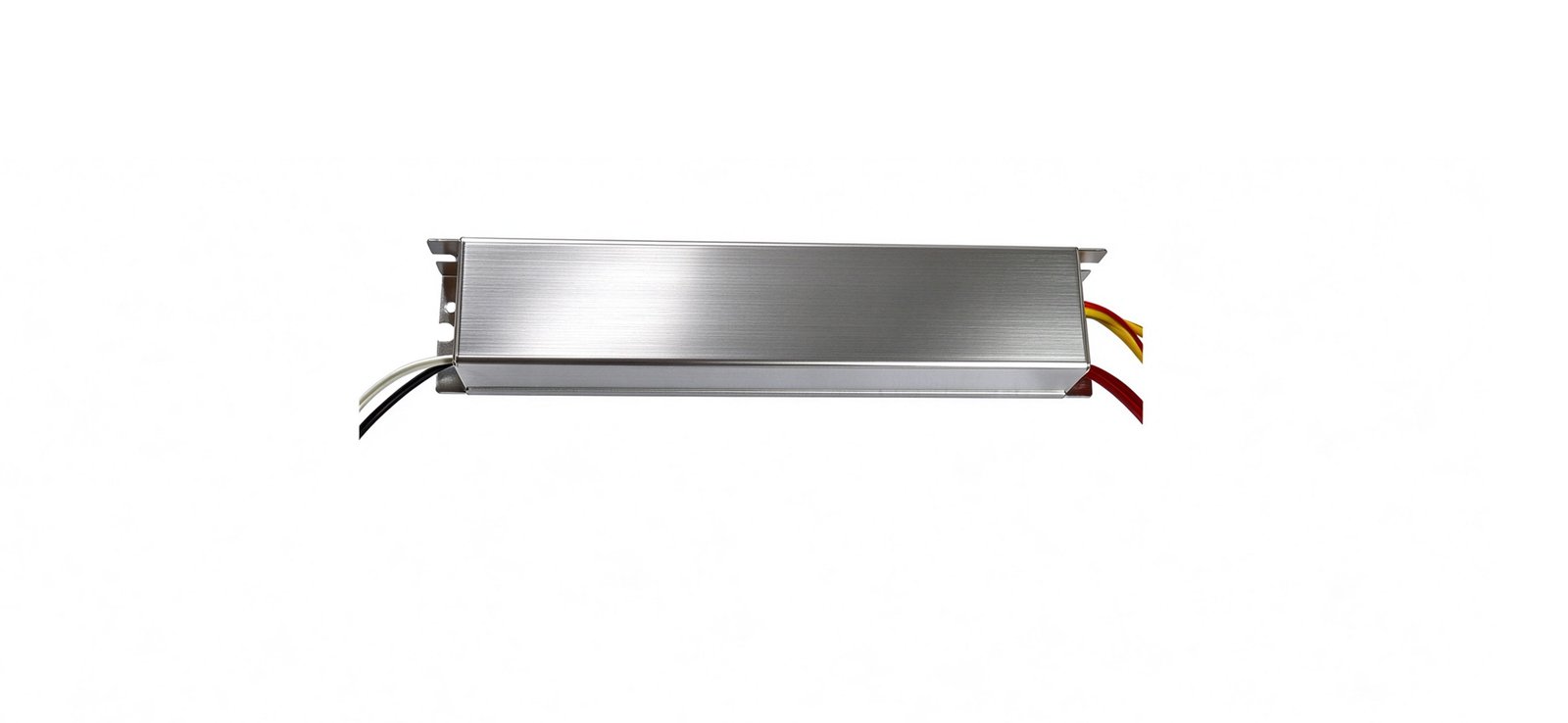

Housing Construction:
Aluminum housing with U.S.-style potting compound

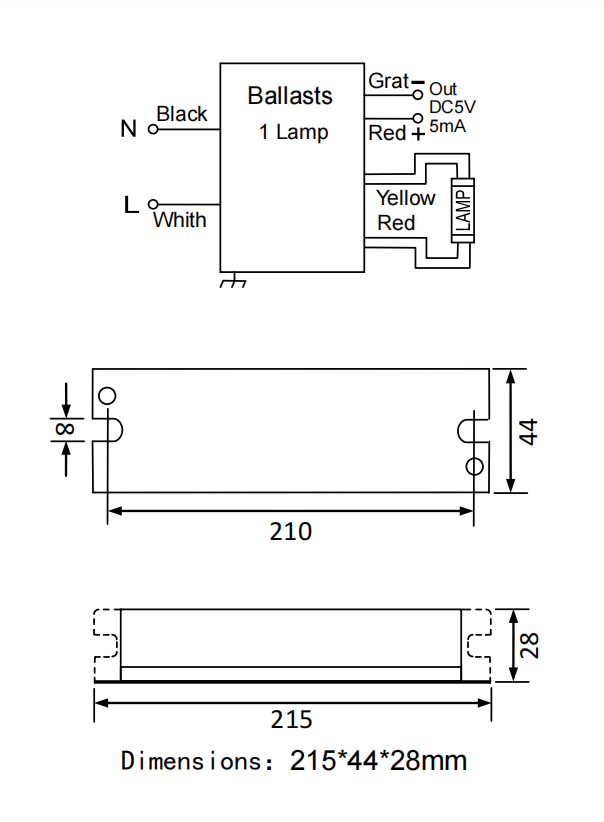

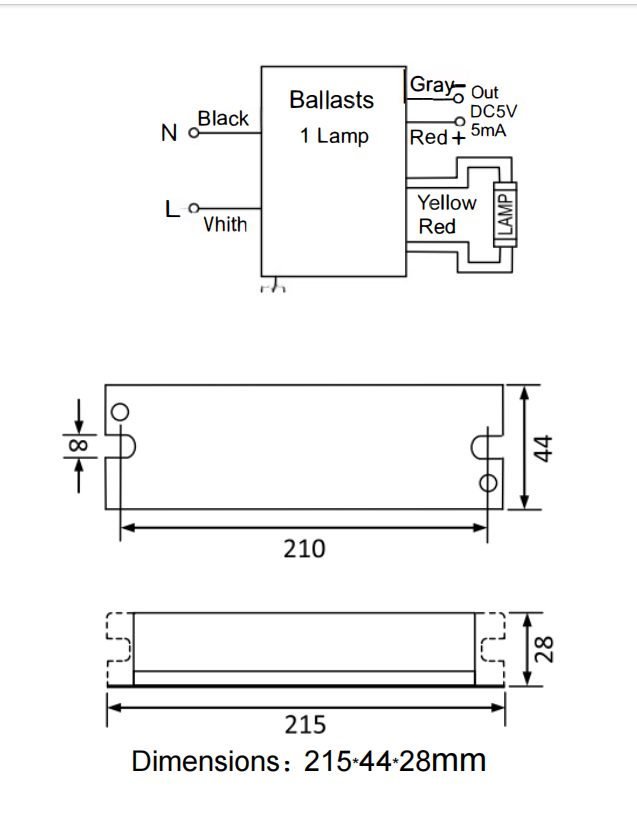

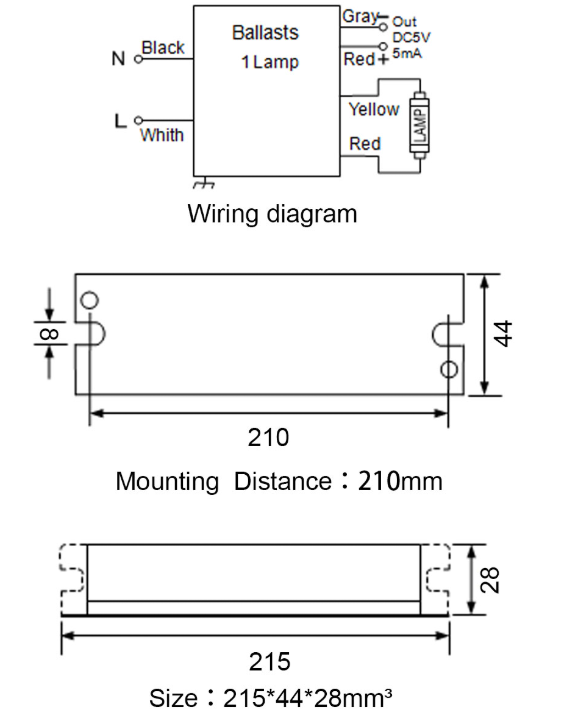

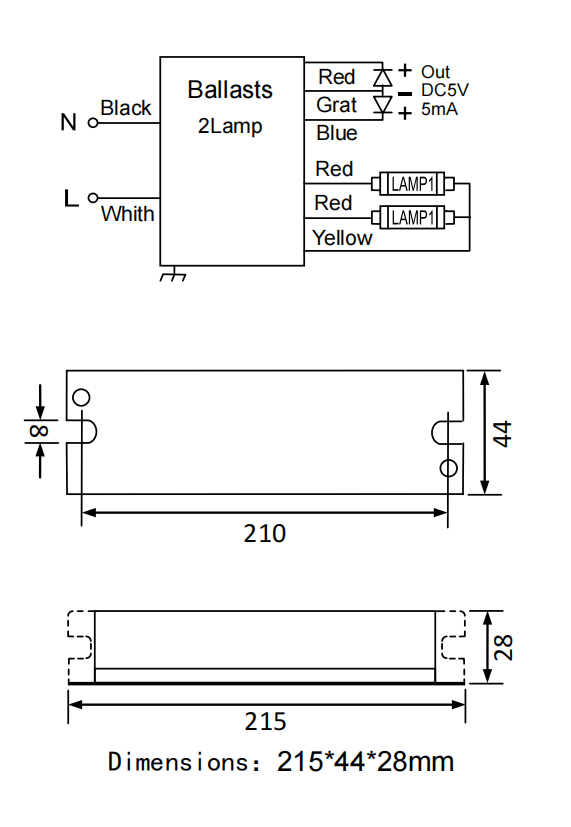

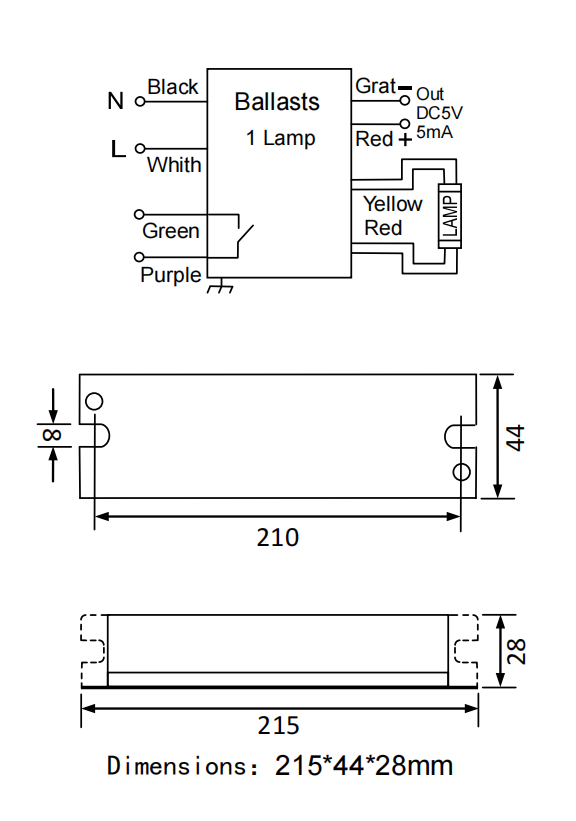

Housing Dimensions:215 × 44 × 28mm
Mounting Hole Spacing:210mm
Connection Method:
0.75mm² multi-strand wire, length 330mm; distance between ballast and lamp < 2m
Outer Carton Size:460 × 305 × 180mm
Net Weight per Unit:0.31kg/pcs
Quantity per Carton:50pcs
Gross Weight per Carton:16kg
Tare Weight (T.W.):
0.5kg
Compatible Lamp Models:
GPH793T5, GPH843T5, GPH1148T5, TUV36T5, TUVPL-L 36W, G36T5
Applications:
Wastewater treatment, water purification, exhaust-gas treatment, air purification, printing, pharmaceuticals, medical care, food processing, aquaculture, etc.

Product Model

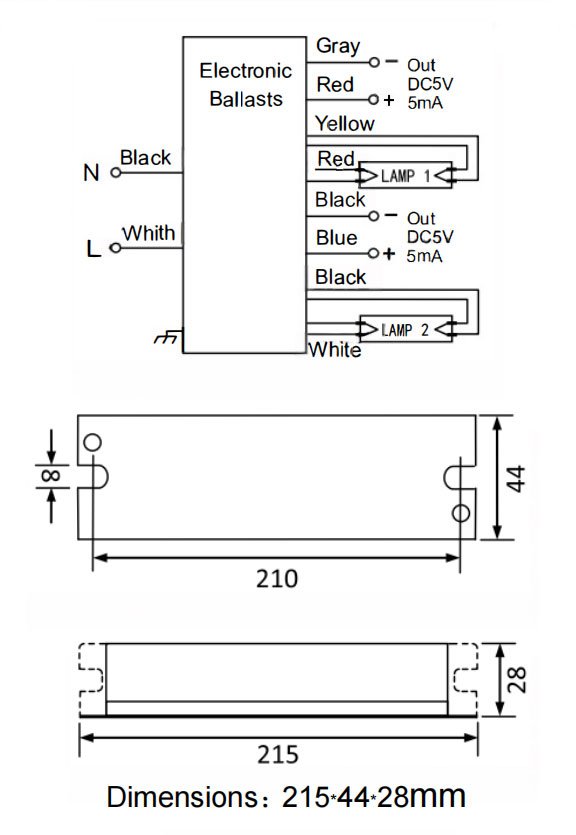

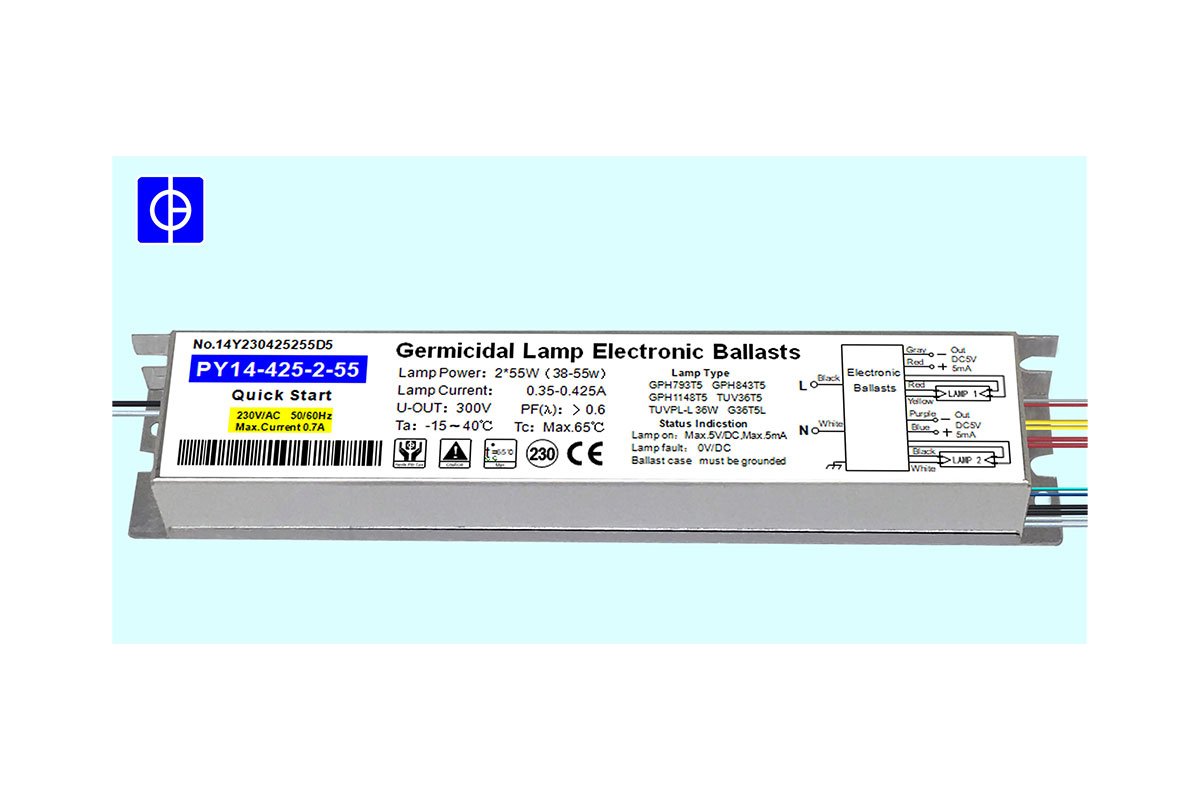

PY14-425-2-55

download PDF
PY14-425-2-55 1
PY14-425-2-55 6
Product Model:PY14-425-2-55（230）
Input Voltage:AC220V±10%
Ordering Code:14Y230425255D5
Product Model:PY14-425-2-55（110）
Input Voltage:AC110V±10%
Ordering Code:14Y110425255D5
Starting Mode:Quick Start, Starting Time < 1 s
Power Frequency:50/60Hz
Input Current:
0.72A@230V 1.5A@110V
Dimming Control:
N/A (non-dimmable)
Input Features:Lightning protection; PF 0.98; Efficiency (η): 90%
Output Power:2×55W
Dimming Range:2×38-55W
Number of Lamps:2 pcs
Output Current:425mA
Output Current Range:300-425mA
Auxiliary Output:
Lamp ON Output: DC 5V / 5mA (for External LED Indicator)
Output Features:
Non-constant-current operation; fault protection, etc.
Standards Compliance:
IP64; CE certified
Ambient Temperature:-10°C ~ 40°C
Maximum Enclosure Temperature (TC):<70°C
Humidity:
5%–85%
Housing Construction:
Aluminum housing with U.S.-style potting compound
Housing Dimensions:215 × 44 × 28mm
Mounting Hole Spacing:210mm
Connection Method:
0.75mm² multi-strand wire, length 300mm; distance between ballast and lamp < 2m
Outer Carton Size:460 × 305 × 180mm
Net Weight per Unit:0.31kg/pcs
Quantity per Carton:50pcs
Gross Weight per Carton:16kg
Tare Weight (T.W.):
0.5kg
Compatible Lamp Models:
GPH793T5, GPH843T5, GPH1148T5, TUV36T5, TUVPLL36W, G36T5
Applications:
Wastewater treatment, water purification, exhaust-gas treatment, air purification, printing, pharmaceuticals, medical care, food processing, aquaculture, etc.

Product Model

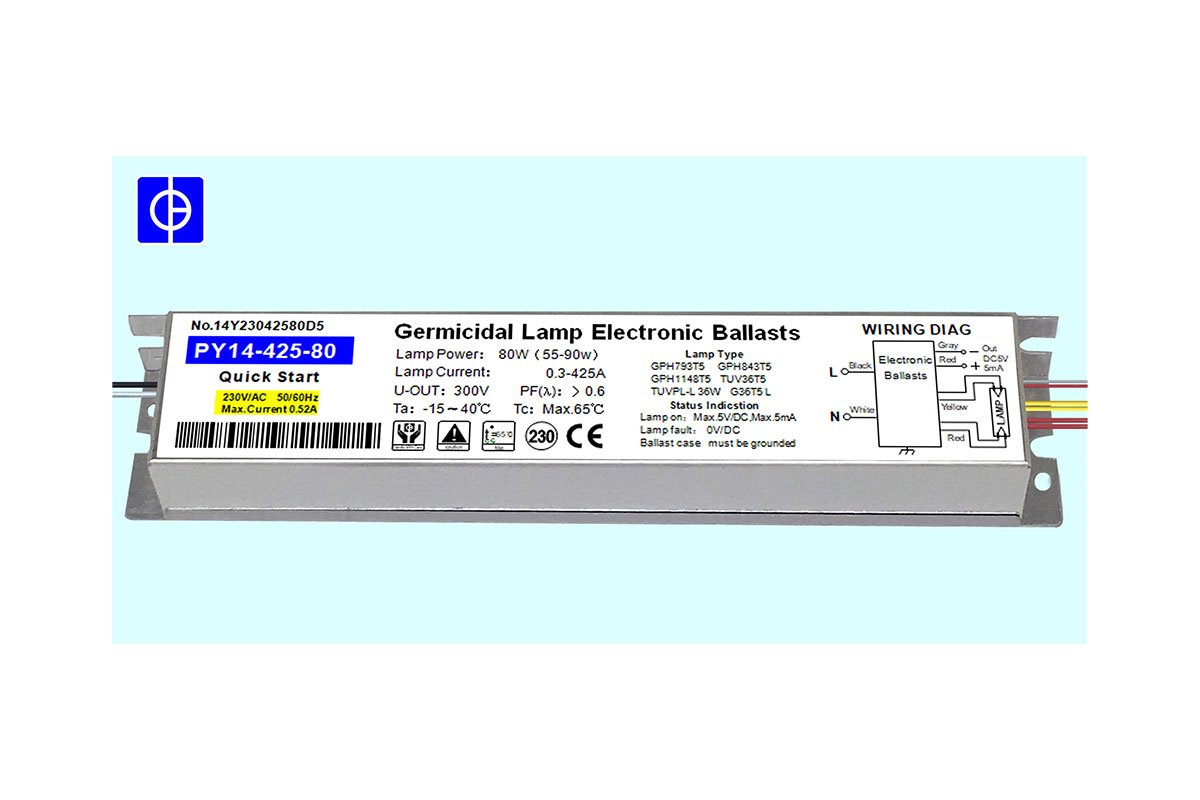

PY14-425-80

download PDF
PY14-425-80 1
PY14-425-80 6
Product Model:PY14-425-80（230）
Input Voltage:AC220V±10%
Ordering Code:14Y23042580D5
Product Model:PY14-425-80（110）
Input Voltage:AC110V±10%
Ordering Code:14Y11042580D5
Starting Mode:Instant Start, Starting Time < 1 s
Power Frequency:50/60Hz
Input Current:
0.52A@230V 1.1A@110V
Dimming Control:
N/A (non-dimmable)
Input Features:Lightning protection; PF 0.98; Efficiency (η): 90%
Output Power:80W
Dimming Range:55-80W
Number of Lamps:1 pc
Output Current:425mA
Output Current Range:300-425mA
Auxiliary Output:
Lamp ON Output: DC 5V / 5mA (for External LED Indicator)
Output Features:
Non-constant-current operation; fault protection, etc.
Standards Compliance:
IP64; CE certified
Ambient Temperature:-10°C ~ 40°C
Maximum Enclosure Temperature (TC):<70°C
Humidity:
5%–85%
Housing Construction:
Aluminum housing with U.S.-style potting compound
Housing Dimensions:215 × 44 × 28mm
Mounting Hole Spacing:210mm
Connection Method:
0.75mm² multi-strand wire, length 330mm; distance between ballast and lamp < 2m
Outer Carton Size:460 × 305 × 180mm
Net Weight per Unit:0.31kg/pcs
Quantity per Carton:50pcs
Gross Weight per Carton:16kg
Tare Weight (T.W.):
0.5kg
Compatible Lamp Models:
GPH1148T5L, GPH1554T5L, TUV75, G48T5L, G64T5
Applications:
Wastewater treatment, water purification, exhaust-gas treatment, air purification, printing, pharmaceuticals, medical care, food processing, aquaculture, etc.

Product Model

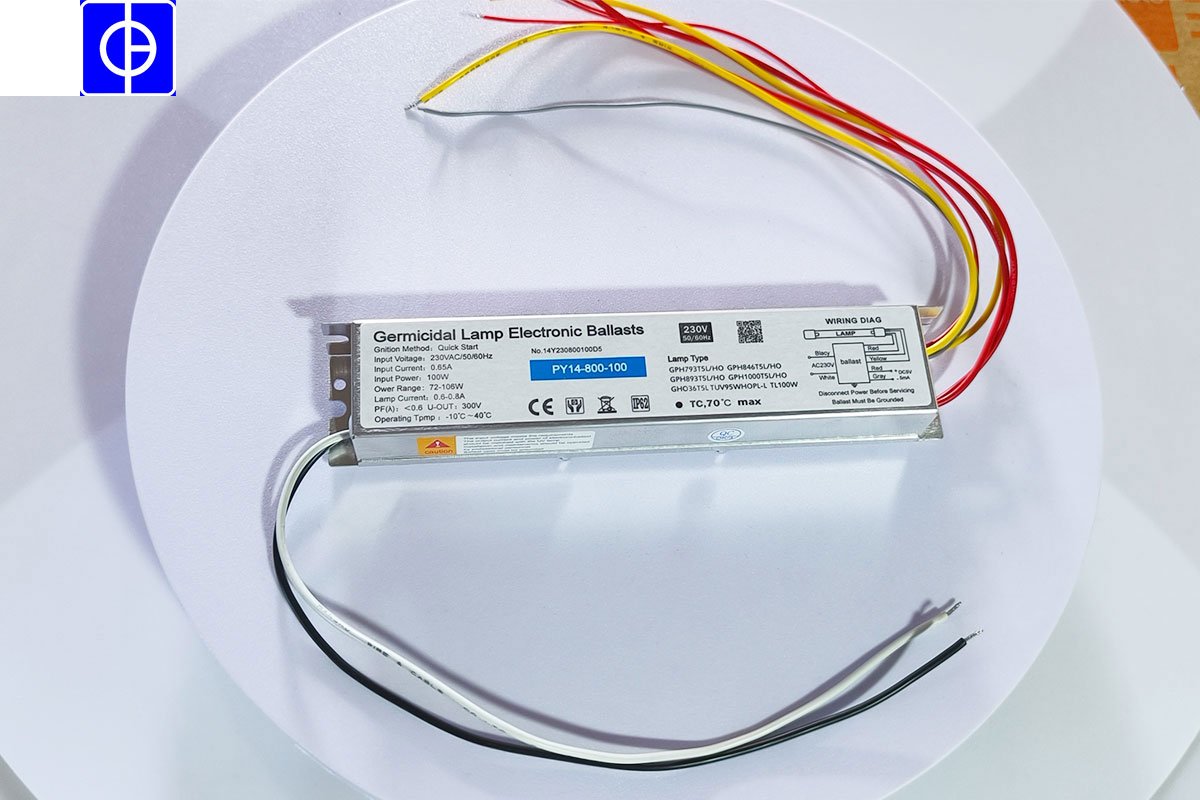

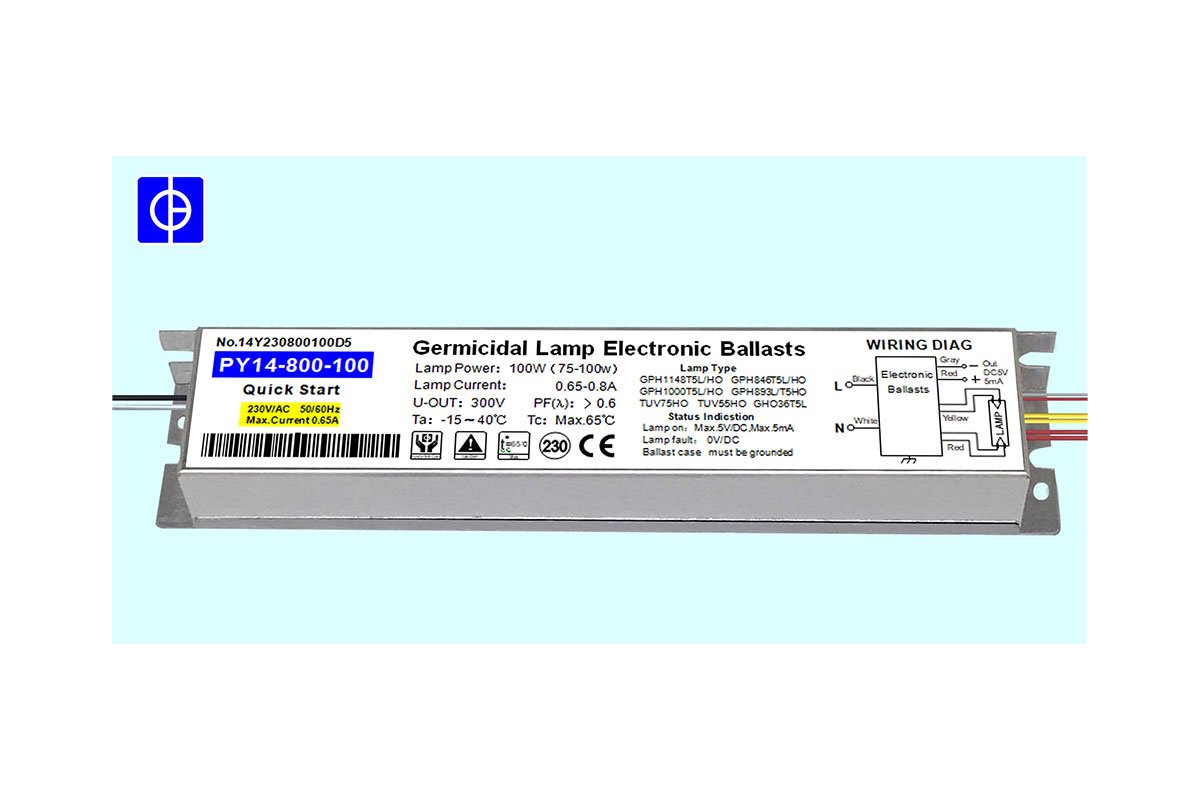

PY14-800-100

download PDF
PY14-800-100 1
PY14-800-100 6
Product Model:PY14-800-100（230）
Input Voltage:AC220V±10%
Ordering Code:14Y230800100D5
Product Model:PY14-800-100（110）
Input Voltage:AC110V±10%
Ordering Code:14Y110800100D5
Starting Mode:Quick Start, Starting Time < 1 s
Power Frequency:50/60Hz
Input Current:
0.65A@230V 1.36A@110V
Dimming Control:
N/A (non-dimmable)
Input Features:Lightning protection; PF≥0.98; Efficiency (η): 90%
Output Power:100W
Dimming Range:72-100W
Number of Lamps:1 pc
Output Current:800mA
Output Current Range:600-800mA
Auxiliary Output:
Lamp ON Output: DC 5V / 5mA (for External LED Indicator)
Output Features:
Non-constant-current operation; fault protection, etc.
Standards Compliance:
IP64; CE certified
Ambient Temperature:-10°C ~ 40°C
Maximum Enclosure Temperature (TC):<70°C
Humidity:
5%–85%
Housing Construction:
Aluminum housing with U.S.-style potting compound
Housing Dimensions:215 × 44 × 28mm
Mounting Hole Spacing:210mm
Connection Method:
0.75mm² multi-strand wire, length 330mm; distance between ballast and lamp < 5m
Outer Carton Size:460 × 305 × 180mm
Net Weight per Unit:0.31kg/pcs
Quantity per Carton:50pcs
Gross Weight per Carton:16kg
Tare Weight (T.W.):
0.5kg
Compatible Lamp Models:
GPH793T5L, HOGPH846T5L, HOGPH893T5L, HOGPH1000T5L, HOGHO36T5L, TUV75T5, HOTUV95, WHOPL-LTL100W
Applications:
Wastewater treatment, water purification, exhaust-gas treatment, air purification, printing, pharmaceuticals, medical care, food processing, aquaculture, etc.

Product Model

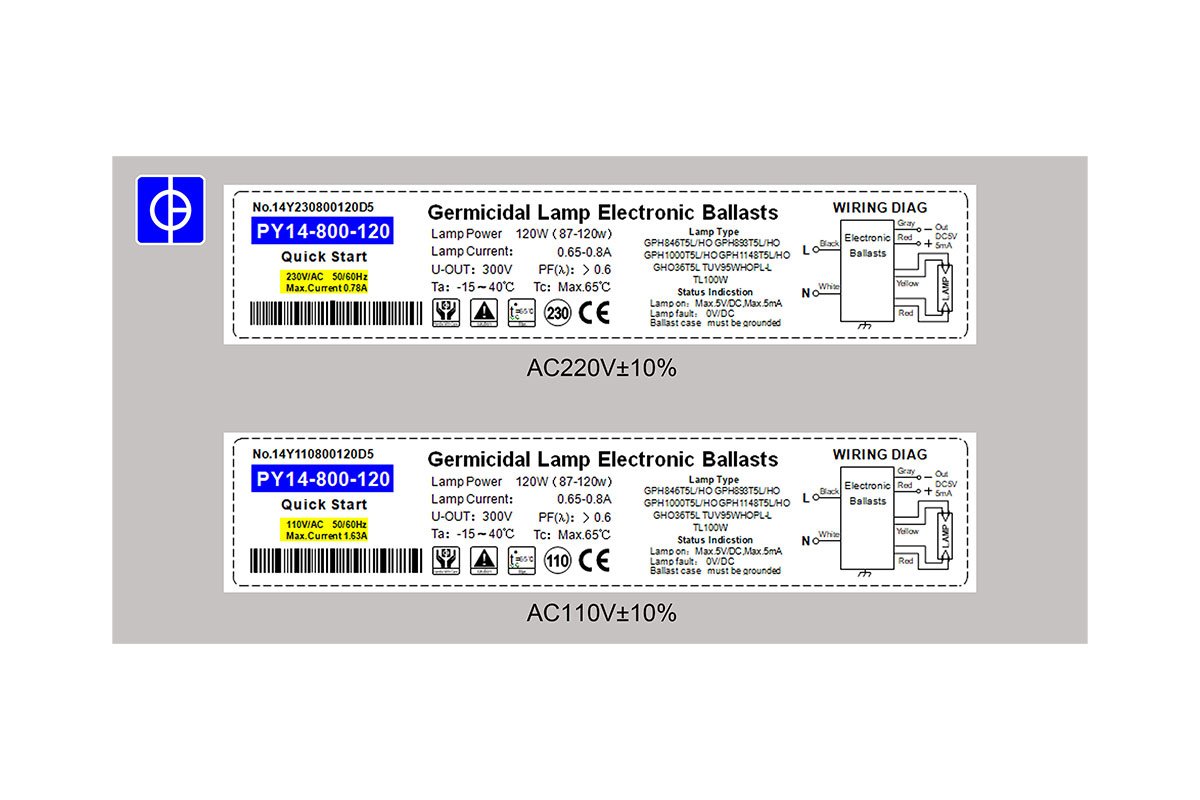

PY14-800-120

download PDF
PY14-800-120 1
PY14-800-120 6
Product Model:PY14-800-120（230）
Input Voltage:AC220V±10%
Ordering Code:14Y230800120D5
Product Model:PY14-800-120（110）
Input Voltage:AC110V±10%
Ordering Code:14Y110800120D5
Starting Mode:Quick Start, Starting Time < 1 s
Power Frequency:50/60Hz
Input Current:
0.78A@230V 1.63A@110V
Dimming Control:
N/A (non-dimmable)
Input Features:Lightning protection; PF≥0.98; Efficiency (η): 90%
Output Power:120W
Dimming Range:87-120W
Number of Lamps:1 pc
Output Current:800mA
Output Current Range:600-800mA
Auxiliary Output:
Lamp ON Output: DC 5V / 5mA (for External LED Indicator)
Output Features:
Non-constant-current operation; fault protection, etc.
Standards Compliance:
IP64; CE certified
Ambient Temperature:-10°C ~ 40°C
Maximum Enclosure Temperature (TC):<70°C
Humidity:
5%–85%
Housing Construction:
Aluminum housing with U.S.-style potting compound
Housing Dimensions:215 × 44 × 28mm
Mounting Hole Spacing:210mm
Connection Method:
0.75mm² multi-strand wire, length 330mm; distance between ballast and lamp < 5m
Outer Carton Size:460 × 305 × 180mm
Net Weight per Unit:0.31kg/pcs
Quantity per Carton:50pcs
Gross Weight per Carton:16kg
Tare Weight (T.W.):
0.5kg
Compatible Lamp Models:
GPH846T5L, HOGPH893T5L, HOGPH1000T5L, HOGPH1148T5L, HOGHO36T5L, TUV95WHOPL-LTL100W
Applications:
Wastewater treatment, water purification, exhaust-gas treatment, air purification, printing, pharmaceuticals, medical care, food processing, aquaculture, etc.

Product Model

PN14-425-2-40

download PDF
PN14-425-2-40 1
PN14-425-2-40 6
Product Model:PN14-425-2-40（230）
Input Voltage:AC230V±10%
Ordering Code:14N230425240D5
Product Model:PN14-425-2-40（110）
Input Voltage:AC110V±10%
Ordering Code:14N110425240D5
Starting Mode:Instant Start, Starting Time < 1 s
Power Frequency:50/60Hz
Input Current:
0.42A@230V 0.88A@110V
Dimming Control:
N/A (non-dimmable)
Input Features:Lightning protection; PF 0.98; Efficiency (η): 90%
Output Power:2×40W
Dimming Range:2×17-42W
Number of Lamps:2 pcs
Output Current:425mA
Output Current Range:350-425mA
Auxiliary Output:
Lamp ON Output: DC 5V / 5mA (for External LED Indicator)
Output Features:
Non-constant-current operation
Standards Compliance:
IP64; CE certified
Ambient Temperature:-10°C ~ 40°C
Maximum Enclosure Temperature (TC):<70°C
Humidity:
5%–85%
Housing Construction:
Aluminum housing with U.S.-style potting compound
Housing Dimensions:215 × 44 × 28mm
Mounting Hole Spacing:210mm
Connection Method:
0.75mm² multi-strand wire, length 330mm; distance between ballast and lamp < 5m
Outer Carton Size:460 × 305 × 180mm
Net Weight per Unit:0.28kg/pcs
Quantity per Carton:50pcs
Gross Weight per Carton:14.5kg
Tare Weight (T.W.):
0.5kg
Compatible Lamp Models:
GPH357T5, GPH436T5, GPH550T5, GPH793T5, GPH843T5, G36T5L, G10T5L, TUV16T5, TUV25T5, TUV30T5, TUV36T5
Applications:
Wastewater treatment, water purification, exhaust-gas treatment, air purification, printing, pharmaceuticals, medical care, food processing, aquaculture, etc.

Product Model

PN14-425-90

download PDF
PN14-425-90 1
PN14-425-90 6
Product Model:PN14-425-90（230）
Input Voltage:AC230V±10%
Ordering Code:14N23042590D5
Product Model:PN14-425-80（110）
Input Voltage:AC110V±10%
Ordering Code:14N11042580D5
Starting Mode:Instant Start, Starting Time < 1 s
Power Frequency:50/60Hz
Input Current:
0.48A@230V 0.98A@110V
Dimming Control:
N/A (non-dimmable)
Input Features:Lightning protection; PF 0.9; Efficiency (η): 90%
Output Power:90W
Dimming Range:38-90W
Number of Lamps:1 pc
Output Current:425mA
Output Current Range:350-425mA
Auxiliary Output:
Lamp ON Output: DC 5V / 5mA (for External LED Indicator)
Output Features:
Non-constant-current operation
Standards Compliance:
IP64; CE certified
Ambient Temperature:-10°C ~ 40°C
Maximum Enclosure Temperature (TC):<70°C
Humidity:
5%–85%
Housing Construction:
Aluminum housing with U.S.-style potting compound
Housing Dimensions:215 × 44 × 28mm
Mounting Hole Spacing:210mm
Connection Method:
0.75mm² multi-strand wire, length 330mm; distance between ballast and lamp < 5m
Outer Carton Size:460 × 305 × 180mm
Net Weight per Unit:0.31kg/pcs
Quantity per Carton:50pcs
Gross Weight per Carton:16kg
Tare Weight (T.W.):
0.5kg
Compatible Lamp Models:
GPH357T5, GPH436T5, GPH550T5, GPH793T5, GPH843T5, G36T5L, G10T5L, TUV16T5, TUV25T5, TUV30T5, TUV36T5
Applications:
Wastewater treatment, water purification, exhaust-gas treatment, air purification, printing, pharmaceuticals, medical care, food processing, aquaculture, etc.

Product Model

PN14-800-100

download PDF
PN14-800-100 1
PN14-800-100 6
Product Model:PN14-800-100（230）
Input Voltage:AC230V±10%
Ordering Code:14N230800100D5
Product Model:PN14-800-100（110）
Input Voltage:AC110V±10%
Ordering Code:14N110800100D5
Starting Mode:Instant Start, Starting Time < 1 s
Power Frequency:50/60Hz
Input Current:
0.48A@230V1A@110V
Dimming Control:
N/A (non-dimmable)
Input Features:Lightning protection; PF≥0.9; Efficiency (η): 90%
Output Power:100W
Dimming Range:48-100W
Number of Lamps:1 pc
Output Current:800mA
Output Current Range:700-850mA
Auxiliary Output:
Lamp ON Output: DC 5V / 5mA (for External LED Indicator)
Output Features:
Non-constant-current operation
Standards Compliance:
IP64; CE certified
Ambient Temperature:-10°C ~ 40°C
Maximum Enclosure Temperature (TC):<70°C
Humidity:
5%–85%
Housing Construction:
Aluminum housing with U.S.-style potting compound
Housing Dimensions:215 × 44 × 28mm
Mounting Hole Spacing:210mm
Connection Method:
0.75mm² multi-strand wire, length 330mm; distance between ballast and lamp < 5m
Outer Carton Size:460 × 305 × 180mm
Net Weight per Unit:0.28kg/pcs
Quantity per Carton:50pcs
Gross Weight per Carton:14.5kg
Tare Weight (T.W.):
0.5kg
Compatible Lamp Models:
GPH436T5L, HOGPH793T5L, HOGPH846T5L, HOGPH893T5L, HOGPH1000T5L, HOGHO36T5L, TUV55W, HOTUV60W, HOTUV75W, HOTUV95W, HOPL-LTL100W
Applications:
Wastewater treatment, water purification, exhaust-gas treatment, air purification, printing, pharmaceuticals, medical care, food processing, aquaculture, etc.

Product Model

PN14-800-120

download PDF
PN14-800-120 1
PN14-800-120 6
Product Model:PN14-800-120（230）
Input Voltage:AC230V±10%
Ordering Code:14N230800120D5
Product Model:PN14-800-120（110）
Input Voltage:AC110V±10%
Ordering Code:14N110800120D5
Starting Mode:Quick Start, Starting Time < 1 s
Power Frequency:50/60Hz
Input Current:
0.57A@230V 1.2A@110V
Dimming Control:
N/A (non-dimmable)
Input Features:Lightning protection; PF 0.98; Efficiency (η): 90%
Output Power:120W
Dimming Range:48-120W
Number of Lamps:1 pc
Output Current:800mA
Output Current Range:700-850mA
Auxiliary Output:
Lamp ON Output: DC 5V / 5mA (for External LED Indicator)
Output Features:
Non-constant-current operation
Standards Compliance:
IP64; CE certified
Ambient Temperature:-10°C ~ 40°C
Maximum Enclosure Temperature (TC):<70°C
Humidity:
5%–85%
Housing Construction:
Aluminum housing with U.S.-style potting compound
Housing Dimensions:215 × 44 × 28mm
Mounting Hole Spacing:210mm
Connection Method:
0.75mm² multi-strand wire, length 330mm; distance between ballast and lamp < 5m
Outer Carton Size:460 × 305 × 180mm
Net Weight per Unit:0.28kg/pcs
Quantity per Carton:50pcs
Gross Weight per Carton:14.5kg
Tare Weight (T.W.):
0.5kg
Compatible Lamp Models:
GPH436T5L, HOGPH793T5L, HOGPH846T5, HOGPH893T5L, HOGPH1000T5L, HOGPH1148T5L, HOGHO36T5L, TUV55W, HOTUV60W, HOTUV75W, HOTUV95WHOPL-LTL100W
Applications:
Wastewater treatment, water purification, exhaust-gas treatment, air purification, printing, pharmaceuticals, medical care, food processing, aquaculture, etc.

Product Model

PH14-425-80

download PDF
PH14-425-80 1
PH14-425-80 6
Product Model:PH14-425-80（230）
Input Voltage:AC220V±20%
Ordering Code:14H23042580D5
Product Model:PH14-425-80（MLT）
Input Voltage:AC110-220V±10%
Ordering Code:14HMLT42580D5
Starting Mode:Preheat Start, Starting Time 4-6S
Power Frequency:50/60Hz
Input Current:
0.35A@230V 0.72A@110V
Dimming Control:
N/A (non-dimmable)
Input Features:Lightning protection; PF 0.98; Efficiency (η): 90%, THD < 10, CCF < 1.7
Output Power:80W
Dimming Range:38-90W
Number of Lamps:1 pc
Output Current:425mA
Output Current Range:400-440mA
Auxiliary Output:
Lamp ON Output: DC 5V / 5mA (for External LED Indicator)
Output Features:
Constant Current, overvoltage protection; overcurrent protection; lamp leakage detection; filament open-circuit protection; cross-wiring protection; end-of-life (EOL) Protection
Standards Compliance:
IP64; CE certified
Ambient Temperature:-10°C ~ 40°C
Maximum Enclosure Temperature (TC):<70°C
Humidity:
5%–85%
Housing Construction:
Aluminum housing with U.S.-style potting compound
Housing Dimensions:215 × 44 × 28mm
Mounting Hole Spacing:210mm
Connection Method:
0.75mm² multi-strand wire, length 330mm; distance between ballast and lamp < 5m
Outer Carton Size:460 × 305 × 180mm
Net Weight per Unit:0.31kg/pcs
Quantity per Carton:50pcs
Gross Weight per Carton:16kg
Tare Weight (T.W.):
0.5kg
Compatible Lamp Models:
GPH793T5, GPH843T5, GPH1148T5, GPH1554T5, GPH1630T5, G36T5, G48T5, G64T5, G67T5, TUV64T5, TUV75T5
Applications:
Wastewater treatment, water purification, exhaust-gas treatment, air purification, printing, pharmaceuticals, medical care, food processing, aquaculture, etc.

Product Model

PH14-800-80

download PDF
PH14-800-80 1
PH14-800-80 6
Product Model:PH14-800-80（230）
Input Voltage:AC220V±20%
Ordering Code:14H23080080D5
Product Model:PH14-800-80（MLT）
Input Voltage:AC110-220V±10%
Ordering Code:14HMLT80080D5
Starting Mode:Preheat Start, Starting Time 3-5S
Power Frequency:50/60Hz
Input Current:
0.35A@230V 0.72A@110V
Dimming Control:
N/A (non-dimmable)
Input Features:Lightning protection; PF 0.98; Efficiency (η): 90%, THD < 10, CCF < 1.7
Output Power:80W
Dimming Range:27-80W
Number of Lamps:1 pc
Output Current:800mA
Output Current Range:750-850mA
Auxiliary Output:
Lamp ON Output: DC 5V / 5mA (for External LED Indicator)
Output Features:
Constant Current, overvoltage protection; overcurrent protection; lamp leakage detection; filament open-circuit protection; cross-wiring protection; end-of-life (EOL) Protection
Standards Compliance:
IP64; CE certified
Ambient Temperature:-10°C ~ 40°C
Maximum Enclosure Temperature (TC):<70°C
Humidity:
5%–85%
Housing Construction:
Aluminum housing with U.S.-style potting compound
Housing Dimensions:215 × 44 × 28mm
Mounting Hole Spacing:210mm
Connection Method:
0.75mm² multi-strand wire, length 330mm; distance between ballast and lamp < 5m
Outer Carton Size:460 × 305 × 180mm
Net Weight per Unit:0.31kg/pcs
Quantity per Carton:50pcs
Gross Weight per Carton:16kg
Tare Weight (T.W.):
0.5kg
Compatible Lamp Models:
GPH287T5L, HOGPH357T5L, HOGPH436T5L, HOGPH793T5L, HOTUV55T5, HOTUV60T5, HOTUV75T5
Applications:
Wastewater treatment, water purification, exhaust-gas treatment, air purification, printing, pharmaceuticals, medical care, food processing, aquaculture, etc.

Product Model

PH14-1200-105

download PDF
PH14-1200-105 1
PH14-1200-105 6
Product Model:PH14-1200-105（230）
Input Voltage:AC220V±20%
Ordering Code:14H2301200105D5
Product Model:PH14-1200-105（MLT）
Input Voltage:AC110-220V±10%
Ordering Code:14HMLT1200105D5
Starting Mode:Preheat Start, Starting Time 3-5S
Power Frequency:50/60Hz
Input Current:
0.46A@230V 0.95A@110V
Dimming Control:
N/A (non-dimmable)
Input Features:Lightning protection; PF 0.98; Efficiency (η): 90%, THD < 10, CCF < 1.7
Output Power:105W
Dimming Range:42-105W
Number of Lamps:1 pc
Output Current:1200mA
Output Current Range:1150-1250mA
Auxiliary Output:
Lamp ON Output: DC 5V / 5mA (for External LED Indicator)
Output Features:
Constant Current, overvoltage protection; overcurrent protection; lamp leakage detection; filament open-circuit protection; cross-wiring protection; end-of-life (EOL) Protection
Standards Compliance:
IP64; CE certified
Ambient Temperature:-10°C ~ 40°C
Maximum Enclosure Temperature (TC):<70°C
Humidity:
5%–85%
Housing Construction:
Aluminum housing with U.S.-style potting compound
Housing Dimensions:215 × 44 × 28mm
Mounting Hole Spacing:210mm
Connection Method:
0.75mm² multi-strand wire, length 330mm; distance between ballast and lamp < 5m
Outer Carton Size:460 × 305 × 180mm
Net Weight per Unit:0.31kg/pcs
Quantity per Carton:50pcs
Gross Weight per Carton:16kg
Tare Weight (T.W.):
0.5kg
Compatible Lamp Models:
GPHA843T5L, GPHVA357T5L
Applications:
Wastewater treatment, water purification, exhaust-gas treatment, air purification, printing, pharmaceuticals, medical care, food processing, aquaculture, etc.

Product Model

PH14-800-120

download PDF
PH14-800-120 1
PH14-800-120 6
Product Model:PH14-800-120（230）
Input Voltage:AC220V±20%
Ordering Code:14H230800120D5
Product Model:PH14-800-120（MLT）
Input Voltage:AC110-220V±10%
Ordering Code:14HMLT800120D5
Starting Mode:Preheat Start, Starting Time 3-5S
Power Frequency:50/60Hz
Input Current:
0.53A@230V 1.1A@110V
Dimming Control:
N/A (non-dimmable)
Input Features:Lightning protection; PF 0.98; Efficiency (η): 90%, THD < 10, CCF < 1.7
Output Power:120W
Dimming Range:72-120W
Number of Lamps:1 pc
Output Current:800mA
Output Current Range:750-850mA
Auxiliary Output:
Lamp ON Output: DC 5V / 5mA (for External LED Indicator)
Output Features:
Constant Current, overvoltage protection; overcurrent protection; lamp leakage detection; filament open-circuit protection; cross-wiring protection; end-of-life (EOL) Protection
Standards Compliance:
IP64; CE certified
Ambient Temperature:-10°C ~ 40°C
Maximum Enclosure Temperature (TC):<70°C
Humidity:
5%–85%
Housing Construction:
Aluminum housing with U.S.-style potting compound
Housing Dimensions:215 × 44 × 28mm
Mounting Hole Spacing:210mm
Connection Method:
0.75mm² multi-strand wire, length 330mm; distance between ballast and lamp < 5m
Outer Carton Size:460 × 305 × 180mm
Net Weight per Unit:0.31kg/pcs
Quantity per Carton:50pcs
Gross Weight per Carton:16kg
Tare Weight (T.W.):
0.5kg
Compatible Lamp Models:
GPH793T5L, HOGPH846T5L, HOGPH893T5L, HOGPH1000T5L, HOGPH1148T5, /HOTUV75T5, HOGHO36T5, LTUV95W, HOPL-LTL100W
Applications:
Wastewater treatment, water purification, exhaust-gas treatment, air purification, printing, pharmaceuticals, medical care, food processing, aquaculture, etc.

Product Model

PH14-800-120F

download PDF
PH14-800-120F 1
PH14-800-120F 6
Product Model:PH14-800-120（230）
Input Voltage:AC220V±20%
Ordering Code:14H230800120FD5
Product Model:PH14-800-120（MLT）
Input Voltage:AC110-220V±10%
Ordering Code:14HMLT800120FD5
Starting Mode:Preheat Start, Starting Time 3-5S
Power Frequency:50/60Hz
Input Current:
0.53A@230V 1.1A@110V
Dimming Control:
N/A (non-dimmable)
Input Features:Lightning protection; PF 0.98; Efficiency (η): 90%, THD < 10, CCF < 1.7
Output Power:120W
Dimming Range:72-120W
Number of Lamps:1 pc
Output Current:800mA
Output Current Range:750-850mA
Auxiliary Output:
Green/red LED status indication (green: normal operation; red: fault); 5 VDC/5 mA output for LED indication; dry-contact relay output for remote status feedback and control.
Output Features:
Constant Current, overvoltage protection; overcurrent protection; lamp leakage detection; filament open-circuit protection; cross-wiring protection; end-of-life (EOL) Protection
Standards Compliance:
IP64; CE certified
Ambient Temperature:-10°C ~ 40°C
Maximum Enclosure Temperature (TC):<70°C
Humidity:
5%–85%
Housing Construction:
Aluminum housing with U.S.-style potting compound
Housing Dimensions:215 × 44 × 28mm
Mounting Hole Spacing:210mm
Connection Method:
0.75mm² multi-strand wire, length 330mm; distance between ballast and lamp < 5m
Outer Carton Size:460 × 305 × 180mm
Net Weight per Unit:0.31kg/pcs
Quantity per Carton:50pcs
Gross Weight per Carton:16kg
Tare Weight (T.W.):
0.5kg
Compatible Lamp Models:
GPH793T5L, HOGPH846T5L, HOGPH893T5L, HOGPH1000T5L, HOGPH1148T5L, TUV75T5, HOGHO36T5L, TUV95W, HOPL-LTL100W
Applications:
Wastewater treatment, water purification, exhaust-gas treatment, air purification, printing, pharmaceuticals, medical care, food processing, aquaculture, etc.

Interested in our No. 14 Series (38–120 W)? Contact us for help choosing the right model or requesting a custom quote.

WhatsApp
ChaoNeng logoWenzhou Chaoneng Water Treatment Equipment Co., Ltd.

Specialist Manufacturer of UV Ballasts

WhatsApp

Contact Us

  • +8618612278922
  • chen@chaonenguv.com
  • Zhejiang·China

© 2026 chaoneng. All rights reserved.

Water Treatment Equipment · UV Disinfection · Electronic Ballasts
