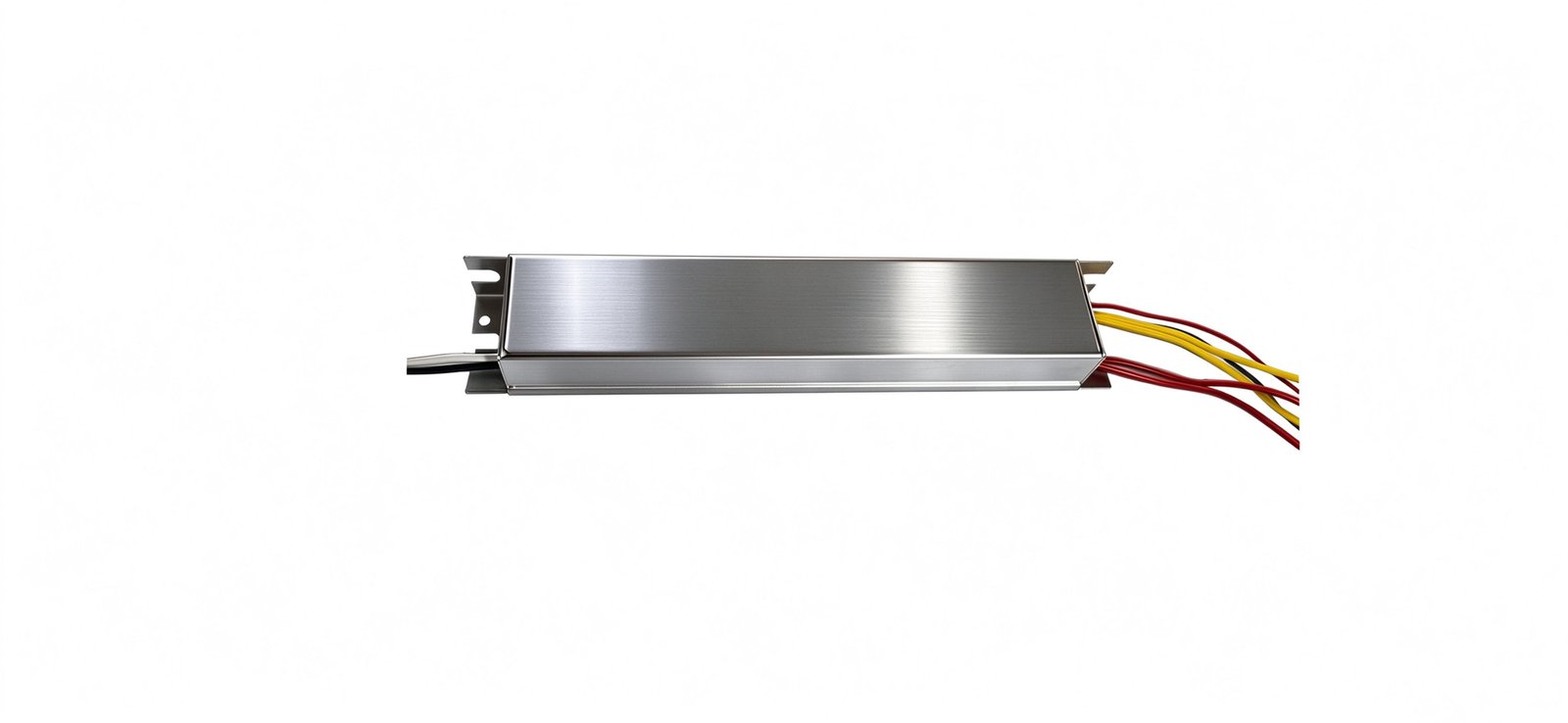

No.15 (72-155W) 1

Series Overview

No.15 (72-155W) Series UV Electronic Ballasts are designed for UV germicidal lamps. They deliver high-frequency, constant-power output across a wide input-voltage range and feature built-in intelligent protection. The specifications below apply to the entire series; see the table below for model-specific details.

Output Power Range

72-155W

Dimensions

245 × 44 × 28 mm

WhatsApp Back to All Series

Detailed Specifications by Product Series

PN15-300-4-18

Instant Start
Output Power
18W
Rated Power
18W
Output Power Range
4×6-18W
Number of Lamps
4 pcs
Output Features
Instant Start / Non-constant-current / Fault protection
Compatible Lamp Models
GPH118T5L, GPH150T5L, GPH212T5L, GPH287T5L, GPH303T5L, GPH357T5L, TUV11W, TUV15W, TUV16W, LTC18

PN15-800-150

Instant Start
Output Power
150W
Rated Power
150W
Output Power Range
72-155W
Number of Lamps
1 pc
Output Features
Instant Start / Non-constant-current / Fault protection
Compatible Lamp Models
GPH793T5L, HOGPH846T5L, HOGPH893T5L, HOGPH1000T5L, HOGPH1148T5L, HOGPH1554T5L, HOTUV75T5, HOGHO36T5L, GHO64T5L, TUV95WHOPL-LTL100W

PH15-1200-127

Preheat Start
Output Power
127W
Rated Power
127W
Output Power Range
80-127W
Number of Lamps
1 pc
Output Features
Constant Current / Overvoltage / Overcurrent / EOL protection
Compatible Lamp Models
GPHA843T5LGPHA1000T5L

PH15-800-150

Preheat Start
Output Power
150W
Rated Power
150W
Output Power Range
72-155W
Number of Lamps
1 pc
Output Features
Constant Current / Overvoltage / Overcurrent / EOL protection
Compatible Lamp Models
GPH793T5L, HOGPH846T5L, HOGPH893T5L, HOGPH1000T5L, HOGPH1148T5L, HOGPH1554T5L, HOTUV75T5, HOGHO36T5L, GHO64T5L, TUV95WHOPL-LTL100W

PH15-800-150F

Preheat Start
Output Power
150W
Rated Power
150W
Output Power Range
72-150W
Number of Lamps
1 pc
Output Features
Constant Current / Overvoltage / Overcurrent / EOL protection
Compatible Lamp Models
GPH793T5L, HOGPH846T5L, HOGPH893T5L, HOGPH1000T5L, HOGPH1148T5L, HOGPH1554T5L, HOTUV75T5, HOGHO36T5L, GHO64T5L, TUV95WHOPL-LTL100W

* Click "View Details" to scroll to the full specification sheet for that model. Detailed parameters and PDFs are replaceable placeholder content and can be updated with official datasheets later.

Full Model Specifications

Product Model

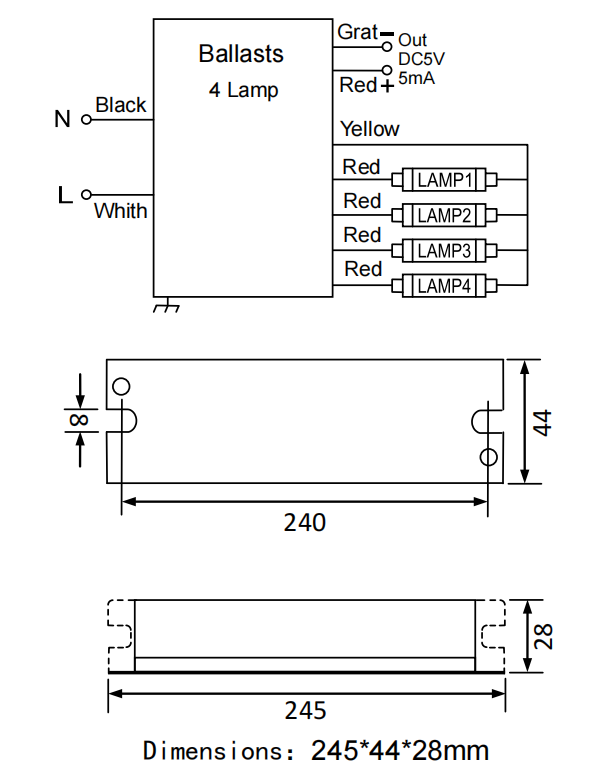

PN15-300-4-18

download PDF
PN15-300-4-18 1
PN15-300-4-18 6
Product Model:PN15-300-4-18（230）
Input Voltage:AC230V±10%
Ordering Code:15N230300418D5
Product Model:PN15-300-4-18（110）
Input Voltage:AC110V±10%
Ordering Code:15N110300418D5
Starting Mode:Instant Start, Starting Time < 1 s
Power Frequency:50/60Hz
Input Current:
0.35A@230V 0.72A@110V
Dimming Control:
N/A (non-dimmable)
Input Features:Lightning protection; PF 0.98; Efficiency (η): 90%
Output Power:4×18W
Dimming Range:4×6-18W
Number of Lamps:4 pcs
Output Current:300mA
Output Current Range:180-300mA
Auxiliary Output:
Lamp ON Output: DC 5V / 5mA (for External LED Indicator)
Output Features:
Non-constant-current operation
Standards Compliance:
IP64; CE certified
Ambient Temperature:-10°C ~ 40°C
Maximum Enclosure Temperature (TC):<70°C
Humidity:
5%–85%
Housing Construction:
Aluminum housing with U.S.-style potting compound

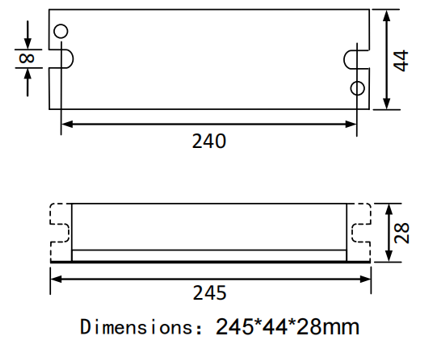

Housing Dimensions:245 × 44 × 28mm
Mounting Hole Spacing:240mm
Connection Method:
0.75mm² multi-strand wire, length 330mm; distance between ballast and lamp < 1m
Outer Carton Size:595 × 260 × 135mm
Net Weight per Unit:0.35kg/pcs
Quantity per Carton:50pcs
Gross Weight per Carton:18kg
Tare Weight (T.W.):
0.5kg
Compatible Lamp Models:
GPH118T5L, GPH150T5L, GPH212T5L, GPH287T5L, GPH303T5L, GPH357T5L, TUV11W, TUV15W, TUV16W, LTC18
Applications:
Wastewater treatment, water purification, exhaust-gas treatment, air purification, printing, pharmaceuticals, medical care, food processing, aquaculture, etc. International Sales & Export: Wenzhou Chaoneng Water Treatment Equipment Co., Ltd. — Yueqing Science & Technology Incubation and Entrepreneurship Center (National-Level Technology Business Incubator), No. 261, Wei 17th Road, Yueqing Economic Development Zone, Yueqing, Wenzhou, Zhejiang, China. Tel.: 0577-6266 6115. Mobile/WeChat/WhatsApp: +86 186 1227 8922. Email: chen@chaonenguv.com. Manufacturer: Beijing Haoben Electronic Technology Co., Ltd. — Building 3, No. 30 Shixing Street, Shijingshan Park, Zhongguancun Science Park, Beijing, China. Tel.: 010 6883 7150.

Product Model

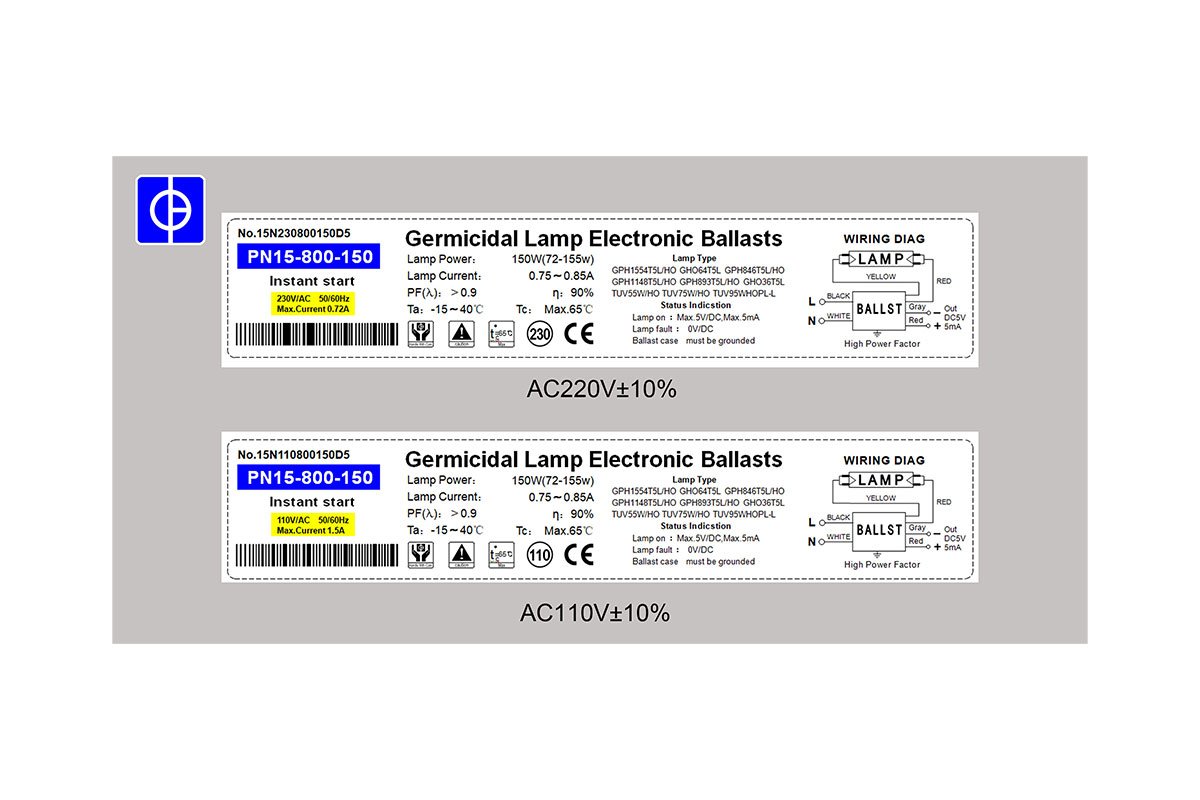

PN15-800-150

download PDF
PN15-800-150 1
PN15-800-150 6

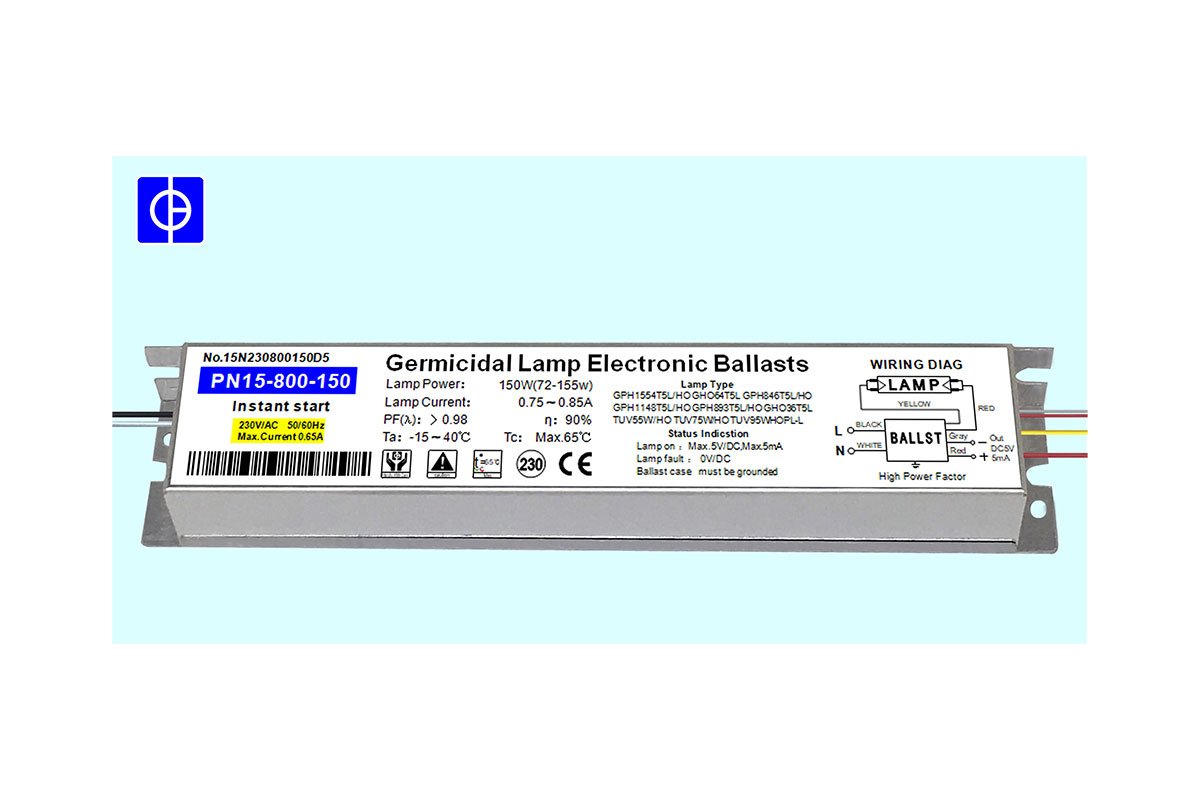

Product Model:PN15-800-150（230）
Input Voltage:AC230V±10%
Ordering Code:15N230800150D5
Product Model:PN15-800-150（110）
Input Voltage:AC110V±10%
Ordering Code:15N110800150D5
Starting Mode:Instant Start, Starting Time < 1 s
Power Frequency:50/60Hz
Input Current:
0.65A@230V 1.36A@110V
Dimming Control:
N/A (non-dimmable)
Input Features:Lightning protection; PF≥0.98; Efficiency (η): 90%
Output Power:150W
Dimming Range:72-155W
Number of Lamps:1 pc
Output Current:800mA
Output Current Range:700-850mA
Auxiliary Output:
Lamp ON Output: DC 5V / 5mA (for External LED Indicator)
Output Features:
Non-constant-current operation
Standards Compliance:
IP64; CE certified
Ambient Temperature:-10°C ~ 40°C
Maximum Enclosure Temperature (TC):<70°C
Humidity:
5%–85%
Housing Construction:
Aluminum housing with U.S
Housing Dimensions:245 × 44 × 28mm
Mounting Hole Spacing:240mm
Connection Method:
0.75mm² multi-strand wire, length 330mm; distance between ballast and lamp < 1m
Outer Carton Size:595 × 260 × 135mm
Net Weight per Unit:0.35kg/pcs
Quantity per Carton:50pcs
Gross Weight per Carton:18kg
Tare Weight (T.W.):
0.5kg
Compatible Lamp Models:
GPH793T5L, HOGPH846T5L, HOGPH893T5L, HOGPH1000T5L, HOGPH1148T5L, HOGPH1554T5L, HOTUV75T5, HOGHO36T5L, GHO64T5L, TUV95WHOPL-LTL100W
Applications:
Wastewater treatment, water purification, exhaust-gas treatment, air purification, printing, pharmaceuticals, medical care, food processing, aquaculture, etc. International Sales & Export: Wenzhou Chaoneng Water Treatment Equipment Co., Ltd. — Yueqing Science & Technology Incubation and Entrepreneurship Center (National-Level Technology Business Incubator), No. 261, Wei 17th Road, Yueqing Economic Development Zone, Yueqing, Wenzhou, Zhejiang, China. Tel.: 0577-6266 6115. Mobile/WeChat/WhatsApp: +86 186 1227 8922. Email: chen@chaonenguv.com. Manufacturer: Beijing Haoben Electronic Technology Co., Ltd. — Building 3, No. 30 Shixing Street, Shijingshan Park, Zhongguancun Science Park, Beijing, China. Tel.: 010 6883 7150.

Product Model

PH15-1200-127

download PDF
PH15-1200-127 1
PH15-1200-127 6
Product Model:PH15-1200-127（230）
Input Voltage:AC220V±20%
Ordering Code:15H2301200127D5
Product Model:PH15-1200-127（MLT）
Input Voltage:AC110-220V±10%
Ordering Code:15HMLT1200127D5
Starting Mode:Preheat Start, Starting Time 3-5S
Power Frequency:50/60Hz
Input Current:
0.55A@230V 1.15A@110V
Dimming Control:
N/A (non-dimmable)
Input Features:Lightning protection; PF 0.98; Efficiency (η): 90%, THD < 10, CCF < 1.7
Output Power:127W
Dimming Range:80-127W
Number of Lamps:1 pc
Output Current:1200mA
Output Current Range:1150-1250mA
Auxiliary Output:
Lamp ON Output: DC 5V / 5mA (for External LED Indicator)
Output Features:
Constant Current, overvoltage protection; overcurrent protection; lamp leakage detection; filament open-circuit protection; cross-wiring protection; end-of-life (EOL) Protection
Standards Compliance:
IP64; CE certified
Ambient Temperature:-10°C ~ 40°C
Maximum Enclosure Temperature (TC):<70°C
Humidity:
5%–85%
Housing Construction:
Aluminum housing with U.S.-style potting compound
Housing Dimensions:245 × 44 × 28mm
Mounting Hole Spacing:240mm
Connection Method:
0.75mm² multi-strand wire, length 330mm; distance between ballast and lamp < 5m
Outer Carton Size:595 × 260 × 135mm
Net Weight per Unit:0.35kg/pcs
Quantity per Carton:50pcs
Gross Weight per Carton:18kg
Tare Weight (T.W.):
0.5kg
Compatible Lamp Models:
GPHA843T5LGPHA1000T5L
Applications:
Wastewater treatment, water purification, exhaust-gas treatment, air purification, printing, pharmaceuticals, medical care, food processing, aquaculture, etc. International Sales & Export: Wenzhou Chaoneng Water Treatment Equipment Co., Ltd. — Yueqing Science & Technology Incubation and Entrepreneurship Center (National-Level Technology Business Incubator), No. 261, Wei 17th Road, Yueqing Economic Development Zone, Yueqing, Wenzhou, Zhejiang, China. Tel.: 0577-6266 6115. Mobile/WeChat/WhatsApp: +86 186 1227 8922. Email: chen@chaonenguv.com. Manufacturer: Beijing Haoben Electronic Technology Co., Ltd. — Building 3, No. 30 Shixing Street, Shijingshan Park, Zhongguancun Science Park, Beijing, China. Tel.: 010 6883 7150.

Product Model

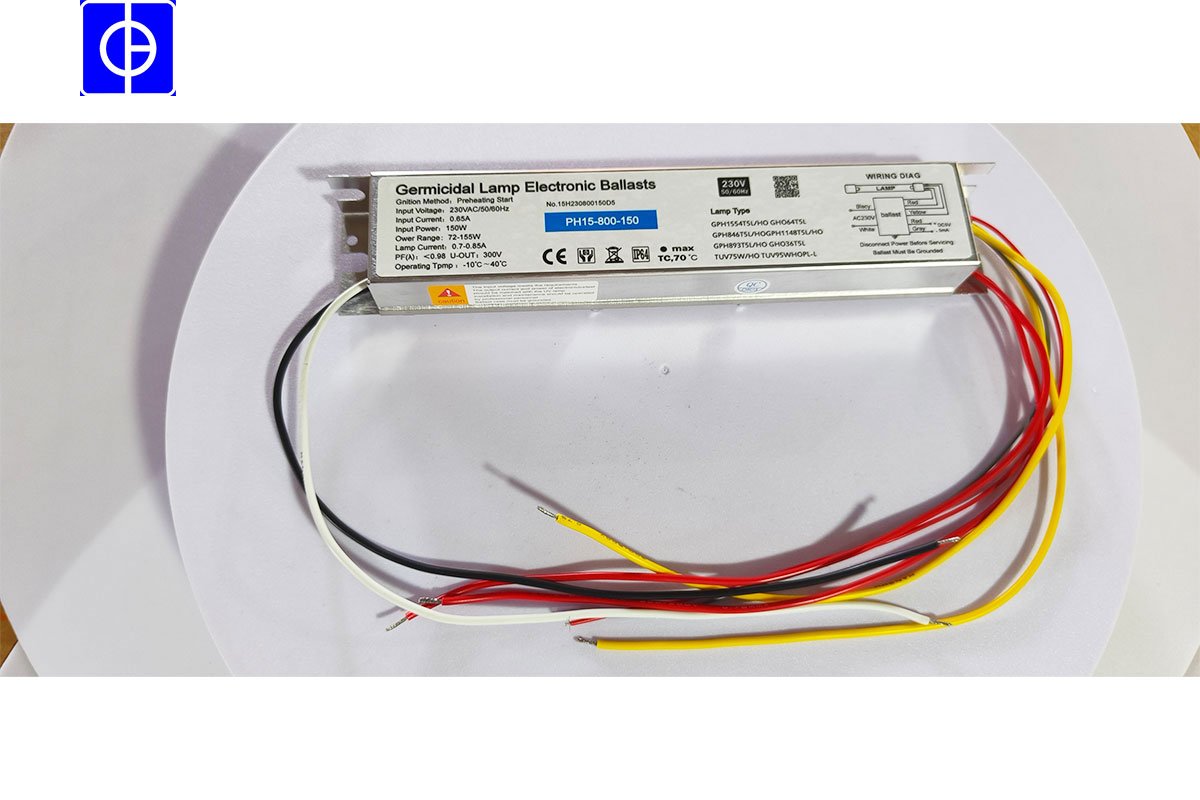

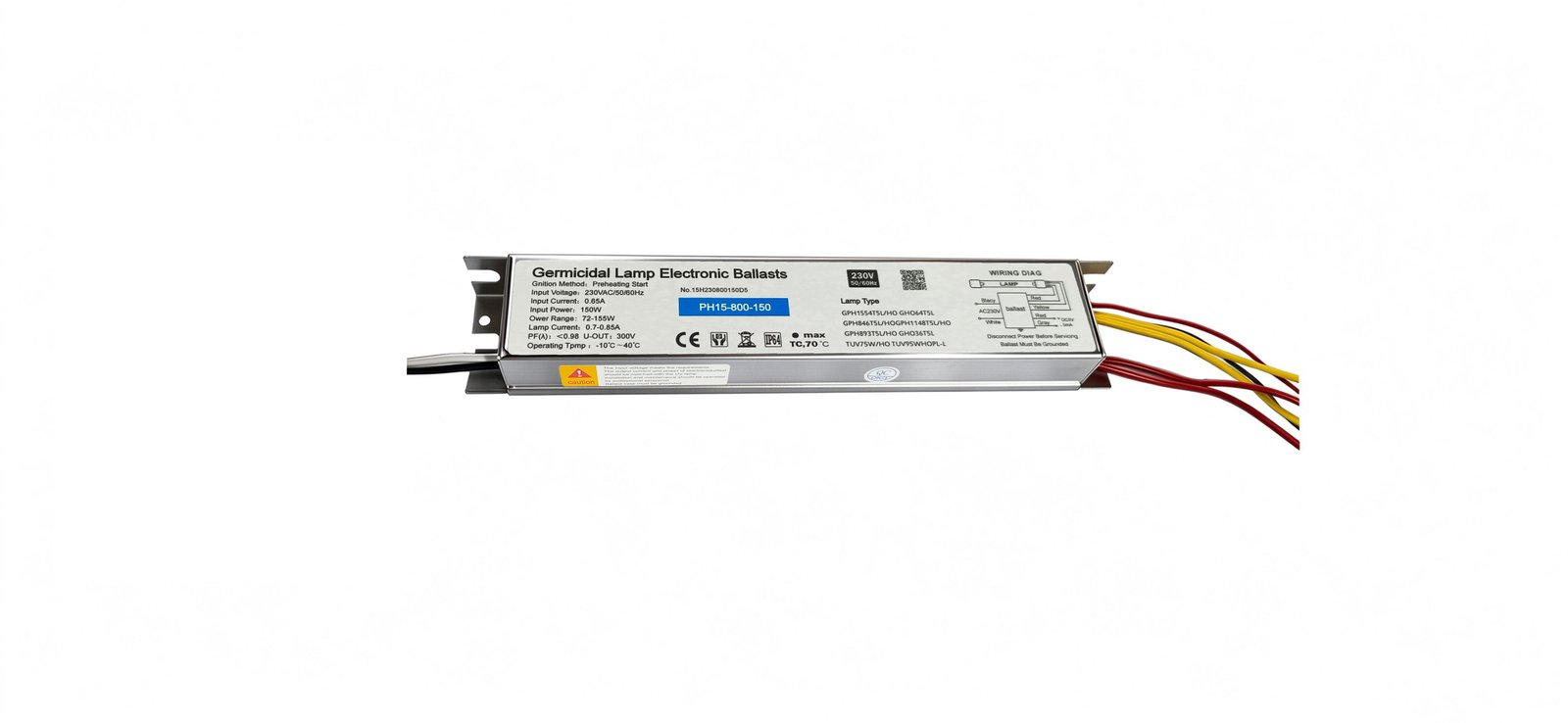

PH15-800-150

download PDF
PH15-800-150 1
PH15-800-150 6

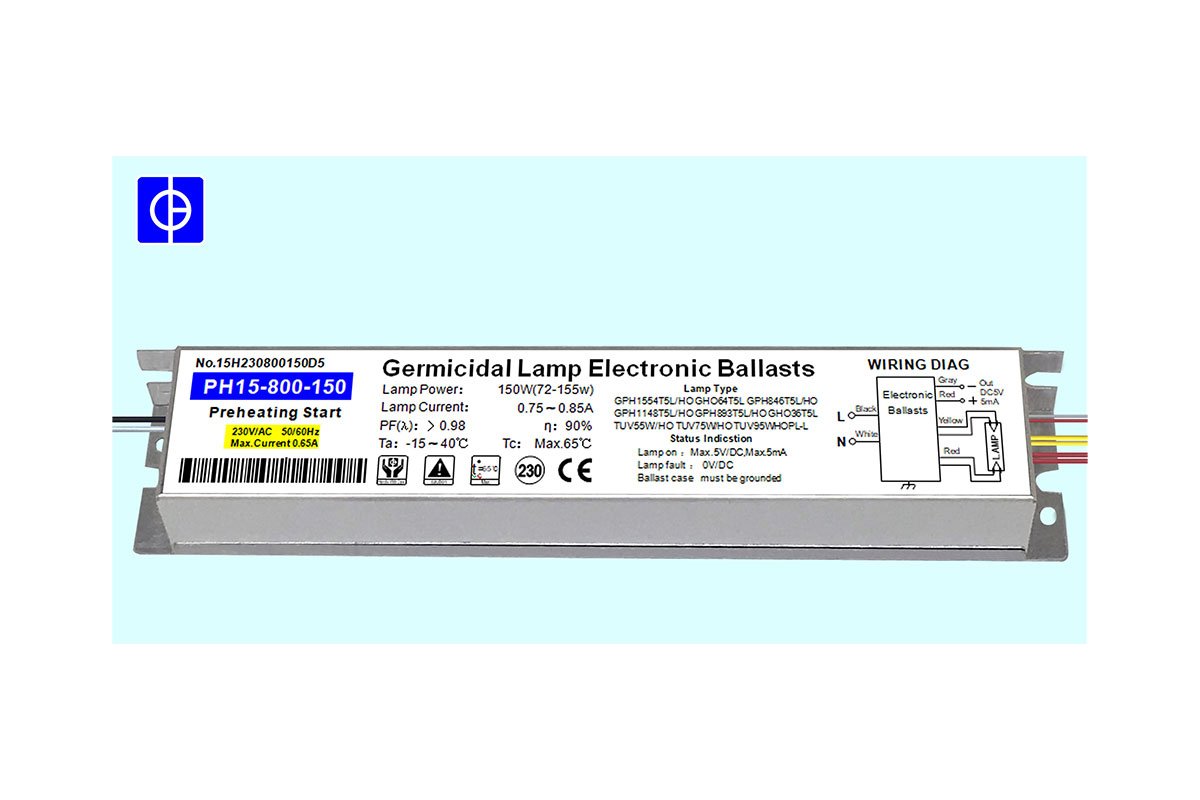

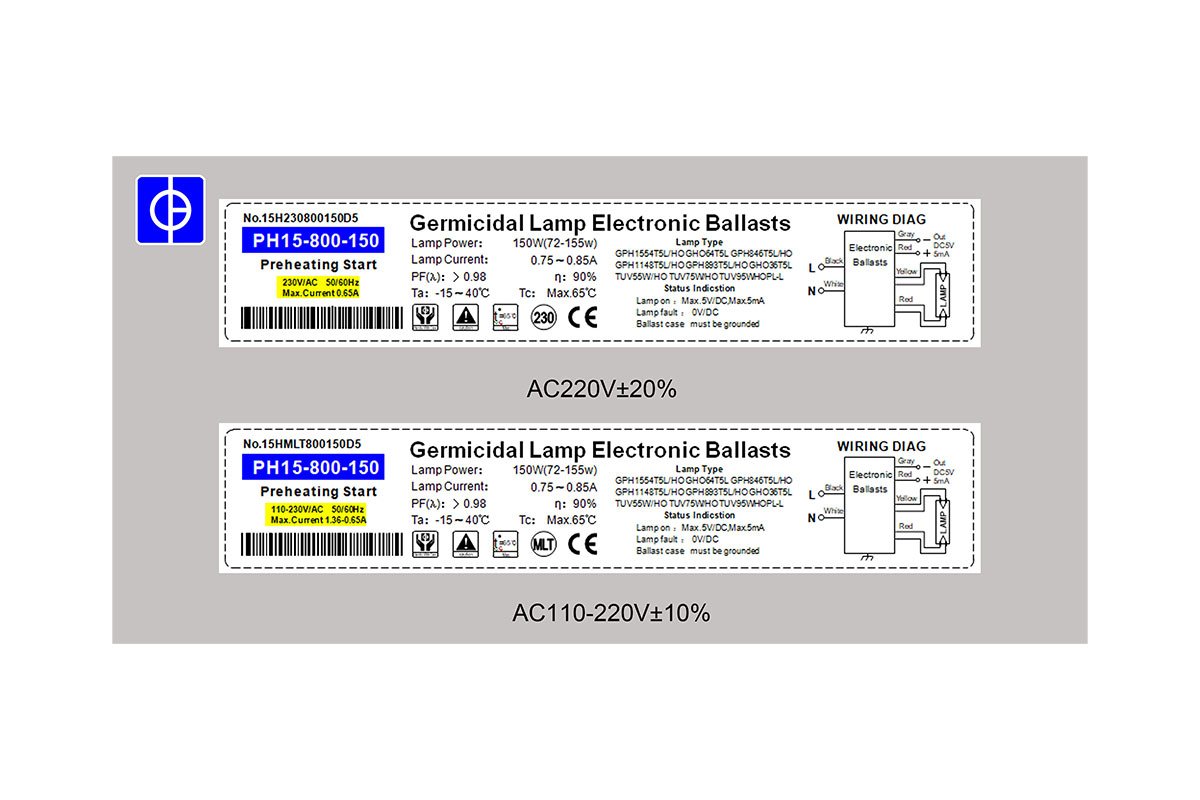

Product Model:PH15-800-150（230）
Input Voltage:AC220V±20%
Ordering Code:15H230800150D5
Product Model:PH15-800-150（MLT）
Input Voltage:AC110-220V±10%
Ordering Code:15HMLT800150D5
Starting Mode:Preheat Start, Starting Time 3-5S
Power Frequency:50/60Hz
Input Current:
0.65A@230V 1.36A@110V
Dimming Control:
N/A (non-dimmable)
Input Features:Lightning protection; PF≥0.98; Efficiency (η): 90%, THD < 10, CCF < 1.7
Output Power:150W
Dimming Range:72-155W
Number of Lamps:1 pc
Output Current:800mA
Output Current Range:750-850mA
Auxiliary Output:
Lamp ON Output: DC 5V / 5mA (for External LED Indicator)
Output Features:
Constant Current, overvoltage protection; overcurrent protection; lamp leakage detection; filament open-circuit protection; cross-wiring protection; end-of-life (EOL) Protection
Standards Compliance:
IP64; CE certified
Ambient Temperature:-10°C ~ 40°C
Maximum Enclosure Temperature (TC):<70°C
Humidity:
5%–85%
Housing Construction:
Aluminum housing with U.S.-style potting compound
Housing Dimensions:245 × 44 × 28mm
Mounting Hole Spacing:240mm
Connection Method:
0.75mm² multi-strand wire, length 330mm; distance between ballast and lamp < 5m
Outer Carton Size:595 × 260 × 135mm
Net Weight per Unit:0.35kg/pcs
Quantity per Carton:50pcs
Gross Weight per Carton:18kg
Tare Weight (T.W.):
0.5kg
Compatible Lamp Models:
GPH793T5L, HOGPH846T5L, HOGPH893T5L, HOGPH1000T5L, HOGPH1148T5L, HOGPH1554T5L, HOTUV75T5, HOGHO36T5L, GHO64T5L, TUV95WHOPL-LTL100W
Applications:
Wastewater treatment, water purification, exhaust-gas treatment, air purification, printing, pharmaceuticals, medical care, food processing, aquaculture, etc. International Sales & Export: Wenzhou Chaoneng Water Treatment Equipment Co., Ltd. — Yueqing Science & Technology Incubation and Entrepreneurship Center (National-Level Technology Business Incubator), No. 261, Wei 17th Road, Yueqing Economic Development Zone, Yueqing, Wenzhou, Zhejiang, China. Tel.: 0577-6266 6115. Mobile/WeChat/WhatsApp: +86 186 1227 8922. Email: chen@chaonenguv.com. Manufacturer: Beijing Haoben Electronic Technology Co., Ltd. — Building 3, No. 30 Shixing Street, Shijingshan Park, Zhongguancun Science Park, Beijing, China. Tel.: 010 6883 7150.

Product Model

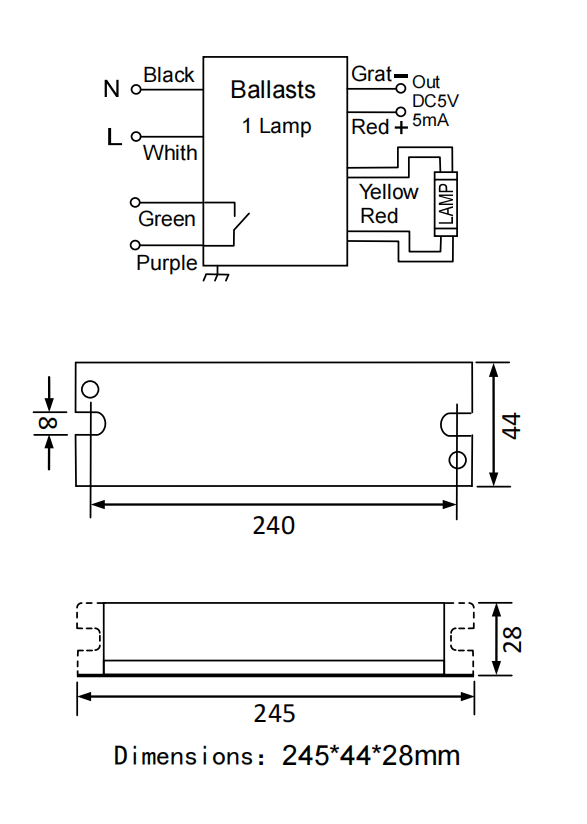

PH15-800-150F

download PDF
PH15-800-150F 1
PH15-800-150F 6

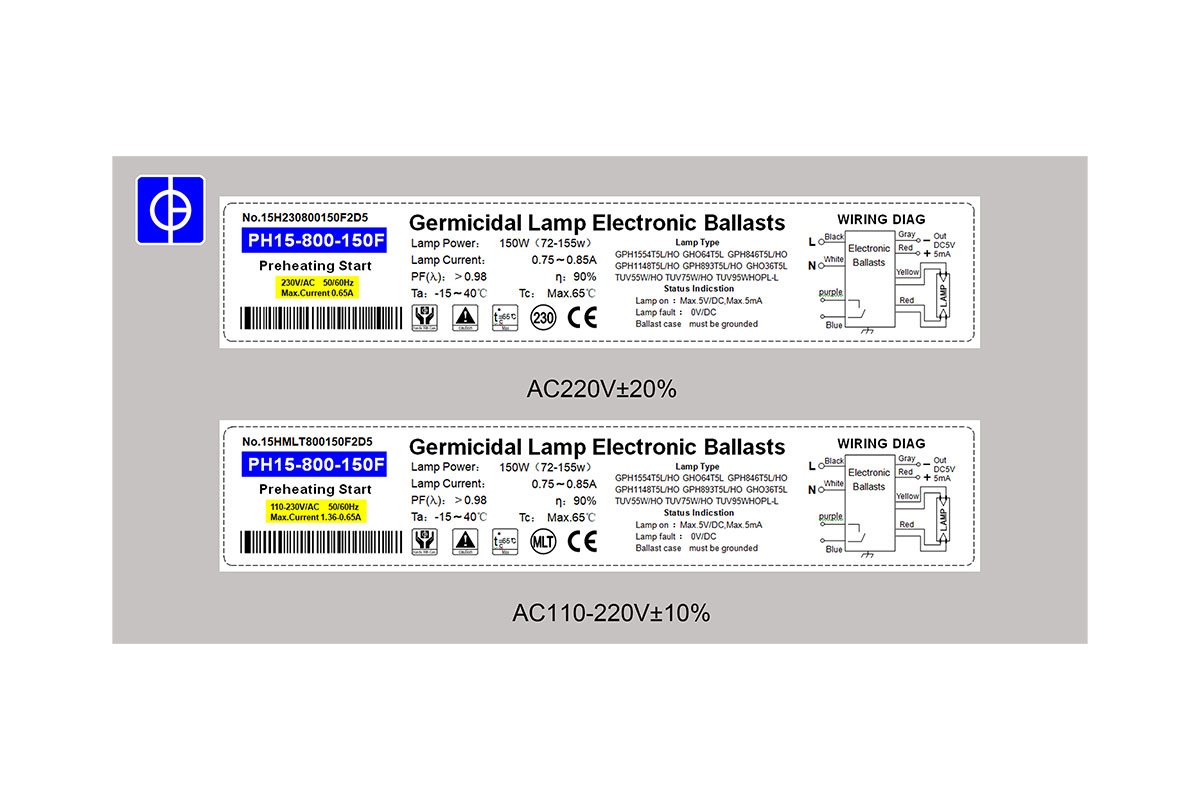

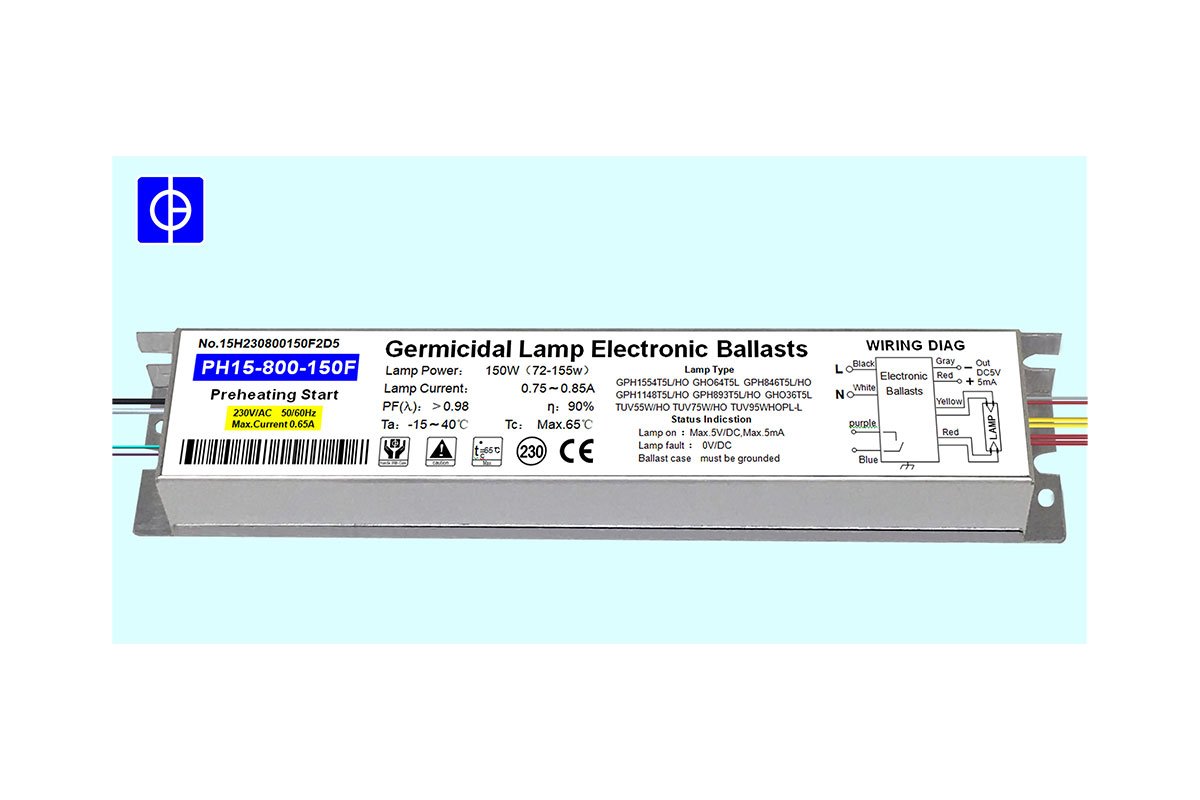

Product Model:PH15-800-150F（230）
Input Voltage:AC220V±20%
Ordering Code:15H230800150FD5
Product Model:PH15-800-150F（MLT）
Input Voltage:AC110-220V±10%
Ordering Code:15HMLT800150FD5
Starting Mode:Preheat Start, Starting Time 3-5S
Power Frequency:50/60Hz
Input Current:
0.65A@230V 1.36A@110V
Dimming Control:
N/A (non-dimmable)
Input Features:Lightning protection; PF 0.98; Efficiency (η): 90%, THD < 10, CCF < 1.7
Output Power:150W
Dimming Range:72-150W
Number of Lamps:1 pc
Output Current:800mA
Output Current Range:750-850mA
Auxiliary Output:
Lamp ON Output: DC 5V / 5mA (for External LED Indicator), dry-contact relay output for remote status feedback and control
Output Features:
Constant Current, overvoltage protection; overcurrent protection; lamp leakage detection; filament open-circuit protection; cross-wiring protection; end-of-life (EOL) Protection
Standards Compliance:
IP64; CE certified
Ambient Temperature:-10°C ~ 40°C
Maximum Enclosure Temperature (TC):<70°C
Humidity:
5%–85%
Housing Construction:
Aluminum housing with U.S.-style potting compound

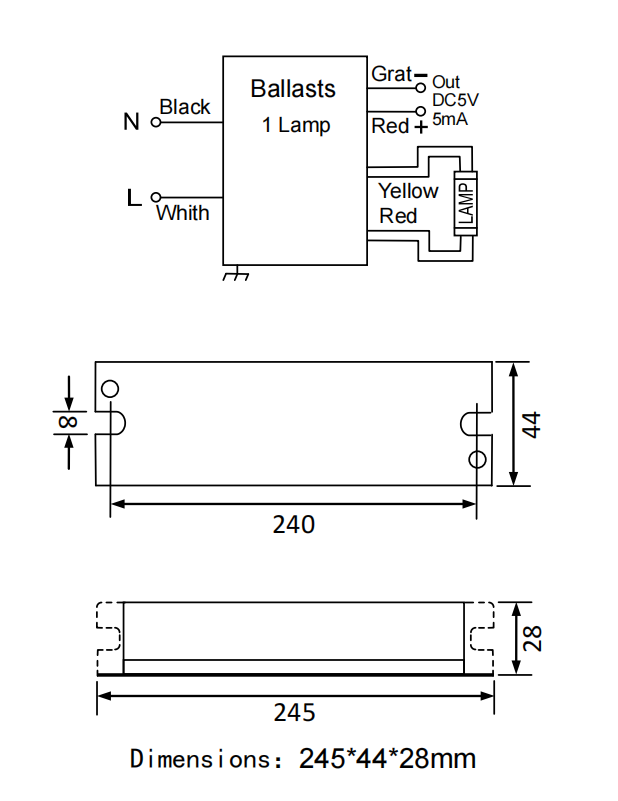

Housing Dimensions:245 × 44 × 28mm
Mounting Hole Spacing:240mm
Connection Method:
0.75mm² multi-strand wire, length 330mm; distance between ballast and lamp < 5m
Outer Carton Size:595 × 260 × 135mm
Net Weight per Unit:0.35kg/pcs
Quantity per Carton:50pcs
Gross Weight per Carton:18kg
Tare Weight (T.W.):
0.5kg
Compatible Lamp Models:
GPH793T5L, HOGPH846T5L, HOGPH893T5L, HOGPH1000T5L, HOGPH1148T5L, HOGPH1554T5L, HOTUV75T5, HOGHO36T5L, GHO64T5L, TUV95WHOPL-LTL100W
Applications:
Wastewater treatment, water purification, exhaust-gas treatment, air purification, printing, pharmaceuticals, medical care, food processing, aquaculture, etc. International Sales & Export: Wenzhou Chaoneng Water Treatment Equipment Co., Ltd. — Yueqing Science & Technology Incubation and Entrepreneurship Center (National-Level Technology Business Incubator), No. 261, Wei 17th Road, Yueqing Economic Development Zone, Yueqing, Wenzhou, Zhejiang, China. Tel.: 0577-6266 6115. Mobile/WeChat/WhatsApp: +86 186 1227 8922. Email: chen@chaonenguv.com. Manufacturer: Beijing Haoben Electronic Technology Co., Ltd. — Building 3, No. 30 Shixing Street, Shijingshan Park, Zhongguancun Science Park, Beijing, China. Tel.: 010 6883 7150.

Interested in our No. 15 Series (72–155 W)? Contact us for help choosing the right model or requesting a custom quote.
