No.7 (40-120W) 1

Series Overview

No.7 (40-120W) Series UV Electronic Ballasts are designed for UV germicidal lamps. They deliver high-frequency, constant-power output across a wide input-voltage range and feature built-in intelligent protection. The specifications below apply to the entire series; see the table below for model-specific details.

Output Power Range

40-120W

Dimensions

185 × 56 × 45 mm

WhatsApp Back to All Series

Detailed Specifications by Product Series

PH7-425-80

Preheat Start
Output Power
80W
Rated Power
80W
Output Power Range
40-90W
Number of Lamps
1 pc
Output Features
Constant Current / Overvoltage / Overcurrent / EOL protection
Compatible Lamp Models
GPH843T5L, GPH1148T5L, GPH1554T5L, GPH1630T5L, G36T5L, G48T5L, G64T5L, G67T5L, TUV64T5L, TUV75T5L

PH7-800-120

Preheat Start
Output Power
120W
Rated Power
120W
Output Power Range
75-120W
Number of Lamps
1 pc
Output Features
Constant Current / Overvoltage / Overcurrent / EOL protection
Compatible Lamp Models
GPH436T5L/HO GPH846T5L/HO GPH893T5L/HO GPH1000T5L/HO GPH1148T5L/HO GHO36T5L TUV55W/HO TUV60W/HO TUV75W/HO TUV36T5/HO TUV95WHOPL-LTL100W

PH7-425-2-40

Quick Start
Output Power
40W
Rated Power
40W
Output Power Range
2×38-42W / 1×40-90W
Number of Lamps
2 pcs / 1 pc
Output Features
Constant Current / Overvoltage / Overcurrent / EOL protection
Compatible Lamp Models
GPH793T5L, GPH843T5L, GPH1148T5L, GPH1554T5L, GPH1630T5L, G36T5L, G48T5L, G64T5L, G67T5L, TUV36T5L, TUV64T5L, TUV75T5L

PH7-800-2-55

Preheat Start
Output Power
55W
Rated Power
55W
Output Power Range
2×48-55W / 1×55-120W
Number of Lamps
2 pcs / 1 pc
Output Features
Constant Current / Overvoltage / Overcurrent / EOL protection
Compatible Lamp Models
GPH436/846/893/1000/1148T5L;HOGHO36T5LTUV36/55/60/75/95WHOPL-LTL100W

PH7-1800-57

Preheat Start
Output Power
57W
Rated Power
57W
Output Power Range
40-60W
Number of Lamps
1 pc
Output Features
Constant Current / Overvoltage / Overcurrent / EOL protection
Compatible Lamp Models
GPHA357T6L

PD7-900-100

Preheat Start
Output Power
100W
Rated Power
100W
Output Power Range
40-100W
Number of Lamps
1 pc
Output Features
Active PFC / Dimmable / EOL protection
Compatible Lamp Models
GPH846T5L/HO GPH893T5L/HO GPH1000T5L/HO TUV75W/HO TL80W/10R

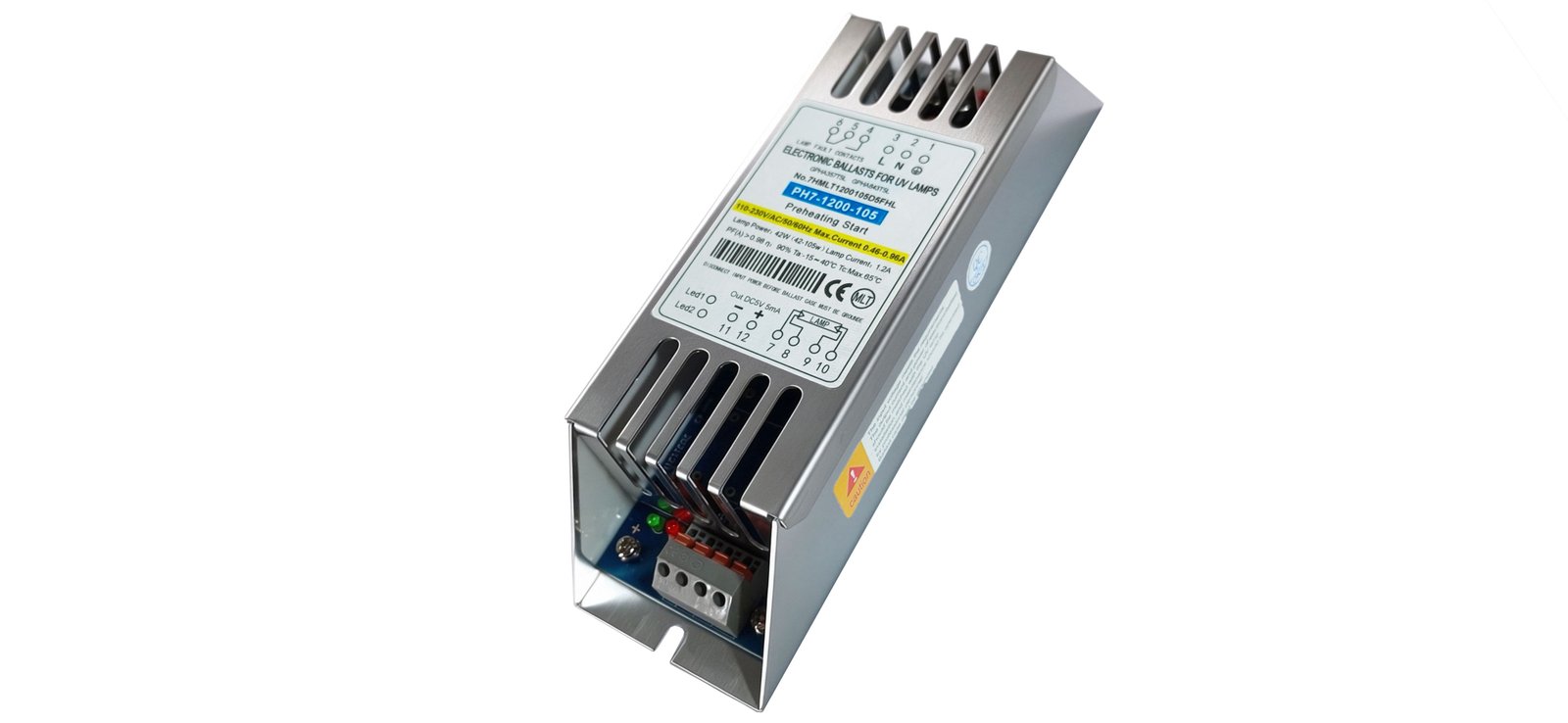

PH7-1200-105

Preheat Start
Output Power
105W
Rated Power
105W
Output Power Range
42-105W
Number of Lamps
1 pc
Output Features
Constant Current / Overvoltage / Overcurrent / EOL protection
Compatible Lamp Models
GPHA357T5L, GPHA843T5L

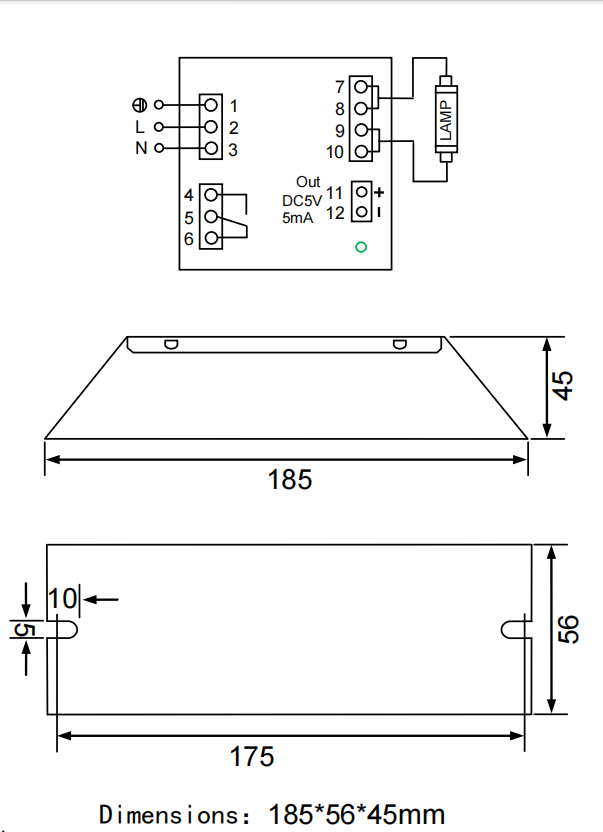

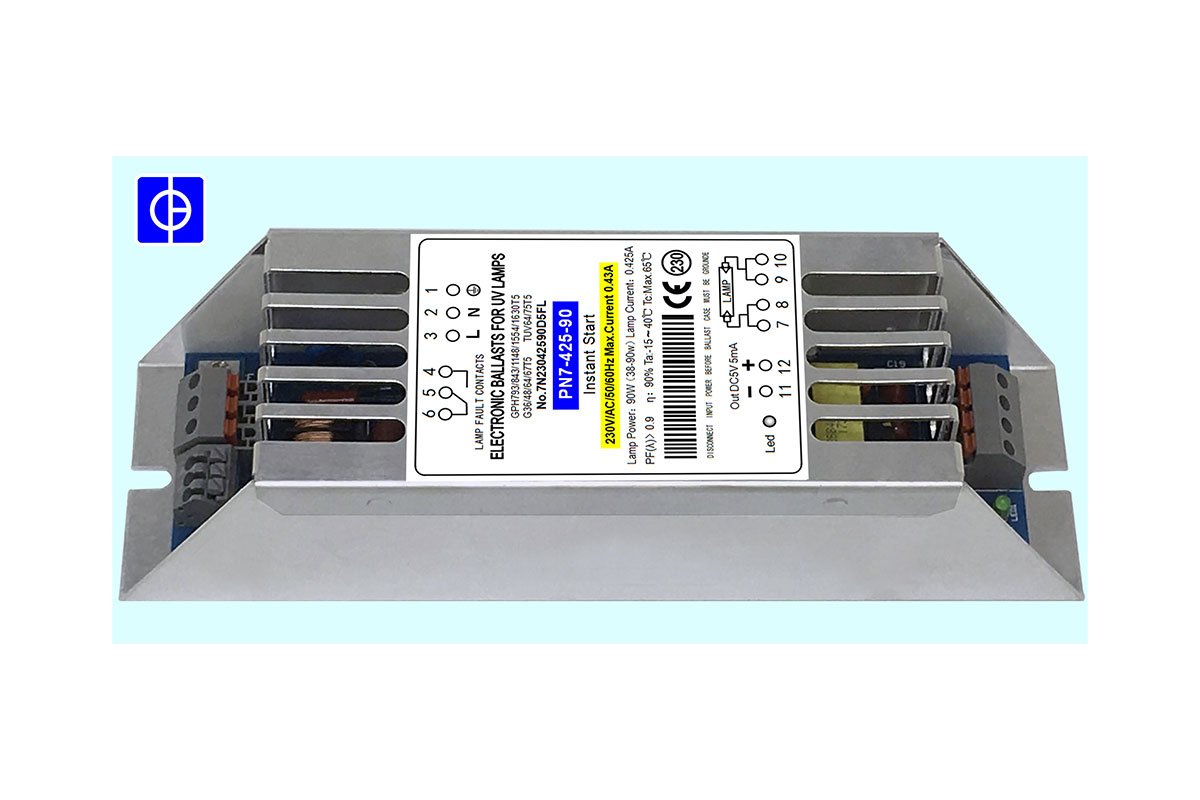

PN7-425-90

Instant Start
Output Power
90W
Rated Power
90W
Output Power Range
38-90W
Number of Lamps
1 pc
Output Features
Non-constant-current operation
Compatible Lamp Models
GPH793T5, GPH843T5, GPH1148T5, GPH1554T5, GPH1630T5, G36T5, G48T5, G64T5, G67T5, TUV64T5, TUV75T5

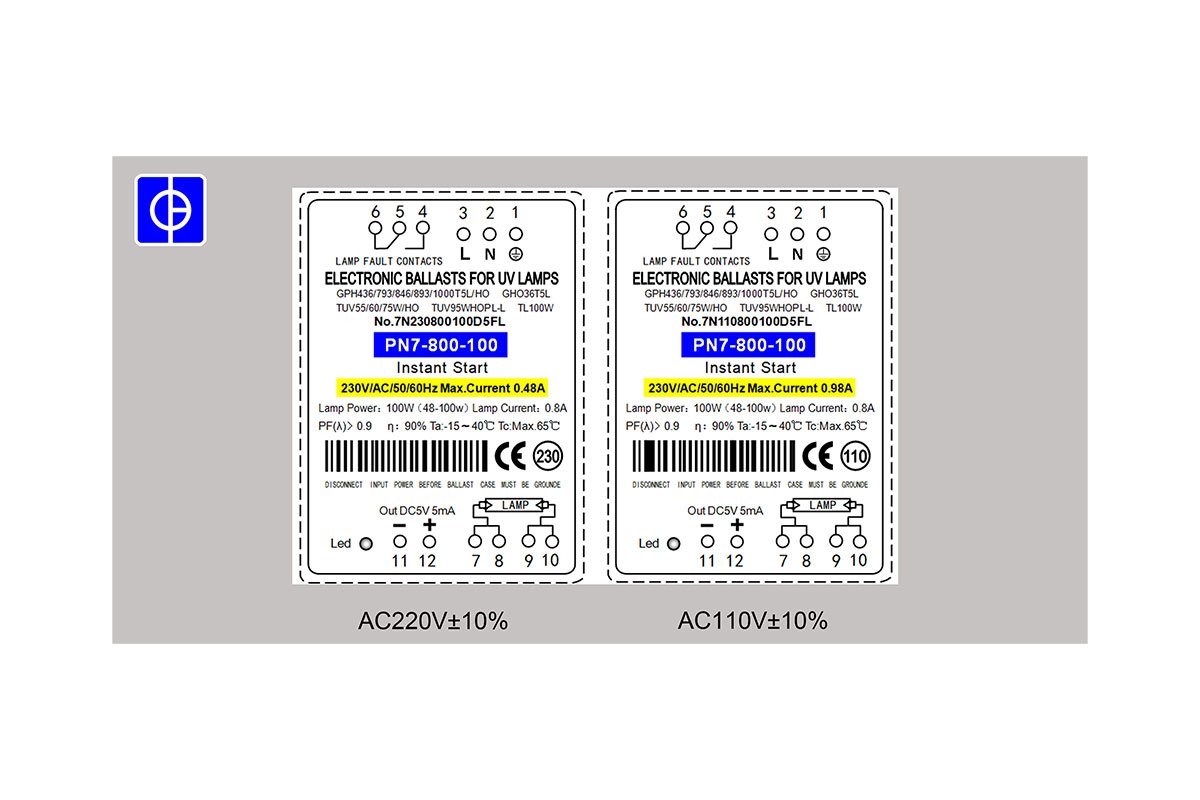

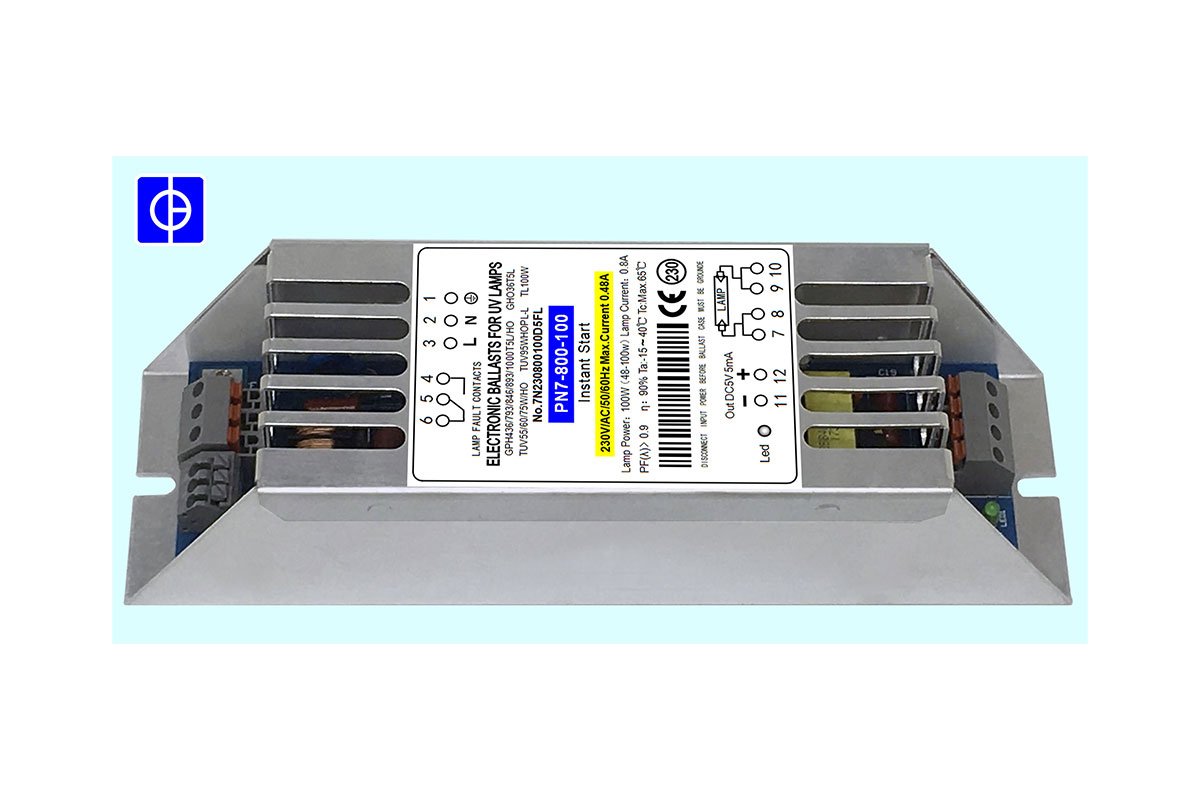

PN7-800-100

Instant Start
Output Power
100W
Rated Power
100W
Output Power Range
48-100W
Number of Lamps
1 pc
Output Features
Non-constant-current operation
Compatible Lamp Models
GPH436T5L/HO, GPH793T5L/HO, GPH846T5L/HO, GPH893T5L/HO, GPH1000T5L/HO, GHO36T5L, TUV55W/HO, TUV60W/HO, TUV75W/HO, TUV95WHOPL-L, TL100W

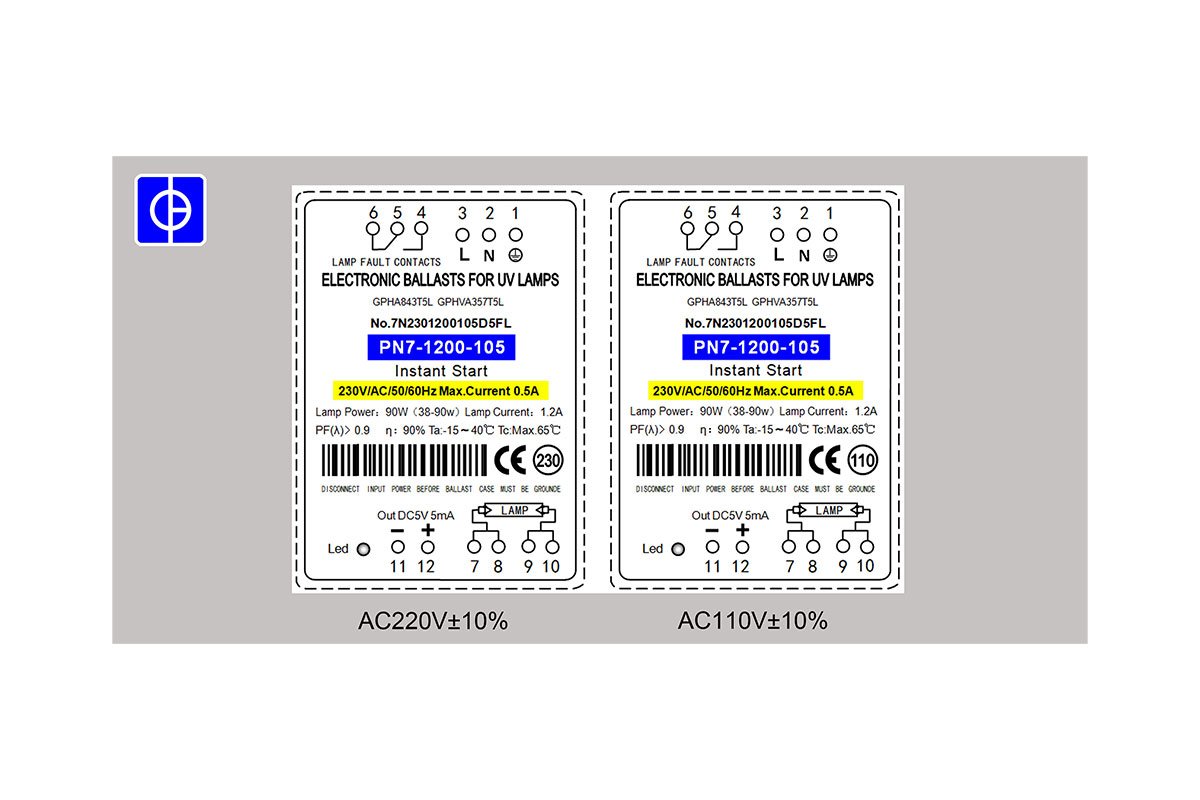

PN7-1200-105

Instant Start
Output Power
105W
Rated Power
105W
Output Power Range
42-105W
Number of Lamps
1 pc
Output Features
Non-constant-current operation
Compatible Lamp Models
GPHA357T5L, GPHA843T5L

* Click "View Details" to scroll to the full specification sheet for that model. Detailed parameters and PDFs are replaceable placeholder content and can be updated with official datasheets later.

Full Model Specifications

Product Model

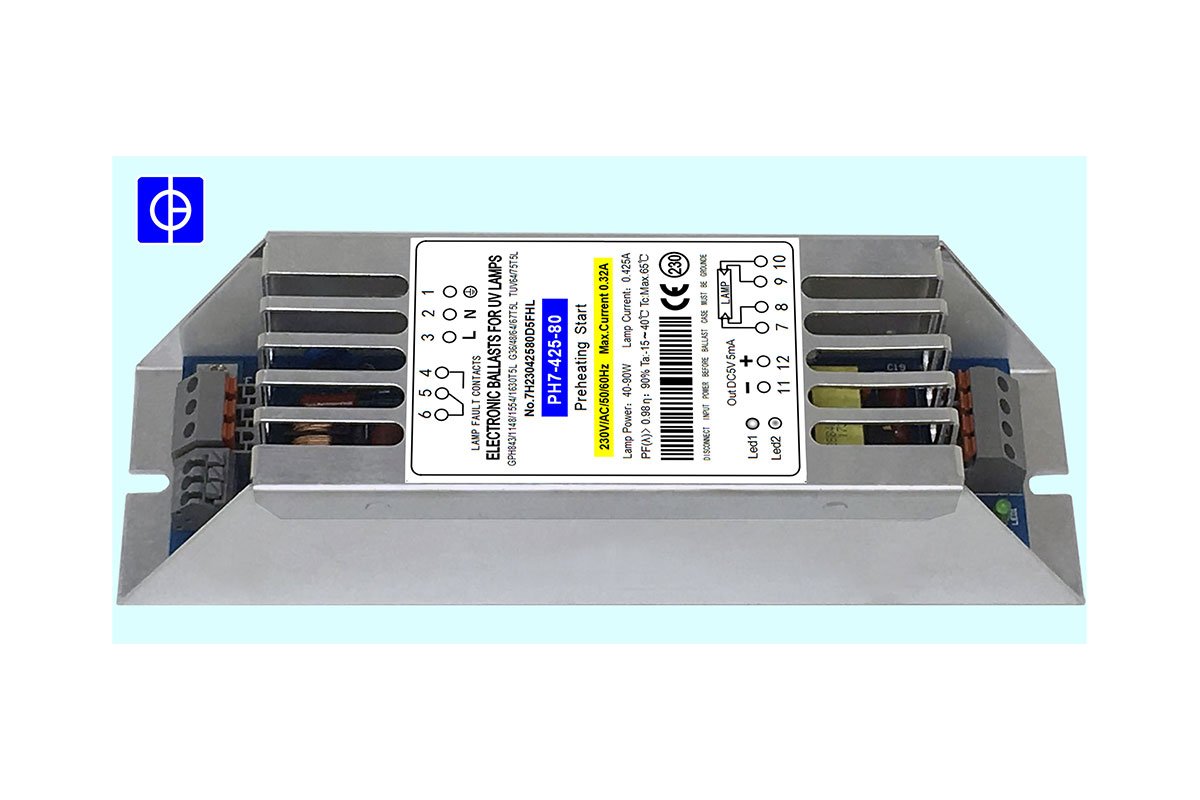

PH7-425-80

download PDF
PH7-425-80 1
PH7-425-80 6
Product Model:PH7-425-80（230）
Input Voltage:AC220V±20%
Ordering Code:7H23042580D5FHL
Product Model:PH7-425-80（MLT）
Input Voltage:AC100-264V
Ordering Code:7HMLT42580D5FHL
Starting Mode:Preheat Start, Starting Time 4-6S
Power Frequency:50/60Hz
Input Current:
0.32A@230V 0.68A@110V
Dimming Control:
N/A (non-dimmable)
Input Features:Lightning protection; PF≥0.98; Efficiency (η): 90%; THD < 10; CCF < 1.7
Output Power:80W
Dimming Range:40-90W
Number of Lamps:1 pc
Output Current:425mA
Output Current Range:400-440mA
Auxiliary Output:
Green/red LED status indication (green: normal operation; red: fault); 5 VDC/5 mA output for LED indication; dry-contact relay output for remote status feedback and control.
Output Features:
Constant Current, overvoltage protection; overcurrent protection; lamp leakage detection; filament open-circuit protection; cross-wiring protection; end-of-life (EOL) Protection
Standards Compliance:
IP64; CE certified
Ambient Temperature:-10°C ~ 40°C
Maximum Enclosure Temperature (TC):<70°C
Humidity:
5%–85%
Housing Construction:
Aluminum housing

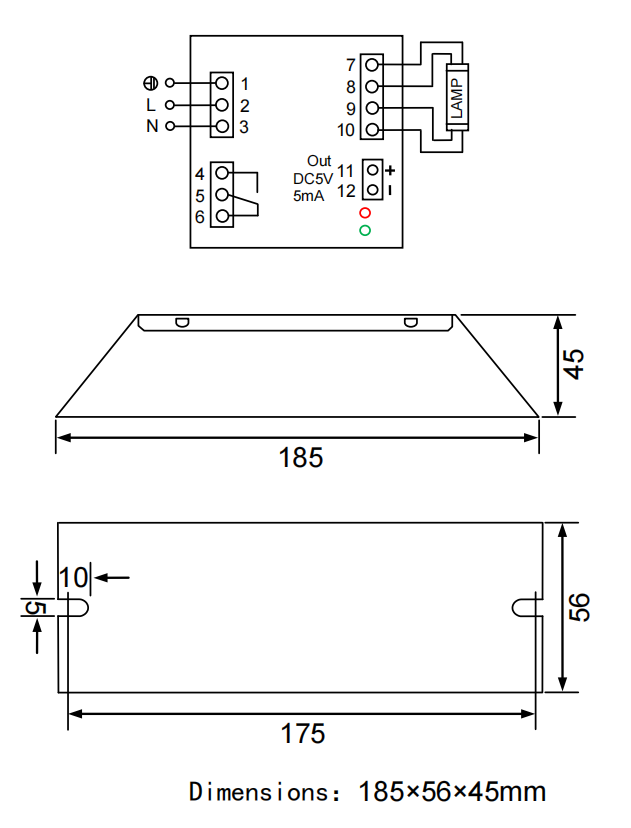

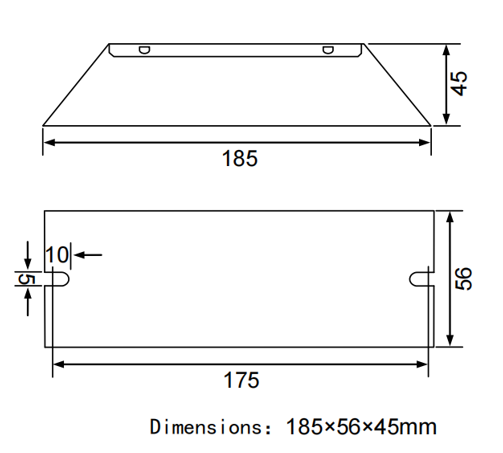

Housing Dimensions:185 × 56 × 45mm
Mounting Hole Spacing:175mm
Connection Method:
European-Style Terminal Block; distance between ballast and lamp < 5 m
Outer Carton Size:42.5 × 23.5 × 20.5cm
Net Weight per Unit:0.3kg/pcs
Quantity per Carton:18pcs
Gross Weight per Carton:6kg
Tare Weight (T.W.):
0.6kg
Compatible Lamp Models:
GPH843T5L, GPH1148T5L, GPH1554T5L, GPH1630T5L, G36T5L, G48T5L, G64T5L, G67T5L, TUV64T5L, TUV75T5L
Applications:
Wastewater treatment, water purification, exhaust-gas treatment, air purification, printing, pharmaceuticals, medical care, food processing, aquaculture, etc. International Sales & Export: Wenzhou Chaoneng Water Treatment Equipment Co., Ltd. — Yueqing Science & Technology Incubation and Entrepreneurship Center (National-Level Technology Business Incubator), No. 261, Wei 17th Road, Yueqing Economic Development Zone, Yueqing, Wenzhou, Zhejiang, China. Tel.: 0577-6266 6115. Mobile/WeChat/WhatsApp: +86 186 1227 8922. Email: chen@chaonenguv.com. Manufacturer: Beijing Haoben Electronic Technology Co., Ltd. — Building 3, No. 30 Shixing Street, Shijingshan Park, Zhongguancun Science Park, Beijing, China. Tel.: 010 6883 7150.

Product Model

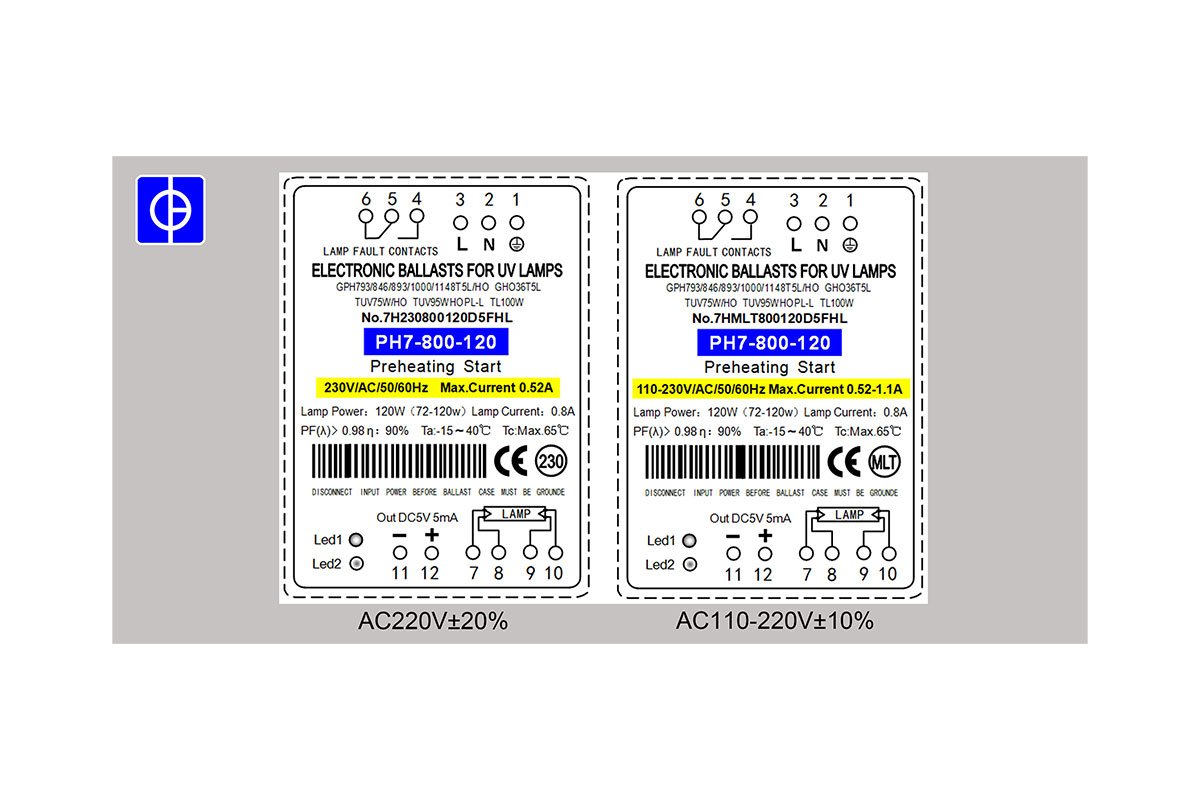

PH7-800-120

download PDF
PH7-800-120 1
PH7-800-120 6
Product Model:PH7-800-120（230）
Input Voltage:AC220V±20%
Ordering Code:7H230800120D5FHL
Product Model:PH7-800-120（MLT）
Input Voltage:AC100-264V
Ordering Code:7HMLT800120D5FHL
Starting Mode:Preheat Start, Starting Time 4-6S
Power Frequency:50/60Hz
Input Current:
0.52A@230V 1.1A@110V
Dimming Control:
N/A (non-dimmable)
Input Features:Lightning protection; PF≥0.98; Efficiency (η): 90%; THD < 10; CCF < 1.7
Output Power:120W
Dimming Range:75-120W
Number of Lamps:1 pc
Output Current:800mA
Output Current Range:750-850mA
Auxiliary Output:
Green/red LED status indication (green: normal operation; red: fault); 5 VDC/5 mA output for LED indication; dry-contact relay output for remote status feedback and control.
Output Features:
Constant Current, overvoltage protection; overcurrent protection; lamp leakage detection; filament open-circuit protection; cross-wiring protection; end-of-life (EOL) Protection
Standards Compliance:
IP64; CE certified
Ambient Temperature:-10°C ~ 40°C
Maximum Enclosure Temperature (TC):<70°C
Humidity:
5%–85%
Housing Construction:
Aluminum housing
Housing Dimensions:185 × 56 × 45mm
Mounting Hole Spacing:175mm
Connection Method:
European-Style Terminal Block; distance between ballast and lamp < 5 m
Outer Carton Size:42.5 × 23.5 × 20.5cm
Net Weight per Unit:0.31kg/pcs
Quantity per Carton:18pcs
Gross Weight per Carton:6kg
Tare Weight (T.W.):
0.6kg
Compatible Lamp Models:
GPH436T5L/HO GPH846T5L/HO GPH893T5L/HO GPH1000T5L/HO GPH1148T5L/HO GHO36T5L TUV55W/HO TUV60W/HO TUV75W/HO TUV36T5/HO TUV95WHOPL-LTL100W
Applications:
Wastewater treatment, water purification, exhaust-gas treatment, air purification, printing, pharmaceuticals, medical care, food processing, aquaculture, etc. International Sales & Export: Wenzhou Chaoneng Water Treatment Equipment Co., Ltd. — Yueqing Science & Technology Incubation and Entrepreneurship Center (National-Level Technology Business Incubator), No. 261, Wei 17th Road, Yueqing Economic Development Zone, Yueqing, Wenzhou, Zhejiang, China. Tel.: 0577-6266 6115. Mobile/WeChat/WhatsApp: +86 186 1227 8922. Email: chen@chaonenguv.com. Manufacturer: Beijing Haoben Electronic Technology Co., Ltd. — Building 3, No. 30 Shixing Street, Shijingshan Park, Zhongguancun Science Park, Beijing, China. Tel.: 010 6883 7150.

Product Model

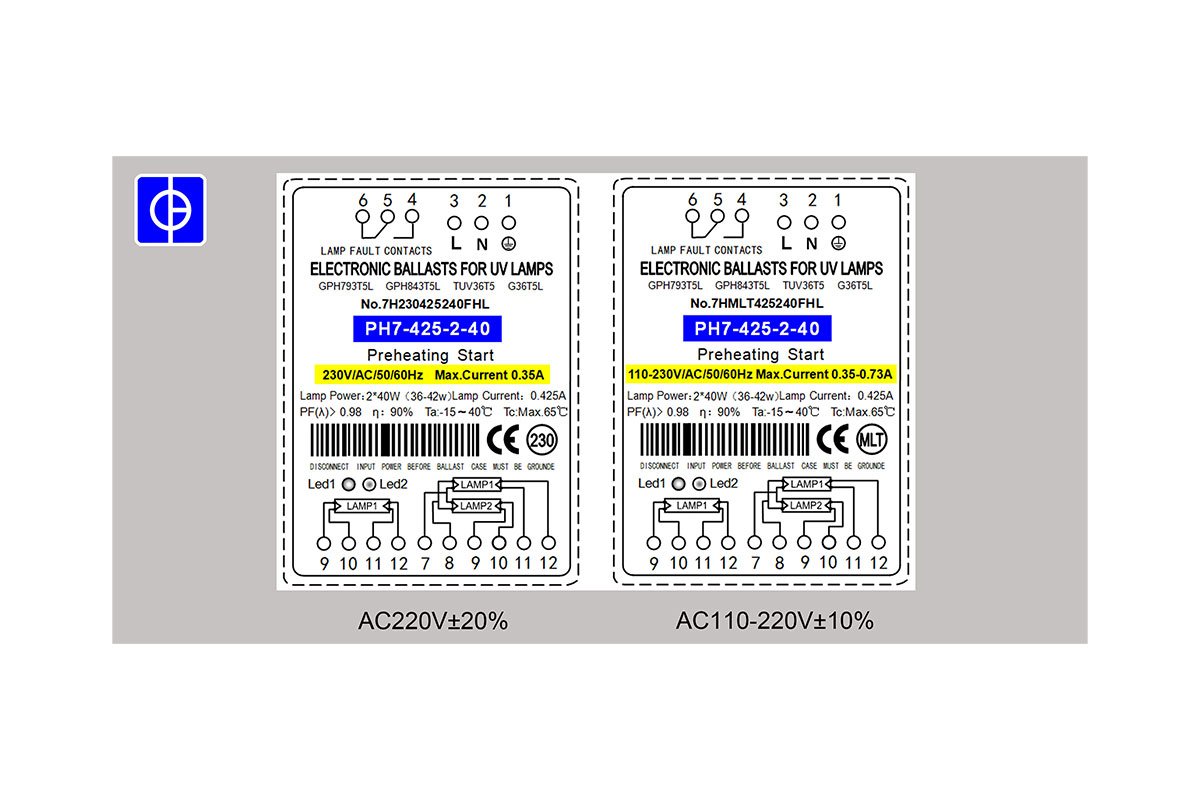

PH7-425-2-40

download PDF
PH7-425-2-40 1
PH7-425-2-40 6
Product Model:PH7-425-2-40（230）
Input Voltage:AC220V±20%
Ordering Code:7H230425240FHL
Product Model:PH7-425-2-40（MLT）
Input Voltage:AC100-264V
Ordering Code:7HMLT425240FHL
Starting Mode:Quick Start, Starting Time 4-6S
Power Frequency:50/60Hz
Input Current:
0.35A@230V 0.73A@110V
Dimming Control:
N/A (non-dimmable)
Input Features:Lightning protection; PF≥0.98; Efficiency (η): 90%; THD < 10; CCF < 1.7
Output Power:2×40W / 1×80W
Dimming Range:2×38-42W / 1×40-90W
Number of Lamps:2 pcs / 1 pc
Output Current:800mA
Output Current Range:400-440mA
Auxiliary Output:
Green/red LED status indication (green: normal operation; red: fault); 5 VDC/5 mA output for LED indication; dry-contact relay output for remote status feedback and control.
Output Features:
Constant Current, overvoltage protection; overcurrent protection; lamp leakage detection; filament open-circuit protection; cross-wiring protection; end-of-life (EOL) Protection
Standards Compliance:
IP64; CE certified
Ambient Temperature:-10°C ~ 40°C
Maximum Enclosure Temperature (TC):<70°C
Humidity:
5%–85%
Housing Construction:
Aluminum housing
Housing Dimensions:185 × 56 × 45mm
Mounting Hole Spacing:175mm
Connection Method:
European-Style Terminal Block; distance between ballast and lamp < 5 m
Outer Carton Size:42.5 × 23.5 × 20.5cm
Net Weight per Unit:0.3kg/pcs
Quantity per Carton:18pcs
Gross Weight per Carton:6kg
Tare Weight (T.W.):
0.6kg
Compatible Lamp Models:
GPH793T5L, GPH843T5L, GPH1148T5L, GPH1554T5L, GPH1630T5L, G36T5L, G48T5L, G64T5L, G67T5L, TUV36T5L, TUV64T5L, TUV75T5L
Applications:
Wastewater treatment, water purification, exhaust-gas treatment, air purification, printing, pharmaceuticals, medical care, food processing, aquaculture, etc. International Sales & Export: Wenzhou Chaoneng Water Treatment Equipment Co., Ltd. — Yueqing Science & Technology Incubation and Entrepreneurship Center (National-Level Technology Business Incubator), No. 261, Wei 17th Road, Yueqing Economic Development Zone, Yueqing, Wenzhou, Zhejiang, China. Tel.: 0577-6266 6115. Mobile/WeChat/WhatsApp: +86 186 1227 8922. Email: chen@chaonenguv.com. Manufacturer: Beijing Haoben Electronic Technology Co., Ltd. — Building 3, No. 30 Shixing Street, Shijingshan Park, Zhongguancun Science Park, Beijing, China. Tel.: 010 6883 7150.

Product Model

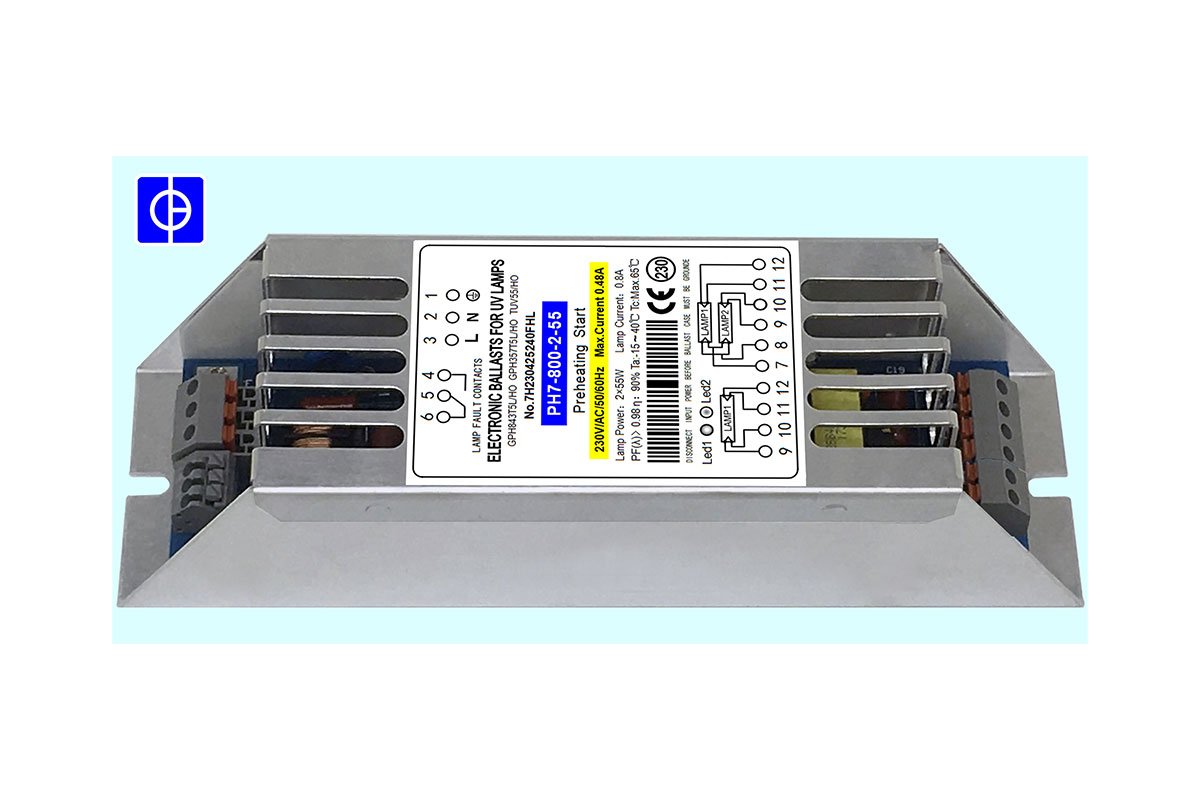

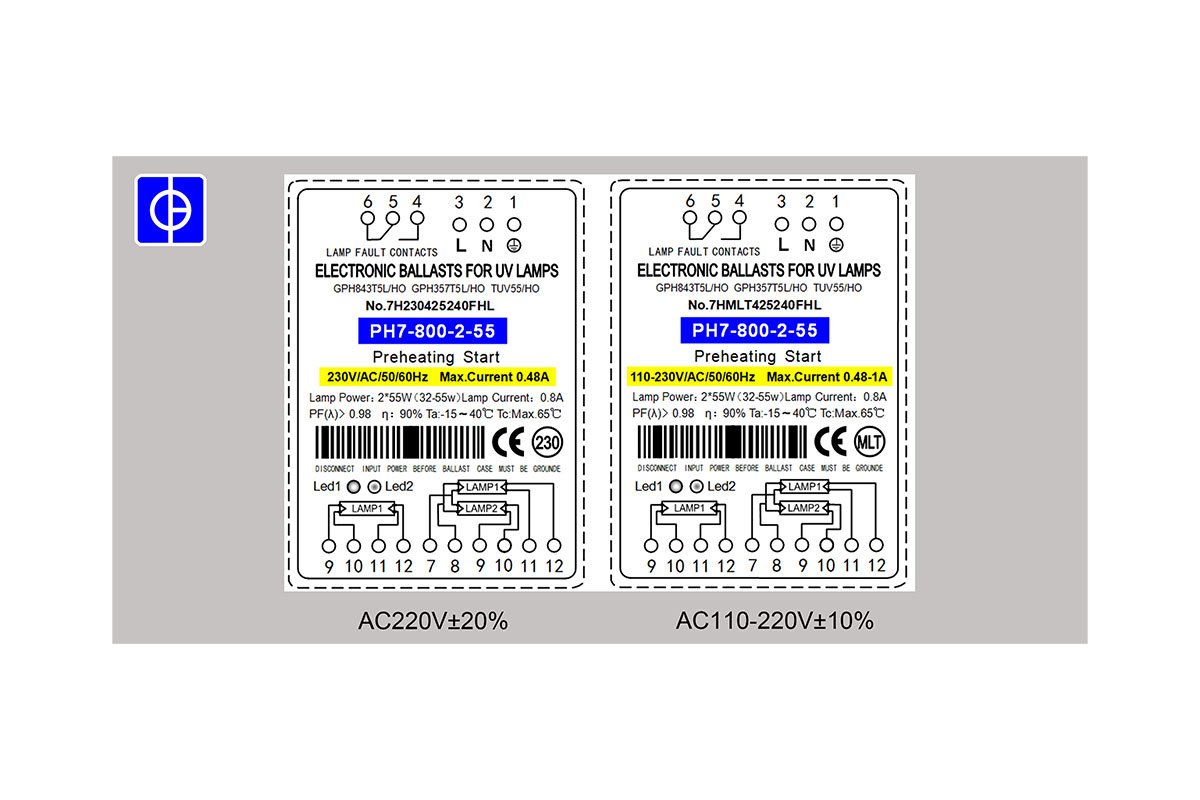

PH7-800-2-55

download PDF
PH7-800-2-55 1
PH7-800-2-55 6
Product Model:PH7-800-2-55（230）
Input Voltage:AC220V±20%
Ordering Code:7H230800255FHL
Product Model:PH7-800-2-55（MLT）
Input Voltage:AC100-264V
Ordering Code:7HMLT800255FHL
Starting Mode:Preheat Start, Starting Time 4-6S
Power Frequency:50/60Hz
Input Current:
0.48A@230V1A@110V
Dimming Control:
N/A (non-dimmable)
Input Features:Lightning protection; PF≥0.98; Efficiency (η): 90%; THD < 10; CCF < 1.7
Output Power:2×55W / 1×120W
Dimming Range:2×48-55W / 1×55-120W
Number of Lamps:2 pcs / 1 pc
Output Current:800mA
Output Current Range:750-850mA
Auxiliary Output:
Green/red LED status indication (green: normal operation; red: fault); 5 VDC/5 mA output for LED indication; dry-contact relay output for remote status feedback and control.
Output Features:
Constant Current, overvoltage protection; overcurrent protection; lamp leakage detection; filament open-circuit protection; cross-wiring protection; end-of-life (EOL) Protection
Standards Compliance:
IP64; CE certified
Ambient Temperature:-10°C ~ 40°C
Maximum Enclosure Temperature (TC):<70°C
Humidity:
5%–85%
Housing Construction:
Aluminum housing
Housing Dimensions:185 × 56 × 45mm
Mounting Hole Spacing:175mm
Connection Method:
European-Style Terminal Block; distance between ballast and lamp < 5 m
Outer Carton Size:42.5 × 23.5 × 20.5cm
Net Weight per Unit:0.3kg/pcs
Quantity per Carton:18pcs
Gross Weight per Carton:6kg
Tare Weight (T.W.):
0.6kg
Compatible Lamp Models:
GPH436/846/893/1000/1148T5L;HOGHO36T5LTUV36/55/60/75/95WHOPL-LTL100W
Applications:
Wastewater treatment, water purification, exhaust-gas treatment, air purification, printing, pharmaceuticals, medical care, food processing, aquaculture, etc. International Sales & Export: Wenzhou Chaoneng Water Treatment Equipment Co., Ltd. — Yueqing Science & Technology Incubation and Entrepreneurship Center (National-Level Technology Business Incubator), No. 261, Wei 17th Road, Yueqing Economic Development Zone, Yueqing, Wenzhou, Zhejiang, China. Tel.: 0577-6266 6115. Mobile/WeChat/WhatsApp: +86 186 1227 8922. Email: chen@chaonenguv.com. Manufacturer: Beijing Haoben Electronic Technology Co., Ltd. — Building 3, No. 30 Shixing Street, Shijingshan Park, Zhongguancun Science Park, Beijing, China. Tel.: 010 6883 7150.

Product Model

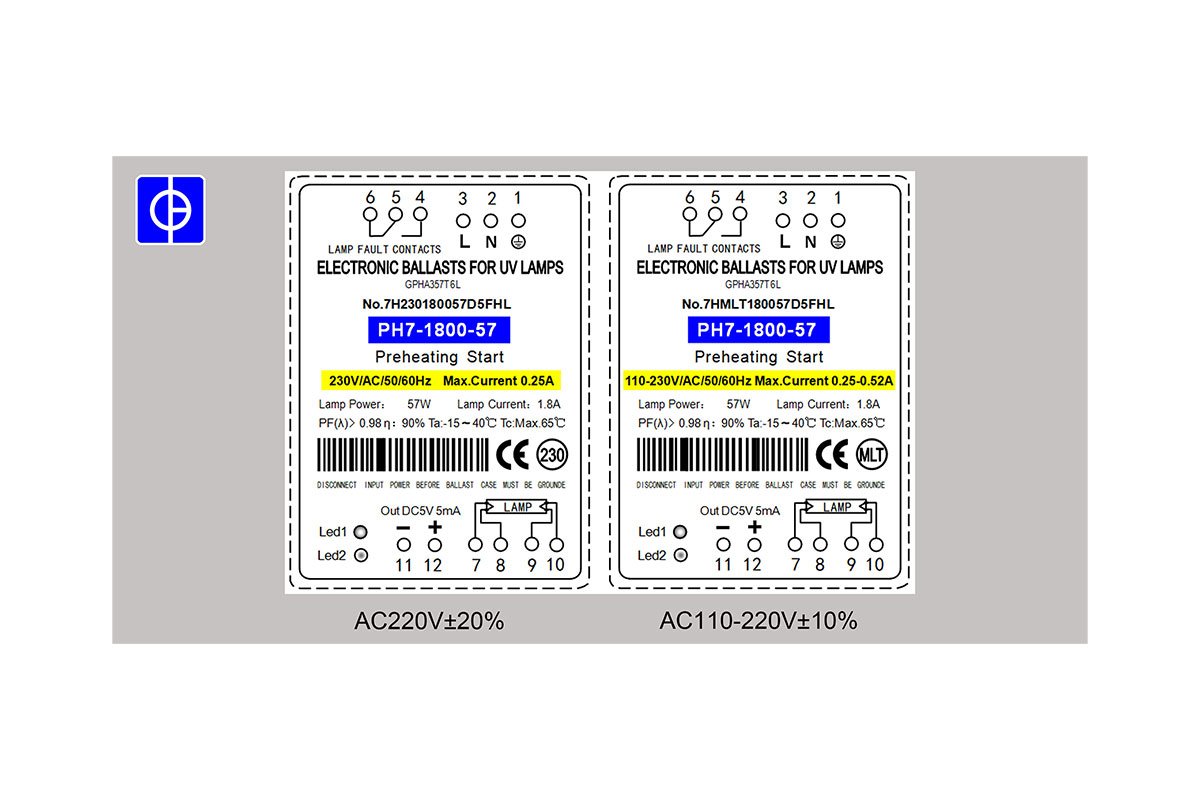

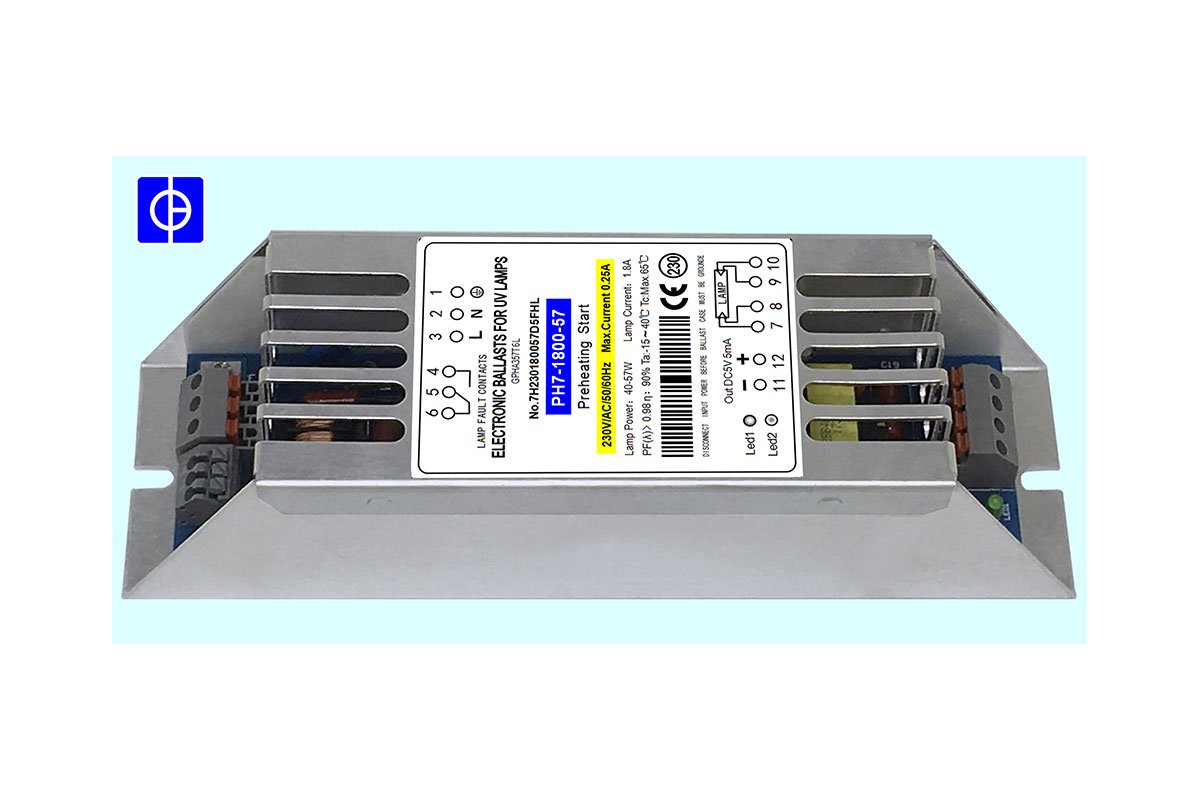

PH7-1800-57

download PDF
PH7-1800-57 1
PH7-1800-57 6
Product Model:PH7-1800-57（230）
Input Voltage:AC220V±20%
Ordering Code:7H230180057D5FHL
Product Model:PH7-1800-57（MLT）
Input Voltage:AC100-264V
Ordering Code:7HMLT180057D5FHL
Starting Mode:Preheat Start, Starting Time 3-5S
Power Frequency:50/60Hz
Input Current:
0.25A@230V 0.52A@110V
Dimming Control:
N/A (non-dimmable)
Input Features:Lightning protection; PF≥0.98; Efficiency (η): 90%; THD < 10; CCF < 1.7
Output Power:57W
Dimming Range:40-60W
Number of Lamps:1 pc
Output Current:1800mA
Output Current Range:1750-1850mA
Auxiliary Output:
Green/red LED status indication (green: normal operation; red: fault); 5 VDC/5 mA output for LED indication; dry-contact relay output for remote status feedback and control.
Output Features:
Constant Current, overvoltage protection; overcurrent protection; lamp leakage detection; filament open-circuit protection; cross-wiring protection; end-of-life (EOL) Protection
Standards Compliance:
IP64; CE certified
Ambient Temperature:-10°C ~ 40°C
Maximum Enclosure Temperature (TC):<70°C
Humidity:
5%–85%
Housing Construction:
Aluminum housing
Housing Dimensions:185 × 56 × 45mm
Mounting Hole Spacing:175mm
Connection Method:
European-Style Terminal Block; distance between ballast and lamp < 5 m
Outer Carton Size:42.5 × 23.5 × 20.5cm
Net Weight per Unit:0.3kg/pcs
Quantity per Carton:18pcs
Gross Weight per Carton:6kg
Tare Weight (T.W.):
0.6kg
Compatible Lamp Models:
GPHA357T6L
Applications:
Wastewater treatment, water purification, exhaust-gas treatment, air purification, printing, pharmaceuticals, medical care, food processing, aquaculture, etc. International Sales & Export: Wenzhou Chaoneng Water Treatment Equipment Co., Ltd. — Yueqing Science & Technology Incubation and Entrepreneurship Center (National-Level Technology Business Incubator), No. 261, Wei 17th Road, Yueqing Economic Development Zone, Yueqing, Wenzhou, Zhejiang, China. Tel.: 0577-6266 6115. Mobile/WeChat/WhatsApp: +86 186 1227 8922. Email: chen@chaonenguv.com. Manufacturer: Beijing Haoben Electronic Technology Co., Ltd. — Building 3, No. 30 Shixing Street, Shijingshan Park, Zhongguancun Science Park, Beijing, China. Tel.: 010 6883 7150.

Product Model

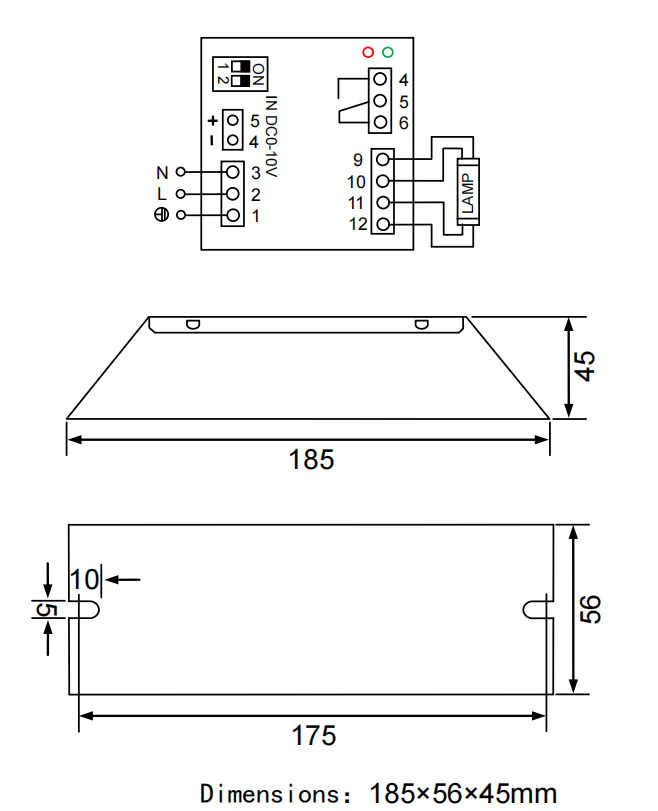

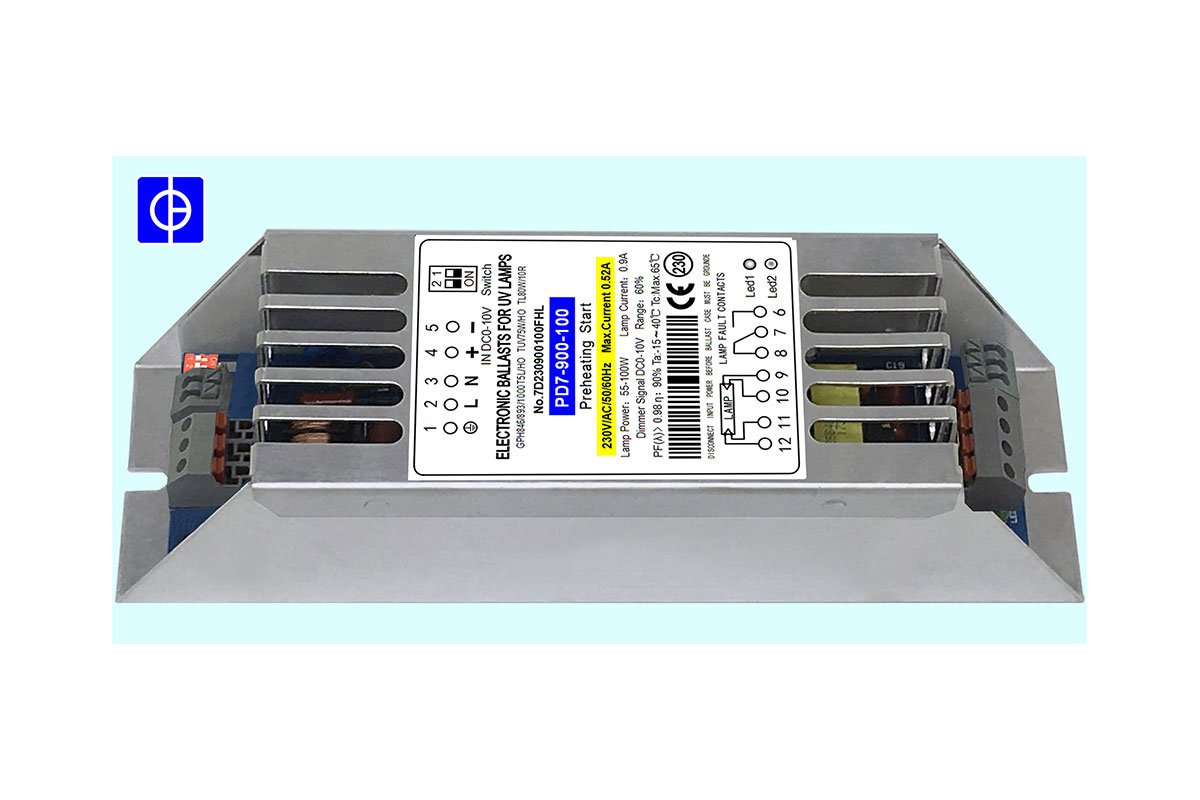

PD7-900-100

download PDF
PD7-900-100 1
PD7-900-100 6
Product Model:PD7-900-100（230）
Input Voltage:AC220V±20%
Ordering Code:7D230900100FHL
Product Model:PD7-900-100（MLT）
Input Voltage:AC100-264V
Ordering Code:7DMLT900100FHL
Starting Mode:preheat start, starting time 4-6S
Power Frequency:50/60Hz
Input Current:
0.43A@230V 0.91A@110V
Dimming Control:
Input: 0–10 VDC, enabled or disabled via DIP switch
Input Features:Lightning protection; PF≥0.98; Efficiency (η): 90%; THD < 10; CCF < 1.7
Output Power:40-100W
Dimming Range:60-100%
Number of Lamps:1 pc
Output Current:900mA
Output Current Range:300-900mA
Auxiliary Output:
Green/red LED status indication (green: normal operation; red: fault), 5 VDC/5 mA output for LED indication, and dry-contact relay output for remote status feedback and control.
Output Features:
Active PFC; PF ≥ 0.98; overvoltage protection; overcurrent protection; lamp leakage detection; filament open-circuit protection; cross-wiring protection; end-of-life (EOL) protection.
Standards Compliance:
IP64; CE certified
Ambient Temperature:-10°C ~ 40°C
Maximum Enclosure Temperature (TC):<70°C
Humidity:
5%–85%
Housing Construction:
Aluminum housing with U.S.-style potting compound
Housing Dimensions:185 × 56 × 45mm
Mounting Hole Spacing:175mm
Connection Method:
Euro-style Terminal Block; distance between ballast and lamp < 5 m
Outer Carton Size:42.5 × 23.5 × 20.5cm
Net Weight per Unit:0.3kg/pcs
Quantity per Carton:18pcs
Gross Weight per Carton:6kg
Tare Weight (T.W.):
0.6kg
Compatible Lamp Models:
GPH846T5L/HO GPH893T5L/HO GPH1000T5L/HO TUV75W/HO TL80W/10R
Applications:
Wastewater treatment, water purification, exhaust-gas treatment, air purification, printing, pharmaceuticals, medical care, food processing, aquaculture, etc. International Sales & Export: Wenzhou Chaoneng Water Treatment Equipment Co., Ltd. — Yueqing Science & Technology Incubation and Entrepreneurship Center (National-Level Technology Business Incubator), No. 261, Wei 17th Road, Yueqing Economic Development Zone, Yueqing, Wenzhou, Zhejiang, China. Tel.: 0577-6266 6115. Mobile/WeChat/WhatsApp: +86 186 1227 8922. Email: chen@chaonenguv.com. Manufacturer: Beijing Haoben Electronic Technology Co., Ltd. — Building 3, No. 30 Shixing Street, Shijingshan Park, Zhongguancun Science Park, Beijing, China. Tel.: 010 6883 7150.

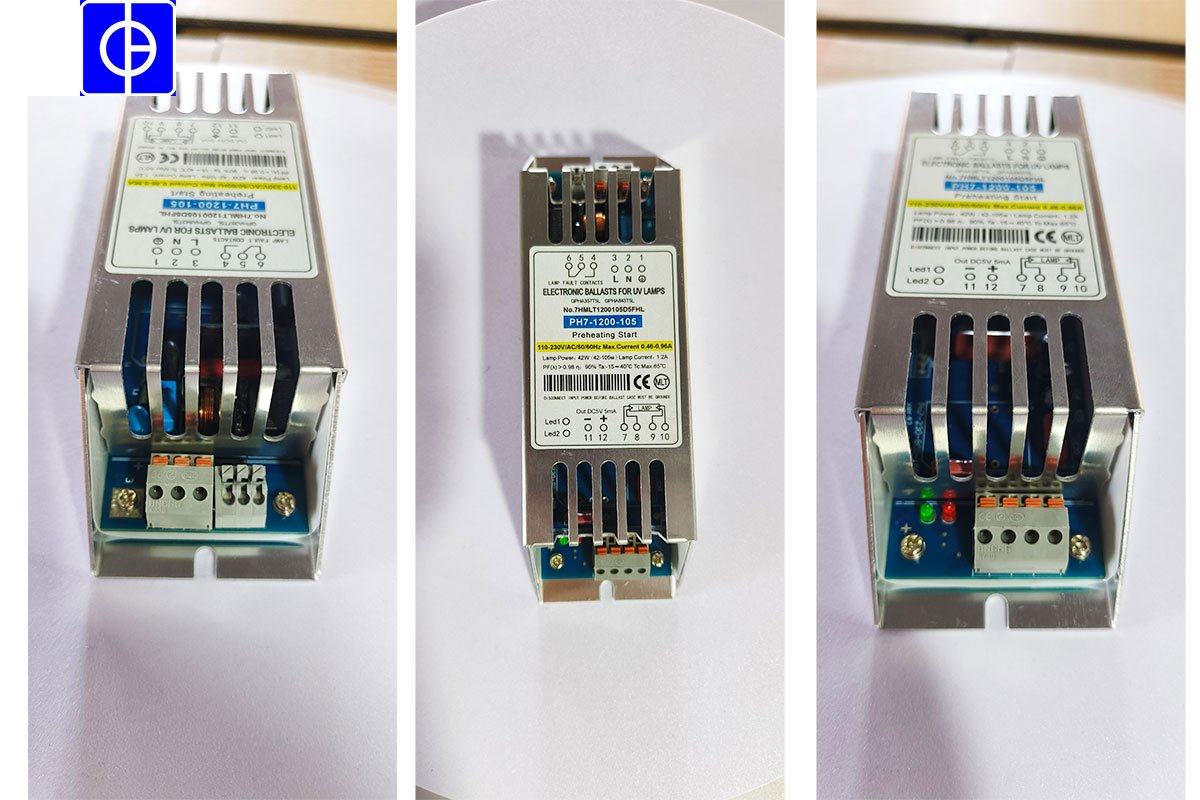

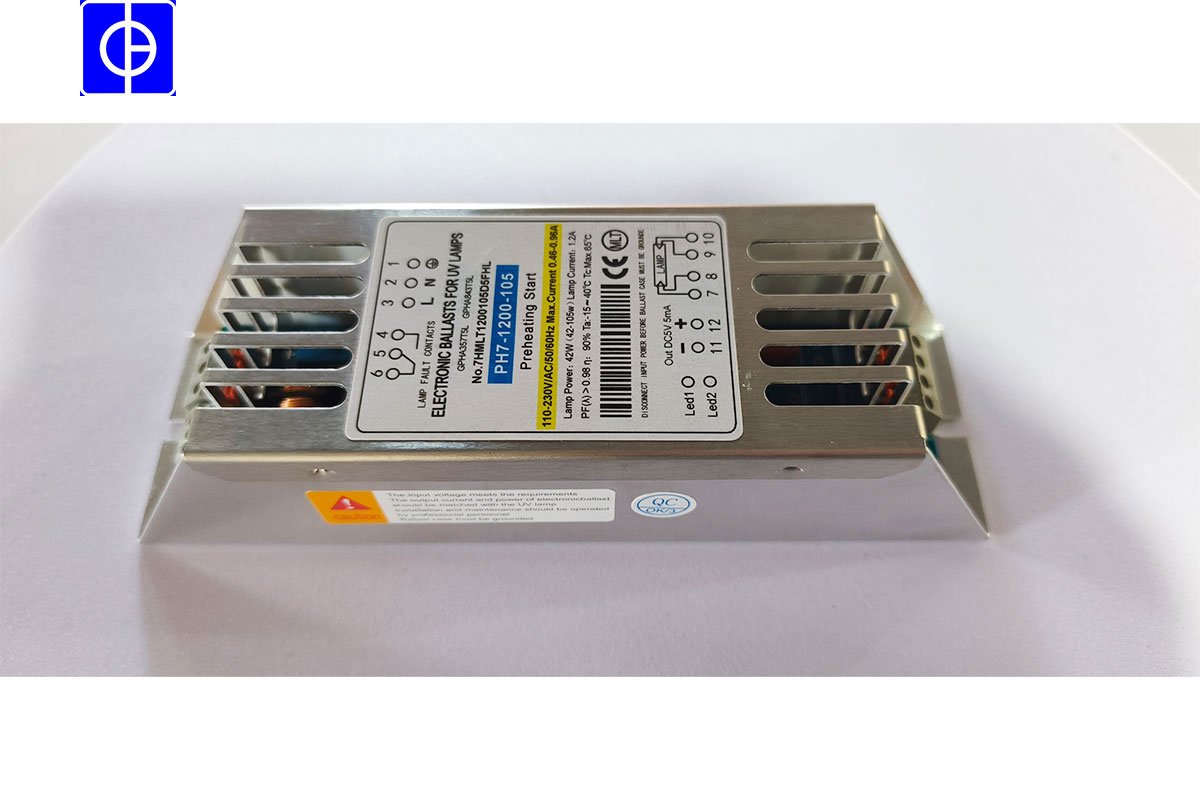

Product Model

PH7-1200-105

download PDF
PH7-1200-105 1
PH7-1200-105 6
Product Model:PH7-1200-105（230）
Input Voltage:AC220V±20%
Ordering Code:7H2301200105D5FHL
Product Model:PH7-1200-105（MLT）
Input Voltage:AC100-264V
Ordering Code:7HMLT1200105D5FHL
Starting Mode:Preheat Start, Starting Time 3-5s
Power Frequency:50/60Hz
Input Current:
0.46A@230V 0.96A@110V
Dimming Control:
N/A (non-dimmable)
Input Features:Lightning protection; PF≥0.98; Efficiency (η): 90%; THD < 10; CCF < 1.7
Output Power:105W
Dimming Range:42-105W
Number of Lamps:1 pc
Output Current:1200mA
Output Current Range:1150-1250mA
Auxiliary Output:
Green/red LED status indication (green: normal operation; red: fault); 5 VDC/5 mA output for LED indication; dry-contact relay output for remote status feedback and control.
Output Features:
Constant Current, overvoltage protection; overcurrent protection; lamp leakage detection; filament open-circuit protection; cross-wiring protection; end-of-life (EOL) Protection
Standards Compliance:
IP64; CE certified
Ambient Temperature:-10°C ~ 40°C
Maximum Enclosure Temperature (TC):<70°C
Humidity:
5%–85%
Housing Construction:
Aluminum housing
Housing Dimensions:185 × 56 × 45mm
Mounting Hole Spacing:175mm
Connection Method:
European-Style Terminal Block; distance between ballast and lamp < 5 m
Outer Carton Size:42.5 × 23.5 × 20.5cm
Net Weight per Unit:0.3kg/pcs
Quantity per Carton:18pcs
Gross Weight per Carton:6kg
Tare Weight (T.W.):
0.6kg
Compatible Lamp Models:
GPHA357T5L, GPHA843T5L
Applications:
Wastewater treatment, water purification, exhaust-gas treatment, air purification, printing, pharmaceuticals, medical care, food processing, aquaculture, etc. International Sales & Export: Wenzhou Chaoneng Water Treatment Equipment Co., Ltd. — Yueqing Science & Technology Incubation and Entrepreneurship Center (National-Level Technology Business Incubator), No. 261, Wei 17th Road, Yueqing Economic Development Zone, Yueqing, Wenzhou, Zhejiang, China. Tel.: 0577-6266 6115. Mobile/WeChat/WhatsApp: +86 186 1227 8922. Email: chen@chaonenguv.com. Manufacturer: Beijing Haoben Electronic Technology Co., Ltd. — Building 3, No. 30 Shixing Street, Shijingshan Park, Zhongguancun Science Park, Beijing, China. Tel.: 010 6883 7150.

Product Model

PN7-425-90

download PDF
PN7-425-90 1
PN7-425-90 6
Product Model:PN7-425-90（230）
Input Voltage:AC220V±10%
Ordering Code:7N23042590D5FL
Product Model:PN7-425-90（110）
Input Voltage:AC110V±10%
Ordering Code:7N11042590D5FL
Starting Mode:Instant Start, Starting Time < 1 s
Power Frequency:50/60Hz
Input Current:
0.43A@230V 0.9A@110V
Dimming Control:
N/A (non-dimmable)
Input Features:Lightning protection; PF0.98; Efficiency (η): 90%
Output Power:90W
Dimming Range:38-90W
Number of Lamps:1 pc
Output Current:425mA
Output Current Range:350-425mA
Auxiliary Output:
Green/red LED status indication (green: normal operation; red: fault); 5 VDC/5 mA output for LED indication; dry-contact relay output for remote status feedback and control.
Output Features:
Non-constant-current operation
Standards Compliance:
IP20; CE certified
Ambient Temperature:10°C ~ 40°C
Maximum Enclosure Temperature (TC):<70°C
Humidity:
5%–85%
Housing Construction:
Aluminum housing
Housing Dimensions:185 × 56 × 45mm
Mounting Hole Spacing:175mm
Connection Method:
European-Style Terminal Block; Ballast-to-Lamp Distance: < 1 m
Outer Carton Size:425 × 235 × 205mm
Net Weight per Unit:0.3KG
Quantity per Carton:18pcs
Gross Weight per Carton:6KG
Tare Weight (T.W.):
0.6kg
Compatible Lamp Models:
GPH793T5, GPH843T5, GPH1148T5, GPH1554T5, GPH1630T5, G36T5, G48T5, G64T5, G67T5, TUV64T5, TUV75T5
Applications:
Wastewater treatment, water purification, exhaust-gas treatment, air purification, printing, pharmaceuticals, medical care, food processing, aquaculture, etc. International Sales & Export: Wenzhou Chaoneng Water Treatment Equipment Co., Ltd. — Yueqing Science & Technology Incubation and Entrepreneurship Center (National-Level Technology Business Incubator), No. 261, Wei 17th Road, Yueqing Economic Development Zone, Yueqing, Wenzhou, Zhejiang, China. Tel.: 0577-6266 6115. Mobile/WeChat/WhatsApp: +86 186 1227 8922. Email: chen@chaonenguv.com. Manufacturer: Beijing Haoben Electronic Technology Co., Ltd. — Building 3, No. 30 Shixing Street, Shijingshan Park, Zhongguancun Science Park, Beijing, China. Tel.: 010 6883 7150.

Product Model

PN7-800-100

download PDF
PN7-800-100 1
PN7-800-100 6
Product Model:PN7-800-100（230）
Input Voltage:AC220V±10%
Ordering Code:7N230800100D5FL
Product Model:PN7-800-100（110）
Input Voltage:AC110V±10%
Ordering Code:7N110800100D5FL
Starting Mode:Instant Start, Starting Time < 1 s
Power Frequency:50/60Hz
Input Current:
0.48A@230V 0.98A@110V
Dimming Control:
N/A (non-dimmable)
Input Features:Lightning protection; PF0.98; Efficiency (η): 90%
Output Power:100W
Dimming Range:48-100W
Number of Lamps:1 pc
Output Current:800mA
Output Current Range:750-850mA
Auxiliary Output:
Green/red LED status indication (green: normal operation; red: fault); 5 VDC/5 mA output for LED indication; dry-contact relay output for remote status feedback and control.
Output Features:
Non-constant-current operation
Standards Compliance:
IP20; CE certified
Ambient Temperature:10°C ~ 40°C
Maximum Enclosure Temperature (TC):<70°C
Humidity:
5%–85%
Housing Construction:
Aluminum housing
Housing Dimensions:185 × 56 × 45mm
Mounting Hole Spacing:175mm
Connection Method:
European-Style Terminal Block; Ballast-to-Lamp Distance: < 1 m
Outer Carton Size:425 × 235 × 205mm
Net Weight per Unit:0.3KG
Quantity per Carton:18pcs
Gross Weight per Carton:6KG
Tare Weight (T.W.):
0.6kg
Compatible Lamp Models:
GPH436T5L/HO, GPH793T5L/HO, GPH846T5L/HO, GPH893T5L/HO, GPH1000T5L/HO, GHO36T5L, TUV55W/HO, TUV60W/HO, TUV75W/HO, TUV95WHOPL-L, TL100W
Applications:
Wastewater treatment, water purification, exhaust-gas treatment, air purification, printing, pharmaceuticals, medical care, food processing, aquaculture, etc. International Sales & Export: Wenzhou Chaoneng Water Treatment Equipment Co., Ltd. — Yueqing Science & Technology Incubation and Entrepreneurship Center (National-Level Technology Business Incubator), No. 261, Wei 17th Road, Yueqing Economic Development Zone, Yueqing, Wenzhou, Zhejiang, China. Tel.: 0577-6266 6115. Mobile/WeChat/WhatsApp: +86 186 1227 8922. Email: chen@chaonenguv.com. Manufacturer: Beijing Haoben Electronic Technology Co., Ltd. — Building 3, No. 30 Shixing Street, Shijingshan Park, Zhongguancun Science Park, Beijing, China. Tel.: 010 6883 7150.

Product Model

PN7-1200-105

download PDF
PN7-1200-105 1
PN7-1200-105 6
Product Model:PN7-1200-105（230）
Input Voltage:AC220V±10%
Ordering Code:7H2301200105D5FL
Product Model:PN7-1200-105（110）
Input Voltage:AC110V±10%
Ordering Code:7H1101200105D5FL
Starting Mode:Instant Start, Starting Time < 1 s
Power Frequency:50/60Hz
Input Current:
0.46A@230V 0.96A@110V
Dimming Control:
N/A (non-dimmable)
Input Features:Lightning protection; PF0.98; Efficiency (η): 90%
Output Power:105W
Dimming Range:42-105W
Number of Lamps:1 pc
Output Current:1200mA
Output Current Range:1150-1250mA
Auxiliary Output:
Green/red LED status indication (green: normal operation; red: fault); 5 VDC/5 mA output for LED indication; dry-contact relay output for remote status feedback and control.
Output Features:
Non-constant-current operation
Standards Compliance:
IP20; CE certified
Ambient Temperature:10°C ~ 40°C
Maximum Enclosure Temperature (TC):<70°C
Humidity:
5%–85%
Housing Construction:
Aluminum housing
Housing Dimensions:185 × 56 × 45mm
Mounting Hole Spacing:175mm
Connection Method:
European-Style Terminal Block; Ballast-to-Lamp Distance: < 1 m
Outer Carton Size:425 × 235 × 205mm
Net Weight per Unit:0.3KG
Quantity per Carton:18pcs
Gross Weight per Carton:6KG
Tare Weight (T.W.):
0.6kg
Compatible Lamp Models:
GPHA357T5L, GPHA843T5L
Applications:
Wastewater treatment, water purification, exhaust-gas treatment, air purification, printing, pharmaceuticals, medical care, food processing, aquaculture, etc. International Sales & Export: Wenzhou Chaoneng Water Treatment Equipment Co., Ltd. — Yueqing Science & Technology Incubation and Entrepreneurship Center (National-Level Technology Business Incubator), No. 261, Wei 17th Road, Yueqing Economic Development Zone, Yueqing, Wenzhou, Zhejiang, China. Tel.: 0577-6266 6115. Mobile/WeChat/WhatsApp: +86 186 1227 8922. Email: chen@chaonenguv.com. Manufacturer: Beijing Haoben Electronic Technology Co., Ltd. — Building 3, No. 30 Shixing Street, Shijingshan Park, Zhongguancun Science Park, Beijing, China. Tel.: 010 6883 7150.

Interested in our No. 7 Series (40–120 W)? Contact us for help choosing the right model or requesting a custom quote.

WhatsApp
ChaoNeng logoWenzhou Chaoneng Water Treatment Equipment Co., Ltd.

Specialist Manufacturer of UV Ballasts

WhatsApp

Contact Us

  • +8618612278922
  • chen@chaonenguv.com
  • Zhejiang·China

© 2026 chaoneng. All rights reserved.

Water Treatment Equipment · UV Disinfection · Electronic Ballasts
